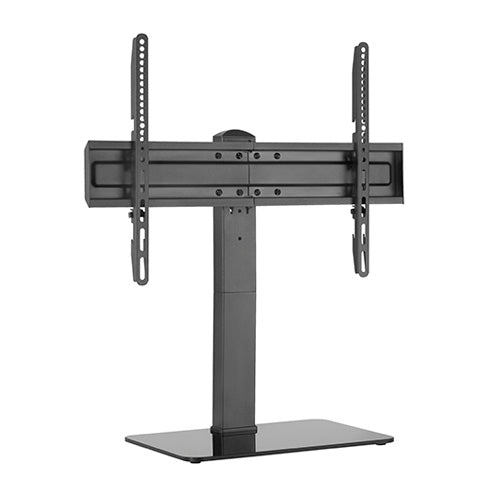

  • Lumi LDT03-23L TV tabletop stand, product view, supplied in India by Corporate AV

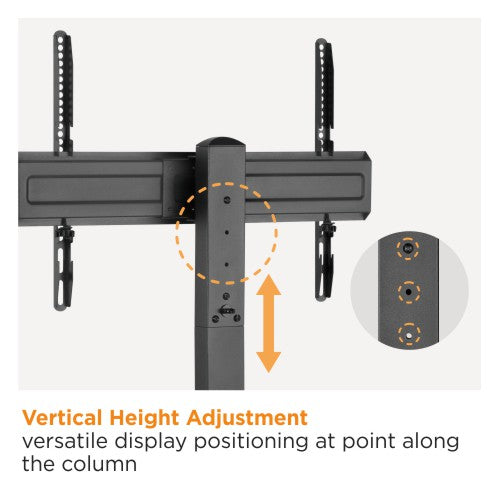

  • Lumi LDT03-23L TV tabletop stand showing the height adjustment

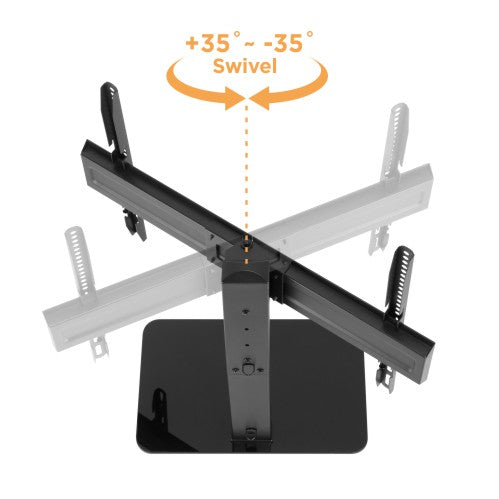

  • Lumi LDT03-23L TV tabletop stand showing the swivel movement

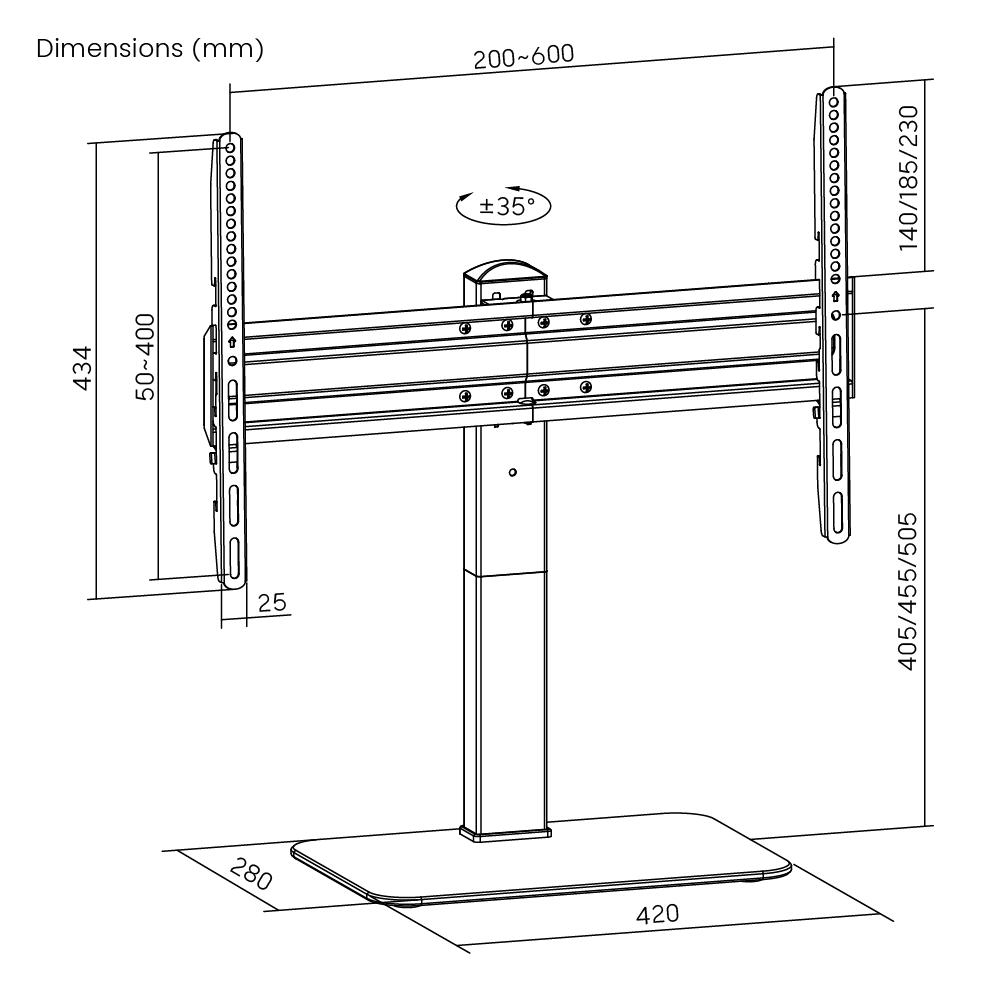

  • Dimension drawing of the Lumi LDT03-23L TV tabletop stand showing overall size and mounting dimensions
1 4

Lumi LDT03-23L: Swivel Tabletop TV Stand with Glass Base, 37-70 Inch

Model LDT03-23L

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 40 kg (88 lbs)
  • Fits screens from 37 to 70 inches
  • Height range of 360/405/455/505/550 mm (14.2 inch/15.9 inch/17.9 inch/19.9 inch/21.7 inch)
  • Swivel range of -35° to +35°
Huddle Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LDT03-23L is a TV tabletop stand for flat-panel TVs from 37 to 70 inches, with a weight capacity of 40 kg (88 lbs). It offers swivel of -35° to +35° and a height range of 360/405/455/505/550 mm (14.2 inch/15.9 inch/17.9 inch/19.9 inch/21.7 inch). It supports VESA patterns from 200 x 200 to 600 x 400 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LDT03-23L on its own or as part of a complete display setup, including display selection, placement, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 40 kg (88 lbs)
  • Fits screens from 37 to 70 inches
  • Height range of 360/405/455/505/550 mm (14.2 inch/15.9 inch/17.9 inch/19.9 inch/21.7 inch)
  • Swivel range of -35° to +35°
  • VESA 600 x 400 mm compatible
Why choose the LDT03-23L
Choose the LDT03-23L when the TV should sit on a console or table and the wall cannot be drilled. It is rated for 40 kg (88 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LDT03-23L is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 40 kg (88 lbs)

Fits screens from 37 to 70 inches

Height range of 360/405/455/505/550 mm (14.2 inch/15.9 inch/17.9 inch/19.9 inch/21.7 inch)

Swivel range of -35° to +35°

VESA 600 x 400 mm compatible

Use Cases

Ideal Applications

TVs on a credenza, console or table in huddle rooms

Hotel rooms and hospitality spaces

Reception and waiting areas

Spaces where drilling into the wall is not possible

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 37 to 70 inch
Curved TV Compatible Yes
VESA Compatible 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm
Weight Capacity 40 kg (88 lbs)
Shelf Weight Capacity No
Movement & Adjustment
Swivel Range -35° to +35°
TV Height Range 360/405/455/505/550 mm (14.2 inch/15.9 inch/17.9 inch/19.9 inch/21.7 inch)
Design & Installation
Product Type TV Tabletop Stand
Dimensions (L x W x H) 640 x 280 x 770 mm (25.2 x 11 x 30.3 inch)
Base Type Pedestal
Column Size 70 x 40 x 1.5 mm (2.8 x 1.6 x 0.059 inch)
Cable Management Yes
Drawer No
Door No
Materials & Finish
Material Plastic, Steel, Tempered Glass
Colour Fine Texture Black
Accessory Colour Fine Texture Black
Column Material Steel
Column Finish Powder Coating
Column Color Fine Texture Black
Glass Colour Black Silk Screen
Glass Thickness (top / bottom) 8 mm (0.31 inch)

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LDT03-23L From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LDT03-23L support?
Lumi lists the LDT03-23L for screens from 37 to 70 inches with a weight capacity of 40 kg (88 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LDT03-23L fit?
It fits VESA 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400, 600 x 400 mm.
How much can the Lumi LDT03-23L tilt, swivel or extend?
Lumi lists swivel of -35° to +35° and a height range of 360/405/455/505/550 mm (14.2 inch/15.9 inch/17.9 inch/19.9 inch/21.7 inch) for the LDT03-23L.
Does the Lumi LDT03-23L work with curved TVs?
Yes. Lumi lists the LDT03-23L as compatible with curved TVs. Check the weight and VESA pattern of your specific model.
Does the Lumi LDT03-23L include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi LDT03-23L in India?
Yes. Corporate AV can supply the LDT03-23L on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
