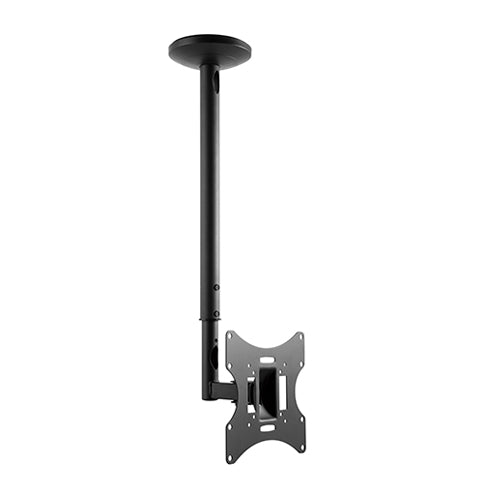

  • Lumi LCD-504A TV ceiling mount, product view, supplied in India by Corporate AV

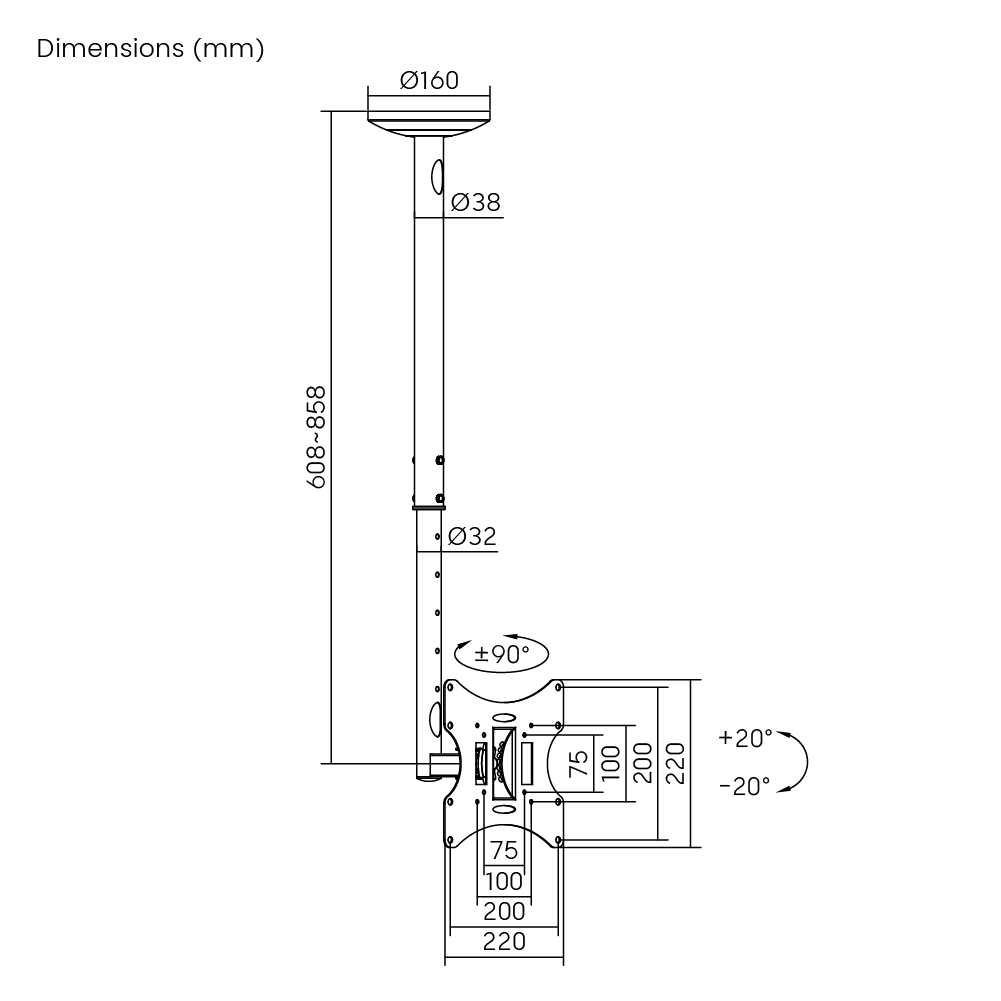

  • Dimension drawing of the Lumi LCD-504A TV ceiling mount showing overall size and mounting dimensions
1 2

Lumi LCD-504A: Telescopic LCD Ceiling Mount for 23 to 42 Inch Screens

Model LCD-504A

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 30 kg (66 lbs)
  • Fits screens from 23 to 42 inches
  • Profile of 608 to 858 mm (23.9 to 33.8 inch)
  • Tilt range of +20° to -20°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi LCD-504A is a TV ceiling mount for flat-panel TVs from 23 to 42 inches, with a weight capacity of 30 kg (66 lbs). It has a profile of 608 to 858 mm (23.9 to 33.8 inch). It offers tilt of +20° to -20° and swivel of +90° to -90°. It supports VESA patterns up to 200 x 200.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the LCD-504A on its own or as part of a complete display installation, including site survey, ceiling structure checks, mounting and commissioning where the project needs it.

Key features

  • Weight capacity of 30 kg (66 lbs)
  • Fits screens from 23 to 42 inches
  • Profile of 608 to 858 mm (23.9 to 33.8 inch)
  • Tilt range of +20° to -20°
  • Swivel range of +90° to -90°
Why choose the LCD-504A
Choose the LCD-504A when wall space is not available and the screen needs to hang from the ceiling at a set height. It is rated for 30 kg (66 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the LCD-504A is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 30 kg (66 lbs)

Fits screens from 23 to 42 inches

Profile of 608 to 858 mm (23.9 to 33.8 inch)

Tilt range of +20° to -20°

Swivel range of +90° to -90°

Use Cases

Ideal Applications

Ceiling-hung TVs in meeting rooms, waiting areas and lobbies

Retail and showroom screens

Hospitality and restaurant displays

Training rooms where wall space is limited

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 23 to 42 inch
Curved TV Compatible No
Mounting Hole Pattern VESA Only
VESA Compatible 75 x 75, 100 x 100, 200 x 100, 200 x 200 mm
Max. Mounting Hole 200 x 200 mm
Weight Capacity 30 kg (66 lbs)
Movement & Adjustment
Tilt Range +20° to -20°
Swivel Range +90° to -90°
Design & Installation
Product Type TV Ceiling Mount
Dimensions (D x W x H) 138 x 160 x 968 mm (5.4 x 6.3 x 38.1 inch)
Profile 608 to 858 mm (23.9 to 33.8 inch)
Installation Ceiling Mounted
Panel Type Fixed Panel
Wall Plate Type Fixed Wall Plate
Cable Management Yes
Bubble Level No
Materials & Finish
Material Steel
Surface Finish Powder Coating
Colour Matte Black
Strength Tested 3 Times Approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The LCD-504A From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi LCD-504A support?
Lumi lists the LCD-504A for screens from 23 to 42 inches with a weight capacity of 30 kg (66 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi LCD-504A fit?
It fits VESA 75 x 75, 100 x 100, 200 x 100, 200 x 200 mm, with 200 x 200 as the maximum mounting hole pattern.
How much can the Lumi LCD-504A tilt, swivel or extend?
Lumi lists tilt of +20° to -20° and swivel of +90° to -90° for the LCD-504A.
How far does the screen sit from the wall on the LCD-504A?
Lumi lists a profile of 608 to 858 mm (23.9 to 33.8 inch) for the LCD-504A.
What surfaces can the Lumi LCD-504A be installed on?
Lumi lists the following installation options for the LCD-504A: ceiling mounted. Corporate AV can check the surface and load during a site survey before installation.
Does the Lumi LCD-504A work with curved TVs?
No. Lumi lists the LCD-504A as not suitable for curved TVs; it is designed for flat screens.
Does Corporate AV install the Lumi LCD-504A in India?
Yes. Corporate AV can supply the LCD-504A on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
