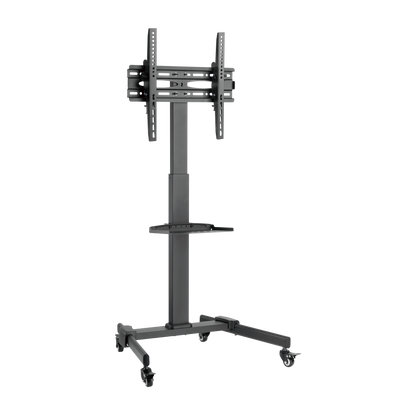

  • Lumi FS22-44TW TV cart, product view, supplied in India by Corporate AV

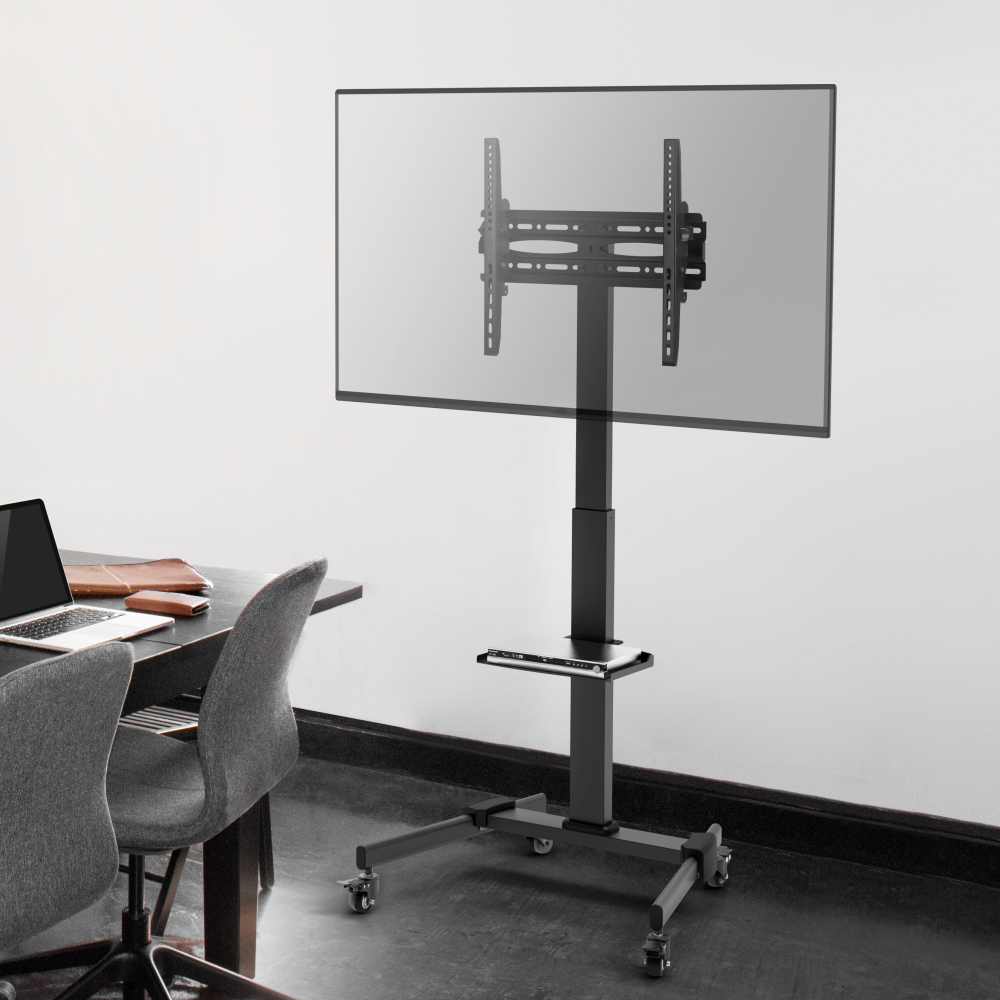

  • Lumi FS22-44TW TV cart installed with a TV in a meeting or classroom setting
  • Lumi FS22-44TW TV cart showing the tilt adjustment

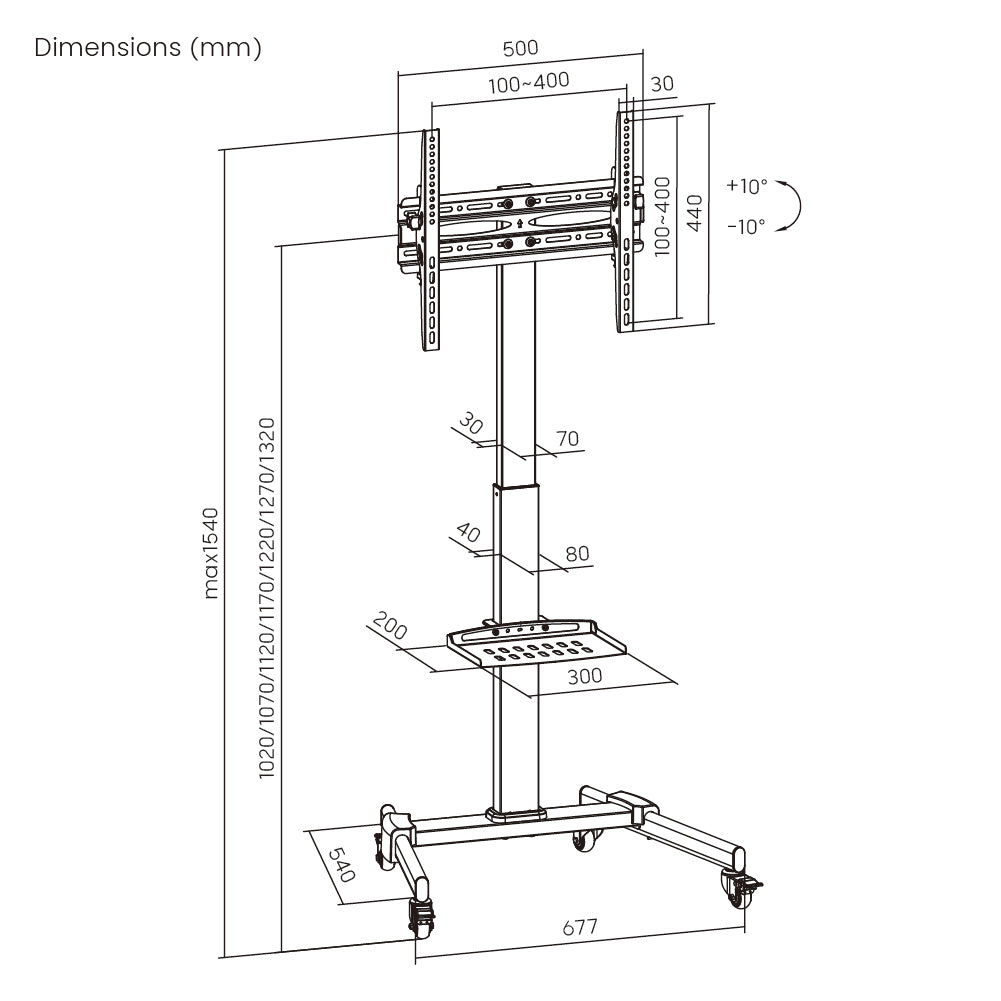

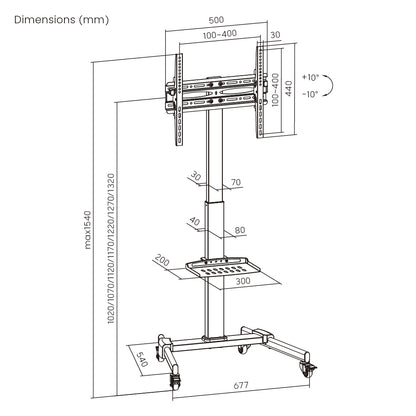

  • Dimension drawing of the Lumi FS22-44TW TV cart showing overall size and mounting dimensions
1 4

Lumi FS22-44TW: Compact Height Adjustable Steel TV Cart, 32-55 Inch

Model FS22-44TW

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized Lumi Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Weight capacity of 35 kg (77 lbs)
  • Fits screens from 32 to 55 inches
  • Height range of 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch)
  • Tilt range of +10° to -10°
Meeting Room AV Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Lumi FS22-44TW is a TV cart for flat-panel displays from 32 to 55 inches, with a TV weight capacity of 35 kg (77 lbs). It offers tilt of +10° to -10° and a height range of 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch). It supports VESA patterns from 100 x 100 to 400 x 400 mm.

Corporate AV is an authorised Lumi importer and distributor in India. We supply the FS22-44TW on its own or as part of a complete meeting room, classroom or signage setup, including display selection, cabling and commissioning where the project needs it.

Key features

  • Weight capacity of 35 kg (77 lbs)
  • Fits screens from 32 to 55 inches
  • Height range of 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch)
  • Tilt range of +10° to -10°
  • VESA 400 x 400 mm compatible
Why choose the FS22-44TW
Choose the FS22-44TW when one display has to move between rooms or be set up on demand without drilling into walls. It is rated for 35 kg (77 lbs). Corporate AV checks the mounting surface, load and cabling during a site survey, so the FS22-44TW is installed and commissioned as part of a complete AV system, not just delivered as a box.
Product Highlights

Key Benefits

Weight capacity of 35 kg (77 lbs)

Fits screens from 32 to 55 inches

Height range of 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch)

Tilt range of +10° to -10°

VESA 400 x 400 mm compatible

Use Cases

Ideal Applications

Mobile displays for meeting rooms and training rooms

Classrooms and lecture spaces that share one screen

Events, exhibitions and showrooms

Temporary presentation and signage setups

Technical Details

Technical Specifications

Compatibility & Load
Fit Screen Size 32 to 55 inch
VESA Compatible 100 x 100, 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400 mm
TV Weight Capacity 35 kg (77 lbs)
Screen Quantity 1
Shelf Weight Capacity 5 kg (11 lbs)
Movement & Adjustment
Tilt Range +10° to -10°
Height Range 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch)
TV Height Adjustable Yes
Shelf Height Adjustable Yes
Design & Installation
Product Type TV Cart
Dimensions (D x W x H) 677 x 540 x 1240 to 1540 mm (26.7 x 21.3 x 48.8 to 60.6 inch)
Base Type Caster
Column Size (main / extension) 80 x 40 x 1.5 x 660 mm/70 x 30 x 1.5 x 740 mm (3.1 x 1.6 x 0.059 x 26 inch/2.8 x 1.2 x 0.059 x 29.1 inch)
Wheel Diameter 2 inch (2 inch)
Cable Management Yes
10 Degree Slope Testing No
Materials & Finish
Material Steel, Plastic
Metal Sheet Thickness VESA Panel THK=1.5 mm cold-rolled sheet, Bracket Arm THK=2 mm cold-rolled sheet, Bracket Feet THK=2 mm cold-rolled sheet (VESA Panel THK=0.059 inch cold-rolled sheet, Bracket Arm THK=0.079 inch cold-rolled sheet, Bracket Feet THK=0.079 inch cold-rolled sheet)
Surface Finish Powder Coating
Colour Fine Texture Black
Accessory Colour Fine Texture Black
Strength Tested 4 times approved

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The FS22-44TW From Corporate AV?
  • Genuine Lumi stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs Lumi products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What TV and display sizes and weights does the Lumi FS22-44TW support?
Lumi lists the FS22-44TW for screens from 32 to 55 inches with a weight capacity of 35 kg (77 lbs). Check your screen's actual weight and mounting pattern against these limits before ordering.
Which VESA patterns does the Lumi FS22-44TW fit?
It fits VESA 100 x 100, 200 x 100, 200 x 200, 300 x 200, 400 x 200, 300 x 300, 400 x 300, 400 x 400 mm.
How much can the Lumi FS22-44TW tilt, swivel or extend?
Lumi lists tilt of +10° to -10° and a height range of 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch) for the FS22-44TW.
How high can the TV be positioned on the Lumi FS22-44TW?
Lumi lists a height range of 1020 mm/1070 mm/1120 mm/1170 mm/1220 mm/1270 mm/1320 mm (40.2 inch/42.1 inch/44.1 inch/46.1 inch/48 inch/50 inch/52 inch) with height adjustment of the TV. Corporate AV can help match the height to the room and seating.
Does the Lumi FS22-44TW include cable management?
Cable management: Yes. (Per the Lumi specification.)
Does Corporate AV install the Lumi FS22-44TW in India?
Yes. Corporate AV can supply the FS22-44TW on its own, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
