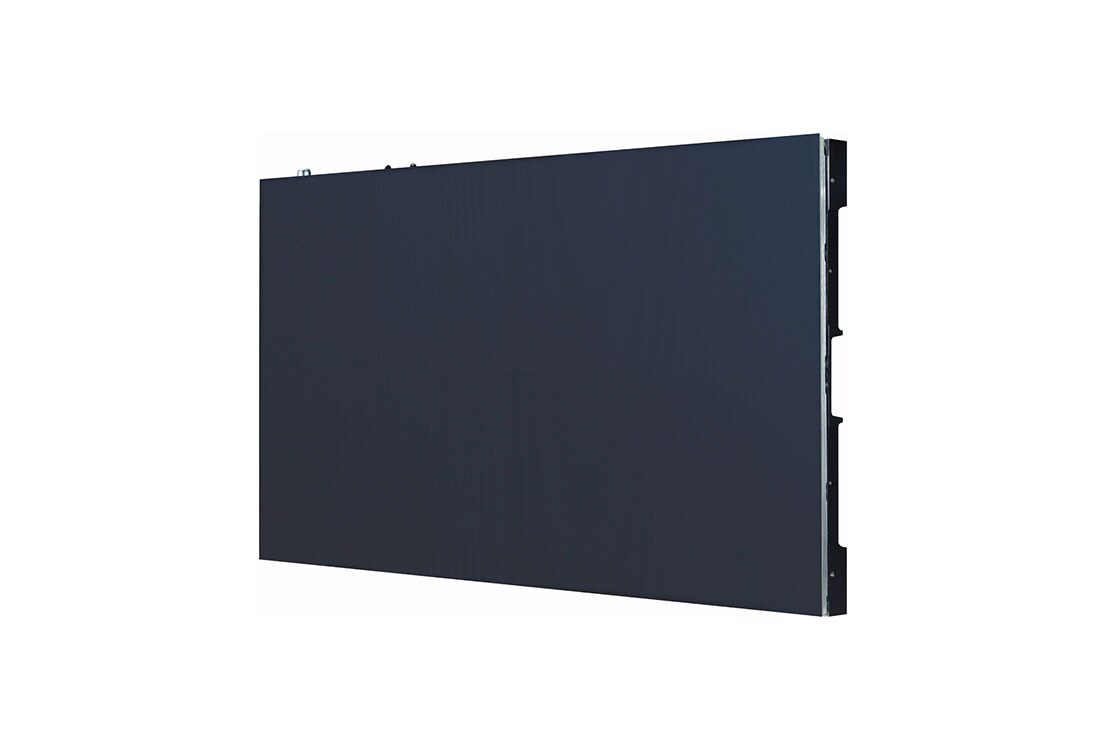

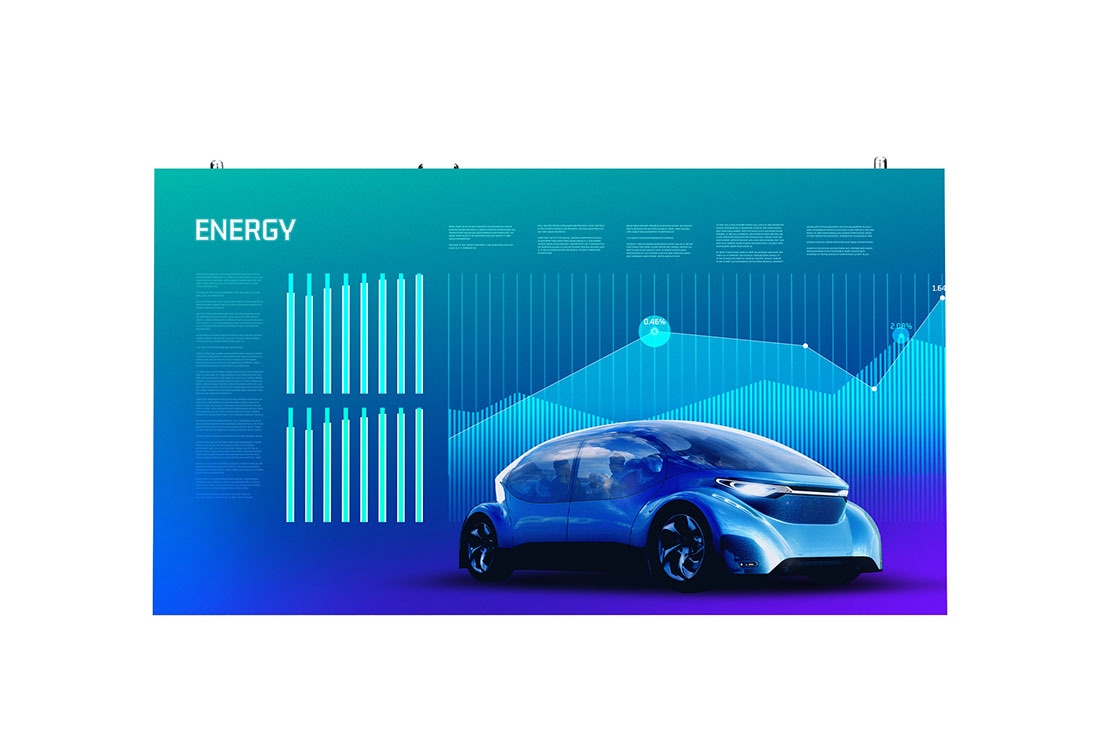

LG LSAP012: MAGNIT Pro 1.25mm Micro LED Display Cabinet
Model LSAP012
Request a Quote
Availability: Out of Stock
- 1.25mm pixel pitch with 1,000 nit minimum brightness after calibration
- 24,000:1 contrast ratio at 10 lux with full black coating for exceptional black immersion
- TÜV certified wide color viewing angle for consistent color from virtually any position
- Sturdy die-cast aluminum cabinet construction resists dust, EMI, and physical impact
Product Overview
Overview
The LG LSAP012 is a ProAV grade Micro LED display cabinet built for boardrooms, virtual production, and broadcast studios, powered by the Megapixel HELIOS LED Processing Platform.
Corporate AV supplies and integrates the LSAP012 across India for boardrooms, auditoriums and large venues, including site survey, installation and commissioning where the project needs it.
Key features
- 1.25mm pixel pitch with 1,000 nit minimum brightness after calibration
- Powerful UI/UX through the Megapixel HELIOS LED Processing Platform, including real-time mapping, multi-user control, and hyper-speed seam correction
- 24,000:1 contrast ratio at 10 lux with full black coating for exceptional black immersion
- TÜV certified wide color viewing angle for consistent color from virtually any position
- Sturdy die-cast aluminum cabinet construction resists dust, EMI, and physical impact
Why choose the LSAP012
It is a Micro LED cabinet that builds into a seamless, borderless LED wall, so large canvases avoid the seams of tiled LCD panels. Corporate AV checks the room, mounting surface, power and network during a site survey, so the LSAP012 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights
Key Benefits
1.25mm pixel pitch with 1,000 nit minimum brightness after calibration
24,000:1 contrast ratio at 10 lux with full black coating for exceptional black immersion
TÜV certified wide color viewing angle for consistent color from virtually any position
Sturdy die-cast aluminum cabinet construction resists dust, EMI, and physical impact
Use Cases
Ideal Applications
Boardrooms & Executive Suites
Auditoriums & Large Venues
Meeting & Huddle Rooms
Control Rooms & Command Centres
Technical Details
Technical Specifications
Display
Pixel Pitch
1.25mm
Module Resolution
240 x 90
Cabinet Resolution
480 x 270
Max Brightness (Calibrated)
1,000 nits
Contrast Ratio
24,000:1 at 10 lux
Viewing Angle
150 x 150 Degrees
Lifetime (Half Brightness)
Up to 100,000 Hours
Connectivity & Expansion
Controller
Megapixel VR HELIOS
Physical, Mounting & Compatibility
Cabinet Dimensions
600 x 337.5 x 44.9mm
Weight per Cabinet
7.8 kg
Service Access
Front
Operation, Power & Environment
IP Rating
IP50 Front, IP20 Rear
General
Pixel Configuration
Micro LED
Cabinet Material
Die Casting Aluminum
Processing Depth
22-bit Internal Processing, HDR10
Frame Rate
23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60 Hz
Fire Protection
BS476 Part 7, Class 1
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The LSAP012 From Corporate AV?
- Genuine LG stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs LG products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
How bright is the LG LSAP012?
LG lists the brightness of the LSAP012 as: 1,000 nits.
What environment is the LG LSAP012 designed for?
LG lists the environment for the LSAP012 as: IP50 Front, IP20 Rear.
What are the main features of the LG LSAP012?
LG lists these main features for the LSAP012: 1.25mm pixel pitch with 1,000 nit minimum brightness after calibration; Powerful UI/UX through the Megapixel HELIOS LED Processing Platform, including real-time mapping, multi-user control, and hyper-speed seam correction; 24,000:1 contrast ratio at 10 lux with full black coating for exceptional black immersion; TÜV certified wide color viewing angle for consistent color from virtually any position.
Does Corporate AV install the LG LSAP012?
Yes. Corporate AV can supply the LSAP012 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the LG LSAP012 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
