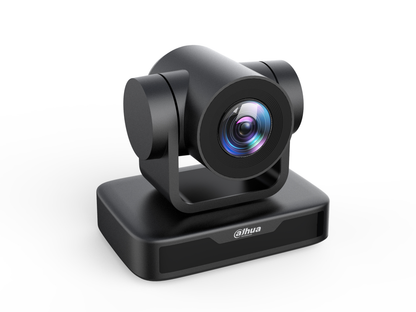

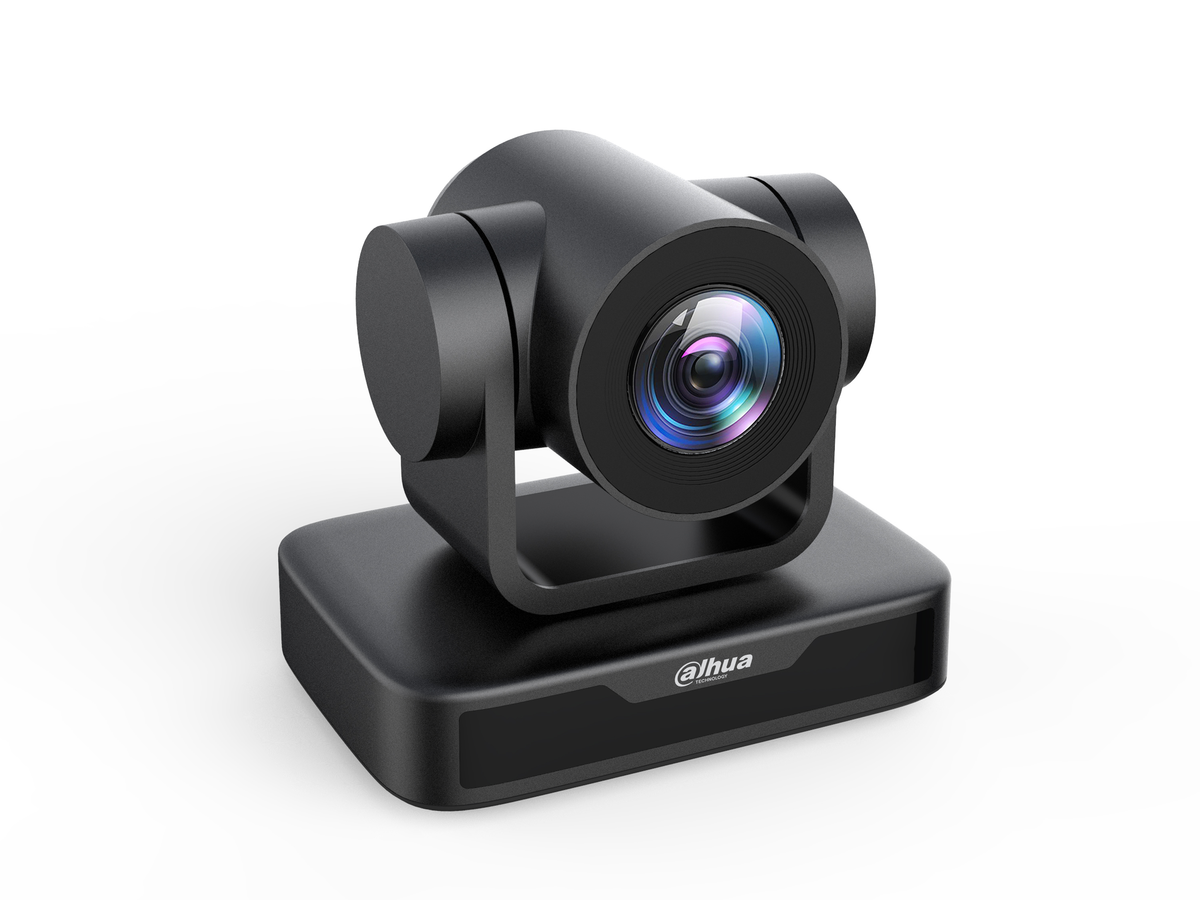

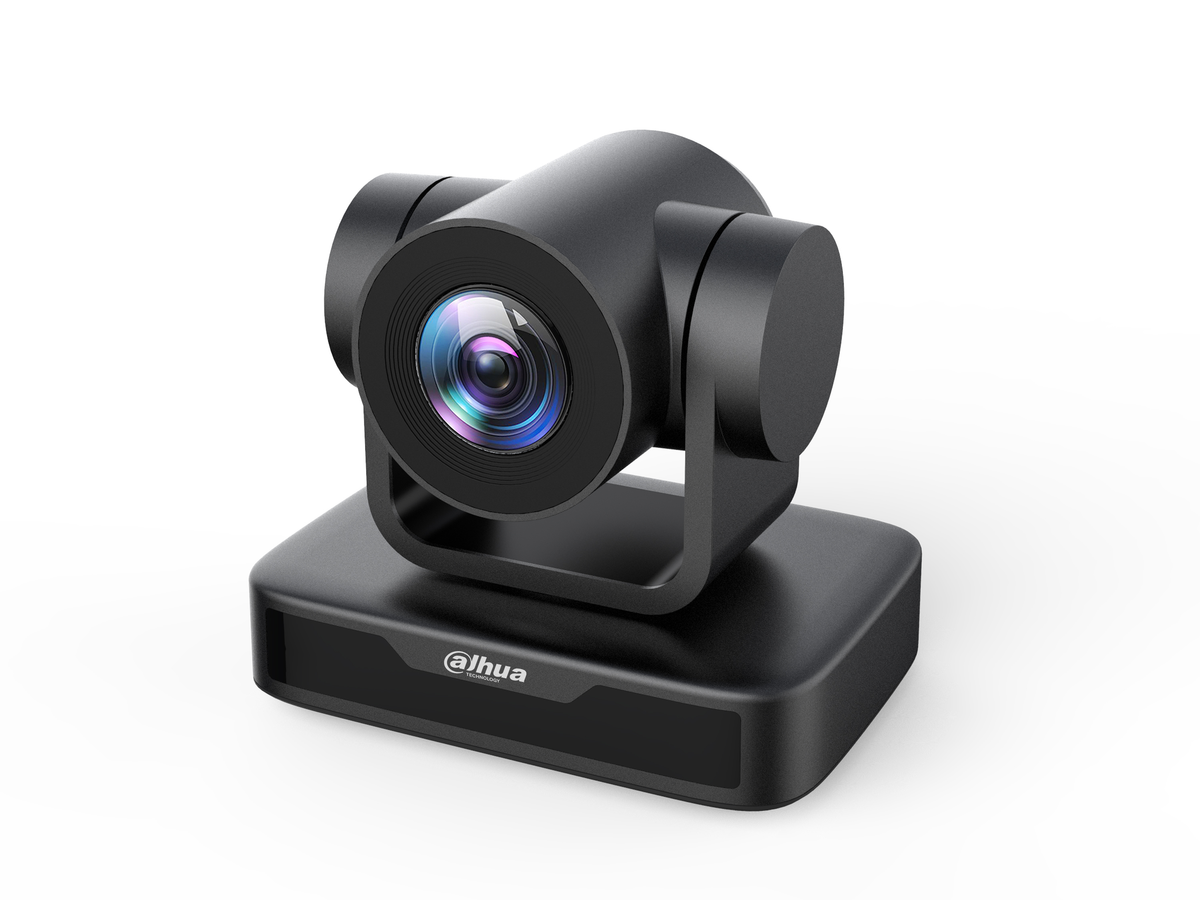

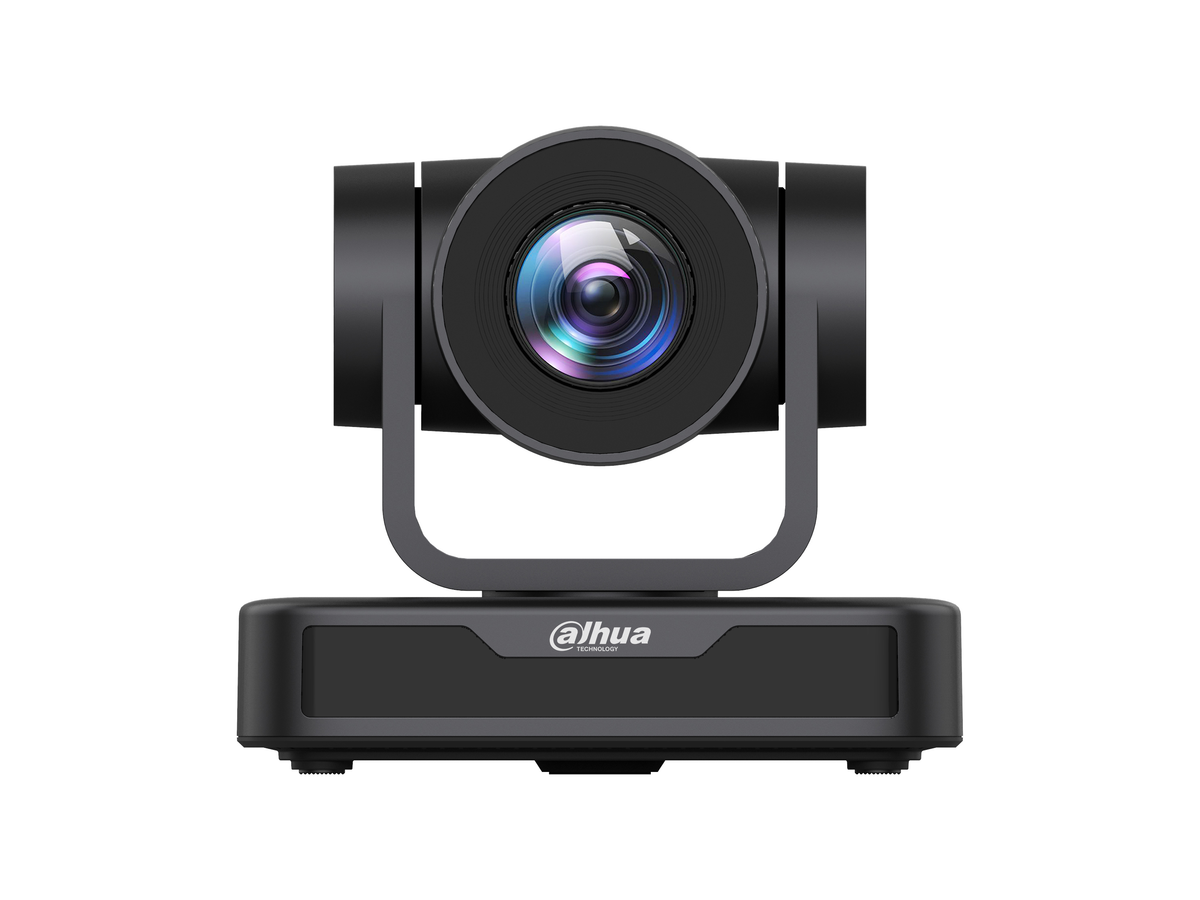

Dahua PKP-UC10A: USB Conferencing Camera
Model PKP-UC10A
Request a Quote
Availability: Out of Stock
- Full HD 1080p Resolution: Delivers crisp, clear video quality for all conferencing needs
- Plug-and-Play USB Connectivity: No drivers required; simply connect and start using immediately
- Wide-Angle Lens: Captures more of the room, perfect for group meetings and presentations
- Built-In Noise Reduction Microphone: Ensures clear audio free from background disturbances
Product Overview
Overview
The Dahua PKP-UC10A is an USB conferencing camera. This versatile USB camera offers plug-and-play convenience, making it the perfect choice for remote work, live streaming, and virtual collaboration.
Corporate AV supplies, installs and supports the Dahua PKP-UC10A across India. Request a quote for supply, installation and commissioning.
Key features
- Full HD 1080p Resolution - Delivers crisp, clear video quality for all conferencing needs.
- Plug-and-Play USB Connectivity - No drivers required; simply connect and start using immediately.
- Wide-Angle Lens - Captures more of the room, perfect for group meetings and presentations.
- Built-In Noise Reduction Microphone - Ensures clear audio free from background disturbances.
- Auto Focus - Keeps your image sharp, even with movement or multiple participants.
- Universal Compatibility - Works seamlessly with Zoom, Teams, Skype, Meet, and more.
- Flexible Mounting Options - Easily attaches to laptops, monitors, or tripods for versatile setups.
- Compact and Lightweight Design - Ideal for travel, home offices, or shared workspaces.
Why choose the PKP-UC10A
It is a USB camera for adding video calling to a room or an interactive display. Corporate AV adds a site survey, installation and support across India, so the PKP-UC10A is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Full HD 1080p Resolution: Delivers crisp, clear video quality for all conferencing needs
Plug-and-Play USB Connectivity: No drivers required; simply connect and start using immediately
Wide-Angle Lens: Captures more of the room, perfect for group meetings and presentations
Built-In Noise Reduction Microphone: Ensures clear audio free from background disturbances
Auto Focus: Keeps your image sharp, even with movement or multiple participants
Use Cases
Ideal Applications
Huddle rooms and small meeting rooms
Classrooms and training rooms
BYOD video calls with Teams, Zoom and Google Meet
Technical Details
Technical Specifications
Media functions
Noise Reduction
2D and 3D digital noise reduction
White Balance
Automatic/manual/one-click WB/specified color temperature (2400K–7100K)
Exposure
Automatic and manual
BLC
On/off
Image Adjustment
Brightness, hue, saturation, contrast, sharpness, black-white mode, gamma ray curve
S/N Ratio
> 50 dB
Video Compression
YUY2/NV12/MJPG/H.264
USB Video Communication Protocol
UVC
General
Operating Voltage
12 V
Operating Current
0.42 A (max)
Power Consumption
5 W (max)
Other specifications
Category
Conferencing Camera, Dahua
Device Lens
Image Sensor
2 MP CMOS sensor
Max. Resolution
1920 (H) × 1080 (V)
Field of View
Horizontal angle: 8.8° (narrow angle)–66°(wide angle) Vertical angle: 8.8° (narrow angle)–66°(wide angle)
Focal Length
f=4.34mm–41.66mm
Digital Zoom
10X
Min. Illumination
0.5 lux (F1.8, AGC ON)
Aperture
F1.85–F2.43
Lens Type
Automatic/manual/one-click focus
Port
Video Output Port
1-channel USB 2.0 port: Type A
Control Port
RS 232
Protocol
VISCA/Pelco-D/Pelco-P
Power
HEC3800 power socket (VDC 12)
PTZ
PTZ Pan/Tilt
Horizontal angle: –170°–+170° Pitch angle: –30°–+30°
PTZ Speed
Horizontal angle speed control: 0.1°–60° per second Pitch angle speed control: 0.1°–40° per second
PTZ Presets
The user can set up to 255 preset positions (with 10 preset positions accessible via the remote control)
Environment
Operating Temperature
–10 °C to +50 °C (–14 °F to +122 °F)
Operating Humidity
20%–80% (RH)
Storage Temperature
–10 °C to +60 °C (–14 °F to +140 °F)
Storage Humidity
20%–80% (RH)
Operating Environment
Indoor
Size and Weight
Product Dimensions
156.8 mm × 112.6 mm × 139.0 mm (6.17" × 4.43" × 5.47") (L × W × H)
Weight
1.0 kg (2.20 lb)
Packing List
Packing List
1 camera, power adapter, remote control, USB 2.0 video cable, users' manual, warranty card, packing list.
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PKP-UC10A From Corporate AV?
- Genuine Dahua stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Dahua products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Dahua PKP-UC10A?
The Dahua PKP-UC10A is an USB conferencing camera. This versatile USB camera offers plug-and-play convenience, making it the perfect choice for remote work, live streaming, and virtual collaboration.
Who is the Dahua PKP-UC10A best suited for?
The PKP-UC10A suits huddle rooms and small meeting rooms, classrooms and training rooms, byod video calls with teams and zoom and google meet. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Dahua PKP-UC10A units for a rollout?
Yes. Corporate AV supplies and integrates the Dahua PKP-UC10A in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Dahua PKP-UC10A in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Dahua PKP-UC10A?
These key specifications are listed for the Dahua PKP-UC10A. Power Consumption: 5 W (max). Storage Temperature: –10 °C to +60 °C (–14 °F to +140 °F). Storage Humidity: 20%–80% (RH). Image Sensor: 2 MP CMOS sensor. Max. Resolution: 1920 (H) × 1080 (V).
