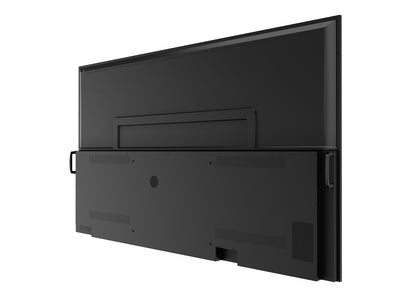

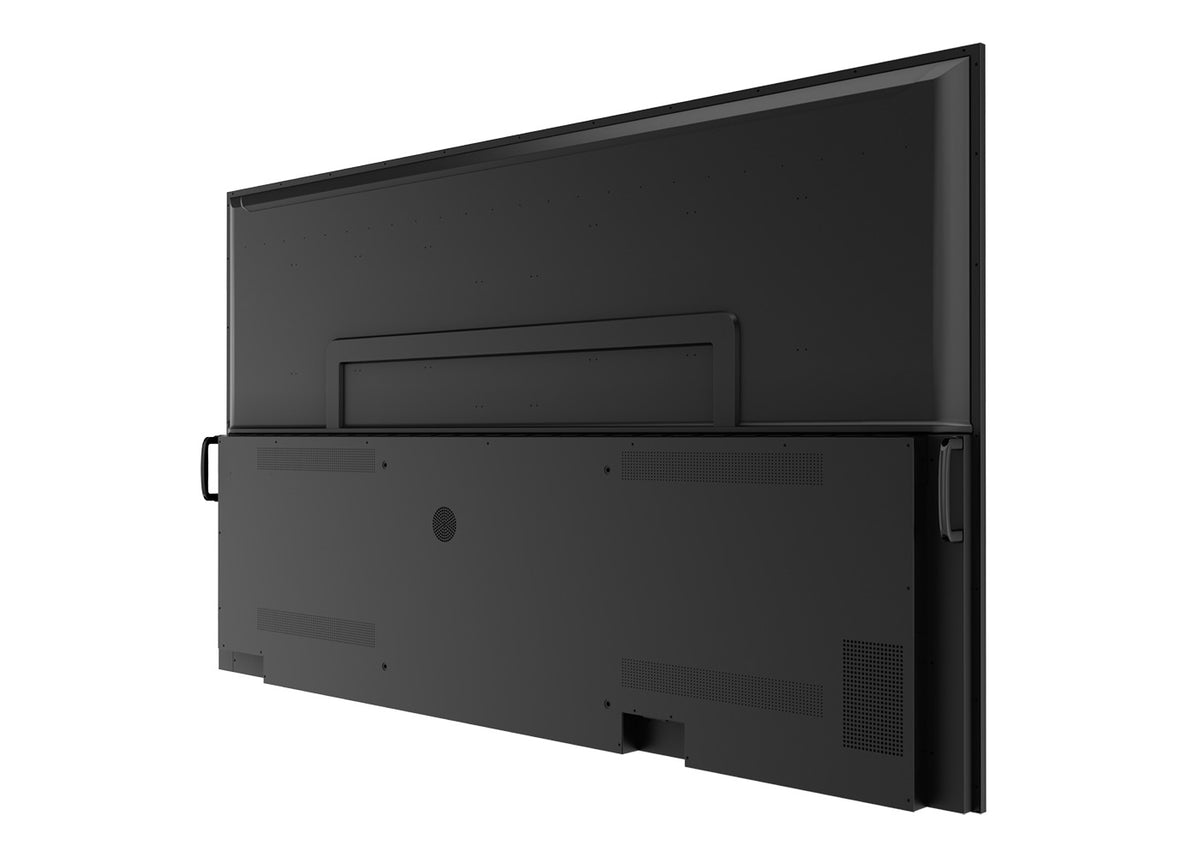

BenQ CS8601: 86 Inch 4K Corporate Smart Signage Display
Model CS8601
Request a Quote
Availability: Out of Stock
- 86-inch 4K UHD IPS panel at 450 nits
- Android 8 built in
- Operation rating: 18 hours / 7 days
- HDMI in | out: 3 × HDMI 2.0 | 1 × HDMI 2.0
Product Overview
Overview
The BenQ CS8601 is an 86-inch 4K UHD commercial signage display rated at 450 nits, with an operation rating of 18 hours / 7 days.
Specification highlights for the CS8601: Screen size: 86 inch; Resolution: UHD 3840 × 2160 pixels; Panel brightness (typical): 450 nits. Corporate AV supplies and integrates the CS8601 across India for lobbies, retail and corporate signage projects, including site survey, installation and commissioning where the project needs it.
Key features
- 86-inch 4K UHD IPS panel at 450 nits
- Android 8 built in
- Operation rating: 18 hours / 7 days
- HDMI in | out: 3 × HDMI 2.0 | 1 × HDMI 2.0
- OPS slot for a slot-in PC: 1
- Built-in speakers: 2 × 16 W
- Whiteboarding software: EZWrite 5.0
Why choose the CS8601
It is an 86-inch 4K UHD commercial signage display at 450 nits with an operation rating of 18 hours / 7 days, so it is built for screens that stay on in lobbies, retail areas and corporate spaces. Corporate AV checks the room, mounting surface, power and network during a site survey, so the CS8601 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights
Key Benefits
86-inch 4K UHD IPS panel at 450 nits
Android 8 built in
Operation rating: 18 hours / 7 days
HDMI in | out: 3 × HDMI 2.0 | 1 × HDMI 2.0
OPS slot for a slot-in PC: 1
Use Cases
Ideal Applications
Lobbies & Reception Areas
Retail Stores & Malls
Corporate Digital Signage
Classrooms & Training Rooms
Technical Details
Technical Specifications
Panel
Screen size
86 inch
Panel type
IPS
Active area
1895.0 × 1066.0 mm
Aspect ratio
16:9
Resolution
UHD 3840 × 2160 pixels
Response time
8 ms
Color depth
10-bit
Orientation
Landscape
Operation hours
18 hours / 7 days
Panel brightness (typical)
450 nits
Contrast ratio (typical)
1200:1
Dynamic contrast ratio
30,000:1
Color gamut
68% NTSC
Backlight life (typical)
50,000 hrs
System
GPU
Mali-G51MP4
CPU
A73 × 2 + A53 × 2
Memory | Storage
4GB I 32GB
OS
Android 8.0
Connectivity
HDMI (in | out)
3 × HDMI 2.0 | 1 × HDMI 2.0
USB-A
3 × 2.0 + 3 × 3.0
USB-B (for touch)
2 × 2.0
3.5 mm Line in (1)
Mic / PC Audio × 1_test
VGA
1 | 0
3.5 mm Line out
Earphone × 1
OPS slot (for slot-in PC)
1
S/PDIF out
0 | 1 (optical)
Ethernet
10 / 100 / 1000 Mbps (Android), 10 / 100 / 1000 Mbps (OPS) × 1
RS-232
1 | 0
Built-in peripherals
Speaker
2 × 16 W
Subwoofer
1 × 15 W
Power
Power
AC 100-240V 50/60Hz
Standby power consumption
<0.5 W
Typical power consumption
173 W
Physical
Dimensions (W x H x D)
1930.8 × 1109.3 × 82.8 mm (76.0 × 43.7 × 3.3 inch)
Shipping dimensions (W x H x D)
2118 × 1271 × 280 mm (83.4 × 50.0 × 11.0 inch)
Weight (product I shipping)
54.3 kg | 77.1 kg (119.7 lbs | 170 lbs)
Mount (screws)
VESA 600 × 400 mm (4 × M8 × 20L)
Environment
Operating temperature
0°C ~ 40°C | 32°F ~ 104°F
Storage temperature
-20°C ~ 60°C | -4°F ~ 140°F
Storage humidity
10% ~ 90% RH non-condensing
Operating humidity
10% ~ 90% RH non-condensing
Software
Whiteboarding
EZWrite 5.0
Wireless screen sharing
InstaShare 2
Device management
DMS
Account management
AMS
Quick access tool
Floating Tool
Broadcast system
X-Sign Broadcast
Accessories
Cables
1 × VGA(5 m | 16.4 ft), 1 × HDMI (1.5 m | 4.9 ft), 1 × USB (3 m | 9.8 ft)
Remote control
1
In The Box
What's Included
Cables: 1 × VGA(5 m | 16.4 ft), 1 × HDMI (1.5 m | 4.9 ft), 1 × USB (3 m | 9.8 ft)
Remote control
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The CS8601 From Corporate AV?
- Genuine BenQ stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs BenQ products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
How bright is the BenQ CS8601?
BenQ lists the brightness of the CS8601 as: 450 nits.
What resolution does the BenQ CS8601 have?
BenQ lists the resolution of the CS8601 as: UHD 3840 × 2160 pixels.
What panel does the BenQ CS8601 use?
BenQ lists the panel of the CS8601 as: IPS.
What operating hours is the BenQ CS8601 designed for?
BenQ lists the operation hours of the CS8601 as: 18 hours / 7 days.
What operating system does the BenQ CS8601 run?
BenQ lists the operating system of the CS8601 as: Android 8.0.
Does Corporate AV install the BenQ CS8601?
Yes. Corporate AV can supply the CS8601 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the BenQ CS8601 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
