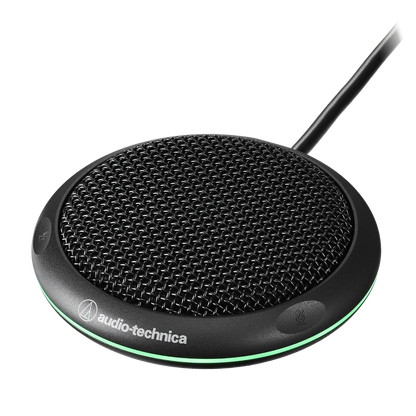

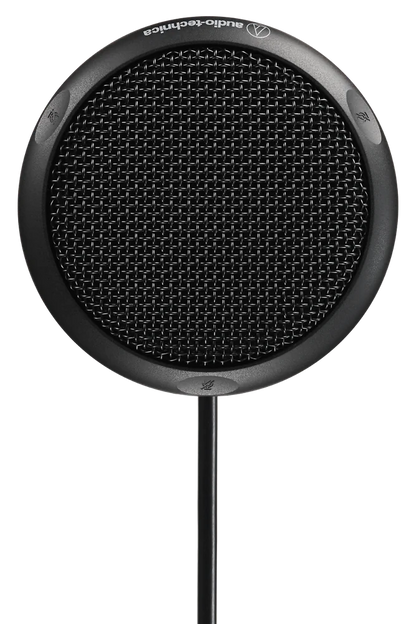

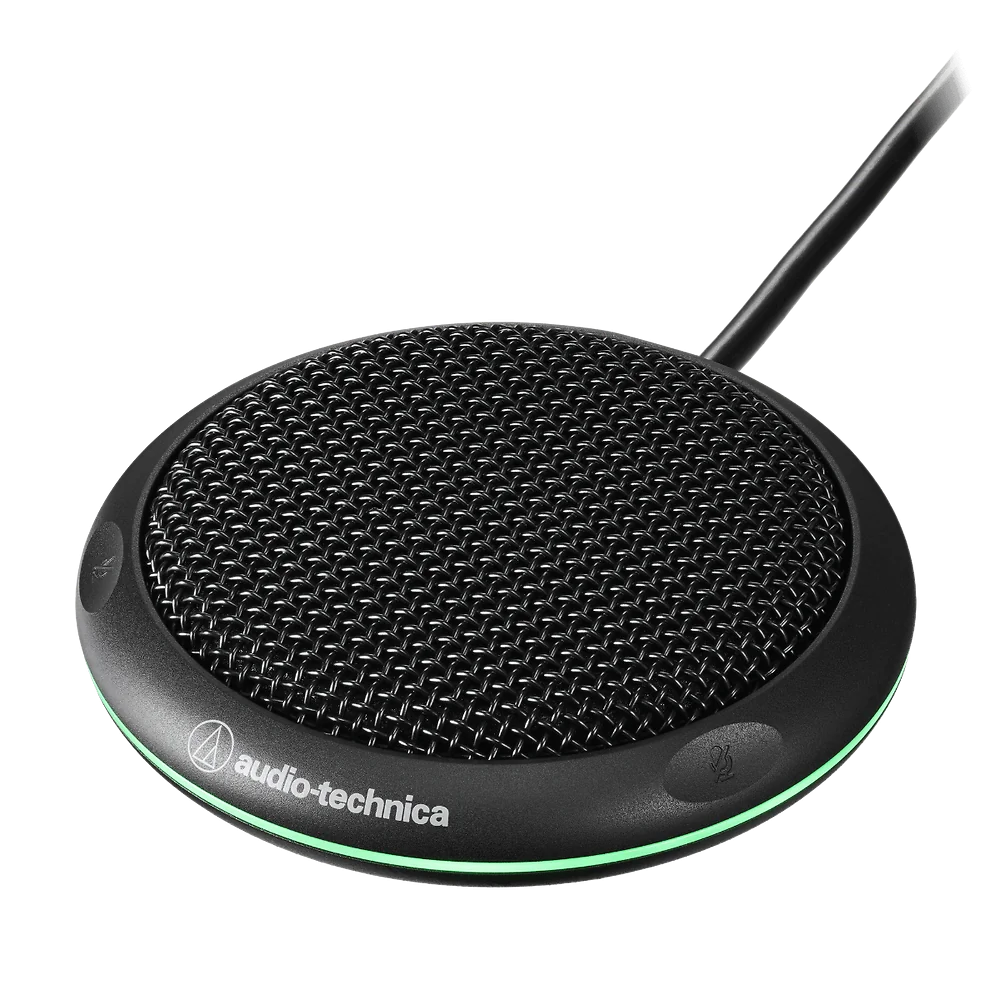

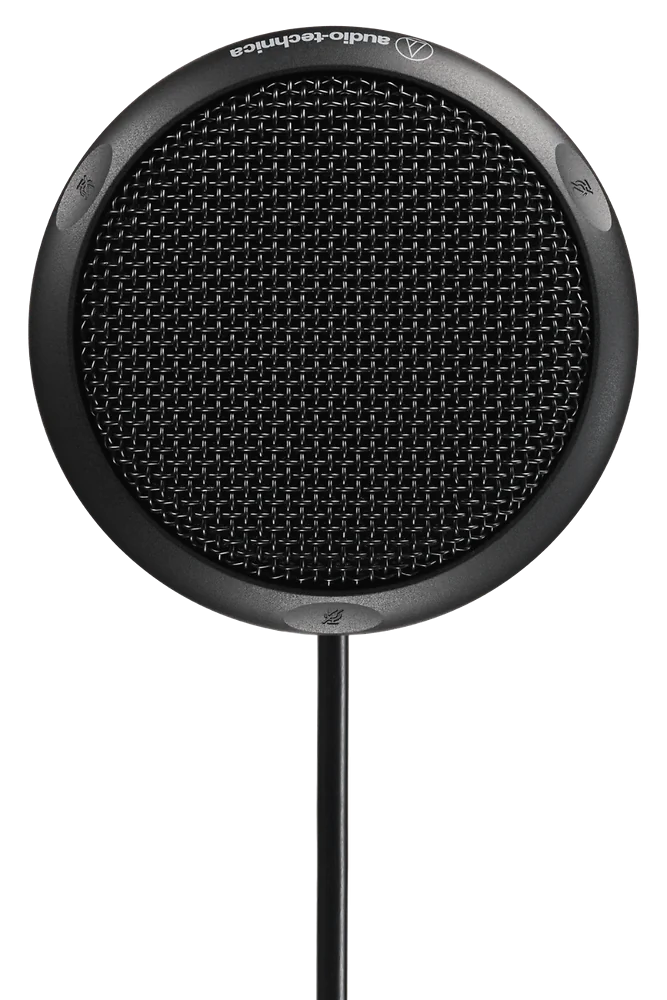

Audio-Technica ES964: 3-Channel Tabletop Array Microphone
Model ES964
Request a Quote
Availability: Out of Stock
- Hypercardioid and cardioid polar patterns can be formed 360 degrees around the microphone when used
- Multiple and simultaneous pickup patterns can be made to suit the seating positions of conference participants
- Easily control the microphone from any position via three MUTE touch controls
- Create an optimal audio environment for calls via touch controls for talking, muting
Product Overview
Overview
The Audio-Technica ES964 is a 3-channel tabletop array microphone. The ES964 is a compact boundary microphone array that is simple to install and provides clear audio for multi-person conference environments. This microphone is designed for small-group online conferences, and for businesses that are considering installation or expansion of shared or permanent conference spaces.
Corporate AV supplies, installs and supports the Audio-Technica ES964 across India. Request a quote for supply, installation and commissioning.
Key features
- Hypercardioid and cardioid polar patterns can be formed 360 degrees around the microphone when used
- Multiple and simultaneous pickup patterns can be made to suit the seating positions of conference participants
- Easily control the microphone from any position via three MUTE touch controls
- Create an optimal audio environment for calls via touch controls for talking, muting
- LED ring visible from any direction
- Compatible with 20 to 52 V DC phantom power supplies
- Proprietary shielding technology that protects the audio signals from radio frequency interference (RFI)
- Low-profile, space-saving design: 88 mm (3.5″) diameter, 22 mm (0.87″) height
Why choose the ES964
It is a 3-channel tabletop array microphone, an array microphone built for meeting rooms and videoconferencing. Corporate AV adds a site survey, installation and support across India, so the ES964 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Hypercardioid and cardioid polar patterns can be formed 360 degrees around the microphone when used
Multiple and simultaneous pickup patterns can be made to suit the seating positions of conference participants
Easily control the microphone from any position via three MUTE touch controls
Create an optimal audio environment for calls via touch controls for talking, muting
LED ring visible from any direction
Use Cases
Ideal Applications
Boardrooms and large meeting rooms
Huddle rooms and videoconferencing rooms
Classrooms and training rooms
Hybrid meeting spaces
Technical Details
Technical Specifications
Audio
Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
Adjustable: Cardioid (Wide)/Hypercardioid (Normal)
Frequency Response
20 to 15,000 Hz
Open Circuit Sensitivity
Wide: -33dBV (22.4mV) (0dB=1V/Pa, 1kHz)Normal: -35dBV (17.8mV) (0dB=1V/Pa, 1kHz)
Impedance
100 ohms
Signal-to-Noise Ratio
Wide: 68.5dB (1kHz at 1Pa, A characteristic)Normal: 67.5dB (1kHz at 1Pa, A characteristic)
Switches
SW.FUNCTION: TOUCH ON/OFF, MOM.ON, MOM.OFF CONTROL: LOCAL, REMOTE, LED REMOTE
Contact Closure
Closure input voltage: -0.5 to 5.5VMaximum allowable power: 200 mWOn-resistance: 100 ohms
LED Control
Active High (+5V DC) TTL compatible Active low voltage: 1.2 V or lower Maximum allowable input voltage: -0.5 to 5.5V Maximum allowable power: 200 mW
Notes
1 Pascal = 10 dynes/cm2 = 10 microbars = 94dB SPL For product improvement, the product is subject to modification without notice
Connectivity
Maximum Input Sound Level
Wide/Normal: 136.5dB SPL (1kHz THD1%)
Physical and power
Phantom Power Requirements
DC 20 to 52V, 19.8mA (total for all channels)
Weight (Microphone)
364g (12.8 oz)
Dimensions (Microphone)
Maximum body diameter: 88 mm (3.5")Height: 22 mm (0.9")
Output Connector
Euroblock connector
Accessories Included
・RJ45 breakout cable × 2 ・Table mount adapter ・Retaining nut ・Isolator ・Table mount adapter mounting screw × 3
Other specifications
Category
Array Microphone, Audio-Technica
In The Box
What's Included
・RJ45 breakout cable × 2 ・Table mount adapter ・Retaining nut ・Isolator ・Table mount adapter mounting screw × 3
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ES964 From Corporate AV?
- Genuine Audio Technica stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Audio Technica products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Audio-Technica ES964?
The Audio-Technica ES964 is a 3-channel tabletop array microphone. The ES964 is a compact boundary microphone array that is simple to install and provides clear audio for multi-person conference environments. This microphone is designed for small-group online conferences, and for businesses that are considering installation or expansion of shared or permanent conference spaces.
Who is the Audio-Technica ES964 best suited for?
The ES964 suits boardrooms and large meeting rooms, huddle rooms and videoconferencing rooms and classrooms and training rooms. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Audio-Technica ES964 units for a rollout?
Yes. Corporate AV supplies and integrates the Audio-Technica ES964 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Audio-Technica ES964 in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What accessories are included with the Audio-Technica ES964?
Audio-Technica lists these included accessories: ・RJ45 breakout cable × 2 ・Table mount adapter ・Retaining nut ・Isolator ・Table mount adapter mounting screw × 3.
What power does the Audio-Technica ES964 need?
Audio-Technica specifies DC 20 to 52V, 19.8mA (total for all channels) for the ES964.
What is the polar pattern of the Audio-Technica ES964?
Audio-Technica lists the ES964 polar pattern as Adjustable: Cardioid (Wide)/Hypercardioid (Normal).
