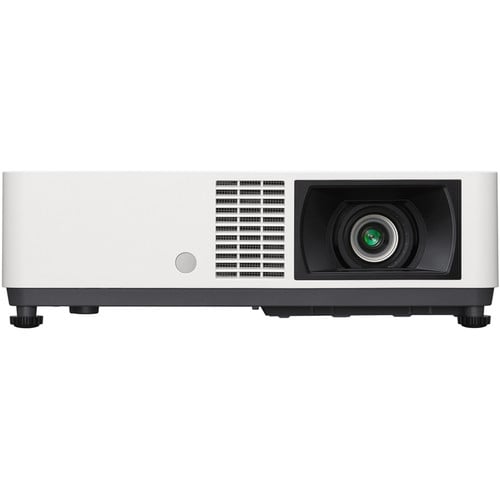

Sony VPL-CWZ10: WXGA 3LCD Laser Projector, 5,000 Lumens
Model VPL-CWZ10
Request a Quote
Availability: Out of Stock
- 5,000 lumens brightness, WXGA (1280 × 800) native resolution
- 3LCD laser-light-source projection system
- Throw ratio 1.29:1 to 2.07:1
- Lens shift: N/A (Lens Offset Vertical +37%)
Product Overview
Overview
The Sony VPL-CWZ10 is a 5,000-lumen WXGA 3LCD laser projector made for auditoriums, lecture halls, large meeting rooms and installed venues. It has a throw ratio of 1.29:1 to 2.07:1.
Corporate AV supplies and integrates the Sony VPL-CWZ10 across India for auditoriums, lecture halls, large meeting rooms and installed venues, together with the screens, mounting, cabling, control and AV systems around it. Request a quote for supply, installation and commissioning.
Key features
- 5,000 lumens WXGA image on 3LCD panels
- Laser light source, no lamp replacement
- Throw ratio 1.29:1 to 2.07:1, zoom Approx. x 1.6
- Lens shift N/A (Lens Offset Vertical +37%)
- Connections: HDMI, RGB (D-sub 15-pin), composite video, RS-232C, LAN (RJ-45), USB, audio in/out
- 371 x 100 x 319.3 mm (W x H x D), approx. 5.7 kg (13 lb)
Why choose the VPL-CWZ10
It gives a large room or installed venue a Sony projector with 5,000 lumens of brightness, WXGA resolution and a laser light source that avoids lamp changes. Corporate AV supplies it with the screen, mounting, cabling and control it needs, so the room is specified and commissioned as one system.
Product Highlights
Key Benefits
5,000 lumens brightness, WXGA (1280 × 800) native resolution
3LCD laser-light-source projection system
Throw ratio 1.29:1 to 2.07:1
Lens shift: N/A (Lens Offset Vertical +37%)
Weight approx. 5.7 kg (13 lb)
Use Cases
Ideal Applications
Auditoriums & Large Venues
Meeting & Huddle Rooms
Classrooms & Training Rooms
Technical Details
Technical Specifications
Image and display
Display system
3 LCD system
Panel size and type
0.64”(16.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10
Native resolution and pixels
3,072,000 (1280 x 800 x 3) pixels
Light output
Standard: 5,000 lm / 5,200 lm (Center) | Middle: 4,000 lm | Low: - | Color: light output | : Standard 5,000 lm | : Middle 4,000 lm | : Low -
Screen size
40" to 300" (1.02 m to 7.62 m)
Keystone correction
Horizontal +/- 30 degrees, Vertical +/- 30 degrees, INPUT OUTPUT (Computer/Video/Audio/Control) RGB / Y PB PR input connector:Mini D-sub 15, INPUT A pin (female) Audio input connector: Stereo mini jack HDMI input connector: HDMI 19-pin, HDCP, INPUT B support Audio input connector: HDMI audio support, INPUT OUTPUT (Computer/Video/Audio/Control) HDMI input connector: HDMI 19-pin, HDCP, INPUT C suppo
Lens
Focus
Manual
Zoom
Approx. x 1.6
Lens shift
N/A (Lens Offset Vertical +37%)
Throw ratio
1.29:1 to 2.07:1
Light source
Type
Laser diode
Power and environment
Power requirements
AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz
Power consumption
AC 100 V to 120 V Mode: Standard: 342 W | AC 220 V to 240 V Mode: Standard: 326 W
Acoustic noise
Standard /: 36 dB / 32 dB / 28 dB
Operating temperature and humidity
0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)
Storage temperature and humidity
-10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)
Connectivity
Interfaces listed by Sony
HDMI, RGB (D-sub 15-pin), composite video, RS-232C, LAN (RJ-45), USB, audio in/out
Speaker
16 W (monaural)
Physical
Dimensions (W x H x D)
371 x 100 x 319.3 mm (14 19/32 x 3 15/16 x 12 9/16 inches)
Weight
Approx. 5.7 kg (13 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The VPL-CWZ10 From Corporate AV?
- Genuine Sony stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Sony products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What brightness and resolution does the Sony VPL-CWZ10 offer?
Sony lists light output of Standard: 5,000 lm / 5,200 lm (Center) | Middle: 4,000 lm | Low: - | Color: light output | : Standard 5,000 lm | : Middle 4,000 lm | : Low -. Native resolution is WXGA (1280 × 800) on 3LCD panels.
What light source does the VPL-CWZ10 use?
It uses a laser diode light source, so there is no lamp to replace.
What lens and throw ratio does the VPL-CWZ10 have?
Throw ratio is 1.29:1 to 2.07:1. Zoom: Approx. x 1.6. Focus: Manual. Lens shift: N/A (Lens Offset Vertical +37%).
Which inputs and outputs does the VPL-CWZ10 have?
Sony’s specification sheet lists these interfaces: HDMI, RGB (D-sub 15-pin), composite video, RS-232C, LAN (RJ-45), USB, audio in/out. Check the full connector list in the Sony manual for exact counts.
How big, heavy and loud is the VPL-CWZ10?
Dimensions (W x H x D): 371 x 100 x 319.3 mm (14 19/32 x 3 15/16 x 12 9/16 inches). Weight: Approx. 5.7 kg (13 lb). Acoustic noise: Standard /: 36 dB / 32 dB / 28 dB.
What power does the VPL-CWZ10 need?
Sony lists a power requirement of AC 100 V to 240 V, 3.4 A to 1.5 A, 50 Hz / 60 Hz, with power consumption of AC 100 V to 120 V Mode: Standard: 342 W | AC 220 V to 240 V Mode: Standard: 326 W.
Can Corporate AV supply and install the Sony VPL-CWZ10 in India?
Yes. Corporate AV supplies, installs and commissions the Sony VPL-CWZ10 across India, together with mounting, cabling, control and the other AV systems in the room. Request a quote with your room details and we will confirm the right configuration.
