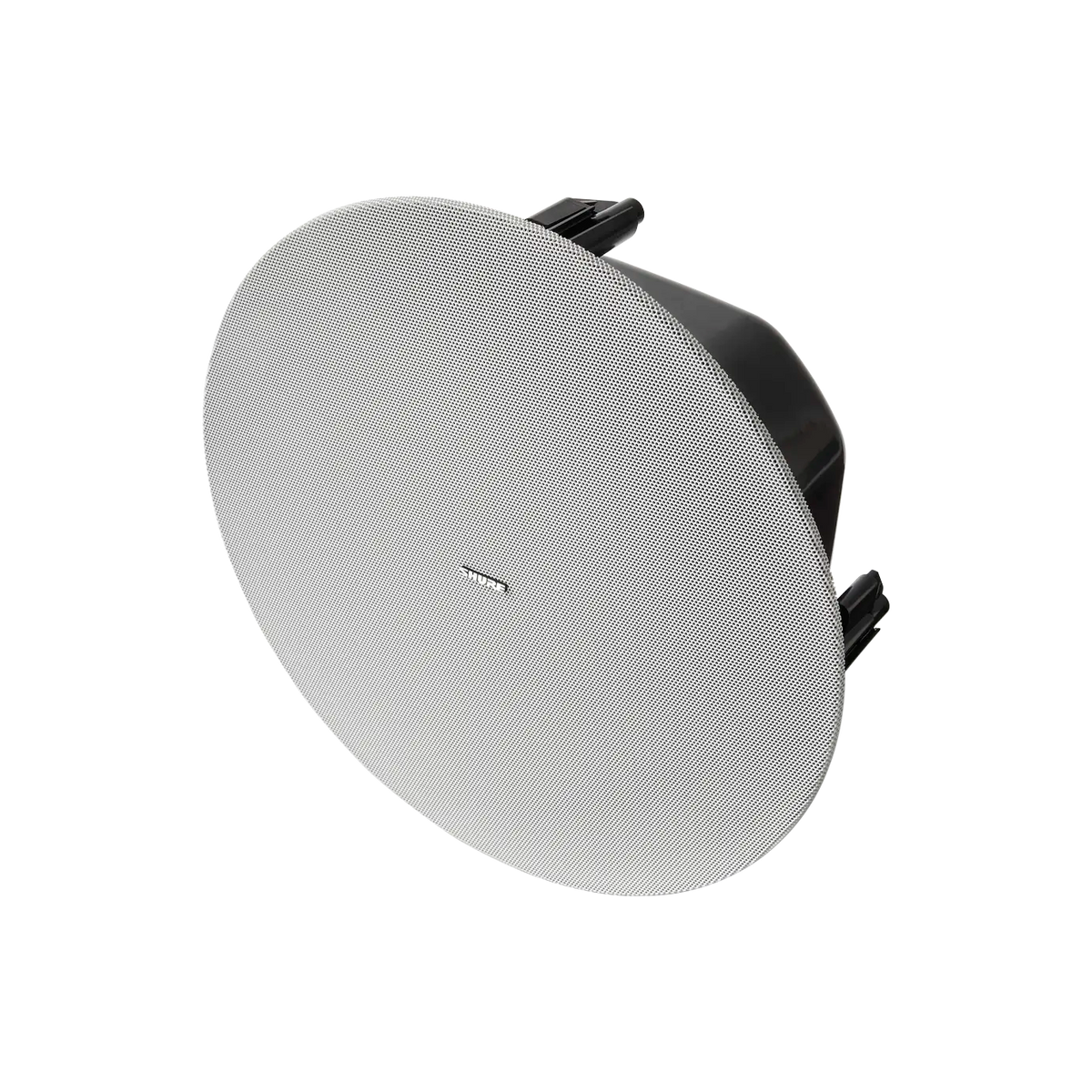

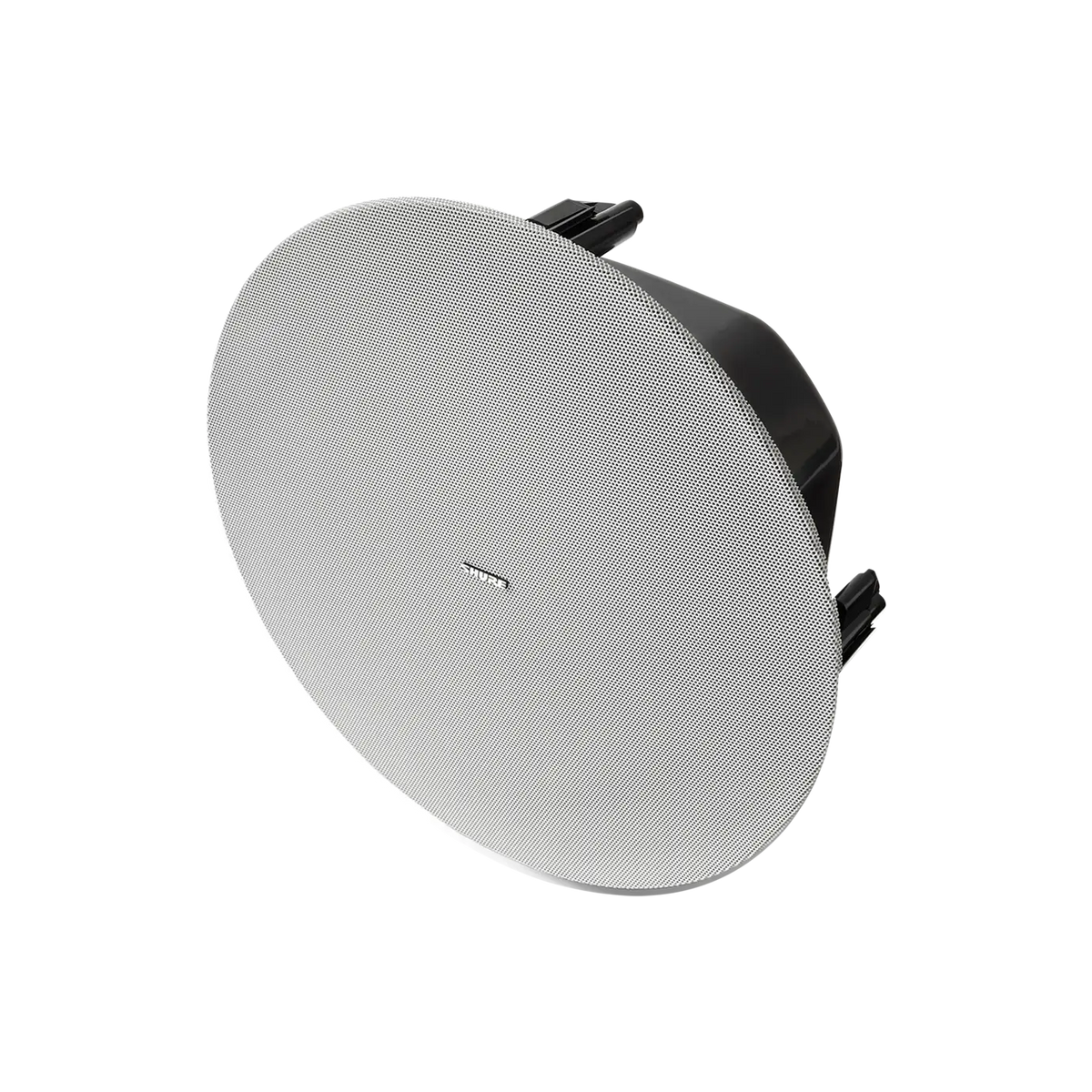

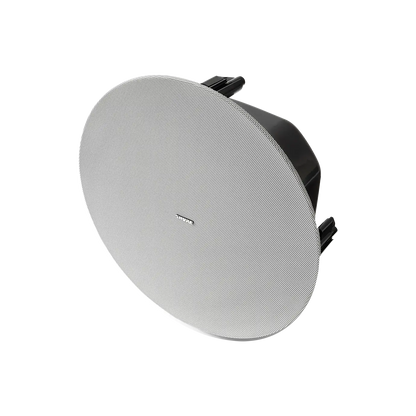

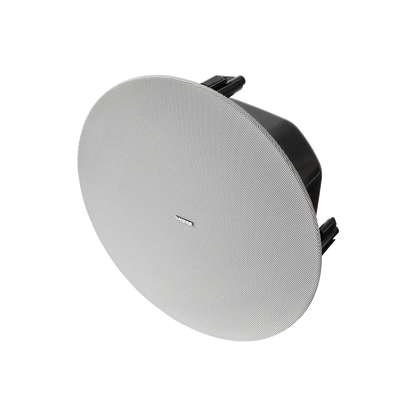

Shure MXP-5W: Ceiling-Mount Passive Loudspeaker, White
Model MXP-5W
Request a Quote
Availability: Out of Stock
- Frequency Response: ~90Hz – 20kHz
- Sensitivity: at 2.83 V; 92 db SPL 1W/m
- Maximum SPL: at an RMS input level of 23 dBV; AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA
- Nominal Impedance: 4Ω
Product Overview
Overview
The Shure MXP-5W is a ceiling-mount passive loudspeaker (white). Shallow-depth passive ceiling-mount loudspeaker ideal for retrofit in existing in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio.
Corporate AV supplies, installs and supports the Shure MXP-5W across India. Request a quote for supply, installation and commissioning.
Key features
- Frequency Response: ~90Hz – 20kHz
- Sensitivity: at 2.83 V; 92 db SPL 1W/m
- Maximum SPL: at an RMS input level of 23 dBV; AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA
- Nominal Impedance: 4Ω
- Maximum Input Power: IEC standard 60268-5; 28 W
- Coverage Angle: Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4; 95°
Why choose the MXP-5W
It is a ceiling-mount passive loudspeaker (white) made for installed conferencing and meeting rooms, with the details listed in its specifications. Corporate AV adds a site survey, installation and support across India, so the MXP-5W is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Frequency Response: ~90Hz – 20kHz
Sensitivity: at 2.83 V; 92 db SPL 1W/m
Maximum SPL: at an RMS input level of 23 dBV; AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA
Nominal Impedance: 4Ω
Maximum Input Power: IEC standard 60268-5; 28 W
Use Cases
Ideal Applications
Meeting and conference rooms
Boardrooms and training rooms
Video conferencing rooms
Classrooms
Technical Details
Technical Specifications
Product
Type
Ceiling-Mount Passive Loudspeaker
Color
White
Audio
Coverage Angle
95° (Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4)
Frequency Response
~90Hz – 20kHz
Nominal Impedance
4Ω
Maximum SPL
at an RMS input level of 23 dBV, AES75 max linear sound levels: 101 dBZ, 115 dBZpk, 100 dBA
Sensitivity
92 db SPL 1W/m (at 2.83 V)
Transformer Taps
70V: 4Ω, 1.875 W, 3.75 W, 7.5 W, 15 W; 100V: 4Ω, 3.75 W, 7.5 W, 15 W
Physical and power
Weight
7.23 lbs (3.28 kg)
Dimensions
13.39 x 13.39 x 4.41 in. (340 x 340 x 111.9 mm)
Connector Type
4-pin connector, 0.2 in. (5.08 mm) pitch
Maximum Input Power
28 W (IEC standard 60268-5)
Operating Temperature Range
-7 to 40°C (19.4 to 104°F)
Storage Temperature Range
-29 to 74°C (-20 to 165°F)
Other specifications
Category
Loudspeaker, Shure
In The Box

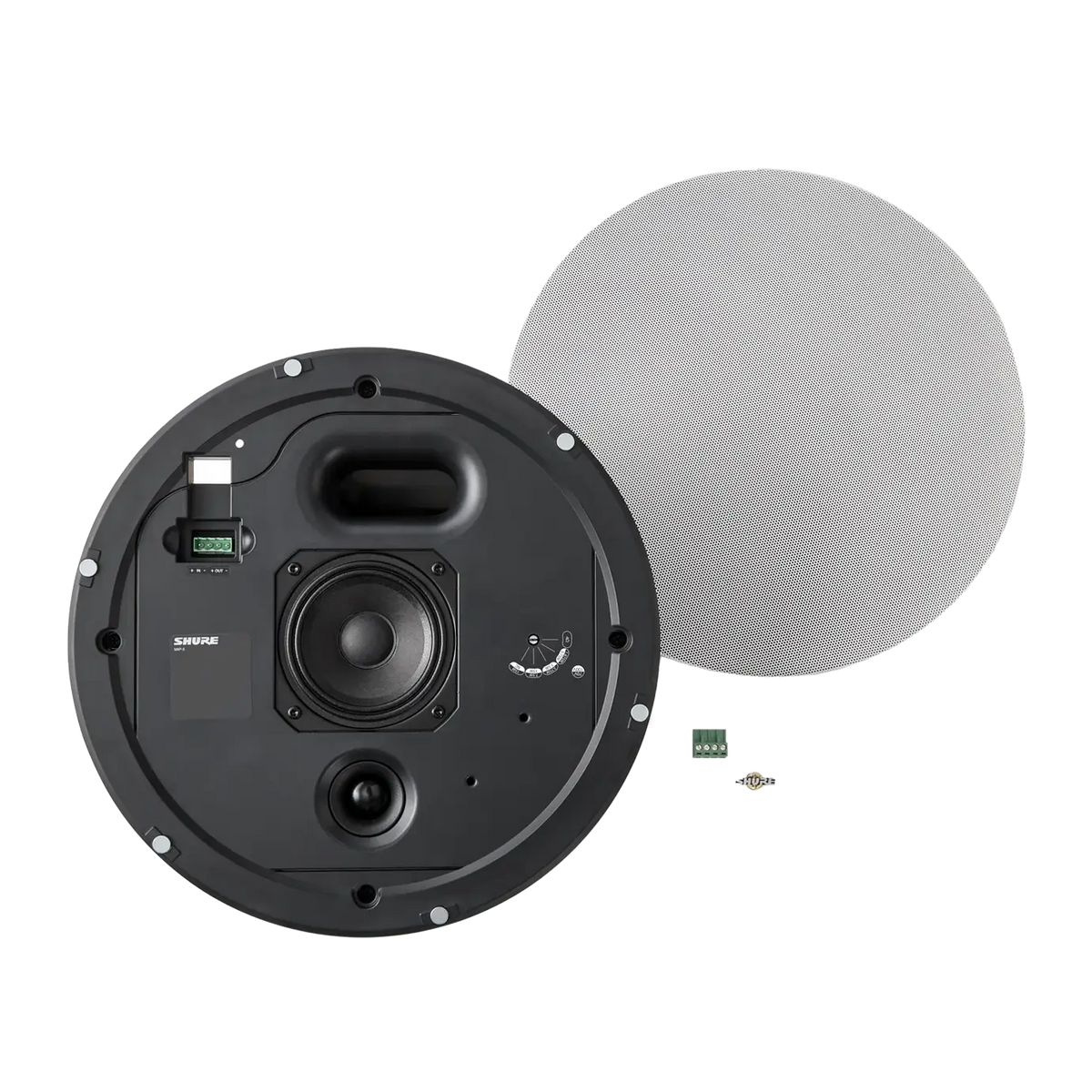

What's Included
1 x Microflex MXP-5 Ceiling Mount Passive Loudspeaker

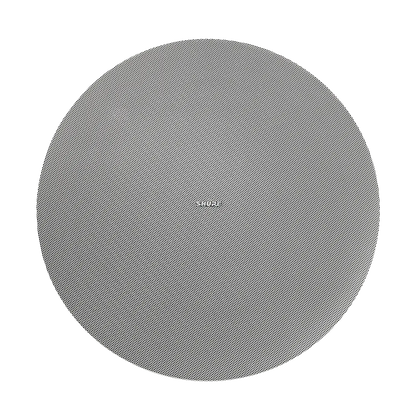

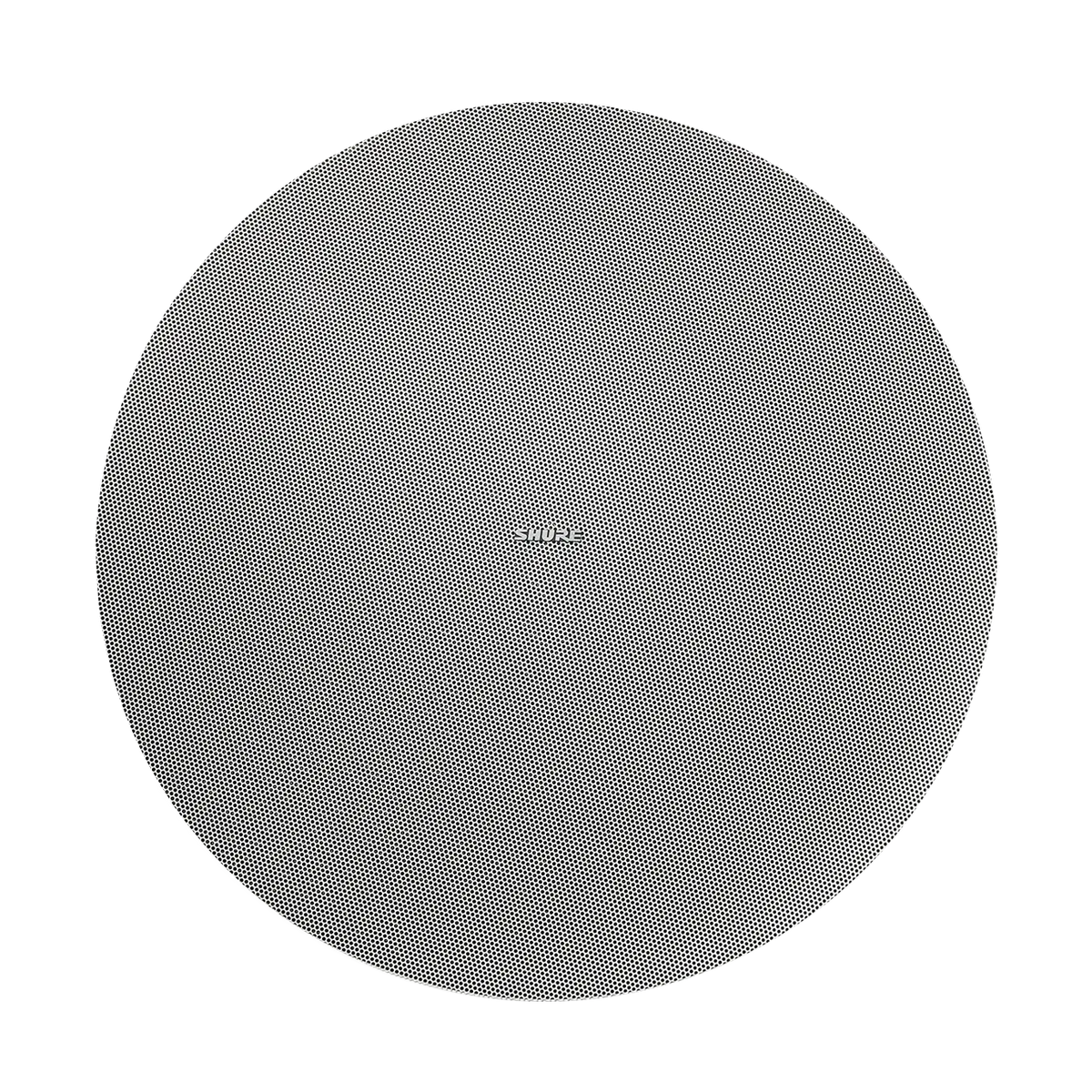

1 x Loudspeaker grille with Shure logo pin
1 x 4-pin block connector
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The MXP-5W From Corporate AV?
- Genuine Shure stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Shure products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Shure MXP-5W?
The Shure MXP-5W is a ceiling-mount passive loudspeaker (white). Shallow-depth passive ceiling-mount loudspeaker ideal for retrofit in existing in meeting rooms. Microflex Conferencing Loudspeakers are designed for conferencing with clear, intelligible audio.
Who is the Shure MXP-5W best suited for?
The MXP-5W suits meeting and conference rooms, boardrooms and training rooms and video conferencing rooms. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Shure MXP-5W units for a rollout?
Yes. Corporate AV supplies and integrates the Shure MXP-5W in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Shure MXP-5W in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What is included in the box with the Shure MXP-5W?
Shure lists these items in the box: 1 x Microflex MXP-5 Ceiling Mount Passive Loudspeaker; 1 x Loudspeaker grille with Shure logo pin; 1 x 4-pin block connector.
What are the key specifications of the Shure MXP-5W?
Shure lists these key specifications for the MXP-5W. Type: Ceiling-Mount Passive Loudspeaker. Weight: 7.23 lbs (3.28 kg). Dimensions: 13.39 x 13.39 x 4.41 in. (340 x 340 x 111.9 mm). Connector Type: 4-pin connector, 0.2 in. (5.08 mm) pitch. Coverage Angle: Average of 1 octave band centered on 4 kHz, IEC standard 60268-5 23.4; 95°.
