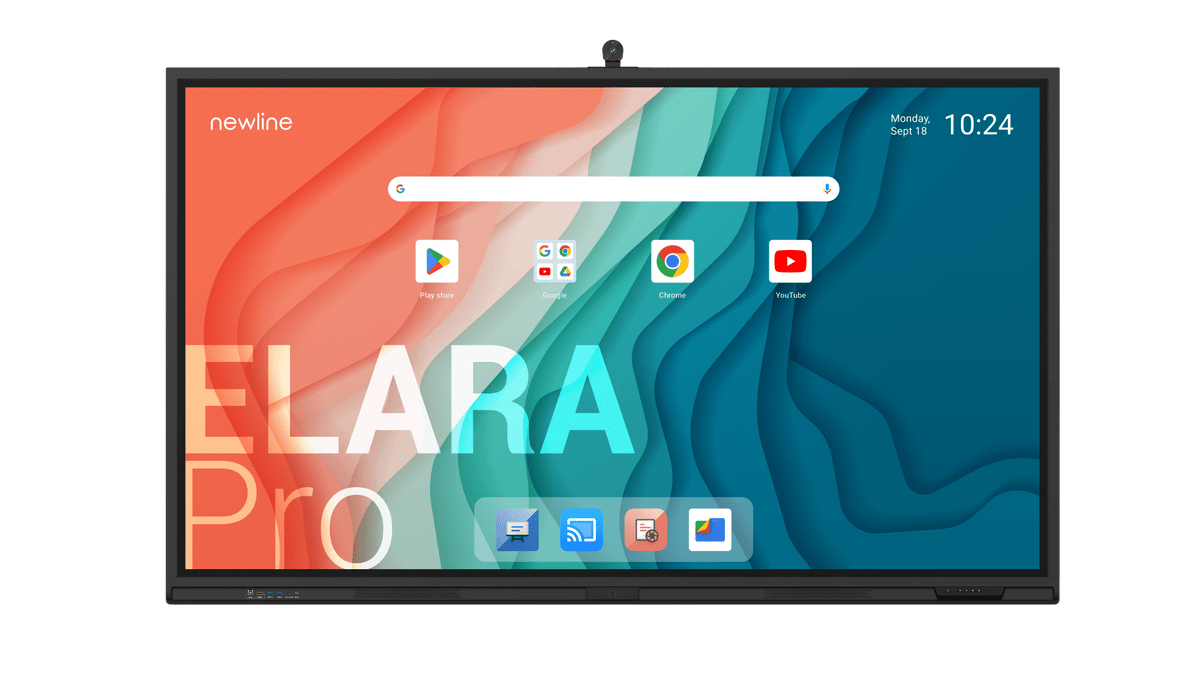

Newline TT-7523QCA+: 75 Inch Elara Pro 4K Interactive Display
Model TT-7523QCA+
Request a Quote
Availability: Out of Stock
- Resolution: 3840 x 2160 (4K)
- Brightness: 450 cd/m2
- Touch Technology: Stellar Touch
- Touch Points: 50 on Windows, 20 on Android, Mac and Linux
Product Overview
Overview
The Newline TT-7523QCA+ is a 75 inch Elara Pro 4K interactive display. Newline's own specification sheet lists the panel, touch, system and connection details below.
Corporate AV supplies, installs and supports the Newline TT-7523QCA+ across India. Request a quote for supply, installation and commissioning.
Key features
- Resolution: 3840 x 2160 (4K)
- Brightness: 450 cd/m2
- Touch Technology: Stellar Touch
- Touch Points: 50 on Windows, 20 on Android, Mac and Linux
- Operating System: Android, Google EDLA certified
- Processor: Rockchip RK3588 octa-core (4 x Cortex-A76 up to 2.4 GHz, 4 x Cortex-A55 up to 1.8 GHz)
Why choose the TT-7523QCA+
It is an interactive display built for presenting, annotating and collaborating on one large touch screen. Corporate AV adds a site survey, installation and support across India, so the TT-7523QCA+ is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Resolution: 3840 x 2160 (4K)
Brightness: 450 cd/m2
Touch Technology: Stellar Touch
Touch Points: 50 on Windows, 20 on Android, Mac and Linux
Operating System: Android, Google EDLA certified
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Screen Size
75 inch
Display Area
1650 x 928 mm
Resolution
3840 x 2160 (4K)
Aspect Ratio
16:9
Backlight
Direct LED (wide colour gamut, anti-blue light)
Brightness
450 cd/m2
Contrast Ratio
5000:1
Response Time
5 ms
Viewing Angle
178 degrees
Display Colours
1.07 billion
Display Lifetime
50,000 hours or more
Glass
Anti-glare, anti-fingerprint, antimicrobial tempered glass, zero bonding
Touch and writing
Touch Technology
Stellar Touch
Touch Points
50 on Windows, 20 on Android, Mac and Linux
Writing Tools
Passive pen, finger, fist
Pens Included
2
Touch Accuracy
+/-1 mm
System
Operating System
Android, Google EDLA certified
Processor
Rockchip RK3588 octa-core (4 x Cortex-A76 up to 2.4 GHz, 4 x Cortex-A55 up to 1.8 GHz)
RAM
16 GB DDR4
Wireless
Wi-Fi 6 and Bluetooth 5.2 module, replaceable
NFC
NFC login
Camera and microphone
Camera
Included Newline ModCam+ AI camera, 3840 x 2160 at 30 fps, 120 degree field of view
Microphone
8-microphone array, 8 m pickup, echo cancellation, beamforming, noise reduction
Audio
Speakers
2 x 20 W front-facing plus a 20 W rear subwoofer
Connectivity
Video Inputs
2 x HDMI 2.1 (4K at 60 Hz), 1 x DisplayPort 1.2 on the rear; 1 x HDMI 2.1 on the front
Video Output
1 x HDMI 2.0 (4K at 60 Hz)
USB
Rear: 3 x USB-B (touch), 2 x USB-A 3.2; front: 2 x USB-A 3.2, 1 x USB-B (touch), 1 x USB-C with 100 W power delivery
Other Ports
RS232, gigabit RJ45 (in and out), OPS slot, SDM-S slot, SPDIF, line out, microphone in
Power and operation
Standby Power
Less than 0.5 W
Physical and mounting
VESA Mount
800 x 400 mm
Other specifications
Category
Interactive Display, Newline
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The TT-7523QCA+ From Corporate AV?
- Genuine Newline stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Newline products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Newline TT-7523QCA+?
The Newline TT-7523QCA+ is a 75 inch Elara Pro 4K interactive display. Newline's own specification sheet lists the panel, touch, system and connection details below.
Who is the Newline TT-7523QCA+ best suited for?
The TT-7523QCA+ suits boardrooms and meeting rooms, classrooms and training rooms and digital whiteboarding and brainstorming. Corporate AV can advise whether it is the right fit for your space.
Can Corporate AV supply multiple Newline TT-7523QCA+ units for a rollout?
Yes. Corporate AV supplies and integrates the Newline TT-7523QCA+ in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Newline TT-7523QCA+ in India?
Use the Request a Quote button on this page or contact Corporate AV with your room details and quantity, and a consultant will respond with a quotation for supply and installation.
What are the key specifications of the Newline TT-7523QCA+?
These key specifications are listed for the Newline TT-7523QCA+. Screen Size: 75 inch. Display Area: 1650 x 928 mm. Resolution: 3840 x 2160 (4K). Brightness: 450 cd/m2. Touch Technology: Stellar Touch.
