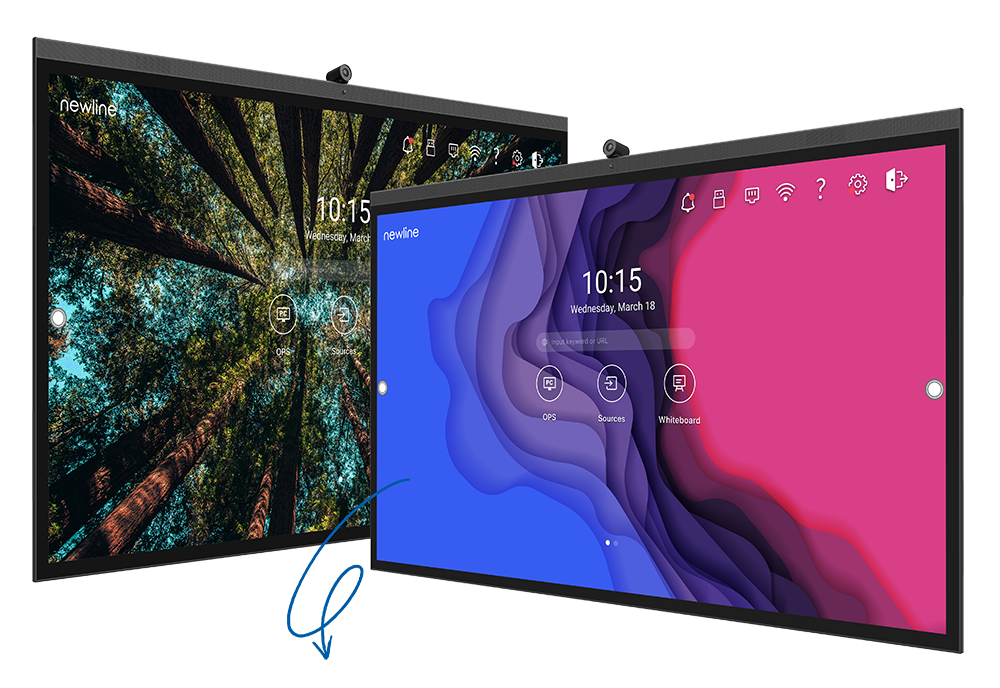

Newline TT-6522Z: 65 Inch Vega 4K Interactive Display
Model TT-6522Z
Request a Quote
Availability: Out of Stock
- Resolution: 3840 x 2160 (4K)
- Brightness: 400 cd/m2
- Touch Technology: Projected capacitive (PCAP)
- Touch Points: 40 on Windows, 20 on Android
Product Overview
Overview
The Newline TT-6522Z is a 65 inch Vega 4K interactive display. Newline's own specification sheet lists the panel, touch, system and connection details below.
Corporate AV supplies, installs and supports the Newline TT-6522Z across India. Request a quote for supply, installation and commissioning.
Key features
- Resolution: 3840 x 2160 (4K)
- Brightness: 400 cd/m2
- Touch Technology: Projected capacitive (PCAP)
- Touch Points: 40 on Windows, 20 on Android
- Operating System: Android 11 (Android 13 upgrade listed as an upcoming OTA update)
- Processor: Amlogic A311D2 octa-core (4 x Cortex-A73 up to 2.2 GHz, 4 x Cortex-A53 up to 2.0 GHz)
Why choose the TT-6522Z
It is an interactive display built for presenting, annotating and collaborating on one large touch screen. Corporate AV adds a site survey, installation and support across India, so the TT-6522Z is specified and installed for your space and not just shipped.
Product Highlights
Key Benefits
Resolution: 3840 x 2160 (4K)
Brightness: 400 cd/m2
Touch Technology: Projected capacitive (PCAP)
Touch Points: 40 on Windows, 20 on Android
Operating System: Android 11 (Android 13 upgrade listed as an upcoming OTA update)
Use Cases
Ideal Applications
Boardrooms and meeting rooms
Classrooms and training rooms
Digital whiteboarding and brainstorming
Hybrid and remote collaboration
Technical Details
Technical Specifications
Display
Screen Size
65 inch
Display Area
1428 x 804 mm
Resolution
3840 x 2160 (4K)
Aspect Ratio
16:9
Brightness
400 cd/m2
Contrast Ratio
5000:1
Response Time
6 ms
Viewing Angle
178 degrees
Display Colours
1.07 billion
Display Lifetime
50,000 hours or more
Glass
Anti-glare, anti-fingerprint, antimicrobial tempered glass, optical bonding
Touch and writing
Touch Technology
Projected capacitive (PCAP)
Touch Points
40 on Windows, 20 on Android
Writing Tools
Passive pen, finger, fist
Pens Included
2 PCAP passive pens (no battery)
Touch Accuracy
+/-1 mm
System
Operating System
Android 11 (Android 13 upgrade listed as an upcoming OTA update)
Processor
Amlogic A311D2 octa-core (4 x Cortex-A73 up to 2.2 GHz, 4 x Cortex-A53 up to 2.0 GHz)
RAM
8 GB DDR4
Storage
128 GB
Wireless
Wi-Fi 6 and Bluetooth 5.2 module, replaceable
Camera and microphone
Camera
4K camera, 120 degree field of view
Microphone
8-microphone array, 8 m pickup, echo cancellation, beamforming, noise reduction
Audio
Speakers
2 x 20 W front-facing plus a 15 W rear subwoofer
Connectivity
Video Inputs
2 x HDMI 2.0, 1 x DisplayPort 1.2 on the rear; 1 x HDMI 2.0 on the side
Video Output
1 x HDMI 2.0
USB
Rear: 3 x USB-B (touch), 2 x USB-A 3.0; side: 1 x USB-A 3.0, 1 x USB-B (touch), 1 x USB-C with 100 W power delivery
Other Ports
RS232, gigabit RJ45 (in and out), OPS slot, SDM-S slot, SPDIF, line out, microphone in
Power and operation
Standard Power Consumption
133 W
Standby Power
Less than 0.5 W
Physical and mounting
Outline Dimensions
1497.1 x 919.6 x 83.8 mm
Net Weight
36 kg
VESA Mount
600 x 400 mm
Other specifications
Category
Interactive Display, Newline
