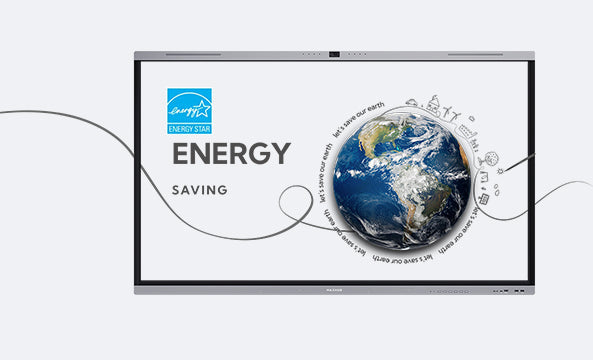

  • MaxHub U8640: U4 Series 86 Inch 4K Interactive Flat Panel - front view with feature graphic
1 1

MaxHub U8640: U4 Series 86 Inch 4K Interactive Flat Panel

Model U8640

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized MaxHub Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 86-inch 4K UHD display with 500 nits brightness
  • 50-point infrared touch for writing and collaboration
  • Android 15, Google EDLA certified, 16GB RAM / 256GB storage
  • 50MP camera, 115 degree wide-angle lens, Auto Framing, Speaker Tracking, facial recognition attendance
Interactive Classroom Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

MAXHUB U8640 brings massive visual impact and maximum engagement to large lecture halls, expansive auditoriums, and corporate boardrooms. Toggle effortlessly between dedicated Education and Corporate UI styles, powered by Android 15 with full Google EDLA certification and an 8-core 2.4GHz CPU for uncompromised large-format performance.

Key specifications of the U8640 include a 86-inch 4K UHD panel, 500 nits brightness, 50-point infrared touch, Android 15 with Google EDLA certification and 16GB RAM and 256GB storage. Corporate AV supplies and integrates the U8640 across India for classrooms, training rooms and campuses, including site survey, mounting and commissioning where the project needs it.

Key features

  • 86 inch 4K UHD display, 500 nits, 98% sRGB, Delta E under 1, 10-bit color, etched-AG non-glare surface
  • 50MP camera, 115 degree wide-angle lens, Auto Framing, Speaker Tracking, facial recognition attendance
  • 8-microphone array, 12 metre pickup, MAXHUB Skywave 2.2 channel 4-speaker sound system
  • 50 touch points, plus or minus 0.5mm accuracy, 9H scratch-resistant glass, 2.5ms response time
  • IP5X dustproof, full antibacterial protection, USB-C with 100W Power Delivery over a single cable
Why choose the U8640
It gives a classroom or meeting room an 86-inch 4K UHD touch display with 50-point touch and Android 15 (Google EDLA certified) built in, so users can write, annotate and share from several devices on one screen. Corporate AV checks the room, mounting surface, power and network during a site survey, so the U8640 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

86-inch 4K UHD display with 500 nits brightness

50-point infrared touch for writing and collaboration

Android 15, Google EDLA certified, 16GB RAM / 256GB storage

50MP camera, 115 degree wide-angle lens, Auto Framing, Speaker Tracking, facial recognition attendance

8-microphone array, 12 metre pickup, MAXHUB Skywave 2.2 channel 4-speaker sound system

Use Cases

Ideal Applications

Classrooms & Training Rooms

Boardrooms & Executive Suites

Auditoriums & Large Venues

Technical Details

Technical Specifications

Display
Screen 86 inch, 4K UHD (3840x2160), 500 nits, 1,200:1 contrast (typ.), 98% sRGB
Touch & Interaction
Touch 50 touch points, plus or minus 0.5mm accuracy, 2.5ms response, infrared
Processing & Software
Compute A76x4+A55x4 octa-core, 2.4GHz, 6 TOPS NPU, Android 15, 16GB/256GB
Camera & Conferencing
Camera 50MP, 115 degree DFoV, Auto Framing, Speaker Tracking, facial recognition
Audio
Audio 8-mic array, 2.2 channel, 2x12W+2x25W max
Connectivity & Expansion
Connectivity USB-C (100W PD), HDMI, USB 3.0, WiFi 6

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The U8640 From Corporate AV?
  • Genuine MaxHub stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs MaxHub products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

How many touch points does the MaxHub U8640 support?
MaxHub lists the touch specification for the U8640 as: 50 touch points, plus or minus 0.5mm accuracy, 2.5ms response, infrared.
What operating system does the MaxHub U8640 run?
The U8640 runs Android 15 with Google EDLA certification, so Google apps and accounts work as on a certified Android device, with 16GB RAM and 256GB storage.
Can I add a Windows PC or OPS module to the MaxHub U8640?
Yes. MaxHub lists optional modules for the U8640: see the connectivity list.
Does the MaxHub U8640 have a built-in camera and microphones?
MaxHub lists: 50MP camera, 115 degree wide-angle lens, Auto Framing, Speaker Tracking, facial recognition attendance.
Which ports and connections does the MaxHub U8640 have?
MaxHub lists the following for the U8640: USB-C (100W PD), HDMI, USB 3.0, WiFi 6.
Does Corporate AV install the MaxHub U8640?
Yes. Corporate AV can supply the U8640 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the MaxHub U8640 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
