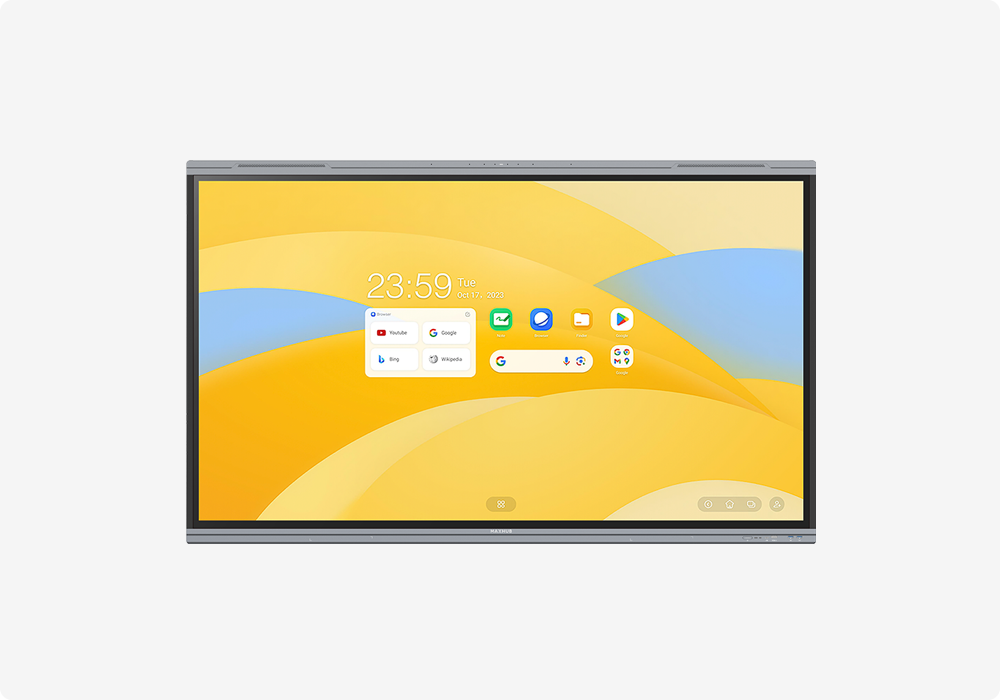

  • MaxHub E8630: E3 Series 86 Inch 4K Interactive Flat Panel for Education - front view
1 1

MaxHub E8630: E3 Series 86 Inch 4K Interactive Flat Panel

Model E8630

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized MaxHub Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 86-inch 4K UHD display with 400 nits brightness
  • 40-point infrared touch for writing and collaboration
  • Android 14, Google EDLA certified, 8GB RAM / 128GB storage
  • Octa-core CPU (A72x4+A53x4, 2.2GHz) with 6 TOPS NPU, Mali G52 MC3 GPU, 8GB RAM, 128GB storage expandable up to 1TB
Interactive Classroom Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

MAXHUB E8630 is the flagship of the E3 Series, tailored specifically for the largest educational environments. A secure Google EDLA certified operating system, AI-powered octa-core SoC, and precise 40-point touch let teachers share content from multiple devices while enhancing classroom collaboration and engagement.

Key specifications of the E8630 include a 86-inch 4K UHD panel, 400 nits typical (450 nits max) brightness, 40-point infrared touch, Android 14 with Google EDLA certification and 8GB RAM and 128GB storage. Corporate AV supplies and integrates the E8630 across India for classrooms, training rooms and campuses, including site survey, mounting and commissioning where the project needs it.

Key features

  • 86 inch 4K UHD IPS display, 10-bit color, 98% sRGB, Delta E under 1, anti-glare 25% haze, 9H tempered glass
  • MAXHUB Think&Ink Technology, 40 touch points, infrared recognition, plus or minus 1.5mm accuracy, 2mm writing height
  • Octa-core CPU (A72x4+A53x4, 2.2GHz) with 6 TOPS NPU, Mali G52 MC3 GPU, 8GB RAM, 128GB storage expandable up to 1TB
  • MAXHUB SkyWave Sound System, 2.2 channel, 2x8W+2x18W output (2x12W+2x25W max), up to 88dB sound pressure
  • Android 14, Google EDLA certified, full-feature front USB-C with 65W PD charging, video, audio, touch, and LAN
Why choose the E8630
It gives a classroom an 86-inch 4K UHD touch display with 40-point touch and Android 14 (Google EDLA certified) built in, so teachers can write, annotate and share from several devices on one screen. Corporate AV checks the room, mounting surface, power and network during a site survey, so the E8630 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

86-inch 4K UHD display with 400 nits brightness

40-point infrared touch for writing and collaboration

Android 14, Google EDLA certified, 8GB RAM / 128GB storage

Octa-core CPU (A72x4+A53x4, 2.2GHz) with 6 TOPS NPU, Mali G52 MC3 GPU, 8GB RAM, 128GB storage expandable up to 1TB

MAXHUB SkyWave Sound System, 2.2 channel, 2x8W+2x18W output (2x12W+2x25W max), up to 88dB sound pressure

Use Cases

Ideal Applications

Classrooms & Training Rooms

Meeting & Huddle Rooms

Boardrooms & Executive Suites

Technical Details

Technical Specifications

Display
Screen 86 inch IPS panel, 4K UHD (3840x2160), 400 nits (typ.) / 450 nits (max.), 3,000:1 contrast, 178 degree viewing angle
Touch & Interaction
Touch 40 touch points, infrared, plus or minus 1.5mm accuracy, 5ms response time
Processing & Software
Compute Octa-core 2.2GHz CPU, 6 TOPS NPU, Android 14, Google EDLA certified, 8GB/128GB
Audio
Audio 2.2 channel SkyWave Sound System, 2x8W+2x18W
Connectivity & Expansion
Connectivity 3x HDMI in, USB-C, USB 3.0 x4, OPS slot, WiFi 6, Bluetooth 5.2
Operation, Power & Environment
Operation Energy Star certified, IP5X dust resistant, 60,000+ hour backlight life

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The E8630 From Corporate AV?
  • Genuine MaxHub stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs MaxHub products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

How many touch points does the MaxHub E8630 support?
MaxHub lists the touch specification for the E8630 as: 40 touch points, infrared, plus or minus 1.5mm accuracy, 5ms response time.
What operating system does the MaxHub E8630 run?
The E8630 runs Android 14 with Google EDLA certification, so Google apps and accounts work as on a certified Android device, with 8GB RAM and 128GB storage.
Can I add a Windows PC or OPS module to the MaxHub E8630?
Yes. MaxHub lists optional modules for the E8630: see the connectivity list.
Which ports and connections does the MaxHub E8630 have?
MaxHub lists the following for the E8630: 3x HDMI in, USB-C, USB 3.0 x4, OPS slot, WiFi 6, Bluetooth 5.2.
What audio does the MaxHub E8630 include?
MaxHub lists the audio for the E8630 as: 2.2 channel SkyWave Sound System, 2x8W+2x18W.
Does Corporate AV install the MaxHub E8630?
Yes. Corporate AV can supply the E8630 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the MaxHub E8630 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
