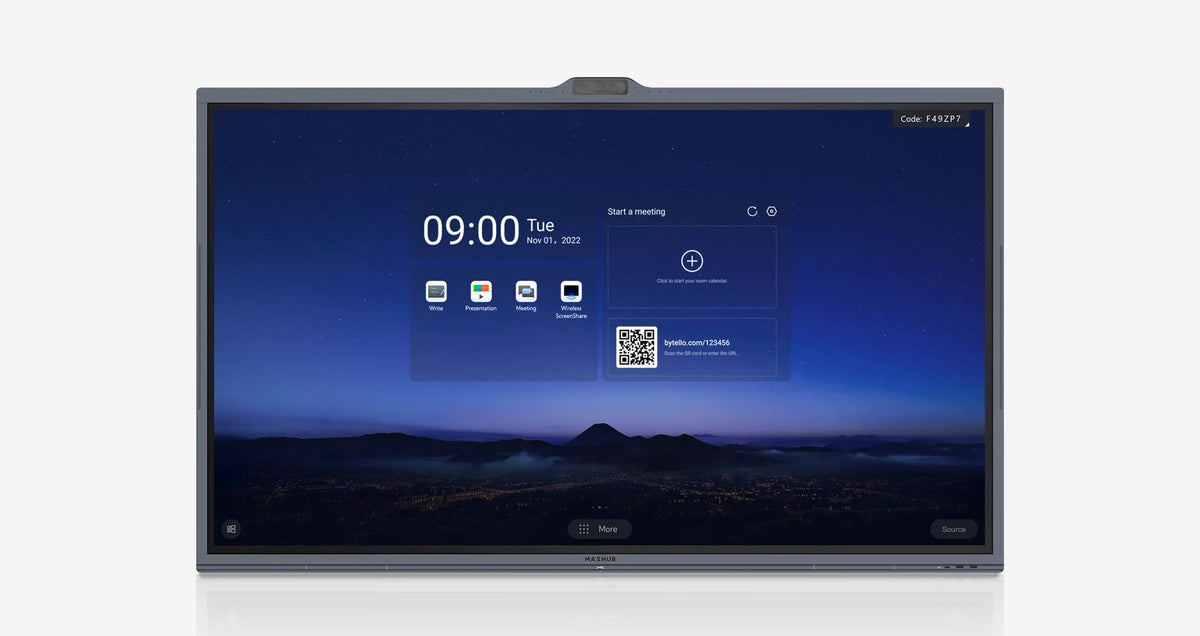

  • MaxHub C8630: V6 Classic Series 86 Inch All-in-One Interactive Display - front view (1 of 2)

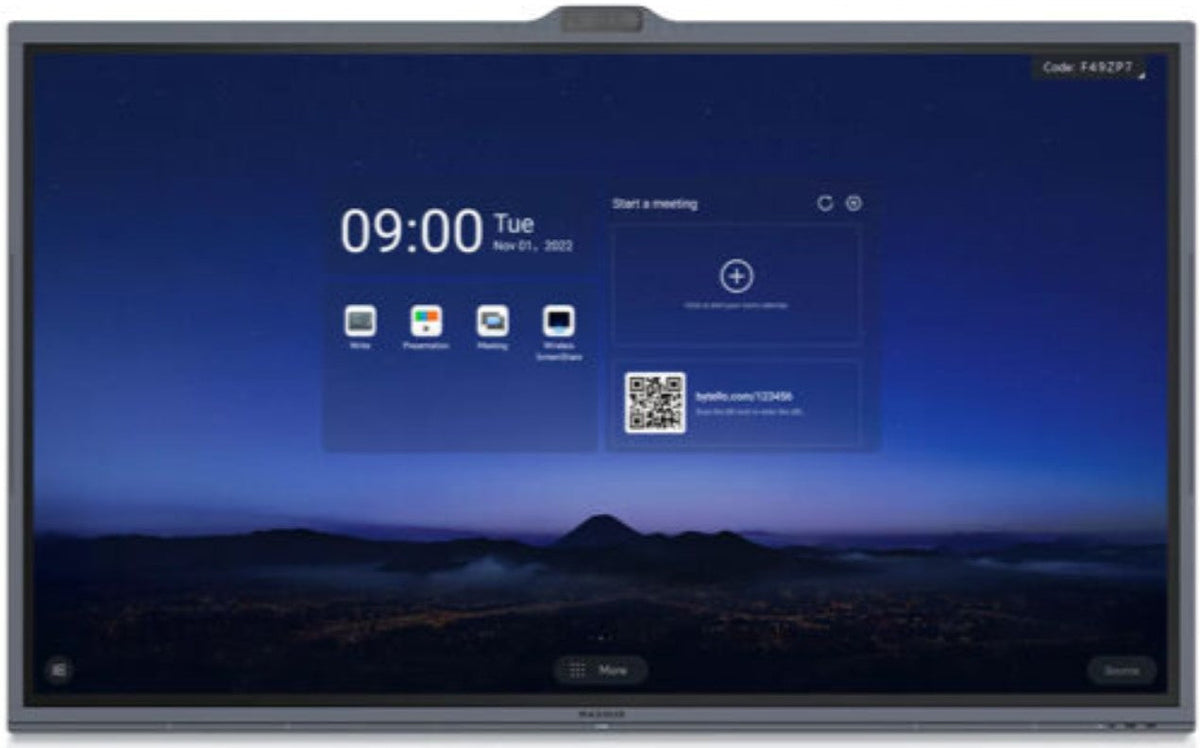

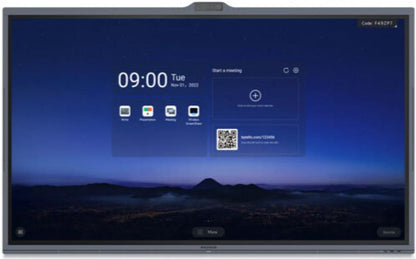

  • MaxHub C8630: V6 Classic Series 86 Inch All-in-One Interactive Display - front view (2 of 2)

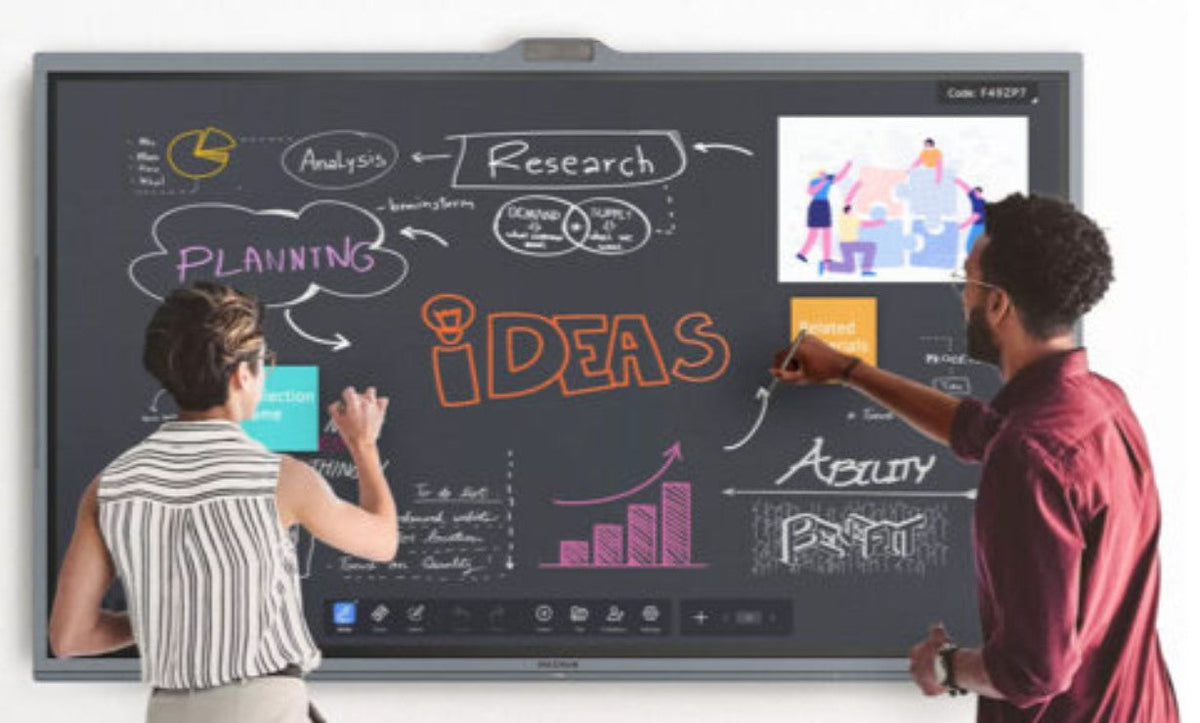

  • MaxHub C8630: V6 Classic Series 86 Inch All-in-One Interactive Display - in-use view (1 of 3)

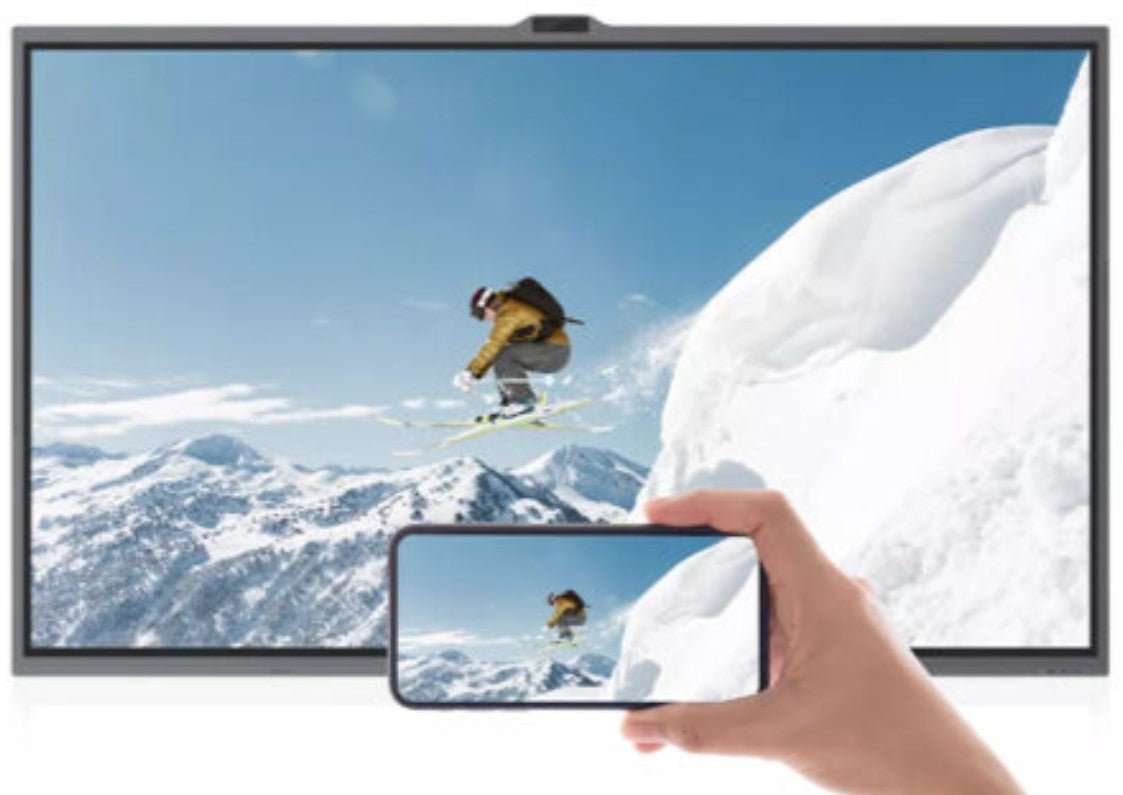

  • MaxHub C8630: V6 Classic Series 86 Inch All-in-One Interactive Display - in-use view (2 of 3)

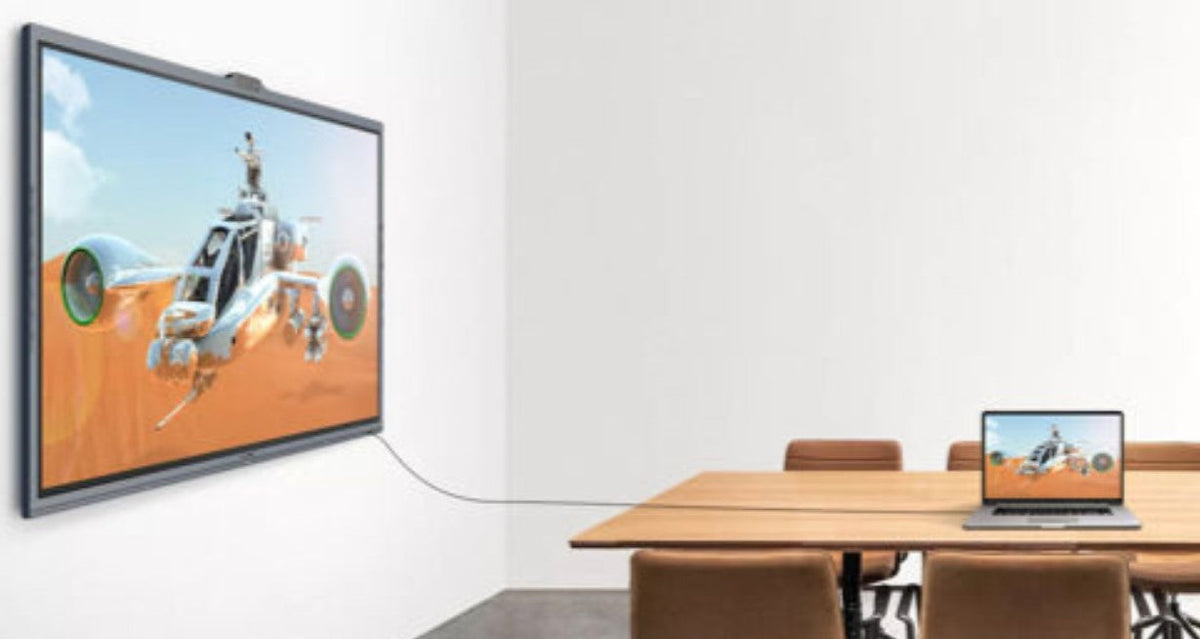

  • MaxHub C8630: V6 Classic Series 86 Inch All-in-One Interactive Display - in-use view (3 of 3)
1 5

MaxHub C8630: V6 Classic Series 86 Inch All-in-One Interactive Display

Model C8630

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized MaxHub Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 86-inch 4K UHD display with 350 nits brightness
  • 20-point infrared touch for writing and collaboration
  • 16/7 rated operation
  • 48MP camera with Auto Framing and Speaker Tracking for a realistic meeting experience
Business Interactive Display Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

MAXHUB C8630 represents the pinnacle of the V6 Classic Series, featuring an expansive 86 inch screen for large conference rooms and multinational team collaboration. A 48MP camera with auto-framing, 8-microphone beamforming array, and 20-point touch bring professional video conferencing, whiteboarding, and wireless screen sharing into one full-scale meeting solution.

Key specifications of the C8630 include a 86-inch 4K UHD panel, 350 nits brightness, 20-point infrared touch and 16/7 rated operation. Corporate AV supplies and integrates the C8630 across India for meeting rooms, boardrooms and collaboration spaces, including site survey, mounting and commissioning where the project needs it.

Key features

  • 86 inch 4K UHD VA display, 90% NTSC, direct-lit LED, anti-glare glass
  • 48MP camera with Auto Framing and Speaker Tracking for a realistic meeting experience
  • 8-microphone beamforming array, 8 metre pickup, echo cancellation, noise isolation
  • 20-point IR touch, plug-and-play setup, antibacterial glass and styluses
  • Wireless screen sharing for up to 4 devices, MAXHUB OS 6.0, cloud device management
Why choose the C8630
It puts an 86-inch 4K UHD touch display with 20-point touch in the room, so a meeting can present, annotate and collaborate on one screen and, with the built-in camera and microphones, host video calls from the same panel. A PC or Android module is added separately where the room needs a full computer. Corporate AV checks the room, mounting surface, power and network during a site survey, so the C8630 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

86-inch 4K UHD display with 350 nits brightness

20-point infrared touch for writing and collaboration

16/7 rated operation

48MP camera with Auto Framing and Speaker Tracking for a realistic meeting experience

8-microphone beamforming array, 8 metre pickup, echo cancellation, noise isolation

Use Cases

Ideal Applications

Meeting & Huddle Rooms

Boardrooms & Executive Suites

Technical Details

Technical Specifications

Display
Screen 86 inch VA panel, 4K UHD (3840x2160), 350 nits, 4,000:1 contrast, 60Hz
Touch & Interaction
Touch 20-point IR touch, +/-1mm accuracy, 8ms response
Processing & Software
Compute Optional 10th Gen Intel OPS PC module for enhanced performance
Camera & Conferencing
Camera 48MP, Auto Framing, Speaker Tracking
Audio
Audio 8-mic beamforming array, 8m pickup, 2x10W+20W subwoofer
Connectivity & Expansion
Connectivity 1x HDMI, 2x USB-A, 2x USB-C, AUX, RS232

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The C8630 From Corporate AV?
  • Genuine MaxHub stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs MaxHub products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

How many touch points does the MaxHub C8630 support?
MaxHub lists the touch specification for the C8630 as: 20-point IR touch, +/-1mm accuracy, 8ms response.
Can I add a Windows PC or OPS module to the MaxHub C8630?
Yes. The C8630 supports an optional PC or Android module, sold separately: Optional 10th Gen Intel OPS PC module for enhanced performance.
Does the MaxHub C8630 have a built-in camera and microphones?
MaxHub lists: 48MP camera with Auto Framing and Speaker Tracking for a realistic meeting experience.
Can I share content wirelessly to the MaxHub C8630?
MaxHub lists: Wireless screen sharing for up to 4 devices, MAXHUB OS 6.0, cloud device management.
Which ports and connections does the MaxHub C8630 have?
MaxHub lists the following for the C8630: 1x HDMI, 2x USB-A, 2x USB-C, AUX, RS232.
Does Corporate AV install the MaxHub C8630?
Yes. Corporate AV can supply the C8630 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the MaxHub C8630 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
