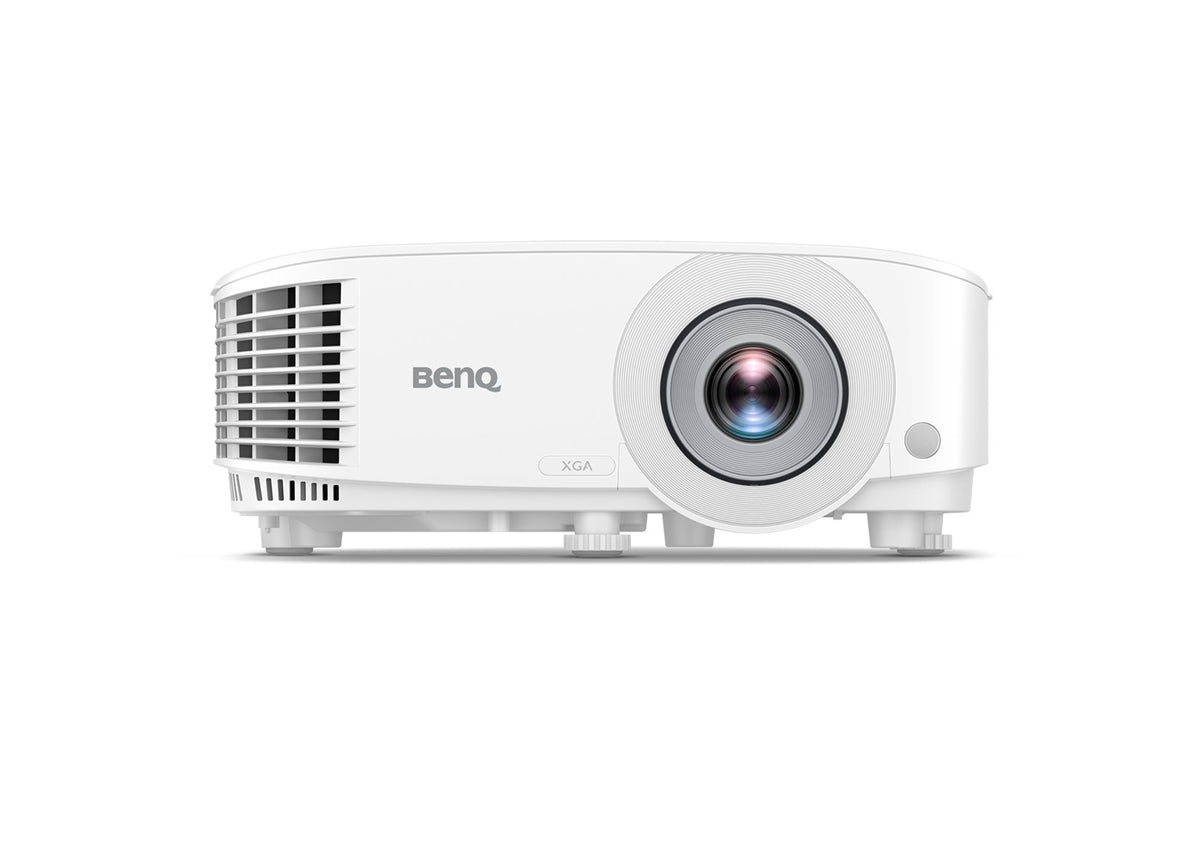

  • BenQ MX560: 4,000 Lumens XGA Projector - front view

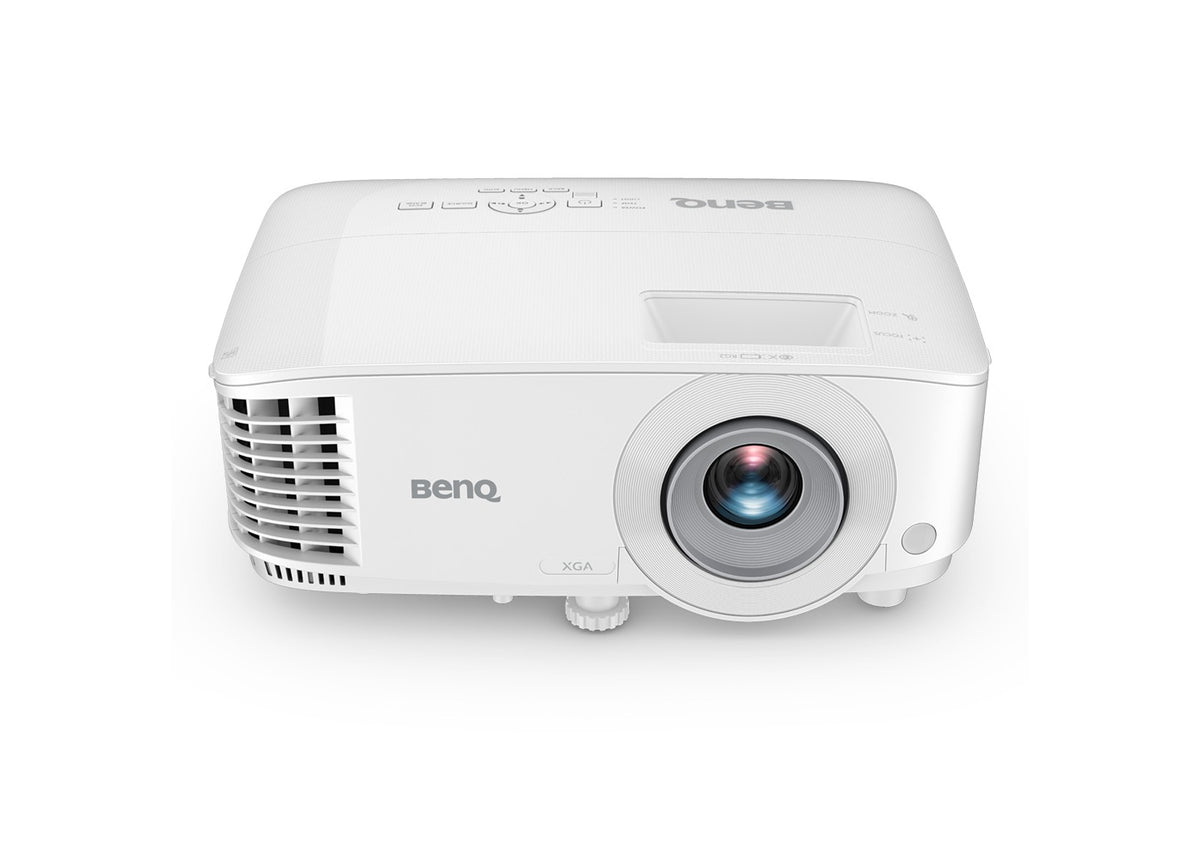

  • BenQ MX560: 4,000 Lumens XGA Projector - angled view (1 of 3)

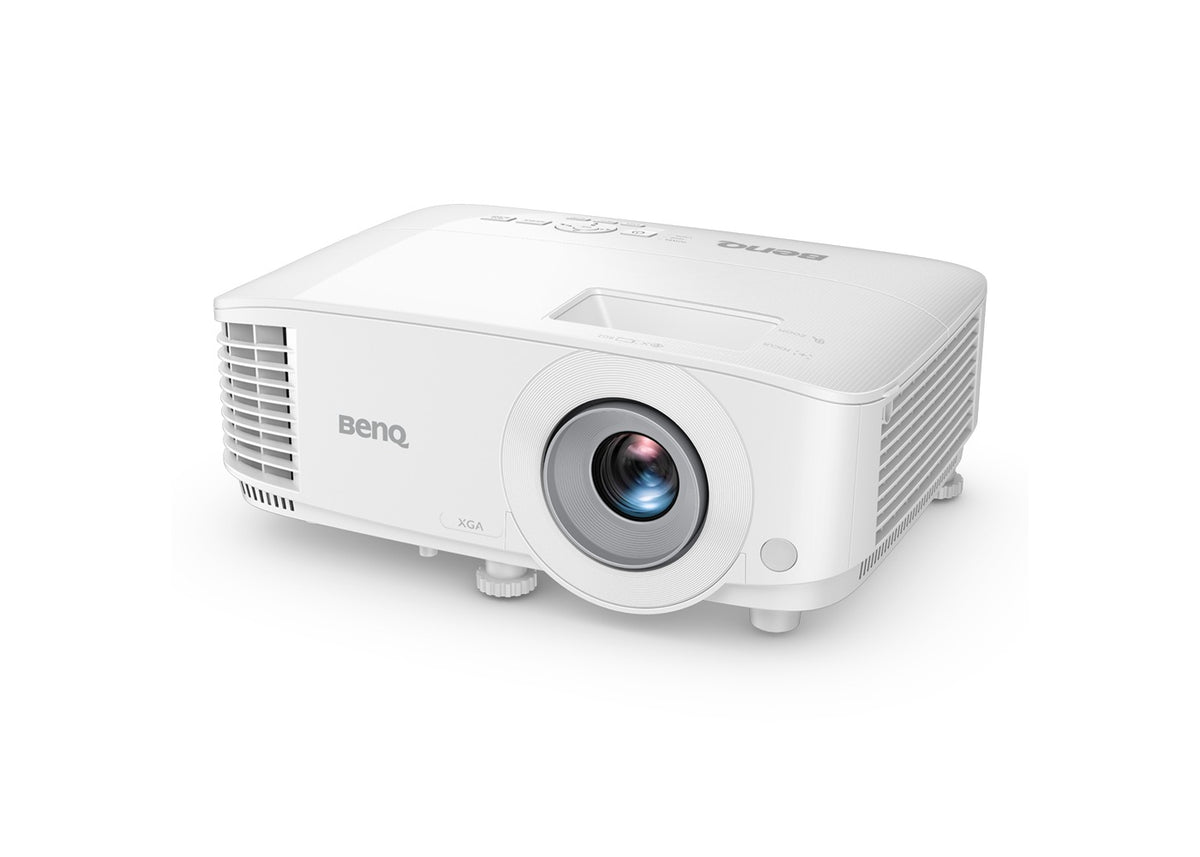

  • BenQ MX560: 4,000 Lumens XGA Projector - angled view (2 of 3)

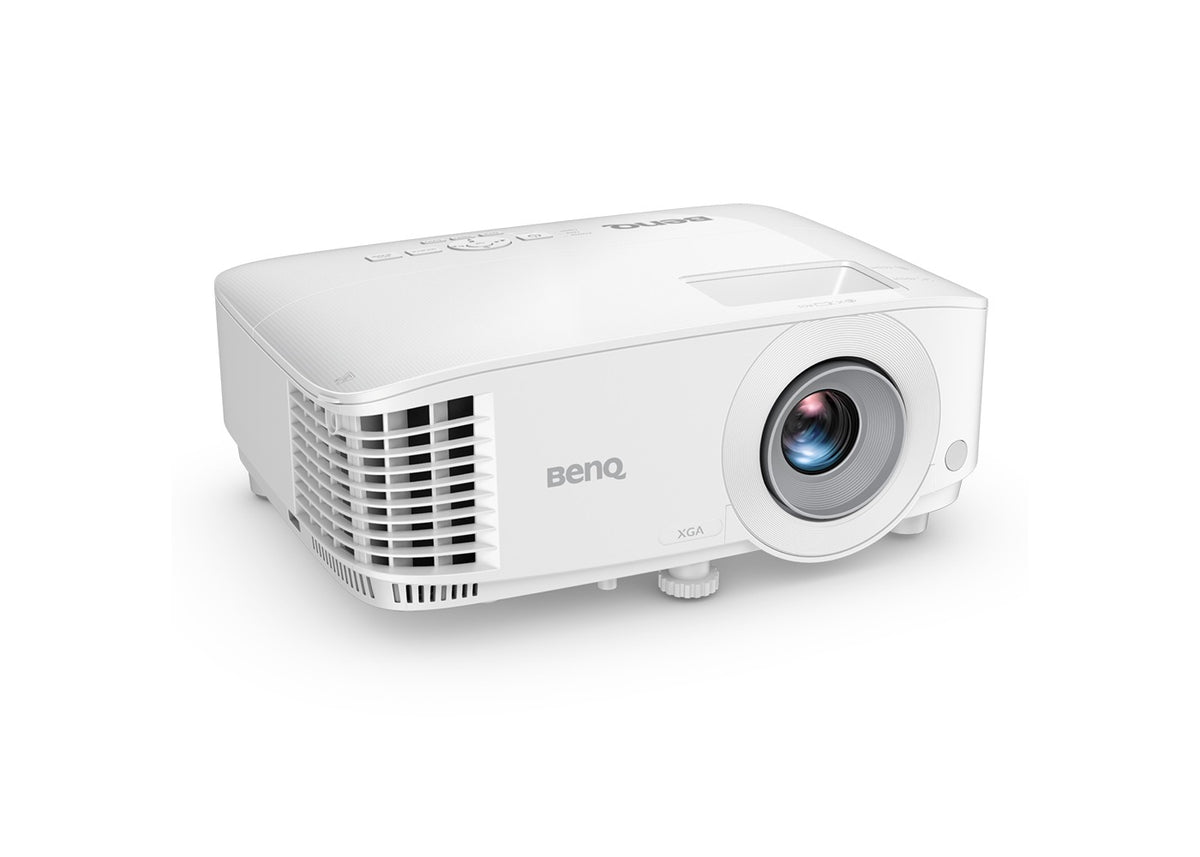

  • BenQ MX560: 4,000 Lumens XGA Projector - angled view (3 of 3)

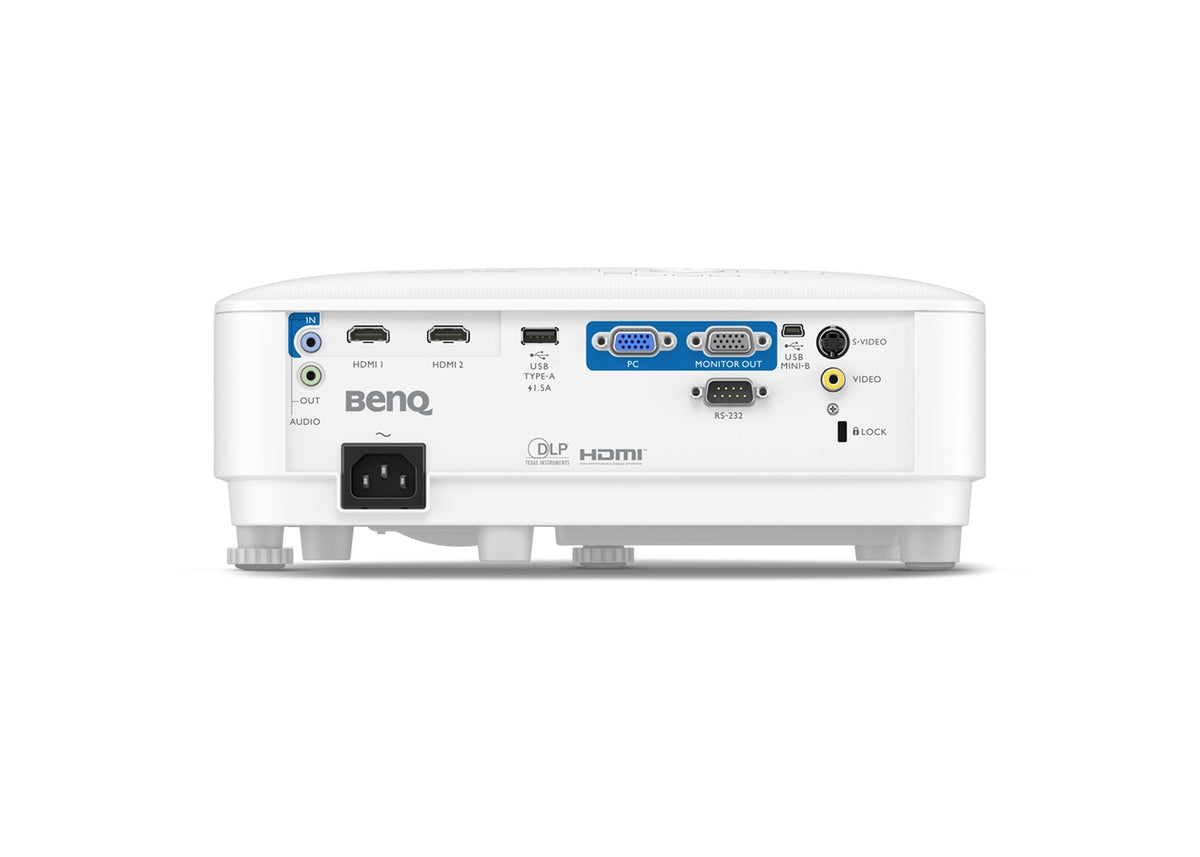

  • BenQ MX560: 4,000 Lumens XGA Projector - rear view

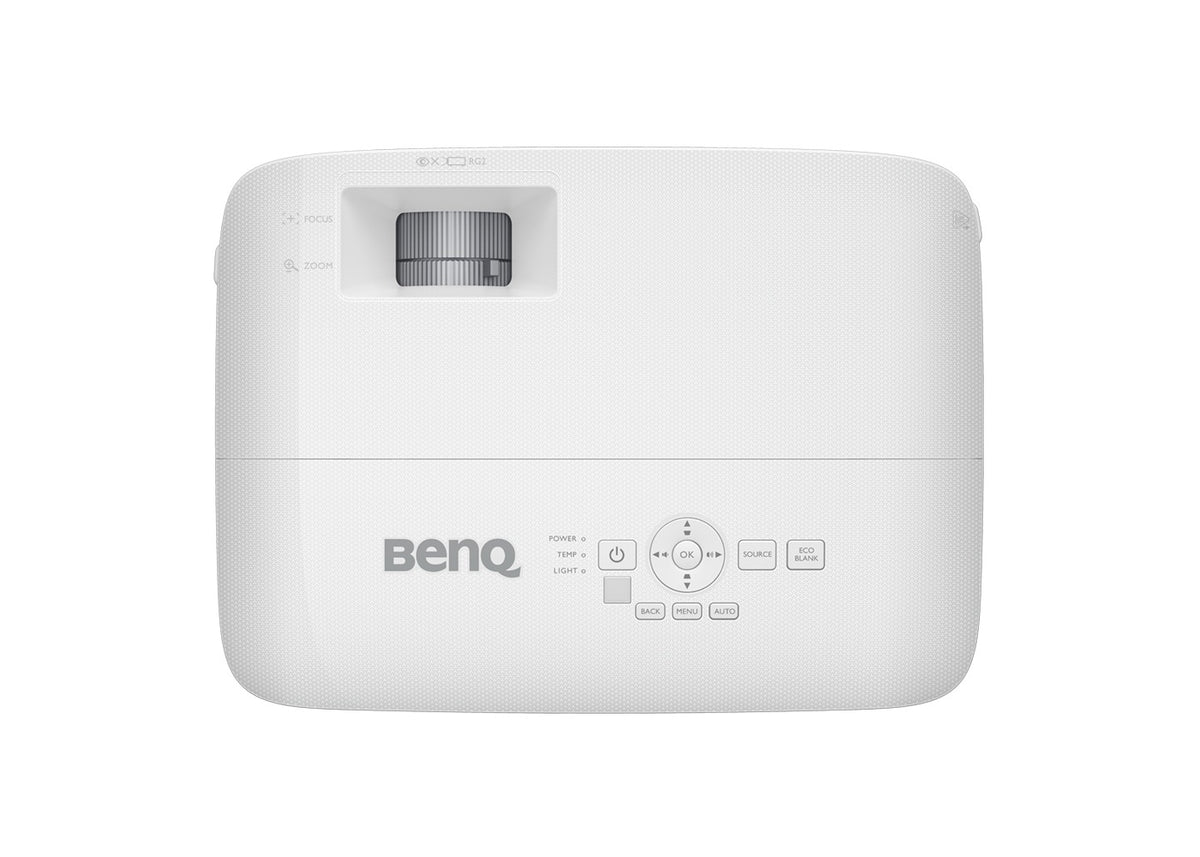

  • BenQ MX560: 4,000 Lumens XGA Projector - top view
1 6

BenQ MX560: 4,000 Lumens XGA Projector

Model MX560

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized BenQ Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • 4,000 ANSI lumens brightness
  • XGA resolution
  • Lamp light source, rated Normal 6,000 hrs, ECO 10,000 hrs, SmartEco 10,000 hrs, LampSave 15,000 hrs
  • Throw ratio: 1.96~2.15
Smart Classroom Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The BenQ MX560 is a 4,000-lumen XGA projector.

Specification highlights for the MX560: Brightness (ANSI lumens): 4000; Resolution: XGA (1024x768); Light Source: Lamp. Corporate AV supplies and integrates the MX560 across India for meeting rooms, classrooms and venues, including site survey, installation and commissioning where the project needs it.

Key features

  • 4,000 ANSI lumens brightness
  • XGA resolution
  • Lamp light source, rated Normal 6,000 hrs, ECO 10,000 hrs, SmartEco 10,000 hrs, LampSave 15,000 hrs
  • Throw ratio: 1.96~2.15
  • Contrast ratio: 20,000:1
Why choose the MX560
It is a 4,000 ANSI-lumen projector for rooms that need a large image, so presentations stay clear across the room. Corporate AV checks the room, mounting surface, power and network during a site survey, so the MX560 is installed and commissioned as part of a complete AV system rather than delivered as a box.
Product Highlights

Key Benefits

4,000 ANSI lumens brightness

XGA resolution

Lamp light source, rated Normal 6,000 hrs, ECO 10,000 hrs, SmartEco 10,000 hrs, LampSave 15,000 hrs

Throw ratio: 1.96~2.15

Contrast ratio: 20,000:1

Use Cases

Ideal Applications

Meeting & Huddle Rooms

Classrooms & Training Rooms

Auditoriums & Large Venues

Technical Details

Technical Specifications

Display
Brightness (ANSI lumens) 4000
Resolution XGA (1024x768)
Native Aspect Ratio 4:3
Contrast Ratio (FOFO) 20,000:1
Display Color 30-bit (1.07 billion colors)
Light Source Lamp
Light Source Life Normal 6,000 hrs, ECO 10,000 hrs, SmartEco 10,000 hrs, LampSave 15,000 hrs
Optical
Throw Ratio 1.96~2.15
Zoom Ratio 1.1x
Lens F/# = 2.56 ~ 2.68, f = 22 ~ 24.1 mm
Projection Offset (Full-Height) 110%
Keystone Adjustment 1D, (Auto) Vertical ± 40 degrees
Picture Modes 3D, Bright, Infographic, Presentation, Spreadsheet, sRGB, User 1, User 2
Compatibility
Resolution Support VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
Horizontal Frequency 15K~102KHz
I/O Interface
PC in (D-sub 15pin) 1
Monitor out (D-sub 15pin) 1
Composite Video in (RCA) 1
S-Video in (Mini DIN 4pin) 1
HDMI in 2 (HDMI-1 (1.4a/HDCP1.4), HDMI-2 (1.4a/HDCP1.4))
USB Type A 1
USB Type Mini B 1
RS232 in (DB-9pin) 1
Audio
Speaker 1 × 10 W
Audio in (3.5mm Mini Jack) 1
Audio out (3.5mm Mini Jack) 1
Environment
Operating Temperature 0~40℃
Power Supply AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V) 260W/110V
Acoustic Noise (Typ./Eco.)(dB) 34/29
Accessories
Remote Control w/ Battery RCX016
VGA(D-sub 15pin) Cable 1 (1.5m)
3D Glasses DGD5, (Optional)
Universal Ceiling Mount CM00G3, (Optional)
Dimension & Weight
Dimensions (WxHxD) (mm) 296 x120 x221
Net Weight (kg) 2.3
Projection System
Projection System DLP
In The Box

What's Included

Remote Control w/ Battery (RCX016)
VGA(D-sub 15pin) Cable (1.5m)

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The MX560 From Corporate AV?
  • Genuine BenQ stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs BenQ products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

How bright is the BenQ MX560?
BenQ lists the brightness of the MX560 as: 4000 ANSI lumens.
What resolution does the BenQ MX560 have?
BenQ lists the resolution of the MX560 as: XGA (1024x768).
Does the BenQ MX560 have built-in speakers?
BenQ lists the audio of the MX560 as: 1 × 10 W.
What light source does the BenQ MX560 use?
BenQ lists the light source of the MX560 as: Lamp.
How long does the light source of the BenQ MX560 last?
BenQ lists the light source life of the MX560 as: Normal 6,000 hrs, ECO 10,000 hrs, SmartEco 10,000 hrs, LampSave 15,000 hrs.
Does Corporate AV install the BenQ MX560?
Yes. Corporate AV can supply the MX560 only, or deliver it turnkey with site survey, mounting, cabling and commissioning. See our AV installation services for how a project is run.
How do I get a quote for the BenQ MX560 in India?
Use the Request a Quote button on this page or message Corporate AV on WhatsApp. Pricing depends on quantity, delivery location and installation scope, so we prepare a tailored proposal rather than publishing a fixed price.
