Barco ClickShare CX-50: Wireless Conferencing System, 2 Buttons
Model ClickShare CX-50
Request a Quote
Availability: Out of Stock
- High-end wireless conferencing for large rooms and boardrooms
- HDMI input plus 4K UHD HDMI output at 30 Hz
- Dual network (LAN and dual Wi-Fi), 2 sources on screen
- 2 ClickShare Buttons supplied
Product Overview
Overview
The Barco ClickShare CX-50 (R9861522EU) is the first-generation high-end wireless conferencing system for large meeting spaces and boardrooms. It connects a laptop to the room camera, microphones, speakers and displays automatically, adds an HDMI input and dual Wi-Fi networking, and ships with two ClickShare Buttons.
Corporate AV supplies and integrates the ClickShare CX-50 across India for large meeting spaces and boardrooms, together with the displays, cameras, audio and control systems it is used with. Request a quote for supply, installation and commissioning.
Key features
- Wireless conferencing: the laptop connects to the room camera, microphones, speakers and displays
- Two ClickShare Buttons (USB-C) supplied, plus the ClickShare App
- HDMI input for high-quality wired content sharing
- Dual network connection (LAN and dual Wi-Fi) and advanced AV integration
- Two sources on screen, with touchback, annotation and blackboarding
- Audio out on 3.5 mm jack and digital S/PDIF
Why choose the ClickShare CX-50
It suits a larger room that needs a wired HDMI source as well as wireless sharing, with dual-network connectivity for separating guest and corporate traffic and S/PDIF and analogue audio outputs for room audio. This is the first-generation CX-50; the CX-50 Gen 2 adds faster ports and a newer power supply.
Product Highlights
Key Benefits
High-end wireless conferencing for large rooms and boardrooms
HDMI input plus 4K UHD HDMI output at 30 Hz
Dual network (LAN and dual Wi-Fi), 2 sources on screen
2 ClickShare Buttons supplied
Cloud managed, 5-year coverage with SmartCare registration
Use Cases
Ideal Applications
Boardrooms
Large Meeting Rooms
Hybrid Meeting Rooms
Technical Details
Technical Specifications
Video and audio
Video output
4K UHD (3840 × 2160) at 30 Hz, HDMI 1.4b
Video input
1920 × 1080 at 30 Hz, HDMI 1.4b
Audio output
USB | 3.5 mm jack | digital S/PDIF | HDMI
Sharing and compatibility
ClickShare Buttons included
2 (USB-C)
Maximum sources on screen at once
2
ClickShare App
Desktop and mobile
Native protocols
AirPlay | Google Cast | Miracast
Operating system
Windows 10 and higher | macOS 11 (Big Sur) and higher | Android 11 and higher and iOS 14 and higher via the ClickShare App
System requirements
For Microsoft Teams or Zoom: minimum Intel Core i3 or AMD Ryzen 5 (macOS: Intel Core i3 or Apple Silicon M1), 8 GB RAM, Windows 10 20H2 or macOS 11 | recommended Intel Core i5 / Ultra 5 or AMD Ryzen 7 (macOS: Apple Silicon M3), 8 GB RAM, Windows 11 or latest macOS
Interactive features
Touchback, annotation and blackboarding
Connections
Ethernet
1x LAN 1 Gbit
USB ports
1x USB-C 2.0 (back) | 2x USB-A 2.0 (back) | 1x USB-A 2.0 (front)
Audio
Analogue line out on 3.5 mm mini jack | digital S/PDIF
Wireless and security
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Frequency band
2.4 GHz and 5 GHz (DFS channels supported in select countries)
Reach
Up to 30 m (100 ft) between ClickShare Button and base unit
Authentication
WPA2-PSK in stand-alone mode | WPA2-PSK or IEEE 802.1X (with ClickShare Button) in network integration mode
Network connection
LAN and Wi-Fi
Management and reporting
Yes
Physical, power and environment
Dimensions (H × W × D)
39 × 200 × 202 mm
Weight
900 g
Power consumption
Operational 50 W (max)
Power supply
Standard 110/220 V AC plug
Noise level
Max. 25 dBA at 0-30 °C | Max. 30 dBA at 30-40 °C
Operating temperature
0 to 40 °C (32 to 104 °F); max. 35 °C (95 °F) at 3000 m
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
Operating: 0 to 85 % relative, non-condensing | Storage: 0 to 90 % relative, non-condensing
Anti-theft
Kensington lock
Certifications
FCC / CE
Warranty
1 year standard | 5 years coverage upon registering via SmartCare
In The Box
What's Included

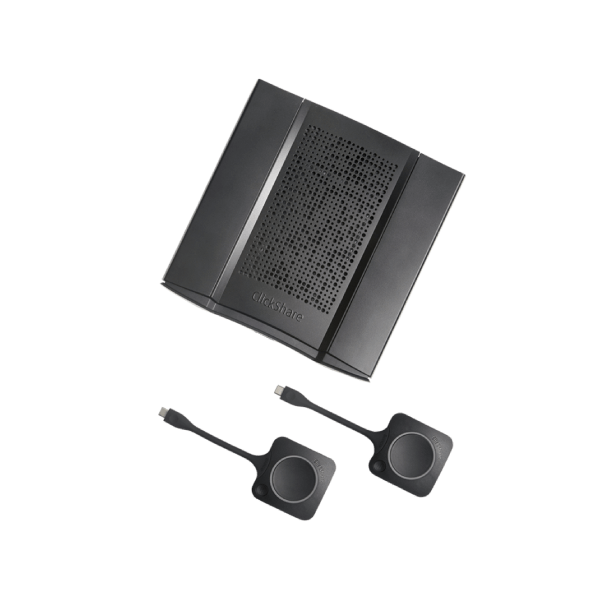

1 ClickShare CX-50 base unit
2 ClickShare Buttons (USB-C)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ClickShare CX-50 From Corporate AV?
- Genuine Barco stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Barco products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
Is the Barco ClickShare CX-50 the same as the CX-50 Gen 2?
No. R9861522EU is the first-generation CX-50. The CX-50 Gen 2 (R9861622EUB2) is a newer model with a 2.5 Gbps Ethernet port, USB 3.0 ports, 4K HDMI output at 60 Hz and its own power supply, and the two generations use different power adapters.
How many ClickShare Buttons does the CX-50 include?
The R9861522EU kit includes two USB-C ClickShare Buttons. The ClickShare App can also be used on laptops and mobile devices.
Does the ClickShare CX-50 have an HDMI input?
Yes. Barco lists an HDMI 1.4b video input at 1920 × 1080 at 30 Hz for wired content sharing, in addition to a 4K UHD HDMI 1.4b output at 30 Hz.
How many sources can the CX-50 show at once?
Up to two sources can be shown on screen at the same time.
Which power supply does the first-generation CX-50 use?
It uses the 12 V / 50 W ATS050T adapter (Barco part B563180K). Barco warns the CX-50 Gen 2 adapter (ATM090T, B5631051K) cannot be plugged into a first-generation CX-50.
What network options does the CX-50 offer?
It supports a dual network connection over LAN (1 Gbit Ethernet) and dual Wi-Fi in the 2.4 GHz and 5 GHz bands, with WPA2-PSK in stand-alone mode and WPA2-PSK or IEEE 802.1X in network integration mode.
What warranty does the ClickShare CX-50 have?
Barco gives 1 year standard warranty and 5 years of coverage upon registering through SmartCare.
