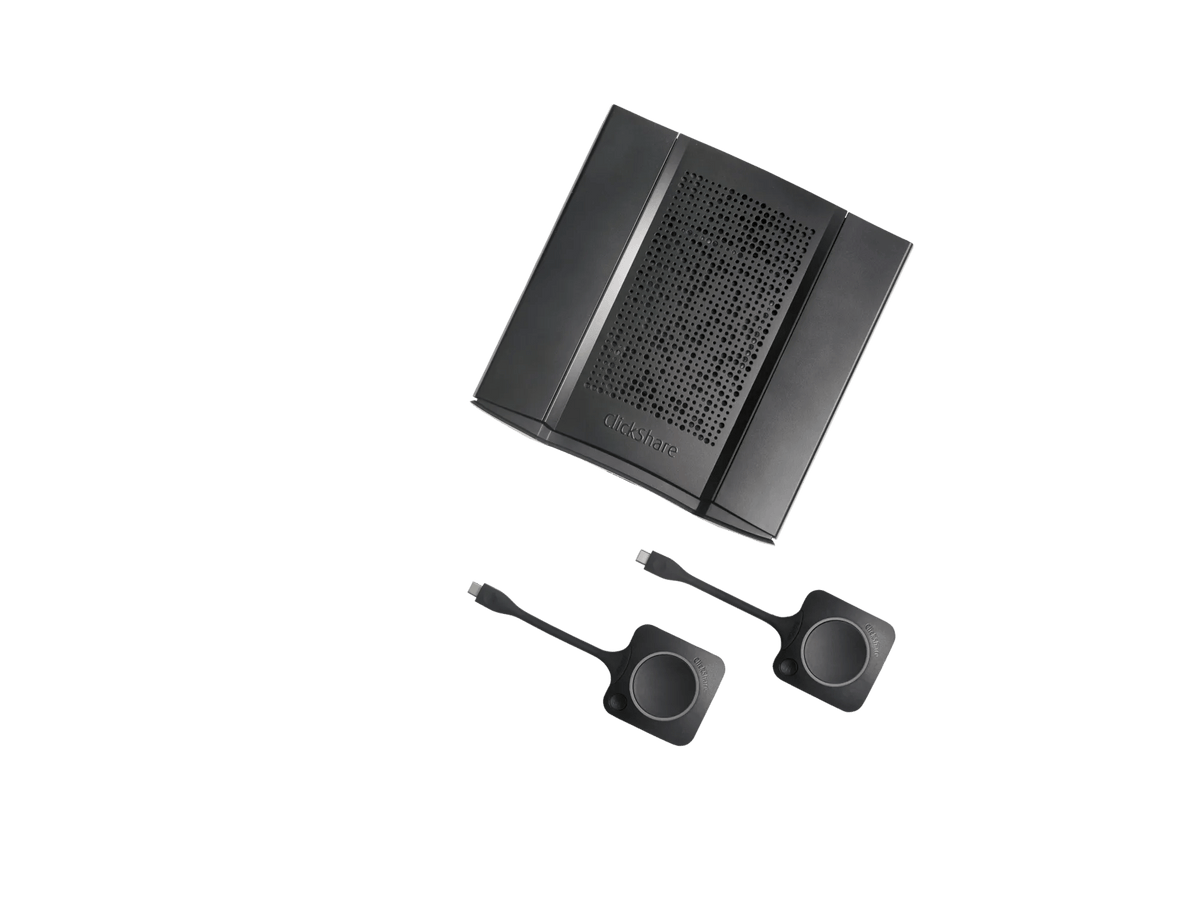

Barco ClickShare CX-50 Gen 2: Wireless Conferencing System, 2 Buttons
Model ClickShare CX-50 Gen 2
Request a Quote
Availability: Out of Stock
- Premium wireless conferencing for boardrooms and large rooms
- Dual screen: people and content side by side
- 4K UHD at 60 Hz over HDMI and USB-C DisplayPort
- 2.5 Gbps Ethernet, USB 3.0 ports, 2 Buttons supplied
Product Overview
Overview
The Barco ClickShare CX-50 Gen 2 (R9861622EUB2) is a premium wireless conferencing system for high-impact meeting rooms and boardrooms. It connects a laptop to the room camera, microphones, speakers and displays automatically, shows people and content side by side on two screens, and ships with two ClickShare Buttons.
Corporate AV supplies and integrates the ClickShare CX-50 Gen 2 across India for boardrooms and high-impact meeting rooms, together with the displays, cameras, audio and control systems it is used with. Request a quote for supply, installation and commissioning.
Key features
- Dual screen: people and content side by side on two displays
- Two ClickShare Buttons (USB-C) supplied, plus the ClickShare App
- Switches automatically between room-system mode and Bring Your Own Device mode
- Wired RoomDock option for 4K content sharing over USB-C or HDMI input
- 4K UHD output at 60 Hz over HDMI and USB-C DisplayPort
- Secure by design and cloud managed (ANSSI CSPN security certified)
Why choose the ClickShare CX-50 Gen 2
It is Barco’s top ClickShare room model for rooms that carry the most weight: two displays keep the remote participants and the shared content visible together, and it switches between a room-system setup (Microsoft Teams Rooms or Zoom Rooms) and BYOD automatically. The wired RoomDock option adds 4K content sharing for important presentations.
Product Highlights
Key Benefits
Premium wireless conferencing for boardrooms and large rooms
Dual screen: people and content side by side
4K UHD at 60 Hz over HDMI and USB-C DisplayPort
2.5 Gbps Ethernet, USB 3.0 ports, 2 Buttons supplied
ANSSI CSPN security certified, cloud managed
Use Cases
Ideal Applications
Boardrooms
Large Meeting Rooms
Hybrid Meeting Rooms
Technical Details
Technical Specifications
Video and audio
Video output (HDMI)
3840 × 2160 at 60 Hz, HDMI 2.1 source
Video output (USB-C)
3840 × 2160 at 60 Hz, DisplayPort Alternate mode source (DisplayPort 1.2)
Video input (USB-C)
3840 × 2160 at 30 Hz, DisplayPort Alternate mode sink (DisplayPort 1.2)
Audio output
USB | 3.5 mm jack | HDMI
Sharing and compatibility
ClickShare Buttons included
2 (USB-C)
Maximum sources on screen at once
2
ClickShare App
Desktop and mobile
Native protocols
AirPlay | Google Cast | Miracast
Operating system
Windows 10 and higher | macOS 11 (Big Sur) and higher | Android 11 and higher and iOS 14 and higher via the ClickShare App
System requirements
For Microsoft Teams or Zoom: minimum Intel Core i3 or AMD Ryzen 5 (macOS: Intel Core i3 or Apple Silicon M1), 8 GB RAM, Windows 10 20H2 or macOS 11 | recommended Intel Core i5 / Ultra 5 or AMD Ryzen 7 (macOS: Apple Silicon M3), 8 GB RAM, Windows 11 or latest macOS
Interactive features
Touchback, annotation and blackboarding

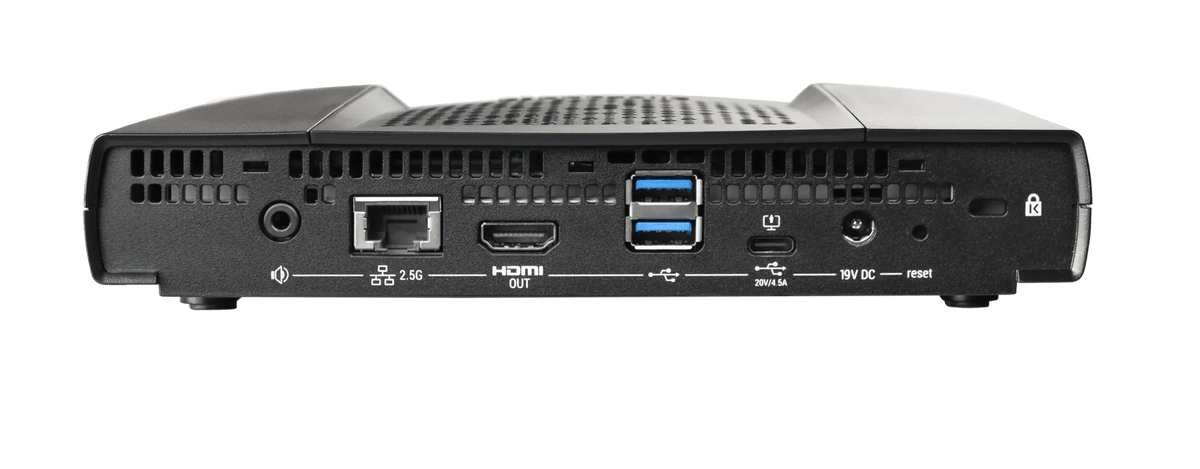

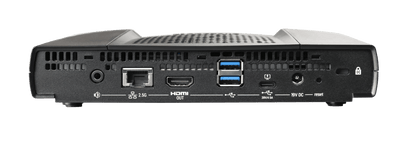

Connections
Ethernet
1x LAN 2.5 Gbps
USB-C (back)
1x USB 3.0 / DisplayPort Alt. Mode output / power delivery sink
USB-A (back)
2x USB-A 3.0
USB-C (front)
1x USB 3.0 / DisplayPort Alt. Mode input
Audio
Analogue line out on 3.5 mm mini jack
Wireless and security
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Frequency band
2.4 GHz and 5 GHz (DFS channels supported in select countries)
Reach
Up to 30 m (100 ft) between ClickShare Button and base unit
Authentication
WPA2-PSK in stand-alone mode | WPA2-PSK or IEEE 802.1X (with ClickShare Button) in network integration mode
Wired authentication
802.1X | EAP-TLS | EAP-TTLS | PEAP
SoftAP client mode
802.1X EAP-TLS | EAP-TTLS | PEAP | WPA2-PSK
Network connection
LAN and Wi-Fi (dual)
Security certification
ANSSI CSPN
Management and reporting
Yes
Physical, power and environment
Dimensions (H × W × D)
39 × 200 × 202 mm
Weight
900 g
Power consumption
Operational 50 W (max) | standby below 8 W (networked) and below 0.5 W (deep standby)
Power supply
Standard 110/220 V AC plug
Noise level
Max. 25 dBA at 0-30 °C | Max. 30 dBA at 30-40 °C
Operating temperature
0 to 40 °C (32 to 104 °F); max. 35 °C (95 °F) at 3000 m
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
Operating: 0 to 85 % relative, non-condensing | Storage: 0 to 90 % relative, non-condensing
Anti-theft
Kensington lock
Certifications
FCC / CE
Warranty
1 year standard | 5 years coverage upon registering via SmartCare
In The Box
What's Included
1 ClickShare CX-50 Gen 2 base unit
2 ClickShare Buttons (USB-C)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ClickShare CX-50 Gen 2 From Corporate AV?
- Genuine Barco stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Barco products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is new on the Barco ClickShare CX-50 Gen 2?
Compared with the first-generation CX-50, Barco lists a 2.5 Gbps Ethernet port, USB 3.0 ports, 4K UHD output at 60 Hz over HDMI and USB-C DisplayPort, a USB-C input, automatic switching between room-system and BYOD mode, and a wired RoomDock option.
What does dual screen mean on the CX-50 Gen 2?
Dual screen lets the room show the remote people on one display and the shared content on another, side by side, for a more immersive and inclusive meeting.
How many ClickShare Buttons are in the box?
The R9861622EUB2 kit includes two USB-C ClickShare Buttons, and users can also join with the ClickShare App.
Does it work with Microsoft Teams Rooms or Zoom Rooms?
Barco states it can be used as a standalone product or integrated into any meeting room, including Microsoft Teams Rooms or Zoom Rooms, and it switches automatically from room-system to BYOD mode.
Can I add an HDMI input to the CX-50 Gen 2?
Yes. Barco HDMI IN to USB-C Converter Kit R9861581 adds an HDMI input and supports the Wired RoomDock use case. Barco says no other HDMI to USB-C converter is supported for this purpose.
Which power supply does the CX-50 Gen 2 use?
It uses the 19 V / 90 W ATM090T adapter (Barco part B5631051K). Barco warns that the first-generation CX-50 adapters (B563180K and B563182K) can be plugged into a Gen 2 but it will not boot, and the Gen 2 adapter must not be used on a first-generation CX-50.
How secure is the ClickShare CX-50 Gen 2?
Barco describes it as secure by design and cloud managed, ANSSI CSPN security certified. It supports WPA2-PSK and IEEE 802.1X authentication, wired 802.1X (EAP-TLS, EAP-TTLS, PEAP) and a SoftAP client mode.
