Barco ClickShare CX-30 Gen 2: Wireless Conferencing System, 2 Buttons
Model ClickShare CX-30 Gen 2
Request a Quote
Availability: Out of Stock
- Wireless conferencing for small to medium meeting rooms
- Laptop auto-connects to room camera, mics, speakers and display
- 2 ClickShare Buttons supplied, 2 sources on screen
- Touchback, annotation and blackboarding
Product Overview
Overview

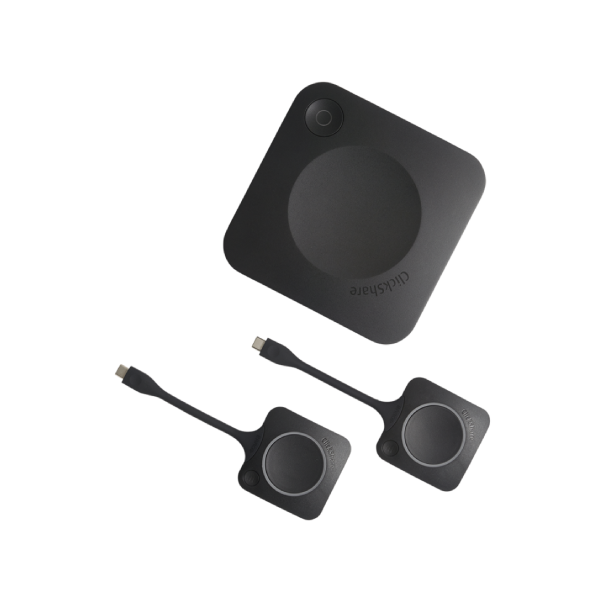

The Barco ClickShare CX-30 Gen 2 (R9861613EUB2) is a wireless conferencing system for small to medium-sized meeting rooms. It connects a laptop to the room camera, microphones, speakers and display automatically, supports two sources on screen, and ships with two USB-C ClickShare Buttons.
Corporate AV supplies and integrates the ClickShare CX-30 Gen 2 across India for small to medium-sized meeting rooms, together with the displays, cameras, audio and control systems it is used with. Request a quote for supply, installation and commissioning.
Key features
- Wireless conferencing: the laptop connects to the room camera, microphones, speakers and display
- Two ClickShare Buttons (USB-C) supplied, plus the ClickShare App
- Two sources on screen at once for enhanced collaboration
- Interactive features: touchback, annotation and blackboarding
- 4K UHD output at 30 Hz over HDMI 1.4b or USB-C DisplayPort 1.2
- Secure and cloud managed, with WPA2-PSK and IEEE 802.1X authentication
Why choose the ClickShare CX-30 Gen 2
It brings hybrid meetings to a medium room without a room PC: the laptop picks up the room camera and audio, the call runs on the platform people already use, and two Buttons let two people share side by side. Touchback and annotation add interaction that the CX-20 does not have.
Product Highlights
Key Benefits
Wireless conferencing for small to medium meeting rooms
Laptop auto-connects to room camera, mics, speakers and display
2 ClickShare Buttons supplied, 2 sources on screen
Touchback, annotation and blackboarding
Cloud managed, 5-year coverage with SmartCare registration
Use Cases
Ideal Applications
Medium Meeting Rooms
Hybrid Meeting Rooms
BYOD Meeting Rooms
Technical Details
Technical Specifications
Video and audio
Video output
4K UHD (3840 × 2160) at 30 Hz | HDMI 1.4b or USB-C DisplayPort 1.2 (USB-C output on Gen 2)
Audio output
HDMI
Sharing and compatibility
ClickShare Buttons included
2 (USB-C)
Maximum sources on screen at once
2
ClickShare App
Desktop and mobile
Native protocols
AirPlay | Google Cast | Miracast
Operating system
Windows 10 and higher | macOS 11 (Big Sur) and higher | Android 11 and higher and iOS 14 and higher via the ClickShare App
System requirements
For Microsoft Teams or Zoom: minimum Intel Core i3 or AMD Ryzen 5 (macOS: Intel Core i3 or Apple Silicon M1), 8 GB RAM, Windows 10 20H2 or macOS 11 | recommended Intel Core i5 / Ultra 5 or AMD Ryzen 7 (macOS: Apple Silicon M3), 8 GB RAM, Windows 11 or latest macOS
Interactive features
Touchback, annotation and blackboarding
Connections
Ethernet
1x LAN 1 Gbit
USB ports (front)
1x USB-C and 1x USB-A (USB 3.0 on Gen 2 units)
Wireless and security
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Frequency band
2.4 GHz and 5 GHz (DFS channels supported in select countries)
Reach
Up to 30 m (100 ft) between ClickShare Button and base unit
Authentication
WPA2-PSK in stand-alone mode | WPA2-PSK or IEEE 802.1X (with ClickShare Button) in network integration mode
Network connection
LAN and Wi-Fi
Management and reporting
Yes
Physical, power and environment
Dimensions (H × W × D)
34 × 135 × 135 mm
Weight
900 g
Power consumption
Operational 5-10 W, 24 W max
Power supply
Standard 110/220 V AC plug or USB-C (Gen 2)
Noise level
Max. 25 dBA at 0-30 °C | Max. 30 dBA at 30-40 °C
Operating temperature
0 to 40 °C (32 to 104 °F); max. 35 °C (95 °F) at 3000 m
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
Operating: 0 to 85 % relative, non-condensing | Storage: 0 to 90 % relative, non-condensing
Anti-theft
Kensington lock
Certifications
FCC / CE
Warranty
1 year standard | 5 years coverage upon registering via SmartCare
In The Box
What's Included
1 ClickShare CX-30 Gen 2 base unit
2 ClickShare Buttons (USB-C)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ClickShare CX-30 Gen 2 From Corporate AV?
- Genuine Barco stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Barco products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Barco ClickShare CX-30 Gen 2 designed for?
It is a wireless conferencing system for small to medium-sized meeting rooms. When you walk in, ClickShare connects your laptop to room devices such as cameras, microphones, speakers, sound bars and displays so you can start a meeting on your preferred platform.
How many ClickShare Buttons does it include?
The R9861613EUB2 kit includes two USB-C ClickShare Buttons. Staff and guests can also join through the ClickShare App.
How many sources can the CX-30 show on screen?
Up to two sources can be shown at once, which Barco describes as enhanced collaboration with two sources on screen.
What interactive features does the CX-30 have?
Barco lists touchback, annotation and blackboarding as interactive features for working on shared content in the meeting room.
What video output does the ClickShare CX-30 Gen 2 provide?
It outputs 4K UHD (3840 × 2160) at 30 Hz over HDMI 1.4b or, on Gen 2 units, USB-C DisplayPort 1.2.
Which operating systems does it support?
Windows 10 and higher and macOS 11 (Big Sur) and higher, plus Android 11 and higher and iOS 14 and higher through the ClickShare App. AirPlay, Google Cast and Miracast are supported natively.
What warranty comes with the ClickShare CX-30 Gen 2?
Barco gives 1 year standard warranty and 5 years of coverage upon registering through SmartCare.
