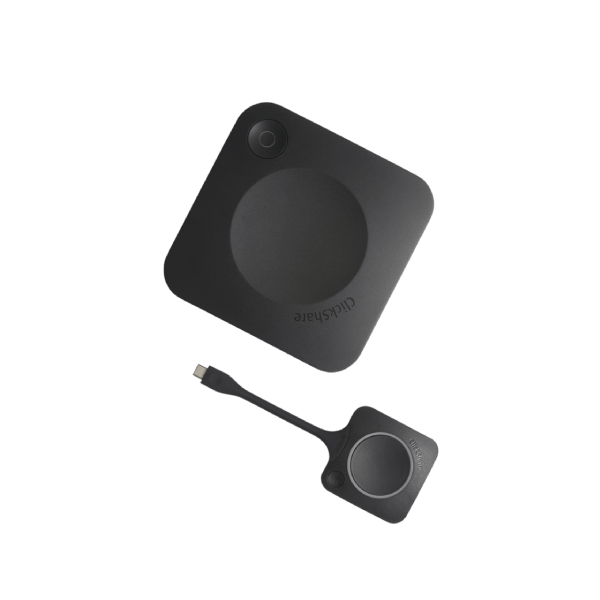

Barco ClickShare CX-20 Gen 2: Wireless Conferencing System, 1 Button
Model ClickShare CX-20 Gen 2
Request a Quote
Availability: Out of Stock
- Entry-level wireless conferencing for small rooms
- Laptop auto-connects to room camera, mics, speakers and display
- 1 ClickShare Button supplied, plus the ClickShare App
- 4K UHD at 30 Hz over HDMI or USB-C DisplayPort
Product Overview
Overview
The Barco ClickShare CX-20 Gen 2 (R9861612EUB1) is an entry-level wireless conferencing system for small meeting rooms and huddle spaces. Walking in with a laptop connects it to the room camera, microphones, speakers and display, so a video meeting starts from the laptop with one click on the ClickShare Button or the ClickShare App.
Corporate AV supplies and integrates the ClickShare CX-20 Gen 2 across India for small meeting rooms and huddle spaces, together with the displays, cameras, audio and control systems it is used with. Request a quote for supply, installation and commissioning.
Key features
- Wireless conferencing: the laptop connects to the room camera, microphones, speakers and display
- One ClickShare Button (USB-C) supplied, plus the ClickShare App
- Works with the video conferencing platform already on the laptop, such as Microsoft Teams or Zoom
- 4K UHD output at 30 Hz over HDMI 1.4b or USB-C DisplayPort 1.2
- Native AirPlay, Google Cast and Miracast mirroring
- Secure and cloud managed, with WPA2-PSK and IEEE 802.1X authentication
Why choose the ClickShare CX-20 Gen 2
It turns a small room into a hybrid meeting space without a dedicated room PC: the laptop picks up the room camera, microphones and speakers, and the call runs on the platform people already use. The single Button suits rooms with one regular host, and the App covers everyone else.
Product Highlights
Key Benefits
Entry-level wireless conferencing for small rooms
Laptop auto-connects to room camera, mics, speakers and display
1 ClickShare Button supplied, plus the ClickShare App
4K UHD at 30 Hz over HDMI or USB-C DisplayPort
Cloud managed, 5-year coverage with SmartCare registration
Use Cases
Ideal Applications
Huddle Rooms
Small Meeting Rooms
Hybrid Meeting Rooms
Technical Details
Technical Specifications
Video and audio
Video output
4K UHD (3840 × 2160) at 30 Hz | HDMI 1.4b or USB-C DisplayPort 1.2 (USB-C output on Gen 2)
Audio output
HDMI
Sharing and compatibility
ClickShare Buttons included
1 (USB-C)
Maximum sources on screen at once
1
ClickShare App
Desktop and mobile
Native protocols
AirPlay | Google Cast | Miracast
Operating system
Windows 10 and higher | macOS 11 (Big Sur) and higher | Android 11 and higher and iOS 14 and higher via the ClickShare App
System requirements
For Microsoft Teams or Zoom: minimum Intel i3 dual-core or AMD Ryzen 7, 8 GB RAM, Windows 10 or macOS Mojave (latest build) | recommended Intel i5 4-core or AMD Ryzen 9, 8 GB RAM, Windows 11 or latest macOS
Connections
Ethernet
1x LAN 1 Gbit
USB ports (front)
1x USB-C and 1x USB-A (USB 3.0 on Gen 2 units)
Wireless and security
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Frequency band
2.4 GHz and 5 GHz (DFS channels supported in select countries)
Reach
Up to 30 m (100 ft) between ClickShare Button and base unit
Authentication
WPA2-PSK in stand-alone mode | WPA2-PSK or IEEE 802.1X (with ClickShare Button) in network integration mode
Network connection
LAN and Wi-Fi
Management and reporting
Yes
Physical, power and environment
Dimensions (H × W × D)
34 × 135 × 135 mm
Weight
900 g
Power consumption
Operational 5-10 W, 24 W max
Power supply
Standard 110/220 V AC plug or USB-C (Gen 2)
Noise level
Max. 25 dBA at 0-30 °C | Max. 30 dBA at 30-40 °C
Operating temperature
0 to 40 °C (32 to 104 °F); max. 35 °C (95 °F) at 3000 m
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
Operating: 0 to 85 % relative, non-condensing | Storage: 0 to 90 % relative, non-condensing
Anti-theft
Kensington lock
Certifications
FCC / CE
Warranty
1 year standard | 5 years coverage upon registering via SmartCare
In The Box
What's Included
1 ClickShare CX-20 Gen 2 base unit
1 ClickShare Button (USB-C)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ClickShare CX-20 Gen 2 From Corporate AV?
- Genuine Barco stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Barco products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What does the Barco ClickShare CX-20 Gen 2 do?
It is a wireless conferencing system for small meeting rooms. When you walk in, ClickShare connects your laptop to the room devices such as the camera, microphones, speakers, sound bars and displays, so you can start a meeting on your preferred video conferencing platform.
How many ClickShare Buttons does the CX-20 Gen 2 include?
The R9861612EUB1 kit includes one USB-C ClickShare Button. The ClickShare App can also be used on laptops and mobile devices.
How many sources can the CX-20 show at once?
The CX-20 shows one source at a time. The CX-30 and CX-50 support two sources on screen.
What video output does the ClickShare CX-20 Gen 2 provide?
It outputs 4K UHD (3840 × 2160) at 30 Hz over HDMI 1.4b or, on Gen 2 units, USB-C DisplayPort 1.2.
Which operating systems does it support?
Windows 10 and higher and macOS 11 (Big Sur) and higher, plus Android 11 and higher and iOS 14 and higher through the ClickShare App. AirPlay, Google Cast and Miracast are supported natively.
How is the CX-20 powered, and what are its dimensions?
It runs from a standard 110/220 V AC plug or, on Gen 2 units, USB-C. It measures 34 × 135 × 135 mm and weighs 900 g, with an operational power draw of 5-10 W (24 W maximum).
What warranty comes with the ClickShare CX-20 Gen 2?
Barco gives 1 year standard warranty and 5 years of coverage upon registering through SmartCare.
