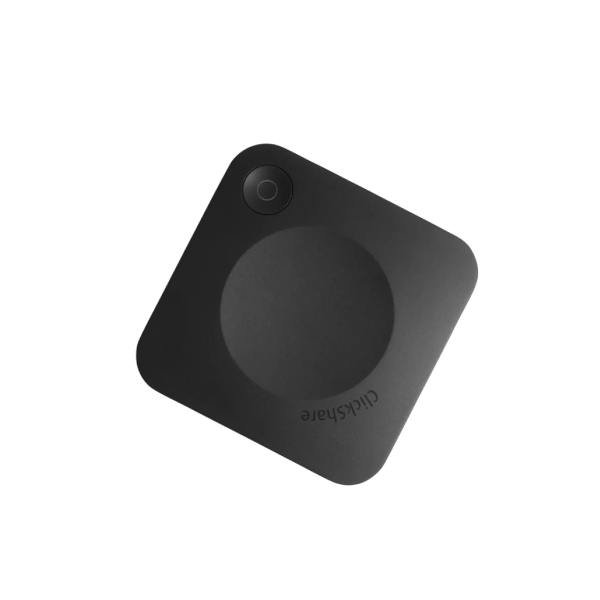

Barco ClickShare C-5 Gen 2: Wireless Presentation System
Model ClickShare C-5 Gen 2
Request a Quote
Availability: Out of Stock
- Entry-level wireless presentation for huddle and small rooms
- Shares from the ClickShare App, AirPlay, Google Cast or Miracast
- 4K UHD at 30 Hz over HDMI or USB-C DisplayPort
- 1 source on screen at a time
Product Overview
Overview
The Barco ClickShare C-5 Gen 2 (R9861605EU) is an entry-level wireless presentation system for huddle rooms and small meeting rooms, where guests and staff share a laptop or mobile screen to the room display with one click in the ClickShare App.
Corporate AV supplies and integrates the ClickShare C-5 Gen 2 across India for huddle rooms and small meeting rooms, together with the displays, cameras, audio and control systems it is used with. Request a quote for supply, installation and commissioning.
Key features
- One-click wireless sharing through the ClickShare App from a laptop, phone or tablet
- Native BYOD screen mirroring with AirPlay, Google Cast and Miracast
- 4K UHD output at 30 Hz over HDMI 1.4b or USB-C DisplayPort 1.2
- App-only model: no ClickShare Button is supported
- Secure and cloud managed, with WPA2-PSK and IEEE 802.1X authentication
- Compact 34 × 135 × 135 mm base unit
Why choose the ClickShare C-5 Gen 2
It is the simplest way to take cables out of a huddle room: anyone can send their screen to the display from the ClickShare App or built-in AirPlay, Google Cast and Miracast, with no adapters to hunt for. It does not use a Button, so it suits rooms where people share from their own device and one presenter at a time is enough.
Product Highlights
Key Benefits
Entry-level wireless presentation for huddle and small rooms
Shares from the ClickShare App, AirPlay, Google Cast or Miracast
4K UHD at 30 Hz over HDMI or USB-C DisplayPort
1 source on screen at a time
Cloud managed, 5-year coverage with SmartCare registration
Use Cases
Ideal Applications
Huddle Rooms
Small Meeting Rooms
BYOD Meeting Rooms
Technical Details
Technical Specifications
Video and audio
Video output
4K UHD (3840 × 2160) at 30 Hz | HDMI 1.4b or USB-C DisplayPort 1.2 (USB-C output on Gen 2)
Audio output
HDMI
Sharing and compatibility
ClickShare Buttons included
None (App-only model)
Maximum sources on screen at once
1
ClickShare App
Desktop and mobile
Native protocols
AirPlay | Google Cast | Miracast
Operating system
Windows 10 and higher | macOS 11 (Big Sur) and higher | Android 9 and higher and iOS 12 and higher via the ClickShare App (availability depends on configuration and firmware)
System requirements
For Microsoft Teams or Zoom: minimum Intel i3 dual-core or AMD Ryzen 7, 8 GB RAM, Windows 10 or macOS Mojave (latest build) | recommended Intel i5 4-core or AMD Ryzen 9, 8 GB RAM, Windows 11 or latest macOS
Connections
Ethernet
1x LAN 1 Gbit
USB ports (front)
1x USB-C and 1x USB-A (USB 3.0 on Gen 2 units)
Wireless and security
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Frequency band
2.4 GHz and 5 GHz (DFS channels supported in select countries)
Reach
Up to 30 m (100 ft) between ClickShare Button and base unit
Authentication
WPA2-PSK in stand-alone mode | WPA2-PSK or IEEE 802.1X (with ClickShare Button) in network integration mode
Network connection
LAN and Wi-Fi
Management and reporting
Yes
Physical, power and environment
Dimensions (H × W × D)
34 × 135 × 135 mm
Weight
900 g
Power consumption
Operational 5-10 W, 24 W max
Power supply
Standard 110/220 V AC plug or USB-C
Noise level
Max. 25 dBA at 0-30 °C | Max. 30 dBA at 30-40 °C
Operating temperature
0 to 40 °C (32 to 104 °F); max. 35 °C (95 °F) at 3000 m
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
Operating: 0 to 85 % relative, non-condensing | Storage: 0 to 90 % relative, non-condensing
Anti-theft
Kensington lock
Certifications
FCC / CE
Warranty
1 year standard | 5 years coverage upon registering via SmartCare
In The Box
What's Included
1 ClickShare C-5 Gen 2 base unit
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ClickShare C-5 Gen 2 From Corporate AV?
- Genuine Barco stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Barco products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
Does the Barco ClickShare C-5 Gen 2 come with a ClickShare Button?
No. Barco lists zero ClickShare Buttons for the C-5. It is an App-based model: users share through the ClickShare App on a laptop, phone or tablet, or with native AirPlay, Google Cast or Miracast. If you want a Button for guests, look at the C-10 Gen 2.
What video output does the ClickShare C-5 Gen 2 provide?
The C-5 outputs 4K UHD (3840 × 2160) at 30 Hz over HDMI 1.4b or, on Gen 2 units, USB-C DisplayPort 1.2. Audio is sent over HDMI.
How many people can share to the screen at once?
The C-5 shows one source on screen at a time. For two sources side by side, Barco offers the C-10 and the CX-30 and CX-50.
Which devices and operating systems does it work with?
It supports Windows 10 and higher and macOS 11 (Big Sur) and higher through the ClickShare App, plus AirPlay, Google Cast and Miracast. Android 9 and higher and iOS 12 and higher are supported through the ClickShare App; Barco notes availability depends on configuration and firmware.
How is the ClickShare C-5 Gen 2 secured and managed?
It authenticates with WPA2-PSK in stand-alone mode, or WPA2-PSK or IEEE 802.1X in network integration mode, and it can be managed and reported on centrally. It connects over LAN (1 Gbit Ethernet) and Wi-Fi in the 2.4 GHz and 5 GHz bands.
What warranty does the Barco ClickShare C-5 Gen 2 carry?
Barco gives 1 year standard warranty, with 5 years of coverage once the device is registered through SmartCare. Corporate AV can help with registration after supply.
Is there a wall mount for the ClickShare C-5 Gen 2?
Yes. Barco wall mounting kit B573071K is listed for the C-5, C-10, CX-20 and CX-30 and is available from Corporate AV.
