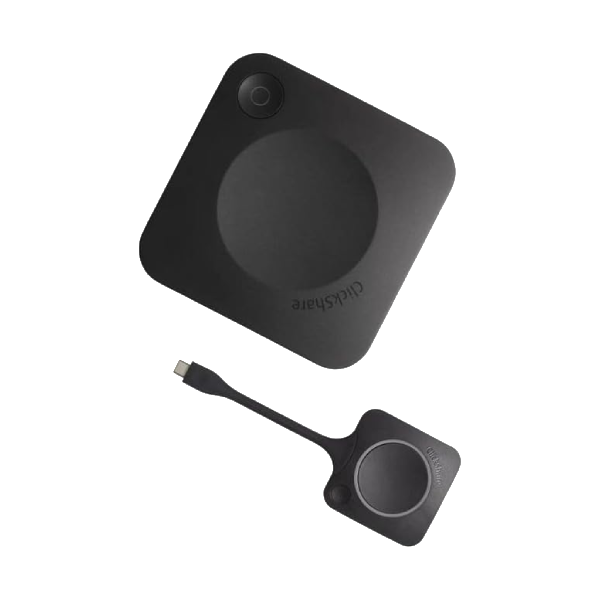

Barco ClickShare C-10 Gen 2: Wireless Presentation System, 1 Button
Model ClickShare C-10 Gen 2 (1 Button)
Request a Quote
Availability: Out of Stock
- Interactive wireless presentation with 1 ClickShare Button
- Up to 2 sources on screen at once
- Touchback, annotation and blackboarding
- 4K UHD at 30 Hz over HDMI or USB-C DisplayPort
Product Overview
Overview
The Barco ClickShare C-10 Gen 2 (R9861611EUB1) is an interactive wireless presentation system for small and medium meeting rooms, supplied with one USB-C ClickShare Button. Presenters plug in the Button or use the ClickShare App, and up to two sources can sit on screen together.
Corporate AV supplies and integrates the ClickShare C-10 Gen 2 1 Button across India for small and medium meeting rooms, together with the displays, cameras, audio and control systems it is used with. Request a quote for supply, installation and commissioning.
Key features
- One ClickShare Button (USB-C) supplied, plus the ClickShare App for laptops, phones and tablets
- Two sources on screen at once for side-by-side presenting
- Interactive features: touchback, annotation and blackboarding
- 4K UHD output at 30 Hz over HDMI 1.4b or USB-C DisplayPort 1.2
- Native AirPlay, Google Cast and Miracast mirroring
- Secure and cloud managed, with WPA2-PSK and IEEE 802.1X authentication
Why choose the ClickShare C-10 Gen 2 (1 Button)
It keeps presenting to one click for staff and guests alike: plug in the Button and the screen is on the display. Two sources on screen and touchback and annotation make it more collaborative than an App-only model, and the single-Button kit suits rooms that are usually run by one presenter at a time.
Product Highlights
Key Benefits
Interactive wireless presentation with 1 ClickShare Button
Up to 2 sources on screen at once
Touchback, annotation and blackboarding
4K UHD at 30 Hz over HDMI or USB-C DisplayPort
Cloud managed, 5-year coverage with SmartCare registration
Use Cases
Ideal Applications
Small Meeting Rooms
Medium Meeting Rooms
BYOD Meeting Rooms
Technical Details
Technical Specifications
Video and audio
Video output
4K UHD (3840 × 2160) at 30 Hz | HDMI 1.4b or USB-C DisplayPort 1.2 (USB-C output on Gen 2)
Audio output
HDMI
Sharing and compatibility
ClickShare Buttons included
1 (USB-C) | the C-10 supports 1 or 2 Buttons
Maximum sources on screen at once
2
ClickShare App
Desktop and mobile
Native protocols
AirPlay | Google Cast | Miracast (depends on configuration)
Operating system
Windows 10 and higher | macOS 11 (Big Sur) and higher | Android 9 and higher and iOS 12 and higher via the ClickShare App (availability depends on configuration and firmware)
System requirements
For Microsoft Teams or Zoom: minimum Intel i3 dual-core or AMD Ryzen 7, 8 GB RAM, Windows 10 or macOS Mojave (latest build) | recommended Intel i5 4-core or AMD Ryzen 9, 8 GB RAM, Windows 11 or latest macOS
Interactive features
Touchback, annotation and blackboarding
Connections
Ethernet
1x LAN 1 Gbit
USB ports (front)
1x USB-C and 1x USB-A (USB 3.0 on Gen 2 units)
Wireless and security
Wireless transmission protocol
IEEE 802.11 a/g/n/ac and IEEE 802.15.1
Frequency band
2.4 GHz and 5 GHz (DFS channels supported in select countries)
Reach
Up to 30 m (100 ft) between ClickShare Button and base unit
Authentication
WPA2-PSK in stand-alone mode | WPA2-PSK or IEEE 802.1X (with ClickShare Button) in network integration mode
Network connection
LAN and Wi-Fi
Management and reporting
Yes
Physical, power and environment
Dimensions (H × W × D)
34 × 135 × 135 mm
Weight
900 g
Power consumption
Operational 5-10 W, 24 W max
Noise level
Max. 25 dBA at 0-30 °C | Max. 30 dBA at 30-40 °C
Operating temperature
0 to 40 °C (32 to 104 °F); max. 35 °C (95 °F) at 3000 m
Storage temperature
-20 to 60 °C (-4 to 140 °F)
Humidity
Operating: 0 to 85 % relative, non-condensing | Storage: 0 to 90 % relative, non-condensing
Anti-theft
Kensington lock
Certifications
FCC / CE
Warranty
1 year standard | 5 years coverage upon registering via SmartCare
In The Box
What's Included
1 ClickShare C-10 Gen 2 base unit
1 ClickShare Button (USB-C)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The ClickShare C-10 Gen 2 (1 Button) From Corporate AV?
- Genuine Barco stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Barco products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
How many ClickShare Buttons come with the Barco ClickShare C-10 Gen 2 1 Button kit?
This kit (R9861611EUB1) includes one USB-C ClickShare Button. The C-10 base unit supports one or two Buttons, and the two-Button kit is R9861611EUB2.
How many sources can the ClickShare C-10 Gen 2 show at once?
Up to two sources can be shown on screen at the same time, so two people can present side by side.
What interactive features does the ClickShare C-10 Gen 2 offer?
Barco lists touchback, annotation and blackboarding as interactive features, which lets people mark up and control shared content in the meeting room.
What video output does the ClickShare C-10 Gen 2 provide?
It outputs 4K UHD (3840 × 2160) at 30 Hz over HDMI 1.4b or, on Gen 2 units, USB-C DisplayPort 1.2. Audio is sent over HDMI.
Which operating systems and devices does it support?
Windows 10 and higher and macOS 11 (Big Sur) and higher work with the Button or the ClickShare App. Android 9 and higher and iOS 12 and higher work through the ClickShare App, and AirPlay, Google Cast and Miracast are supported natively (Miracast depends on configuration).
What range does the ClickShare Button have?
Barco lists a reach of up to 30 m (100 ft) between the ClickShare Button and the base unit, adjustable with signal strength modulation.
What warranty does the ClickShare C-10 Gen 2 have?
Barco gives 1 year standard warranty and 5 years of coverage upon registering through SmartCare.
