Allen & Heath DX168: Portable Expander with 16 Mic Preamps
Model DX168
Request a Quote
Availability: Out of Stock
- Compatible with dLive, Avantis, SQ and AHM-64
- 16 Mic Preamps on XLR
- Phantom Power LED per Input
- 8 XLR Line Outs
Product Overview
Overview

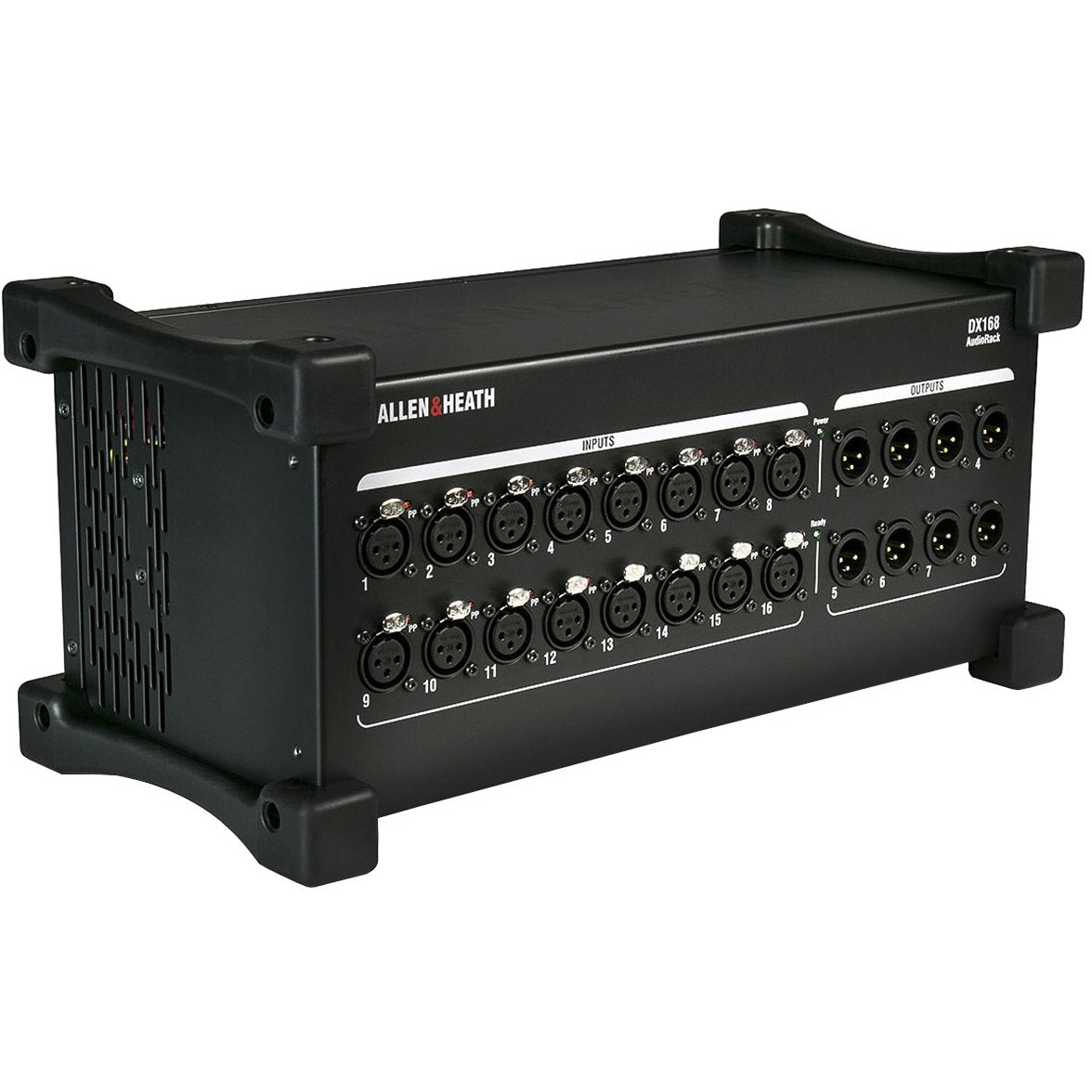

The Allen & Heath DX168 is a portable expander. The DX168 is a rugged, 96kHz portable expander for adding remote I/O to a dLive, Avantis, SQ or Qu system (96 kHz Qu models only), or to AHM audio matrix processors. It provides +60dB of gain, phantom power indicators and a -20dB pad for line level sources.
Corporate AV supplies, installs and supports the Allen & Heath DX168 across India. Request a quote for supply, installation and commissioning.
Key features
- Compatible with dLive, Avantis, SQ and AHM-64
- 16 Mic Preamps on XLR
- Phantom Power LED per Input
- 8 XLR Line Outs
- DX A connection with locking Ethercon port
- DX B locking Ethercon port for daisy chaining or redundancy
- Rubber bumpers
- Optional rack mount kit available
Why choose the DX168
It is a portable expander, a remote audio expander that adds inputs and outputs to a digital mixing system. Corporate AV adds a site survey, installation and support across India, so the DX168 is specified and set up for your venue and not just shipped.
Product Highlights
Key Benefits
Compatible with dLive, Avantis, SQ and AHM-64
16 Mic Preamps on XLR
Phantom Power LED per Input
8 XLR Line Outs
DX A connection with locking Ethercon port
Use Cases
Ideal Applications
Remote inputs and outputs for digital mixers
Stage boxes for live sound
Installed audio networks
Corporate auditoriums
Technical Details
Technical Specifications
Product
Compatible with
dLive, Avantis, SQ and AHM-64
Preamps
16 Mic Preamps on XLR
Connectivity
Mic Preamps on XLR
16
XLR Line Outs
8
Audio Networking
DX A connection with locking Ethercon port
Connectors
DX B locking Ethercon port for daisy chaining or redundancy
Physical and power
Rack Mounting
Optional rack mount kit available
Power Requirements
100–240 V AC, 50/60 Hz, 35 W max
Operating Temperature
0 to 35 °C
Dimensions (W x D x H)
398.6 x 189 x 182.1 mm
Weight
4.75 kg
Other specifications
Category
Audio Expander, Allen & Heath
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The DX168 From Corporate AV?
- Genuine Allen & Heath stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Allen & Heath products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Allen & Heath DX168?
The Allen & Heath DX168 is a portable expander. The DX168 is a rugged, 96kHz portable expander for adding remote I/O to a dLive, Avantis, SQ or Qu system (96 kHz Qu models only), or to AHM audio matrix processors. It provides +60dB of gain, phantom power indicators and a -20dB pad for line level sources.
Who is the Allen & Heath DX168 best suited for?
The DX168 suits remote inputs and outputs for digital mixers, stage boxes for live sound and installed audio networks. Corporate AV can advise whether it is the right fit for your venue.
Can Corporate AV supply multiple Allen & Heath DX168 units for a rollout?
Yes. Corporate AV supplies and integrates the Allen & Heath DX168 in single units and multi-venue rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Allen & Heath DX168 in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue details and quantity, and a consultant will respond with a quotation for supply and installation.
Which systems is the Allen & Heath DX168 compatible with?
Allen & Heath lists the DX168 as: Compatible with dLive, Avantis, SQ and AHM-64.
What are the main features of the Allen & Heath DX168?
Allen & Heath lists these main features for the DX168: Compatible with dLive, Avantis, SQ and AHM-64; 16 Mic Preamps on XLR; Phantom Power LED per Input; 8 XLR Line Outs.
What are the key specifications of the Allen & Heath DX168?
Allen & Heath lists these key specifications for the DX168. Mic Preamps on XLR: 16. XLR Line Outs: 8. Compatible with: dLive, Avantis, SQ and AHM-64. Audio Networking: DX A connection with locking Ethercon port. Rack Mounting: Optional rack mount kit available.
