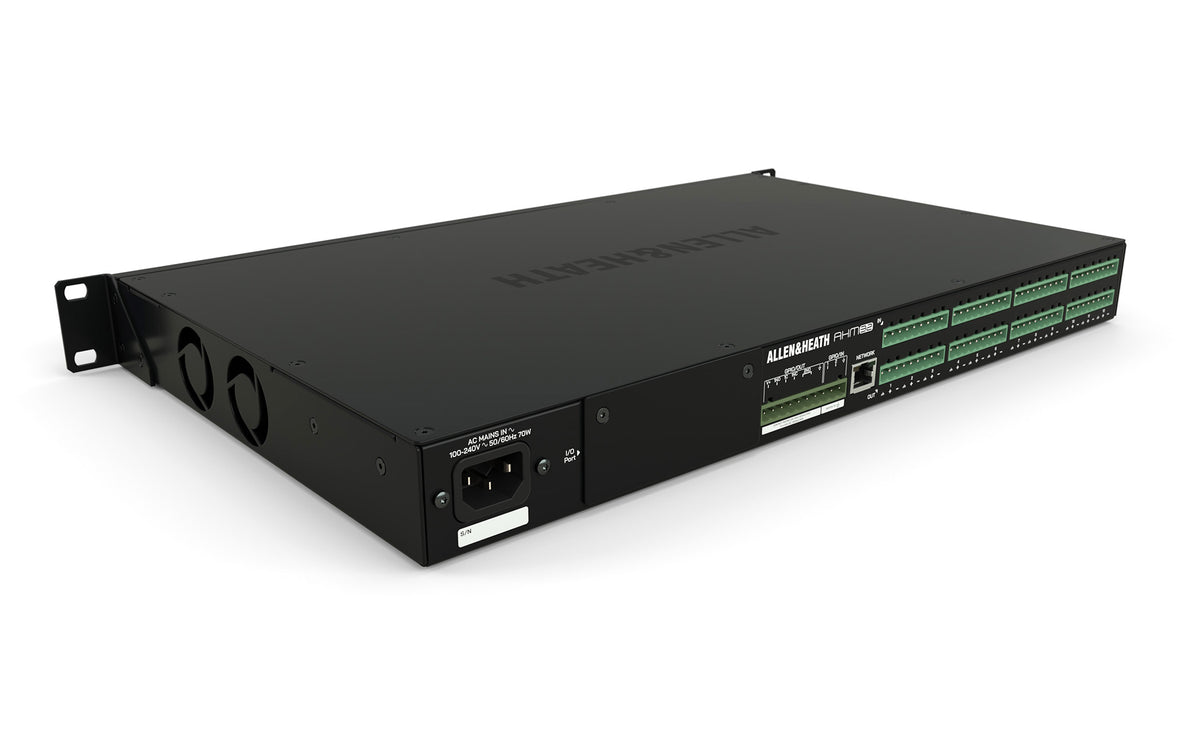

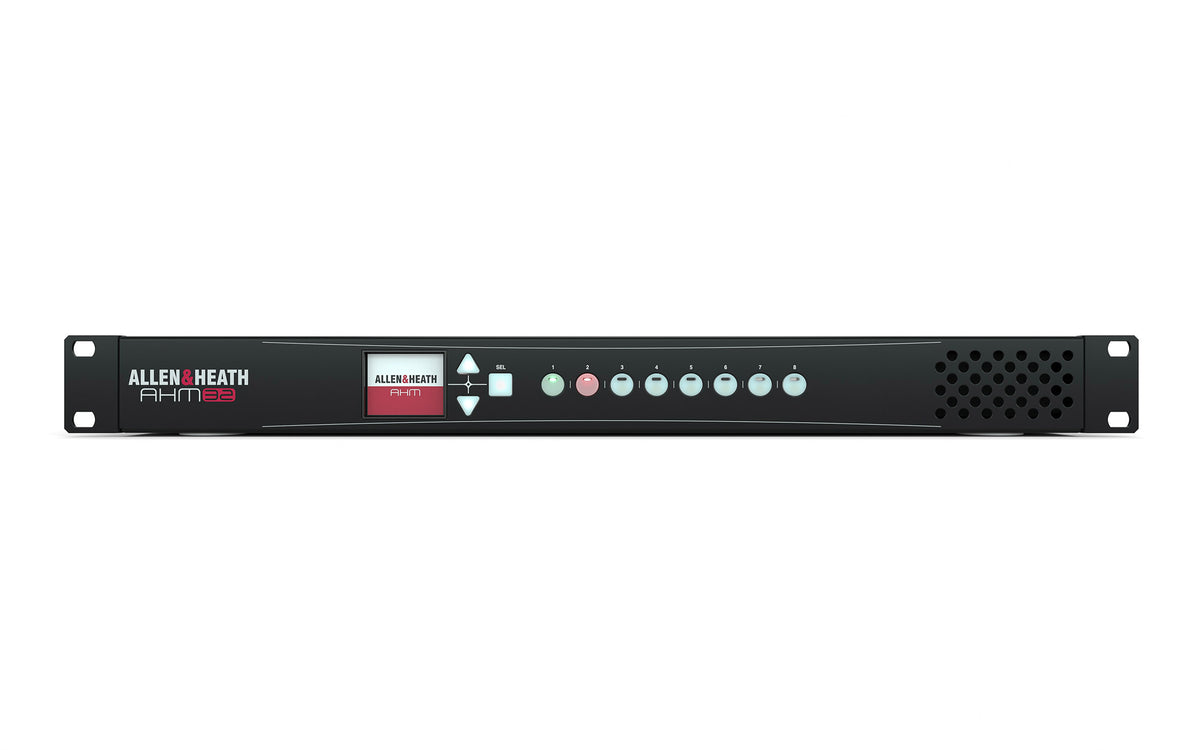

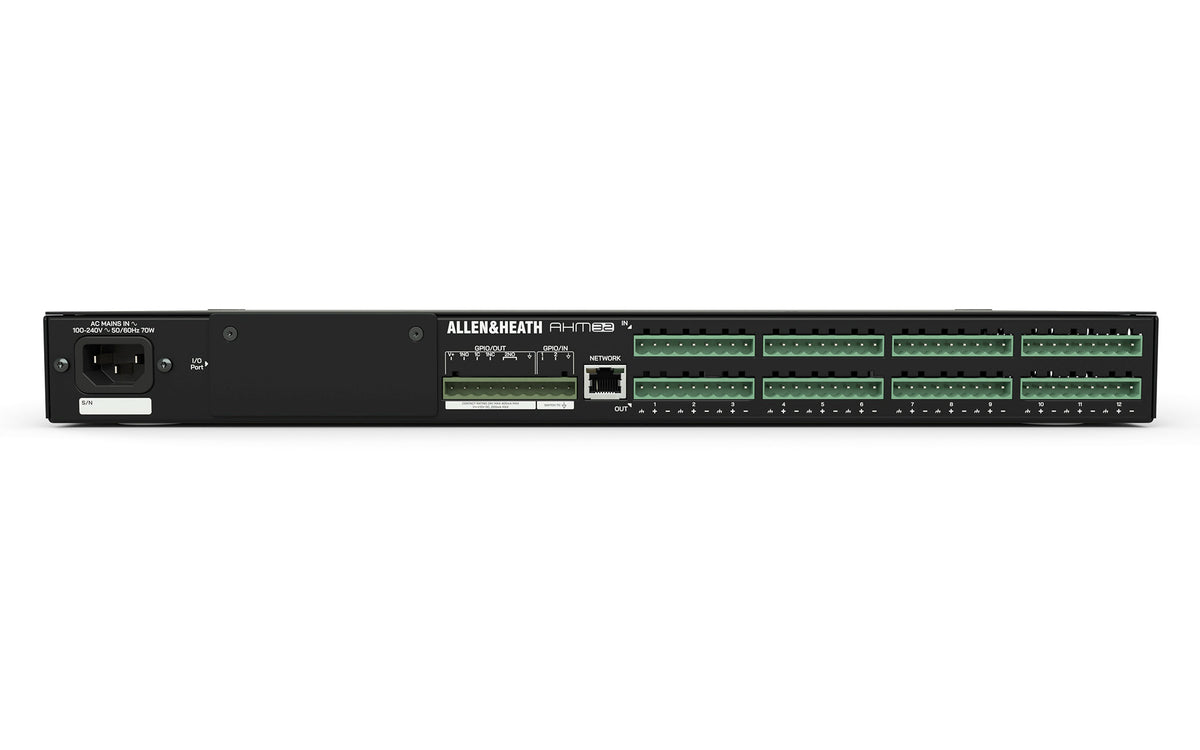

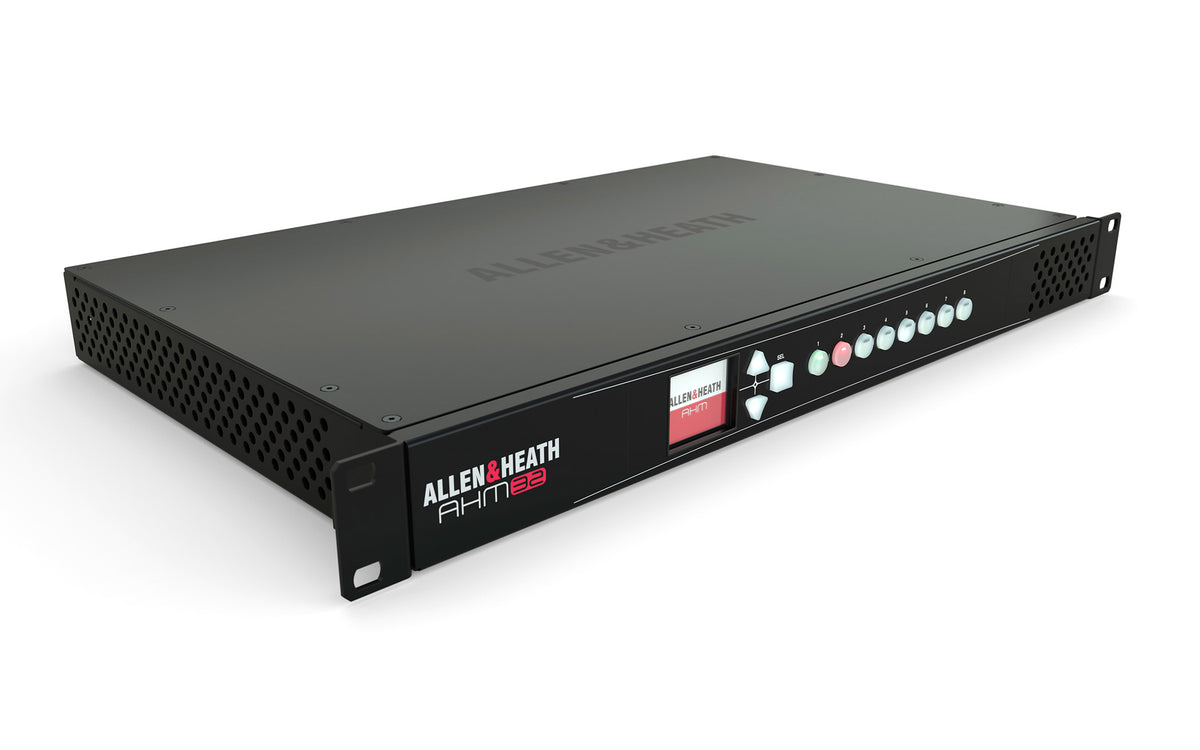

Allen & Heath AHM-32 AEC: 32x32 Audio Matrix Processor with AEC
Model AHM-32 AEC
Request a Quote
Availability: Out of Stock
- Acoustic echo cancellation (AEC) for up to 12 channels via the AHM Processing Expansion Module
- 32x32 processing matrix
- 12x12 local analogue I/O
- I/O Port for expansion or audio networking, up to 128x128
Product Overview
Overview
The Allen & Heath AHM-32 AEC is a 32x32 audio matrix processor. With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is suited to multi-room installations in hospitality, corporate and education environments. It offers flexible routing with configurable processing on all 32 outputs.
Corporate AV supplies, installs and supports the Allen & Heath AHM-32 AEC across India. Request a quote for supply, installation and commissioning.
Key features
- Acoustic echo cancellation (AEC) for up to 12 channels via the AHM Processing Expansion Module
- 32x32 processing matrix
- 12x12 local analogue I/O
- I/O Port for expansion or audio networking, up to 128x128
- Dante 96kHz optional cards (AES67 and DDM ready)
- 32 configurable processing outputs – up to 32 mono / 16 stereo zones
- 96kHz FPGA core with ultra-low latency
- Compatible with Allen & Heath IP1, IP6, IP8 remote controllers
Why choose the AHM-32 AEC
It is a 32x32 audio matrix processor, an audio matrix processor for multi-room installed sound. Corporate AV adds a site survey, installation and support across India, so the AHM-32 AEC is specified and set up for your venue and not just shipped.
Product Highlights
Key Benefits
Acoustic echo cancellation (AEC) for up to 12 channels via the AHM Processing Expansion Module
32x32 processing matrix
12x12 local analogue I/O
I/O Port for expansion or audio networking, up to 128x128
Dante 96kHz optional cards (AES67 and DDM ready)
Use Cases
Ideal Applications
Multi-room hospitality and restaurants
Corporate and conference venues
Education campuses
Retail and leisure venues
Technical Details
Technical Specifications
Product
User profiles
16
Compatible with
Allen & Heath IP1, IP6, IP8 remote controllers
Sample Rate
96 kHz
Filter
150ms FIR adaptive filter
Connectivity
Audio Networking
Dante 96kHz optional cards (AES67 and DDM ready)
USB / Soundcard
2x2 local GPIO plus networkable GPIO interface
Channels
Acoustic echo cancellation (AEC) for up to 12 channels via the AHM Processing Expansion Module
Connectors
I/O Port for expansion or audio networking, up to 128x128
Physical and power
Power Requirements
100–240 V AC, 50/60 Hz, 70 W max
Dimensions (W x D x H)
482.6 x 270 x 44 mm
Weight
4 kg
Other specifications
Category
Audio Processor, Allen & Heath
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The AHM-32 AEC From Corporate AV?
- Genuine Allen & Heath stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Allen & Heath products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Allen & Heath AHM-32 AEC?
The Allen & Heath AHM-32 AEC is a 32x32 audio matrix processor. With 32 zone outputs, echo cancelling and audio networking options, AHM-32 is suited to multi-room installations in hospitality, corporate and education environments. It offers flexible routing with configurable processing on all 32 outputs.
Who is the Allen & Heath AHM-32 AEC best suited for?
The AHM-32 AEC suits multi-room hospitality and restaurants, corporate and conference venues and education campuses. Corporate AV can advise whether it is the right fit for your venue.
Can Corporate AV supply multiple Allen & Heath AHM-32 AEC units for a rollout?
Yes. Corporate AV supplies and integrates the Allen & Heath AHM-32 AEC in single units and multi-venue rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Allen & Heath AHM-32 AEC in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue details and quantity, and a consultant will respond with a quotation for supply and installation.
Which systems is the Allen & Heath AHM-32 AEC compatible with?
Allen & Heath lists the AHM-32 AEC as: Compatible with Allen & Heath IP1, IP6, IP8 remote controllers.
What are the main features of the Allen & Heath AHM-32 AEC?
Allen & Heath lists these main features for the AHM-32 AEC: Acoustic echo cancellation (AEC) for up to 12 channels via the AHM Processing Expansion Module; 32x32 processing matrix; 12x12 local analogue I/O; I/O Port for expansion or audio networking, up to 128x128.
What are the key specifications of the Allen & Heath AHM-32 AEC?
Allen & Heath lists these key specifications for the AHM-32 AEC. User profiles: 16. Compatible with: Allen & Heath IP1, IP6, IP8 remote controllers. Sample Rate: 96 kHz. Audio Networking: Dante 96kHz optional cards (AES67 and DDM ready). Filter: 150ms FIR adaptive filter.
