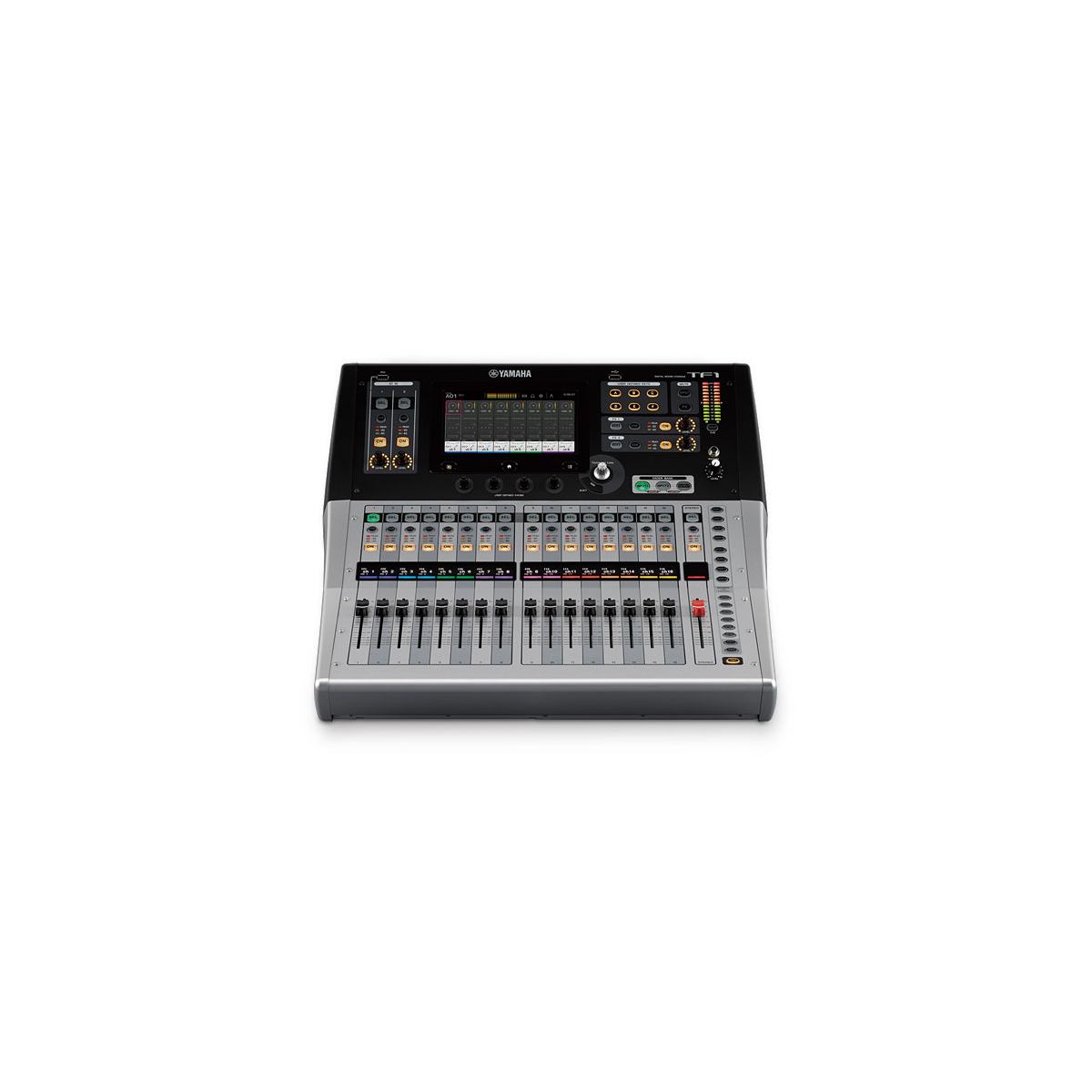

Yamaha TF1: 40-Input 17-Fader Digital Mixing Console
Model TF1
Request a Quote
Availability: Out of Stock
- 17 motor faders (16 channels + 1 master)
- 40 input mixing channels (32 mono + 2 stereo + 2 return)
- 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
- 8 DCA groups with Roll-out
Product Overview
Overview
The Yamaha TF1 is a 40-Input 17-Fader digital mixing console. Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.
Corporate AV supplies, installs and supports the Yamaha TF1 across India. Request a quote for supply, installation and commissioning.
Key features
- 17 motor faders (16 channels + 1 master)
- 40 input mixing channels (32 mono + 2 stereo + 2 return)
- 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
- 8 DCA groups with Roll-out
- 16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via a USB storage device
- 8 Effects and 10 GEQ
Why choose the TF1
it is a 40-Input 17-Fader digital mixing console from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the TF1 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
17 motor faders (16 channels + 1 master)
40 input mixing channels (32 mono + 2 stereo + 2 return)
20 Aux buses (8 mono + 6 stereo) + Stereo + Sub
8 DCA groups with Roll-out
16 analog XLR/TRS combo mic/line inputs + 2 analog RCA pin stereo line inputs
Use Cases
Ideal Applications
Live sound and event production
Houses of worship
Auditoriums and conference halls
Broadcast, theatre and studios
Technical Details
Technical Specifications
Outline
Fader Configuration
16 + 1 (Master)
Mixing Capacity Input Channels
40 (32 mono + 2 stereo + 2 return)
Mixing Capacity Aux Buses
20 (8 mono + 6 stereo)
Mixing Capacity Stereo Buses
1
Mixing Capacity Sub Buses
1
Input channel functions
8 DCA Groups
I/O Inputs
16 mic/line (XLR/TRS combo) + 2 stereo line (RCA pin)
I/O Outputs
16 (XLR)
I/O Expansion slots
1
On-board processors DSP
8 Effects + 10 GEQ
General specifications
Sampling frequency rate Internal
48 kHz
Signal delay
Less than 2.6 ms, INPUT to OMNI OUT, Fs=48 kHz
Fader
100 mm motorized, Resolution = 10-bit, +10 dB to –138 dB, –∞ dB all faders
Total harmonic distortion
Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz)
Frequency response
+0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT
Dynamic range
110 dB typ., DA Converter, 107 dB typ., INPUT to OMNI OUT, Input Gain=Min.
Hum & noise level Equivalent input noise
–128 dBu typ., Input Gain=Max. (Measured with an A-Weight filter)
Hum & noise level Residual output noise
–85 dBu, ST master off (Measured with an A-Weight filter)
Crosstalk
–100 dB (Measured with a –30 dB/octave filter@22 kHz), adjacent INPUT/OMNI OUT channels, Input Gain=Min.
Power requirements
100–240 V 50/60 Hz
Power consumption
100 W
Dimensions W
510 mm (20.1in)
Dimensions H
225 mm (8.9in)
Dimensions D
599 mm (23.6in)
Net weight
13.5 kg (29.8lb)
Accessories
Quick Guide, Power Cord, Nuendo Live
Options
Rack-mount Kit RK5014, Expansion Card, Foot Switch (FC5)
Others
Operating temperature range: 0–40 °C, Storage temperature range: -20–60 °C
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The TF1 From Corporate AV?
- Genuine Yamaha stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs Yamaha products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the Yamaha TF1?
The Yamaha TF1 is a 40-Input 17-Fader digital mixing console. Compact, portable, and even rack mountable, the TF1 offers impressive capability and versatility for smaller systems.
Who is the Yamaha TF1 best suited for?
The TF1 suits live sound and event production, houses of worship and auditoriums and conference halls. Corporate AV can advise whether it is the right fit for your venue or room.
What are the key specifications of the Yamaha TF1?
Yamaha lists these key specifications for the TF1. Fader Configuration: 16 + 1 (Master). Mixing Capacity Input Channels: 40 (32 mono + 2 stereo + 2 return). Mixing Capacity Aux Buses: 20 (8 mono + 6 stereo). Mixing Capacity Stereo Buses: 1.
Can Corporate AV supply multiple Yamaha TF1 units for a rollout?
Yes. Corporate AV supplies and integrates the Yamaha TF1 in single units and multi-room rollouts across India, with a site survey, installation, commissioning and support.
How do I get a quote for the Yamaha TF1 in India?
Use the Request a Quote button on this page or contact Corporate AV with your venue or room details and quantity, and a consultant will respond with a quotation for supply and installation.
