Yamaha CSD-R7: RIVAGE PM7 Digital Mixing Console
Model CSD-R7
Request a Quote
Availability: Out of Stock
- Mixing Capacity Input Mixing channels Internal: 144
- Mixing Capacity Mix Buses Internal: 60
- Mixing Capacity Matrices Internal: 36 (Input to Matrix supported)
- Mixing Capacity Stereo buses: 2
Product Overview
Overview

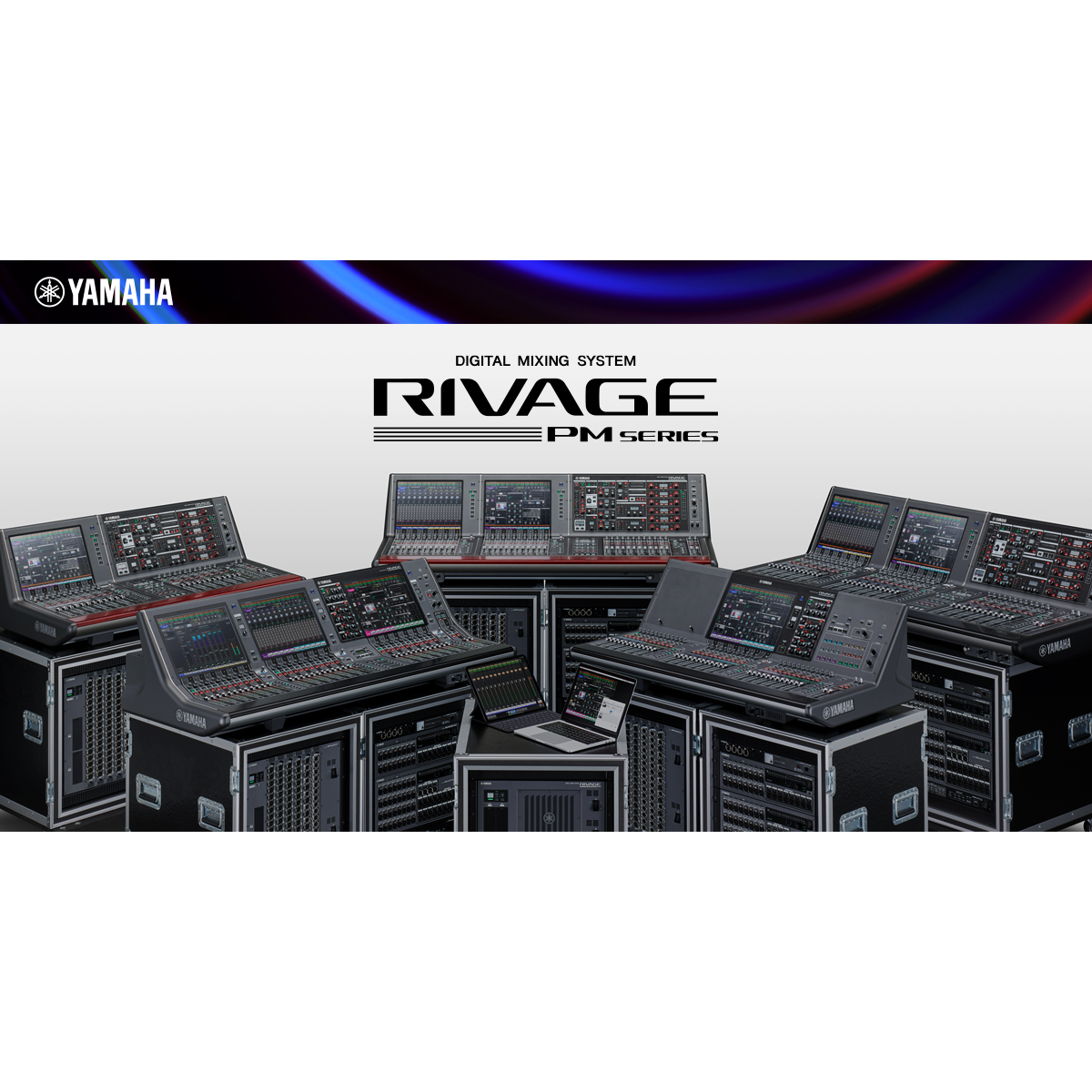

The Yamaha CSD-R7 is a RIVAGE PM7 digital mixing console. The RIVAGE PM7 is a digital mixing system consisting of the CSD-R7 Digital Mixing Console, one or more I/O racks for input and output, and dedicated interface cards for network connectivity. The CSD-R7 is the same size as the our flagship RIVAGE PM10 system CS-R10 Control Surface and has the same control layout. With built-in DSP it offers similarly high standards of operation and workflow efficiency in a relatively compact, portable system.
Corporate AV supplies, installs and supports the Yamaha CSD-R7 across India. Request a quote for supply, installation and commissioning.
Key features
- Mixing Capacity Input Mixing channels Internal: 144
- Mixing Capacity Mix Buses Internal: 60
- Mixing Capacity Matrices Internal: 36 (Input to Matrix supported)
- Mixing Capacity Stereo buses: 2
Why choose the CSD-R7
it is a RIVAGE PM7 digital mixing console from Yamaha's current India range. Corporate AV adds a site survey, installation and support across India, so the CSD-R7 is specified and set up for your space and not just shipped.
Product Highlights
Key Benefits
Mixing Capacity Input Mixing channels Internal: 144
Mixing Capacity Mix Buses Internal: 60
Mixing Capacity Matrices Internal: 36 (Input to Matrix supported)
Mixing Capacity Stereo buses: 2
Mixing Capacity mono buses: 1
Use Cases
Ideal Applications
Live sound and event production
Houses of worship
Auditoriums and conference halls
Broadcast, theatre and studios
Technical Details
Technical Specifications
Specifications
Mixing Capacity Input Mixing channels Internal
144
Mixing Capacity Mix Buses Internal
60
Mixing Capacity Matrices Internal
36 (Input to Matrix supported)
Mixing Capacity Stereo buses
2
Mixing Capacity mono buses
1
Mixing Capacity cue bus
2
Local Connectors Analog in
8 (SILK)
Local Connectors Analog out
8
Local Connectors Digital AES IN
8
Local Connectors Digital AES OUT
8
Local Connectors Expansion Slot HY
3
Local Connectors Expansion Slot MY
2
Local Connectors GPI IN
8
Local Connectors GPI ONT
8
Local Connectors Word clock
OUT
Local Connectors MIDI
IN/OUT
Local Connectors USB File
4
Local Connectors USB rec/play
1
Local Connectors Redundant PSU
Yes (Built in dual PSU)
Local Connectors Meter Bridge
On screen
Local Connectors Lamp
4
Local Connectors Talkback In
Yes
Local Connectors Video Out
Yes
Local Connectors TC In
Yes
Local Connectors Fault Output
Yes
Local Connectors Phones
2 connectors
Local Connectors AC Inlet
2 (V-Lock Type)
Scene Memory Number of Scenes
1000
Scene Memory Recall Safe
Yes
Scene Memory Focus Recall
Yes
Scene Memory Fade Time
Yes (0s ~ 60s)
Scene Memory Preview
Yes
Scene Memory Selective Load / Save
Yes
Scene Memory Global Paste
Yes
Scene Memory Event List
Yes
Scene Memory Overlay
Yes
Scene Memory Isolate
Yes
Scene Memory Tactile Control Keys
Yes
Input Channel Functions Gain Compensation
Yes
Input Channel Functions Silk
Yes (with RPio)
Input Channel Functions Digital Gain
Yes (-96dB ~ +24dB)
Input Channel Functions ATT
Yes
Input Channel Functions HPF
20Hz~2000Hz, -6/-12/-18/-24dB/oct Selectable
Input Channel Functions PEQ
4 Band Full PEQ (4 algorithms, RTA overlay support)
Input Channel Functions Dynamics 1
Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
Input Channel Functions Dynamics 2
Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
Input Channel Functions Input Delay
Yes (0ms ~ 1000ms)
Input Channel Functions Pan
Center Nominal
Input Channel Functions DCA Group
24 (Output DCA support)
Input Channel Functions DCA Rollout
Yes
