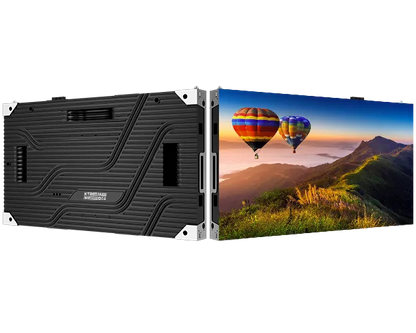

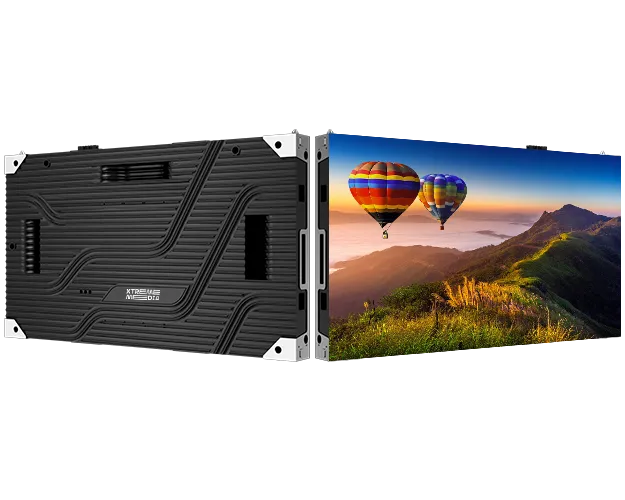

  • Xtreme Media Ace SMD Fine Pitch LED Display, P0.94 to P1.87 - front view
  • Xtreme Media Ace SMD Fine Pitch LED Display, P0.94 to P1.87 - product view 2

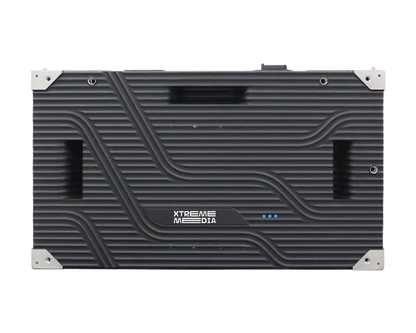

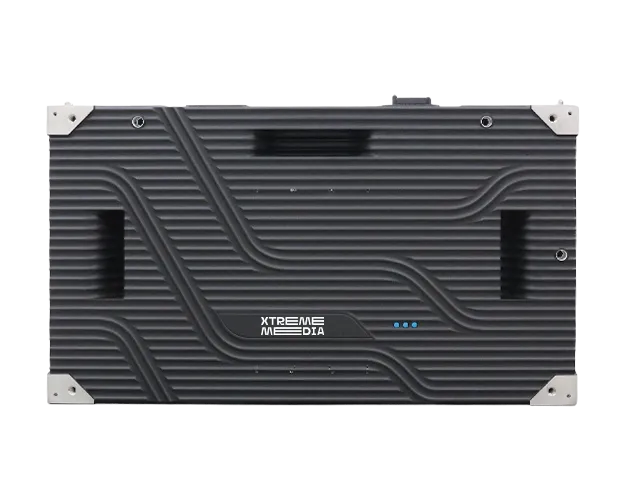

  • Xtreme Media Ace SMD Fine Pitch LED Display, P0.94 to P1.87 - product view 3

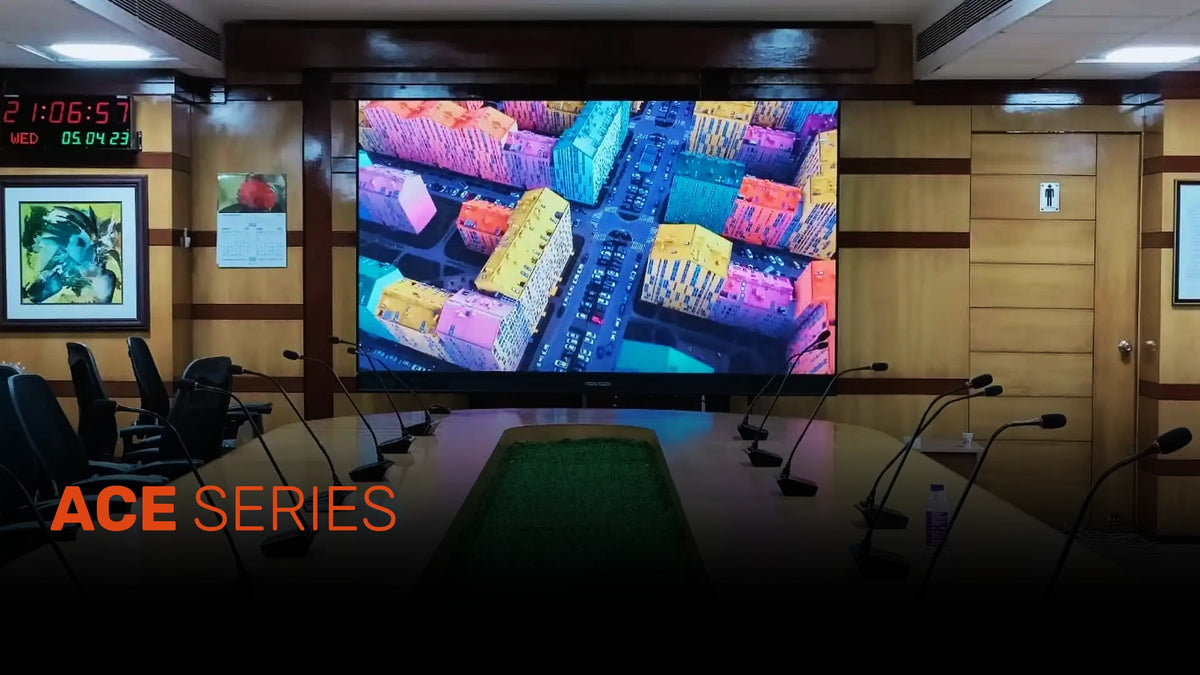

  • Xtreme Media Ace SMD Fine Pitch LED Display, P0.94 to P1.87 - product view 4
1 4

Xtreme Media Ace: SMD Fine Pitch LED Display, P0.94 to P1.87

Model Ace

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized X-treme Media Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Experience the power of TrueColour
  • High Contrast Ratio and Grayscale
  • Auto-Calibration: Traditional LED Displays need manual calibration where each module's color, brightness, and contrast are adjusted
  • Keep a close watch with Vigilant-IoT technology
Fine-Pitch LED Video Wall Solutions Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The Xtreme Media Ace is an SMD small pitch LED display with 22-bit colour depth. Xtreme Media's Ace series LED displays are designed using top tier SMD technology with pixel pitch starting from 0.94 mm, offering trillions of colour and 8K picture quality. Ace series has high contrast ratio that delivers exceptional picture quality and captures all the minor detailing.

Corporate AV supplies, installs and supports the Xtreme Media Ace across India. Request a quote for supply, installation and commissioning.

Key features

  • Experience the power of TrueColour
  • High Contrast Ratio and Grayscale
  • Auto-Calibration: Traditional LED Displays need manual calibration where each module's color, brightness, and contrast are adjusted
  • Keep a close watch with Vigilant-IoT technology
  • Be assured of 99% uptime with Redundancy: The high-end application displays need lower failure chances with efficient and quick recovery

Typical applications

  • NOC rooms
  • SOC rooms
  • Boardrooms
  • Command and control centres
Why choose the Ace
it is an SMD small pitch LED display with 22-bit colour depth from Xtreme Media, an Indian manufacturer, supplied with Corporate AV's site survey, installation and support across India, so the Ace is specified for your venue and not just shipped.
Product Highlights

Key Benefits

Experience the power of TrueColour

High Contrast Ratio and Grayscale

Auto-Calibration: Traditional LED Displays need manual calibration where each module's color, brightness, and contrast are adjusted

Keep a close watch with Vigilant-IoT technology

Be assured of 99% uptime with Redundancy: The high-end application displays need lower failure chances with efficient and quick recovery

Use Cases

Ideal Applications

NOC rooms

SOC rooms

Boardrooms

Command and control centres

Technical Details

Technical Specifications

Display and performance
Models (in column order) XM-Ace-0.94 | XM-Ace-1.25 | XM-Ace-1.56 | XM-Ace-1.87
Pixel pitch (mm) 0.94 mm | 1.25 mm | 1.56 mm | 1.87 mm
Maximum brightness (nits) 600 | 600 | 600 | 800
Viewing angle 160x160
Contrast ratio 5000:1
Refresh rate (Hz) ≥ 3840
Data Processing 14–16 Bit
Cabinet and installation
Cabinet dimension (W x H x D) mm 600 x 337.5 x 49 | 600 x 337.5 x 38 | 600 x 337.5 x 38 | 600 x 337.5 x 49
Weight (kg/m²) 25
Service access Front
Cabinet type Die-Cast Al
Cabinet Depth (mm) 49 mm | 38 mm | 38 mm | 49 mm
Power, protection and connectivity
Max power (W/m²) 500 | 600 | 700 | 600
Ingress protection IP30

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The Ace From Corporate AV?
  • Genuine X-treme Media stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs X-treme Media products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the Xtreme Media Ace?
The Xtreme Media Ace is an SMD small pitch LED display with 22-bit colour depth. Xtreme Media's Ace series LED displays are designed using top tier SMD technology with pixel pitch starting from 0.94 mm, offering trillions of colour and 8K picture quality. Ace series has high contrast ratio that delivers exceptional picture quality and captures all the minor detailing.
Where is the Xtreme Media Ace used?
Xtreme Media lists the Ace for: nOC rooms; sOC rooms; boardrooms; command and control centres. Corporate AV can advise whether it suits your venue and requirements.
What pixel pitch options does the Xtreme Media Ace offer?
Xtreme Media lists these pixel pitches for the Ace: 0.94 mm | 1.25 mm | 1.56 mm | 1.87 mm.
Can Corporate AV supply and install the Xtreme Media Ace in India?
Yes. Corporate AV supplies, installs and supports the Xtreme Media Ace across India, with a site survey, structure and power planning, commissioning and after-sales support.
How do I get a quote for the Xtreme Media Ace?
Use the Request a Quote button on this page or contact Corporate AV with the screen size, pixel pitch, location and timeline, and a consultant will respond with a quotation for supply and installation.
