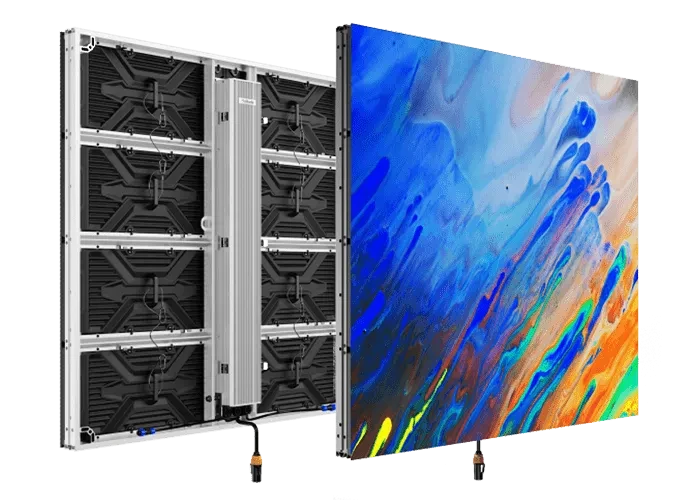

Unilumin Usurface PL1: Outdoor Advertising LED Billboard Display
Model Usurface PL1
- 1000 x 1000 mm cabinet for seamless billboard coverage
- 7,500 to 10,000 nits, 12000:1 contrast, 7,680 Hz, 14-bit gray scale
- Energy saving: 13% lower consumption than a conventional display at 7,500 nits
- 23.5 kg/m² aluminium profile cabinet, 60 mm thick
Overview

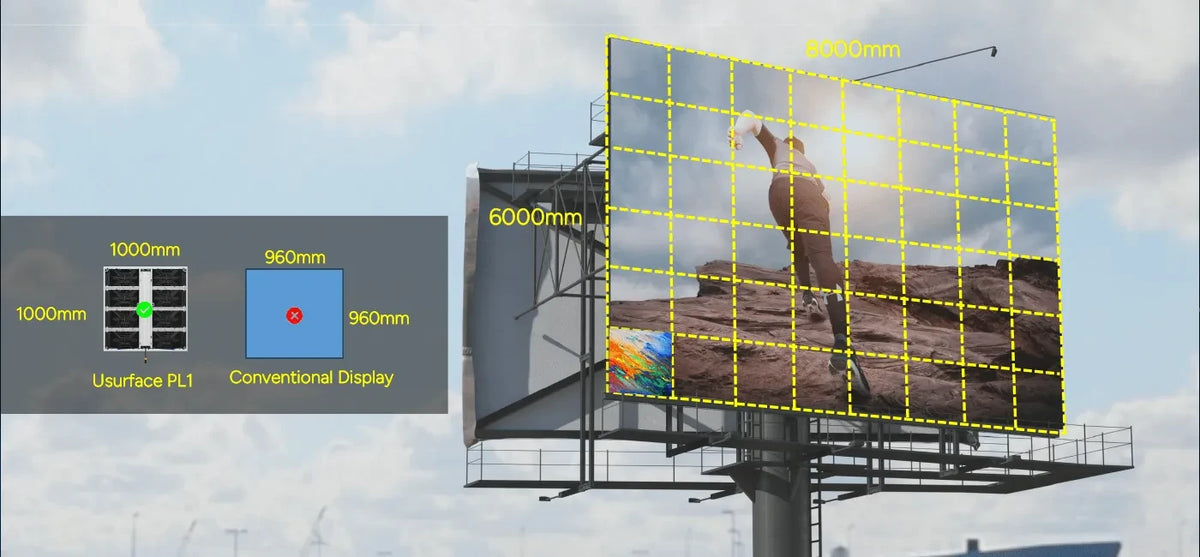

The Unilumin Usurface PL1 is an outdoor advertising LED billboard display. Its 1000 x 1000 mm cabinet is made to give seamless 100% coverage of billboard structures, and the aluminium profile build weighs 23.5 kg/m².
Corporate AV supplies, installs and supports the Unilumin Usurface PL1 across India. Request a quote for supply, installation and commissioning.
Key features
- 1000 x 1000 mm cabinet for seamless billboard coverage
- 7,500 to 10,000 nits, 12000:1 contrast, 7,680 Hz, 14-bit gray scale
- Energy saving: 13% lower consumption than a conventional display at 7,500 nits

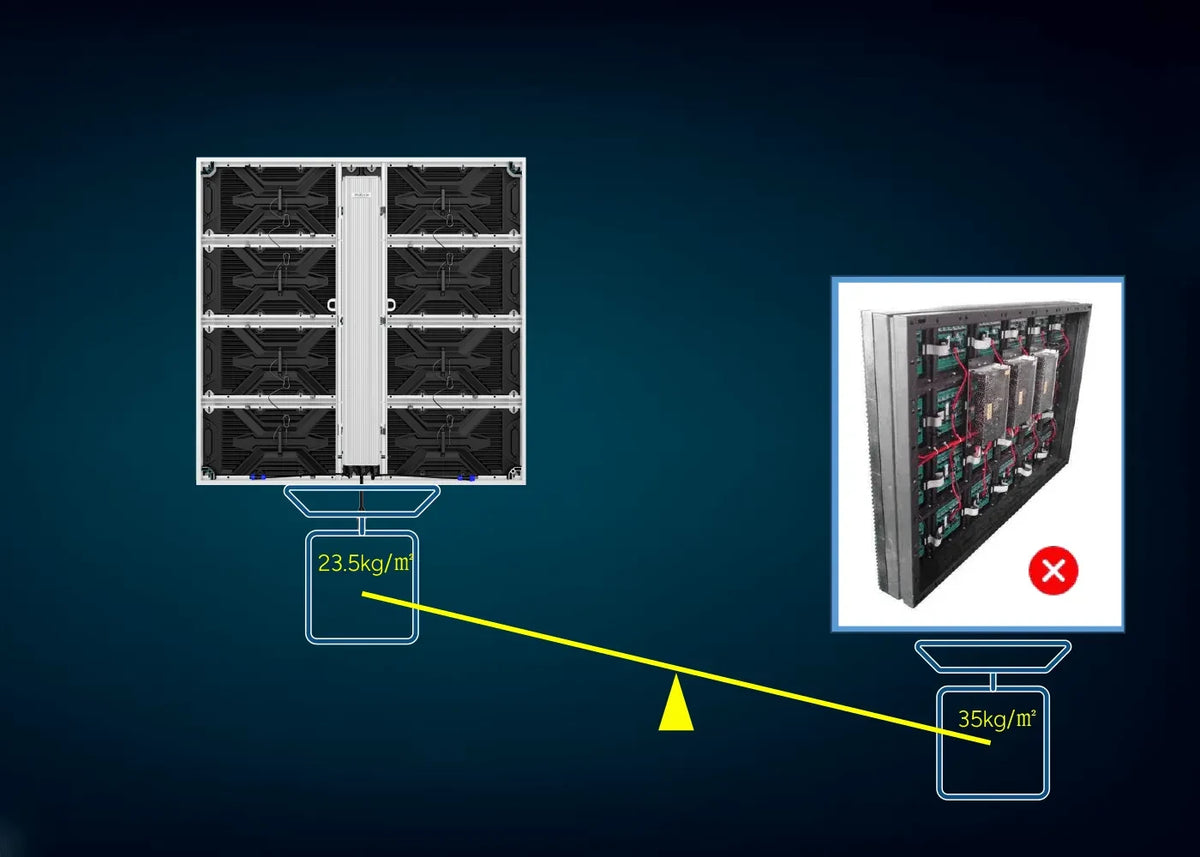

- 23.5 kg/m² aluminium profile cabinet, 60 mm thick
- 500 x 250 mm modules with front and rear installation
- IP66/IP65 protection with fanless power supply
- Groove splicing design to prevent light leakage
Lower running cost at high brightness

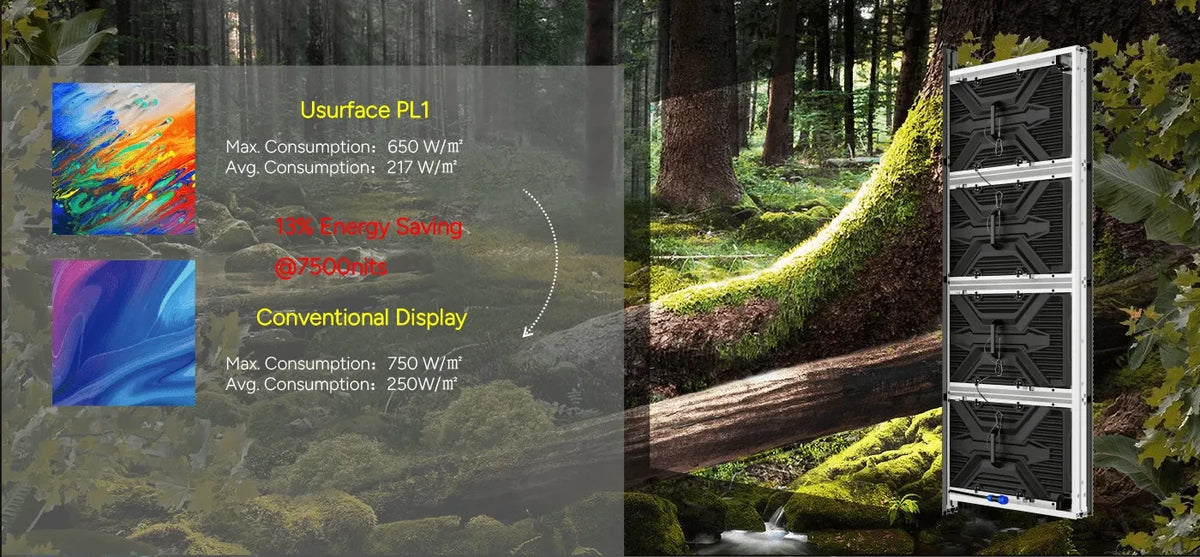

With DVPS technology the PL1 uses 13% less energy than a conventional display; Unilumin lists a maximum of 650 W/m² and an average of 217 W/m² at 7,500 nits.
Typical applications
- Outdoor billboards
- Roadside and building advertising
- Large-format outdoor signage
Key Benefits
1000 x 1000 mm cabinet for seamless billboard coverage
7,500 to 10,000 nits, 12000:1 contrast, 7,680 Hz, 14-bit gray scale
Energy saving: 13% lower consumption than a conventional display at 7,500 nits
23.5 kg/m² aluminium profile cabinet, 60 mm thick
500 x 250 mm modules with front and rear installation
Ideal Applications
Outdoor billboards
Roadside and building advertising
Large-format outdoor signage
Technical Specifications
Sourced right. Installed right.
Additional Information
- Genuine Unilumin stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Corporate AV supplies and installs Unilumin products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
