Unilumin Udesign SV Pro: Holographic Transparent MIP LED Display
Model Udesign SV Pro
- AM+ full flip-chip MIP, leadless, 50% better reliability and 30% lower power
- Visual transparency of 92% or more (up to 95%)
- Peak brightness up to 5,000 nits at 560 W/m²
- 170° wide viewing angle
Overview
The Unilumin Udesign SV Pro is a holographic transparent MIP LED display. It uses AM+ full flip-chip MIP packaging, with visual transparency of 92% or more, peak brightness of 5,000 nits and a screen only 1.8 mm thick.
Corporate AV supplies, installs and supports the Unilumin Udesign SV Pro across India. Request a quote for supply, installation and commissioning.
Key features
- AM+ full flip-chip MIP, leadless, 50% better reliability and 30% lower power
- Visual transparency of 92% or more (up to 95%)
- Peak brightness up to 5,000 nits at 560 W/m²
- 170° wide viewing angle
- 1.8 mm module thickness; 250 x 1000 mm module weighs 0.6 kg

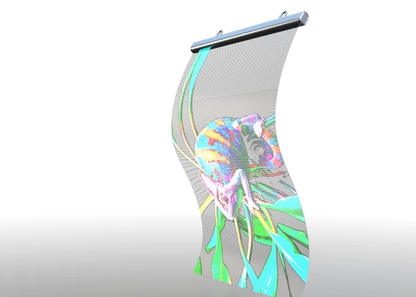

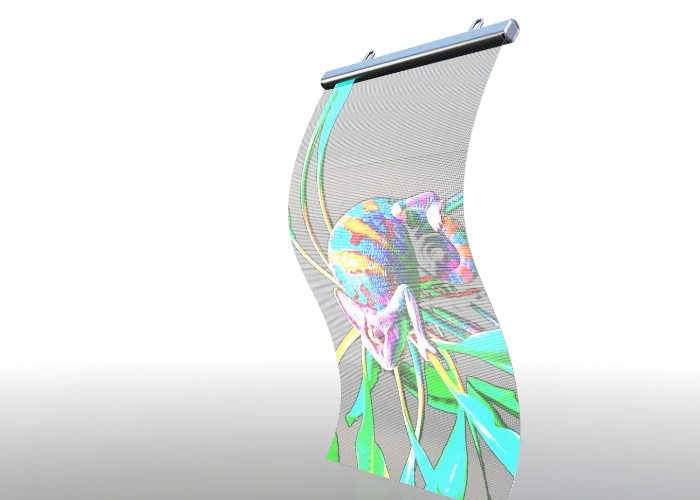

- Flexible modules fit perfectly curved installations
- Image similarity up to 97% when compared with direct capture
Typical applications

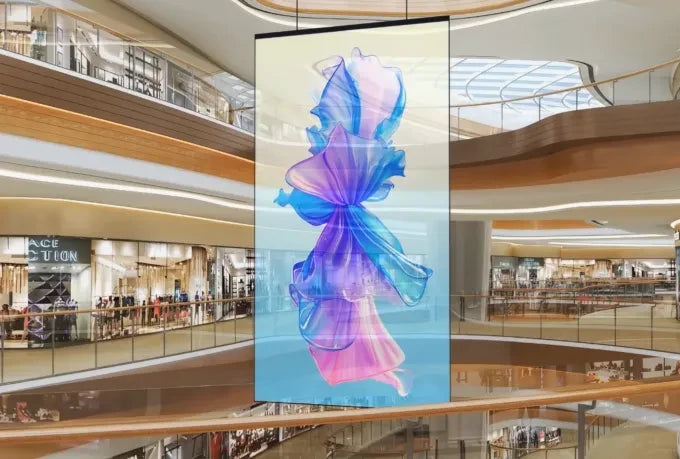

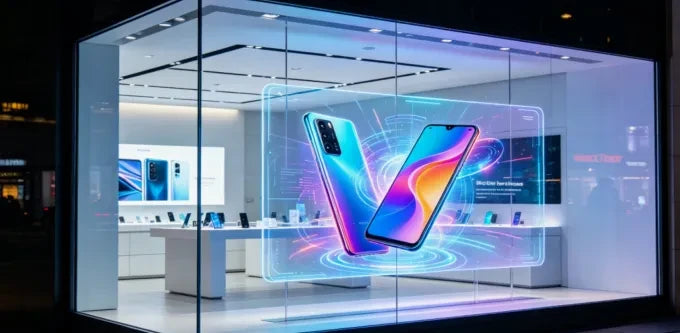

- Retail stores and commercial complexes

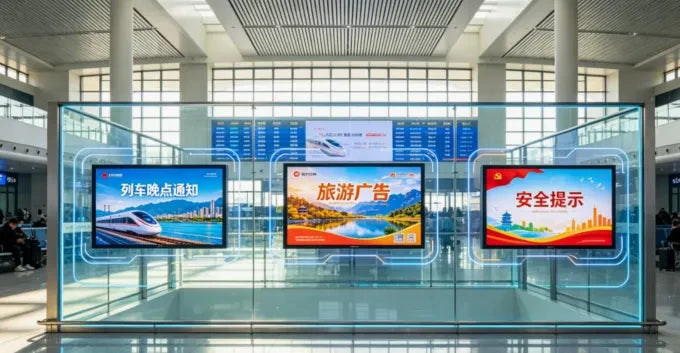

- Rail stations

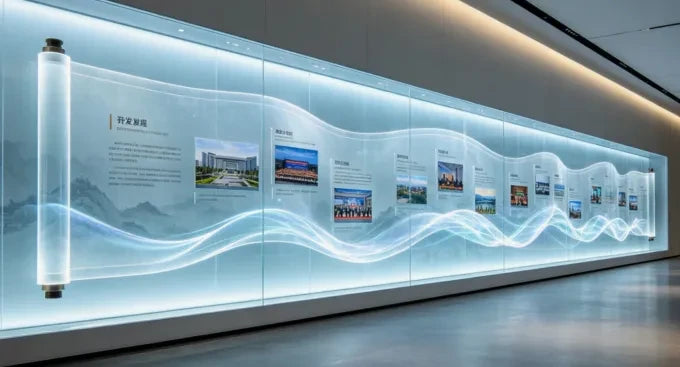

- Exhibition halls
- Curved-surface installations
Key Benefits
AM+ full flip-chip MIP, leadless, 50% better reliability and 30% lower power
Visual transparency of 92% or more (up to 95%)
Peak brightness up to 5,000 nits at 560 W/m²
170° wide viewing angle
1.8 mm module thickness; 250 x 1000 mm module weighs 0.6 kg
Ideal Applications
Retail stores and commercial complexes
Rail stations
Exhibition halls
Curved-surface installations
Technical Specifications
