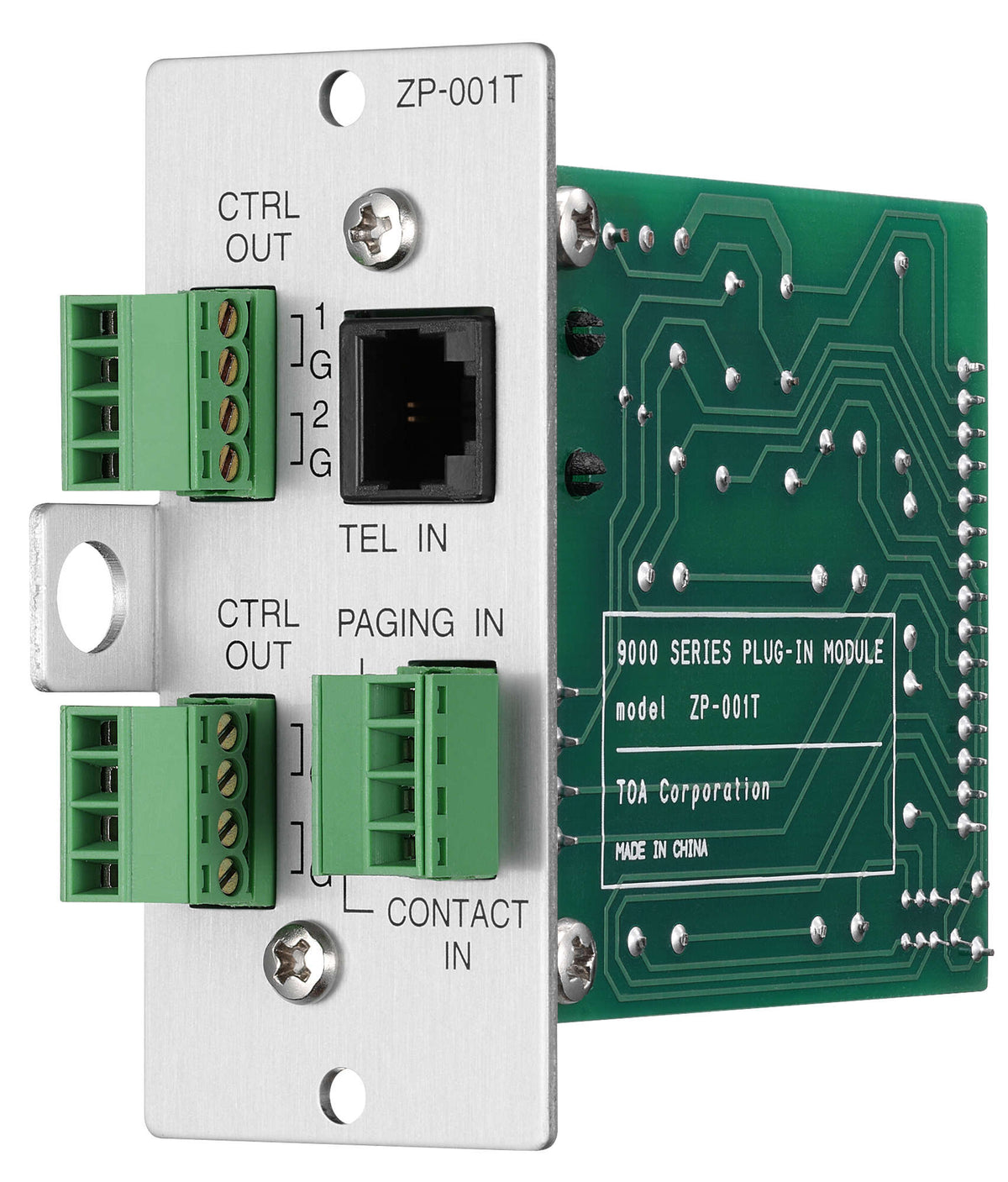

  • TOA ZP-001T telephone zone paging module - angled view
  • TOA ZP-001T telephone zone paging module - view 2
1 2

TOA ZP-001T: Telephone Zone Paging Module

Model ZP-001T

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized TOA Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Telephone paging to up to 8 zones. Uses DTMF dialing access outputs
  • Dial up to 8 output zones in one operation (compatible with analog extension or page port)
  • RJ-11 telephone plug or detachable screw terminals
  • Max. 1 telephone module / chassis
Public Address System Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The TOA ZP-001T is a Zone paging module designed for use with the 9000 Series mixer / amplifiers and functions as interface to connect the 9000 Series mixer / amplifier to an analog PABX, allowing zone paging to be initiated from the PABX. There are two operation modes: ring signal and paging port modes. Broadcast can be initiated regardless of operation mode.

Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA ZP-001T with supply, installation and commissioning.

Key features

  • Telephone paging to up to 8 zones. Uses DTMF dialing access outputs
  • Dial up to 8 output zones in one operation (compatible with analog extension or page port)
  • RJ-11 telephone plug or detachable screw terminals
  • Max. 1 telephone module / chassis

Typical applications

  • Expanding digital mixer and matrix systems
  • Installed multi-room audio systems
  • Auditoriums and venues
Why choose the ZP-001T
it is a telephone zone paging module from TOA, supplied with Corporate AV's site survey, installation and support across India, so the ZP-001T is specified for your project and not just shipped.
Product Highlights

Key Benefits

Telephone paging to up to 8 zones. Uses DTMF dialing access outputs

Dial up to 8 output zones in one operation (compatible with analog extension or page port)

RJ-11 telephone plug or detachable screw terminals

Max. 1 telephone module / chassis

Use Cases

Ideal Applications

Expanding digital mixer and matrix systems

Installed multi-room audio systems

Auditoriums and venues

Technical Details

Technical Specifications

Specifications
Power Supply +24 V DC, +6 V DC
Current Consumption 38 mA (at +24 V DC), 18 mA (at +6 V DC)
Number of Line 1 line
Type of Selectable Signal DTMF signal
Signaling System Loop-Start (or Ground-Start, selectable)
TEL Line 0 dB, 600 Ω, balanced, transformer-isolated, loop voltage: 24 V DC or more, which should be supplied from the PABX. RJ11 connector
Paging Input 0 dB, 600 Ω, balanced, transformer-isolated audio input, removable terminal block (4 pins)
Control Output 4 channels, open collector output (isolated), withstand voltage: 35 V DC, control current: max. 50 mA, removable terminal block (4 pins)
Operating Temperature -10 °C to +40 °C
Included Accessories Removable terminal plug (4 pins) x 3, Module mounting screw x 2
Dimensions & finish
Finish Panel: Aluminum, hair-line
Dimensions 35 (W) x 78 (H) x 91.5 (D) mm
Weight 153 g

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The ZP-001T From Corporate AV?
  • Genuine TOA stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the TOA ZP-001T?
The TOA ZP-001T is a Zone paging module designed for use with the 9000 Series mixer / amplifiers and functions as interface to connect the 9000 Series mixer / amplifier to an analog PABX, allowing zone paging to be initiated from the PABX. There are two operation modes: ring signal and paging port modes. Broadcast can be initiated regardless of operation mode.
What are the key features of the TOA ZP-001T?
TOA highlights: telephone paging to up to 8 zones. Uses DTMF dialing access outputs; dial up to 8 output zones in one operation (compatible with analog extension or page port); RJ-11 telephone plug or detachable screw terminals; max. 1 telephone module / chassis.
Where is the TOA ZP-001T used?
It suits: expanding digital mixer and matrix systems; installed multi-room audio systems; auditoriums and venues. Corporate AV can advise whether it fits your project.
Which TOA series is the ZP-001T part of?
TOA lists the ZP-001T in its M-9000M2 Digital Matrix Mixer range.
