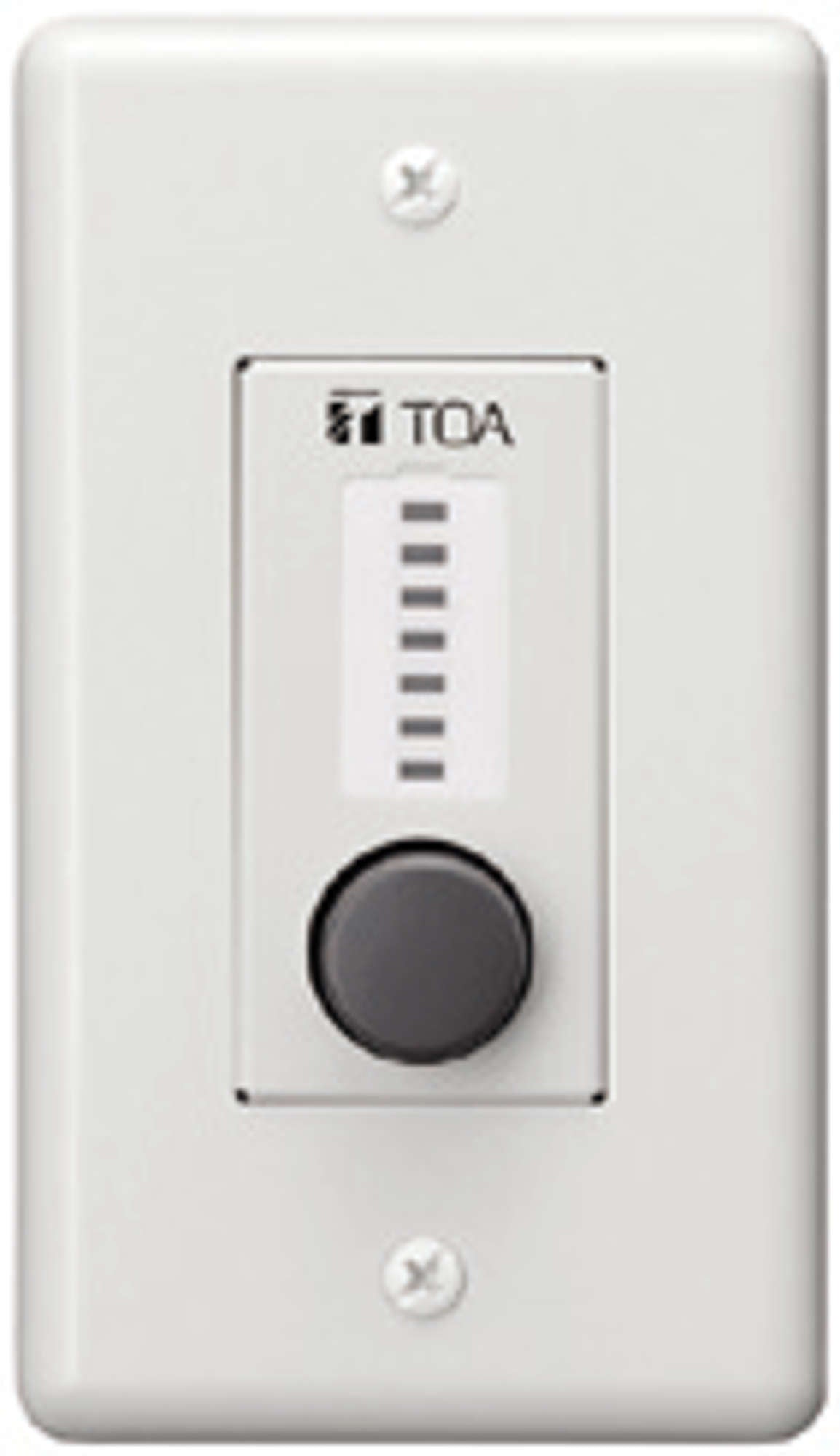

  • TOA ZM-9012 assignable volume controller - front view
  • TOA ZM-9012 assignable volume controller - front view 2
  • TOA ZM-9012 assignable volume controller - view 3
1 3

TOA ZM-9012: Assignable Volume Controller

Model ZM-9012

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized TOA Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Power Source: 24 V DC (supplied from RC-001T or M-864D)
  • Current Consumption: 50 mA or less
  • Control: 1 volume control
  • Indicator: Level indicators (green LEDs)
Public Address System Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The TOA ZM-9012 is an assignable volume controller. Designed for exclusive use with the 9000M2 Series or M-864D, the ZM-9012 is a wall mounted remote control panel having a volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in a standard 1-gang electrical box in the wall.

Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA ZM-9012 with supply, installation and commissioning.

Key features

  • Rotary encoder can be assigned to control any input or output volume

Typical applications

  • Zone and volume control from wall panels
  • Digital mixer and matrix systems
  • Hotels, venues and commercial buildings
Why choose the ZM-9012
it is an assignable volume controller from TOA, supplied with Corporate AV's site survey, installation and support across India, so the ZM-9012 is specified for your project and not just shipped.
Product Highlights

Key Benefits

Power Source: 24 V DC (supplied from RC-001T or M-864D)

Current Consumption: 50 mA or less

Control: 1 volume control

Indicator: Level indicators (green LEDs)

Terminal: Removable terminal block (10 pins)

Use Cases

Ideal Applications

Zone and volume control from wall panels

Digital mixer and matrix systems

Hotels, venues and commercial buildings

Technical Details

Technical Specifications

Specifications
Power Source 24 V DC (supplied from RC-001T or M-864D)
Current Consumption 50 mA or less
Control 1 volume control
Indicator Level indicators (green LEDs)
Cable Requirements Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
Terminal Removable terminal block (10 pins)
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 35 % to 80 %RH (no condensation)
Included Accessories Box mounting screw (No.6-32UNC x 30) x 2, Box mounting screw (M4 x 30) x 2, Panel mounting screw x 2, Removable terminal plug (10 pins) x 1
Dimensions & finish
Finish Surface-treated steel plate, white, paint
Dimensions 72 (W) x 127 (H) x 57.5 (D) mm (2.83 x 5" x 2.26")"
Weight 208 g (0.46 lb)

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The ZM-9012 From Corporate AV?
  • Genuine TOA stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the TOA ZM-9012?
The TOA ZM-9012 is an assignable volume controller. Designed for exclusive use with the 9000M2 Series or M-864D, the ZM-9012 is a wall mounted remote control panel having a volume control knob. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in a standard 1-gang electrical box in the wall.
What are the main specifications of the TOA ZM-9012?
TOA lists these figures for the ZM-9012: Power Source: 24 V DC (supplied from RC-001T or M-864D); Weight: 208 g (0.46 lb). The full specification table is on this page.
Where is the TOA ZM-9012 used?
It suits: zone and volume control from wall panels; digital mixer and matrix systems; hotels, venues and commercial buildings. Corporate AV can advise whether it fits your project.
Which TOA series is the ZM-9012 part of?
TOA lists the ZM-9012 in its M-9000M2 Digital Matrix Mixer range.
Can Corporate AV supply and install the TOA ZM-9012 in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA ZM-9012?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
