TOA ZM-9011: Assignable Remote Button Panel

Model ZM-9011

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized TOA Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Power Source: 24 V DC (supplied from RC-001T or M-864D)
  • Current Consumption: 50 mA or less
  • Control: 4 function buttons
  • Indicator: 4 function indicators (green LEDs)
Public Address System Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

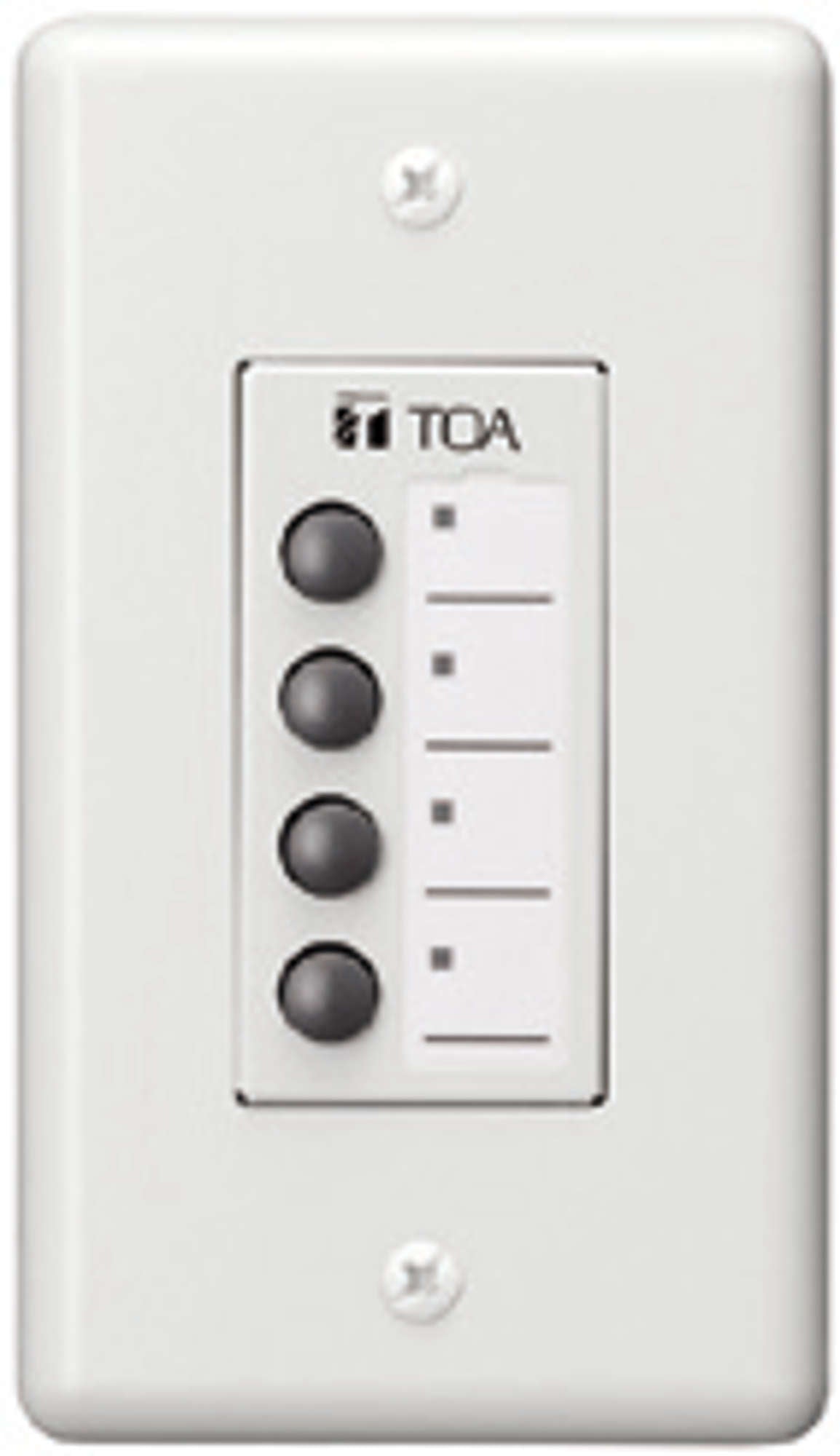

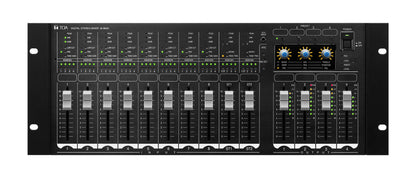

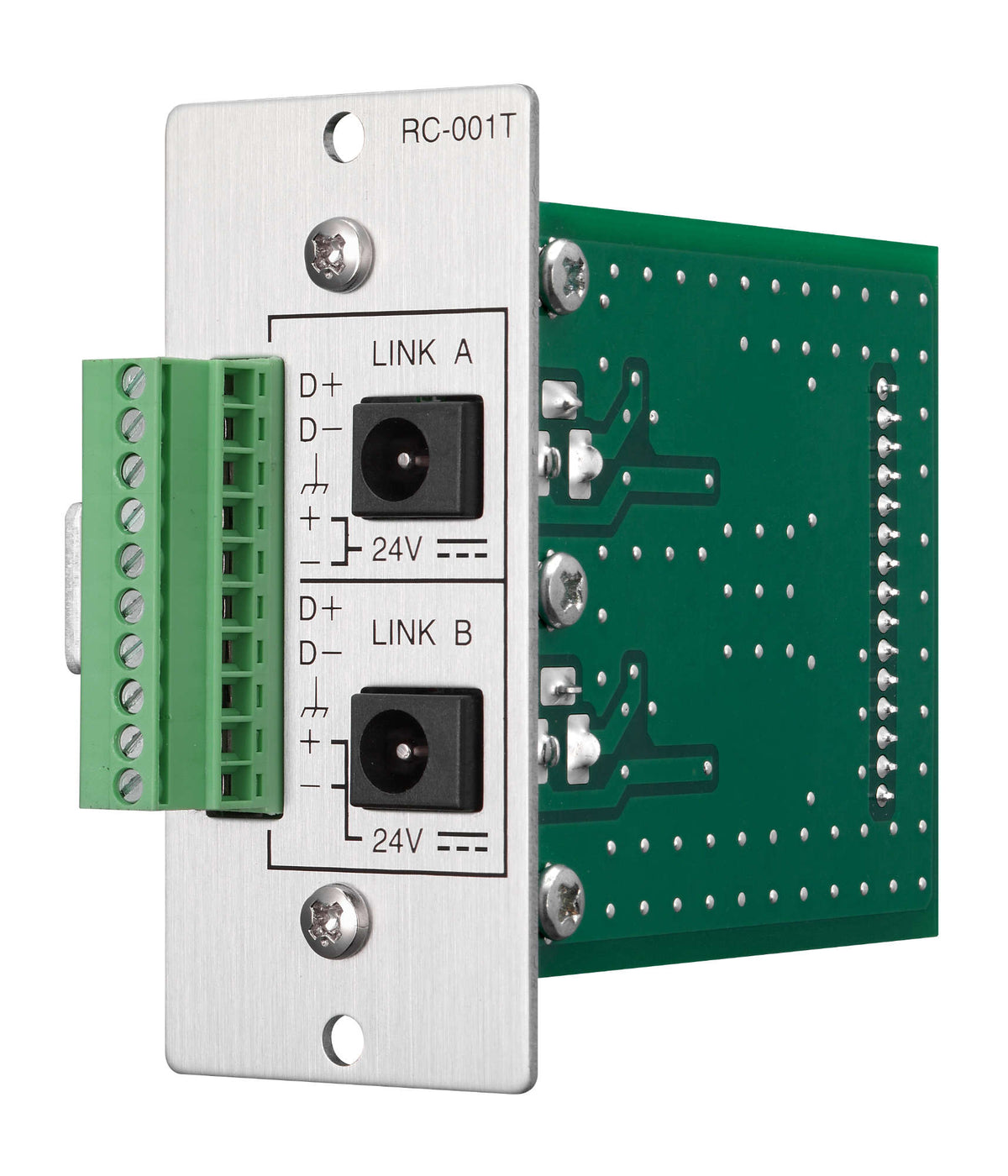

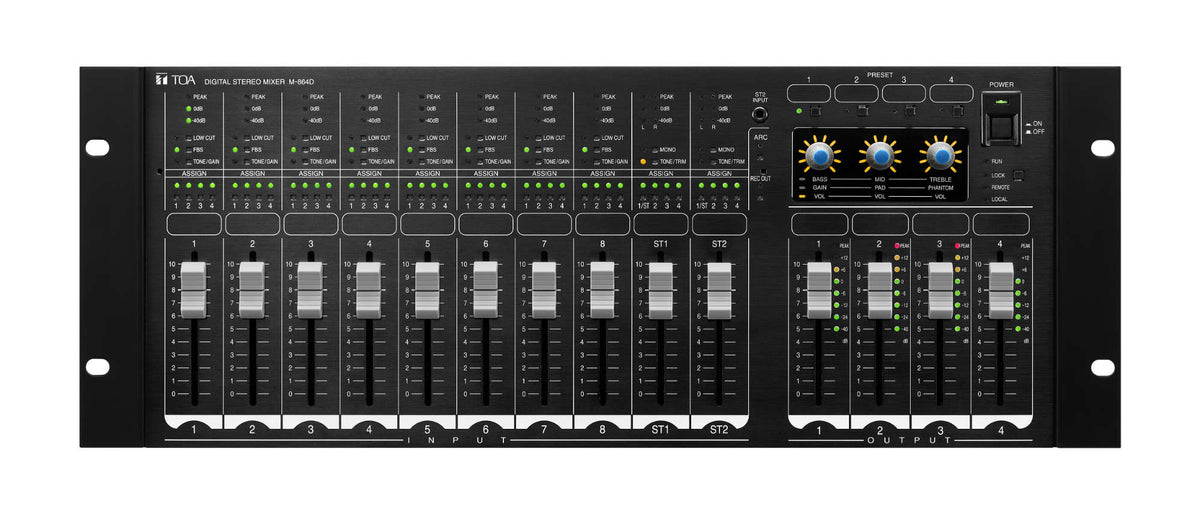

The TOA ZM-9011 is an assignable remote button panel. Designed for exclusive use with the 9000M2 Series or M-864D, the ZM-9011 is a wall mounted remote control panel having 4 buttons. It is used in conjunction with the RC-001T Remote control module or M-864D. It can be mounted in a standard 1-gang electrical box in the wall.

Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA ZM-9011 with supply, installation and commissioning.

Key features

  • 4 assignable buttons with LED status indicator for Xpoint settings (on/off, select), paging activation, scene, relay activation
  • Assignable ID rotary adjustment on box

Typical applications

  • Zone and volume control from wall panels
  • Digital mixer and matrix systems
  • Hotels, venues and commercial buildings
Why choose the ZM-9011
it is an assignable remote button panel from TOA, supplied with Corporate AV's site survey, installation and support across India, so the ZM-9011 is specified for your project and not just shipped.
Product Highlights

Key Benefits

Power Source: 24 V DC (supplied from RC-001T or M-864D)

Current Consumption: 50 mA or less

Control: 4 function buttons

Indicator: 4 function indicators (green LEDs)

Terminal: Removable terminal block (10 pins)

Use Cases

Ideal Applications

Zone and volume control from wall panels

Digital mixer and matrix systems

Hotels, venues and commercial buildings

Technical Details

Technical Specifications

Specifications
Power Source 24 V DC (supplied from RC-001T or M-864D)
Current Consumption 50 mA or less
Control 4 function buttons
Indicator 4 function indicators (green LEDs)
Cable Requirements Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
Terminal Removable terminal block (10 pins)
Operating Temperature 0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity 35 % to 80 %RH (no condensation)
Included Accessories Box mounting screw (No.6-32UNC x 30) x 2, Box mounting screw (M4 x 30) x 2, Panel mounting screw x 2, Removable terminal plug (10 pins) x 1
Dimensions & finish
Finish Surface-treated steel plate, white, paint
Dimensions 72 (W) x 127 (H) x 49.5 (D) mm (2.83 x 5" x 1.95")"
Weight 208 g (0.46 lb)
