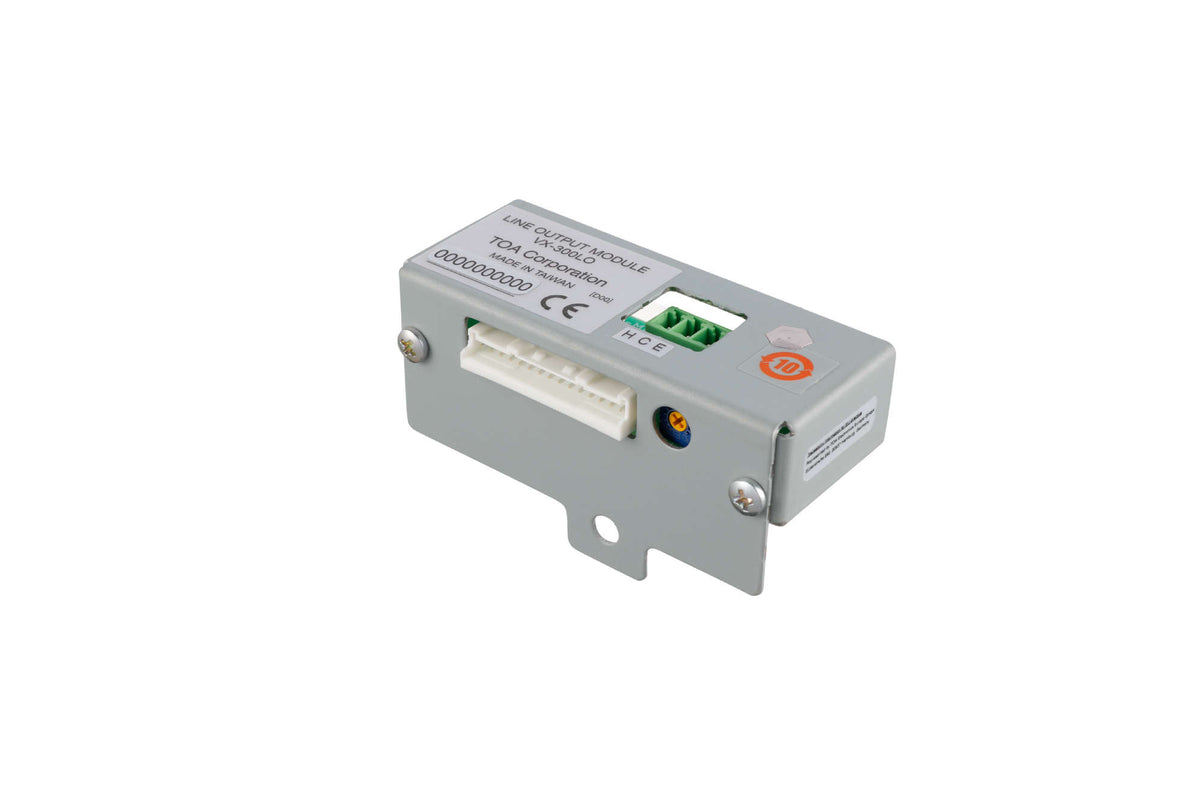

  • TOA VX-300LO line output module - angled view
  • TOA VX-300LO line output module - front view
  • TOA VX-300LO line output module - front view 2
  • TOA VX-300LO line output module - front view 3
1 4

TOA VX-300LO: Line Output Module

Model VX-300LO

Request a Quote
Availability: Out of Stock
Request a Quote Chat on WhatsApp
  • Authorized TOA Reseller
  • Manufacturer Warranty
  • Pan-India Delivery
  • Expert Project Support
  • Power Source: Supplied from the VX-3000 Frame (DA CONTROL LINK)
  • Current Consumption: *1; Max. 2 mA (Current through DC POWER IN)
  • Input: DA CONTROL LINK: Connector (15 pins)
  • Operating Temperature: 0 °C to 40 °C (32°F to 104 °F)
Emergency PA System Solutions in India Part of our complete AV solutions Explore Solutions
View full details
Product Overview

Overview

The TOA VX-300LO is a module that outputs the VX-3000F's audio signals at the line level. Designed to be installed in the VX-3000F, it outputs audio signals from the VX-3000F to an external device.

Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA VX-300LO with supply, installation and commissioning.

Key features

  • Line output module to be mounted in the VX-3000 frame
  • Outputs audio signals at the line level from the VX-3000 Frame to an external device

Typical applications

  • Emergency announcements and evacuation messages
  • Multi-zone paging and background music
  • Public buildings, campuses and commercial complexes
Why choose the VX-300LO
it is a line output module from TOA, supplied with Corporate AV's site survey, installation and support across India, so the VX-300LO is specified for your project and not just shipped.
Product Highlights

Key Benefits

Power Source: Supplied from the VX-3000 Frame (DA CONTROL LINK)

Current Consumption: *1; Max. 2 mA (Current through DC POWER IN)

Input: DA CONTROL LINK: Connector (15 pins)

Operating Temperature: 0 °C to 40 °C (32°F to 104 °F)

Operating Humidity: 90% RH or less (no condensation)

Use Cases

Ideal Applications

Emergency announcements and evacuation messages

Multi-zone paging and background music

Public buildings, campuses and commercial complexes

Technical Details

Technical Specifications

Specifications
Power Source Supplied from the VX-3000 Frame (DA CONTROL LINK)
Current Consumption *1; Max. 2 mA (Current through DC POWER IN)
Input DA CONTROL LINK: Connector (15 pins)
Audio Output *1; 1 channel; Output signal level: 0 dB*2; Adjustable range of the volume control knob: –∞ to 0 dB; Output method: 10 kΩ, transformer-balanced; Applicable load impedance: 2 kΩ or more; Frequency Response: 40 Hz – 20 kHz ±1 dB; Distortion: 1 % or less (0 dB*2 output, 1 kHz); Signal to Noise Ratio: 60 dB or more; Removable terminal block (3 pins);
Operating Temperature 0 °C to 40 °C (32°F to 104 °F)
Operating Humidity 90% RH or less (no condensation)
Included Accessories DA CONTROL LINK CABLE x 1, Removable terminal plug (3 pins) x 1, Mount base for cable binding x 2, Fixing screw x 1
Dimensions & finish
Finish Surface-treated steel plate
Dimensions 76 (W) x 39 (H) x 33.2 (D) mm (2.99" x 1.54" x 1.31")
Weight 56 g (0.12 lb)

Related Solutions

Why CorporateAV?

Sourced right. Installed right.

Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details

Additional Information

Why Buy The VX-300LO From Corporate AV?
  • Genuine TOA stock with manufacturer warranty support
  • Custom pricing for bulk and multi-room / multi-site rollouts
  • Local after-sales support — a real team you can call or WhatsApp, not a call centre
  • Expert guidance on product selection and deployment planning
  • Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Contact us: +91 99452 30186, WhatsApp us or email avsupport@corporateav.in.
Distribution

Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.

Frequently Asked Questions

What is the TOA VX-300LO?
The TOA VX-300LO is a module that outputs the VX-3000F's audio signals at the line level. Designed to be installed in the VX-3000F, it outputs audio signals from the VX-3000F to an external device.
What are the main specifications of the TOA VX-300LO?
TOA lists these figures for the VX-300LO: Power Source: Supplied from the VX-3000 Frame (DA CONTROL LINK); Input: DA CONTROL LINK: Connector (15 pins); Weight: 56 g (0.12 lb). The full specification table is on this page.
Where is the TOA VX-300LO used?
It suits: emergency announcements and evacuation messages; multi-zone paging and background music; public buildings, campuses and commercial complexes. Corporate AV can advise whether it fits your project.
Can Corporate AV supply and install the TOA VX-300LO in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA VX-300LO?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
