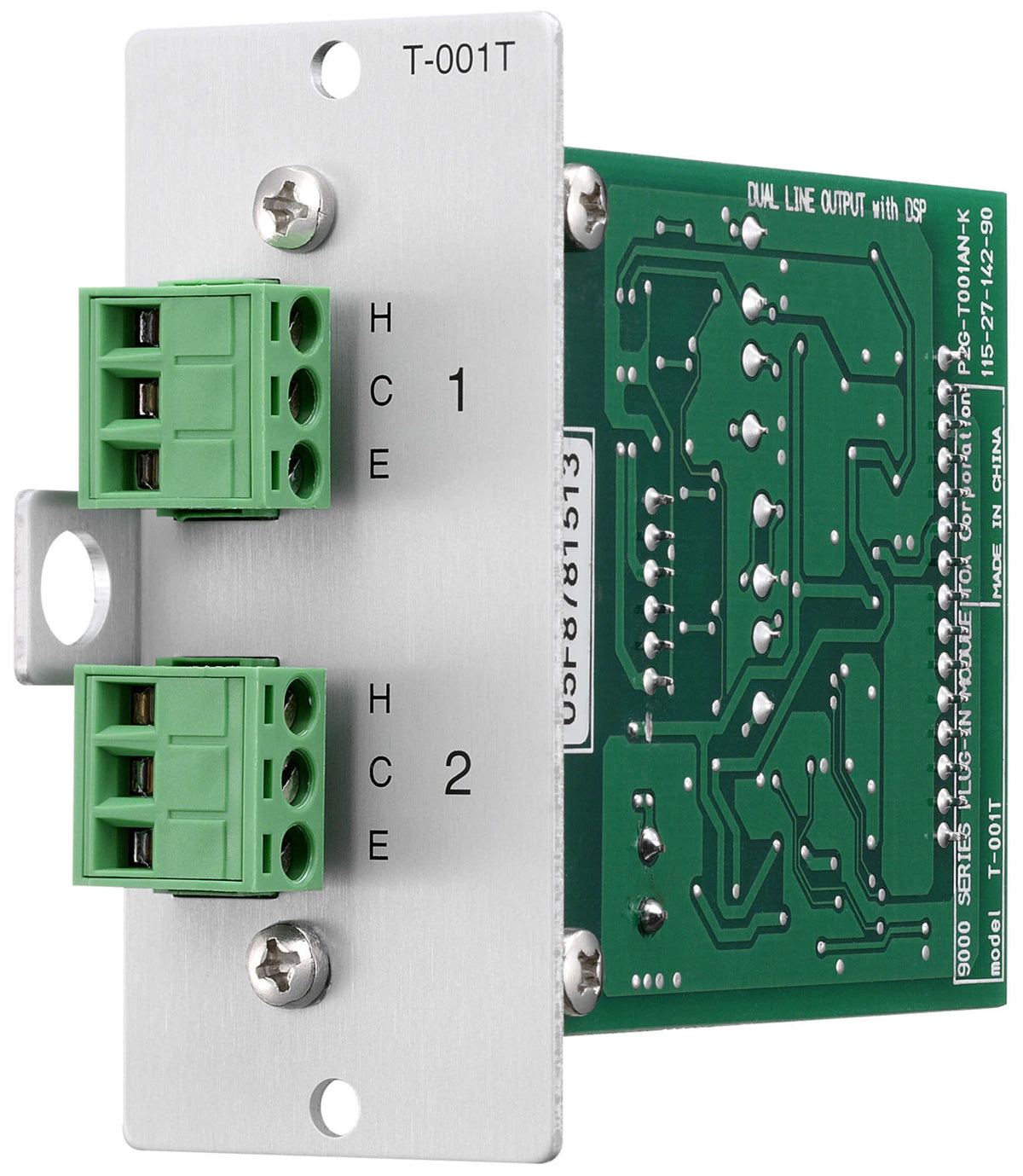

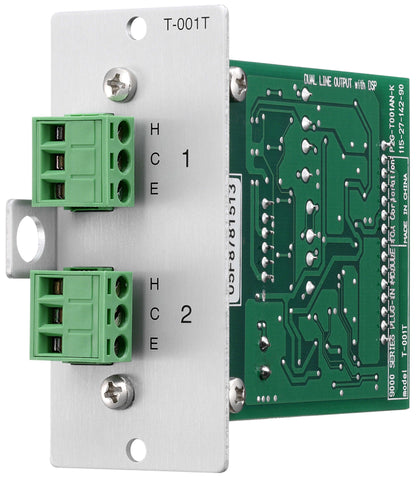

TOA T-001T: Dual Line Output Expansion Module with DSP
Model T-001T
Request a Quote
Availability: Out of Stock
- 2 balanced line outputs
- Digital signal processing: 10-band parametric EQ, Bass/Treble, Loudness, High and Low Pass Filters, Compressor, TOA speaker EQ presets
- Removable terminal block
- Up to 3 output modules per chassis
Product Overview
Overview
The TOA T-001T is a plug-in module designed for use with the 9000 Series mixer / amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ohm up to +16 dB. It can process effect for TONE/EQ/COMPRESSOR to two outputs independently.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA T-001T with supply, installation and commissioning.
Key features
- 2 balanced line outputs
- Digital signal processing: 10-band parametric EQ, Bass/Treble, Loudness, High and Low Pass Filters, Compressor, TOA speaker EQ presets
- Removable terminal block
- Up to 3 output modules per chassis
Typical applications
- Expanding digital mixer and matrix systems
- Installed multi-room audio systems
- Auditoriums and venues
Why choose the T-001T
it is a dual line output expansion module with DSP from TOA, supplied with Corporate AV's site survey, installation and support across India, so the T-001T is specified for your project and not just shipped.
Product Highlights
Key Benefits
2 balanced line outputs
Digital signal processing: 10-band parametric EQ, Bass/Treble, Loudness, High and Low Pass Filters, Compressor, TOA speaker EQ presets
Removable terminal block
Up to 3 output modules per chassis
Use Cases
Ideal Applications
Expanding digital mixer and matrix systems
Installed multi-room audio systems
Auditoriums and venues
Technical Details
Technical Specifications
Specifications
Power Supply
+24 V DC, -24 V DC, +6 V DC
Current Consumption
35 mA (at +24 V DC), 35 mA (at -24 V DC), 60 mA (at +6 V DC)
Output
2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced, removable terminal block (3 pins)
D/A Converter
24 bit DAC
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load)
Signal to Noise Ratio
Over 73 dB (at 20 Hz - 20 kHz BPF)
Residual Noise
Under -91 dB (at 20 Hz - 20 kHz BPF, VOL: -70 dB)
Crosstalk
Over 87 dB (at 20 kHz)
Tone Control
Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
Speaker Equalizer
10 (setup software has 30 TOA speaker presets)
High-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Delay
0 - 40 ms (1 ms step), maximum 40 ms (CH 1 + CH 2), mixer mode only
Operating Temperature
-10 °C to +40 °C
Included Accessories
Removable terminal plug (3 pins) x 2, Module mounting screw x 2
Dimensions & finish
Finish
Panel: Aluminum, hair-line
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm
Weight
82 g
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The T-001T From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA T-001T?
The TOA T-001T is a plug-in module designed for use with the 9000 Series mixer / amplifiers and can provide two independent balanced outputs. It can drive load of 600 Ohm up to +16 dB. It can process effect for TONE/EQ/COMPRESSOR to two outputs independently.
What are the main specifications of the TOA T-001T?
TOA lists these figures for the T-001T: Frequency Response: 20 Hz - 20 kHz, +1, -3 dB; Total Harmonic Distortion: 0.005 % (at 1 kHz, 20 Hz - 20 kHz BPF, 5 V output, 10 kΩ load); Output: 2 channels, max. +20 dB* (at 10 kΩ load), 600 Ω, electronically-balanced, removable terminal block (3 pins); Weight: 82 g. The full specification table is on this page.
What are the key features of the TOA T-001T?
TOA highlights: 2 balanced line outputs; digital signal processing: 10-band parametric EQ, Bass/Treble, Loudness, High and Low Pass Filters, Compressor, TOA speaker EQ presets; removable terminal block; up to 3 output modules per chassis.
Where is the TOA T-001T used?
It suits: expanding digital mixer and matrix systems; installed multi-room audio systems; auditoriums and venues. Corporate AV can advise whether it fits your project.
Which TOA series is the T-001T part of?
TOA lists the T-001T in its M-9000M2 Digital Matrix Mixer range.
