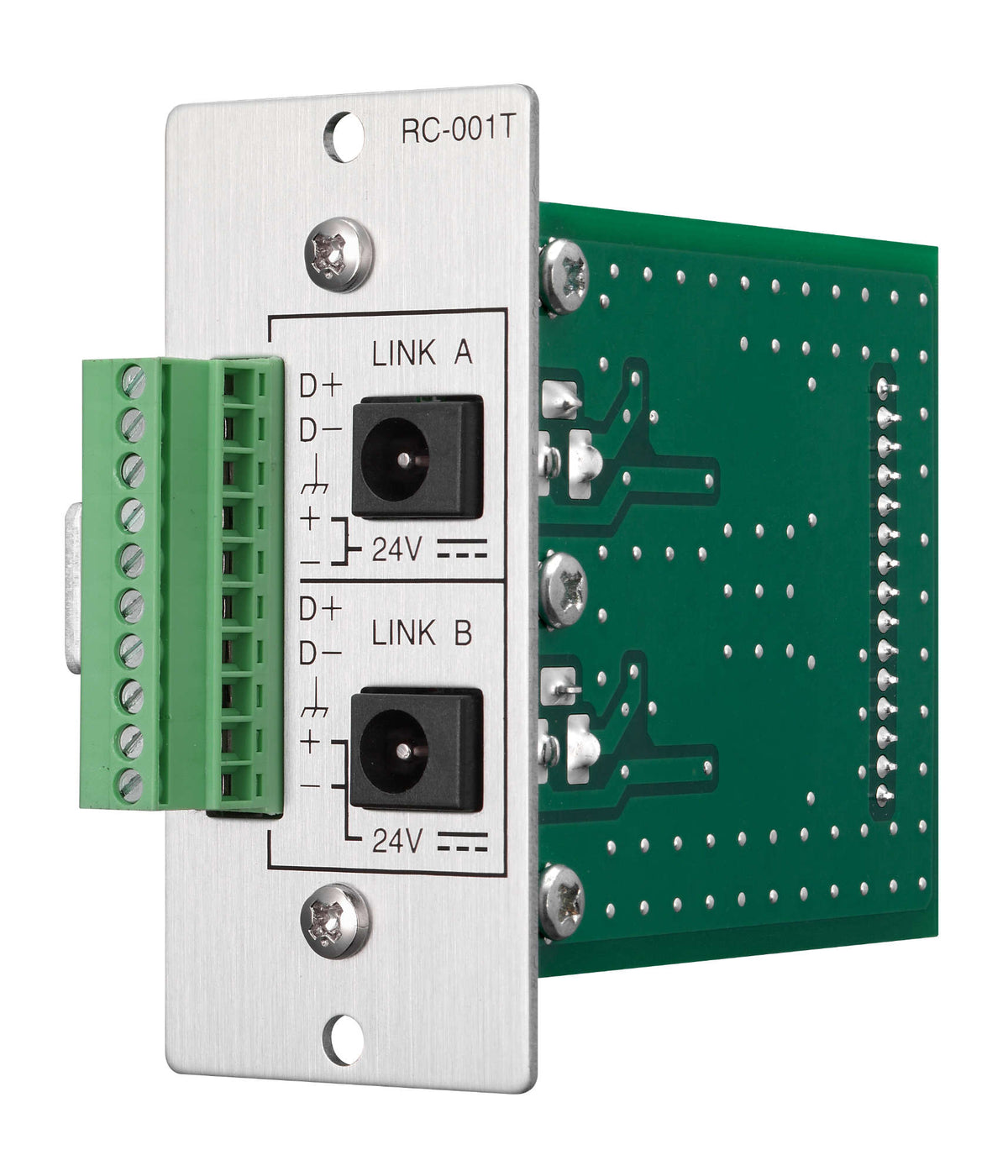

TOA RC-001T: RS-485 Control Module
Model RC-001T
Request a Quote
Availability: Out of Stock
- For up to 16 RS-485 remote control panels
- Bi-directional RS-485 communication provides control and status feedback display for each remote function
- Dual ports for up to 8 modules
- 24 V DC power adapter (optional)
Product Overview
Overview

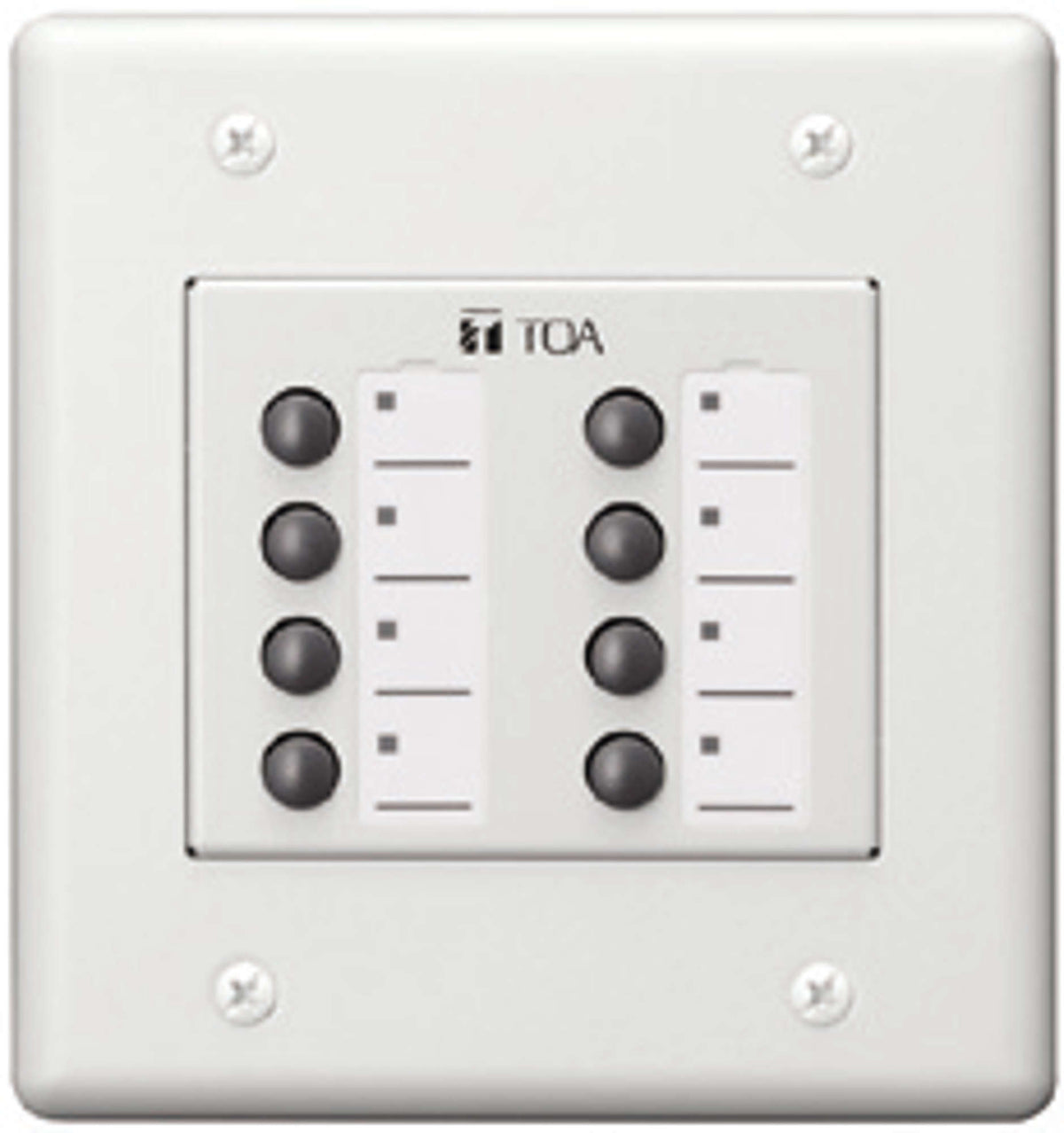

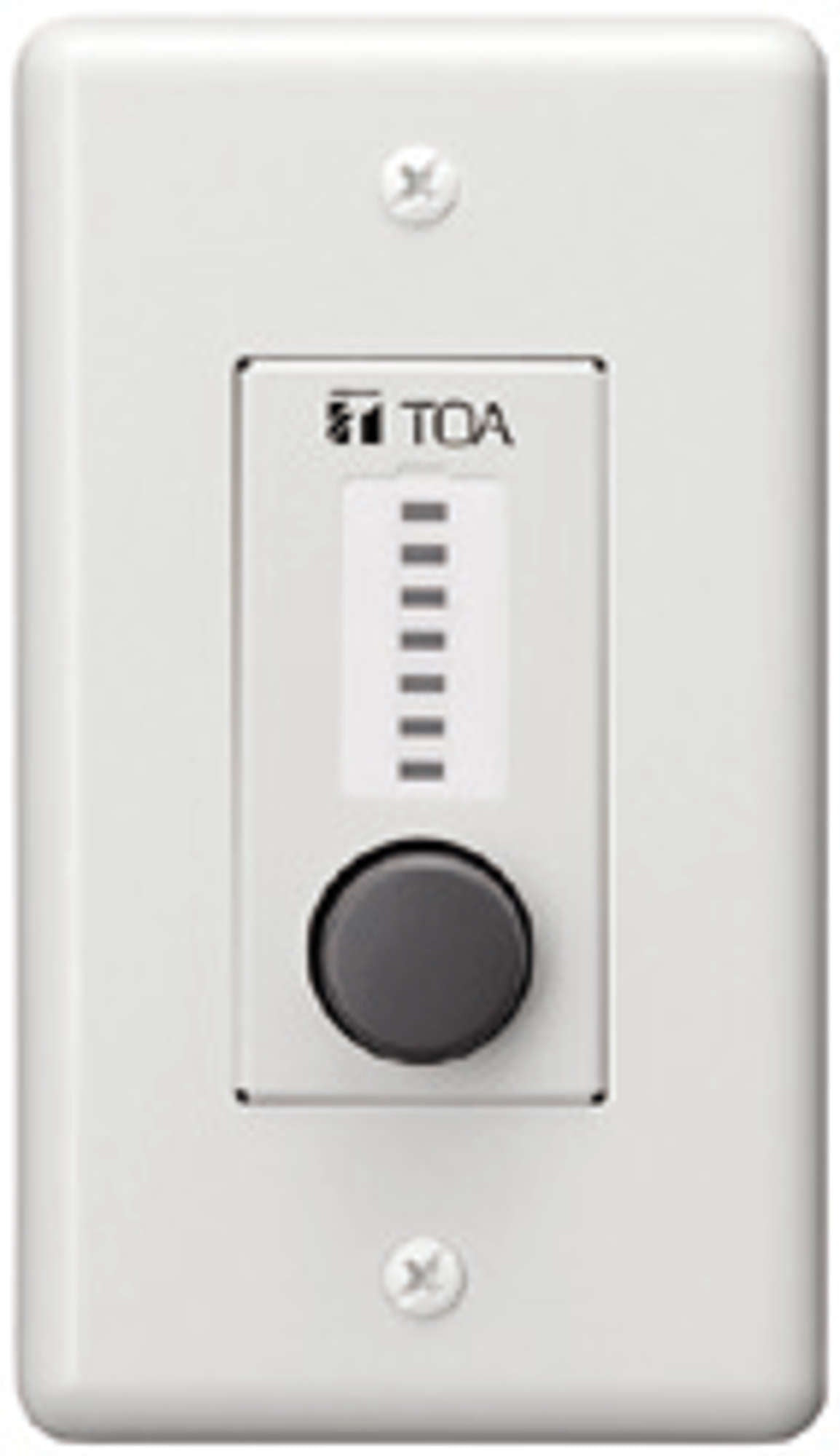

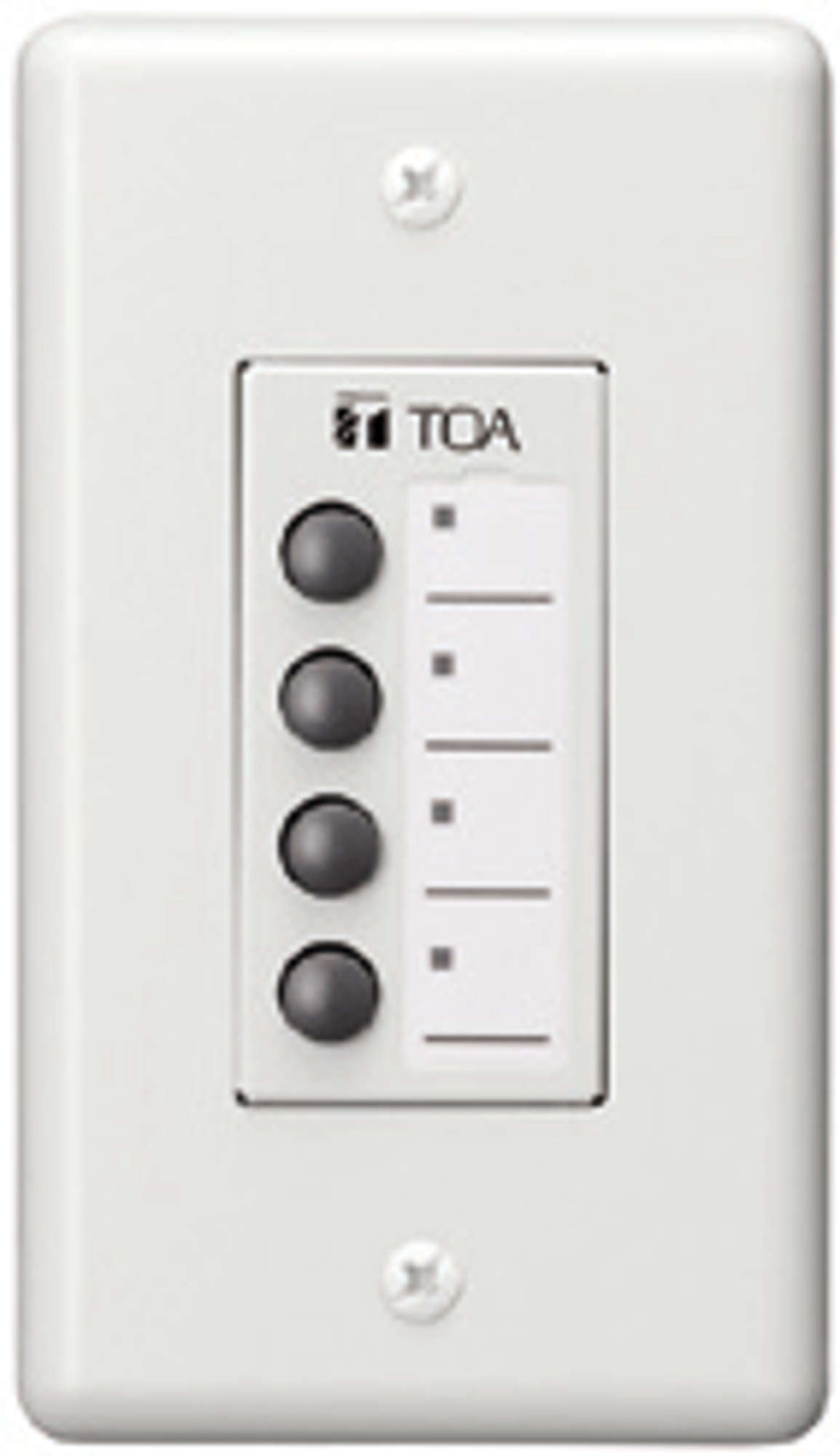

The TOA RC-001T is an interface module to connect between the 9000M2 Series amplifier and the ZM-9011, ZM-9012, ZM-9013, or ZM-9014 Remote control panel of data communication type. Up to 16 remote control panels can be connected to the RC-001T.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA RC-001T with supply, installation and commissioning.
Key features
- For up to 16 RS-485 remote control panels
- Bi-directional RS-485 communication provides control and status feedback display for each remote function
- Dual ports for up to 8 modules
- 24 V DC power adapter (optional)
- AD-246 required for each port
- May be used in any control option slot in addition with C-001T
Typical applications
- Zone and volume control from wall panels
- Digital mixer and matrix systems
- Hotels, venues and commercial buildings
Why choose the RC-001T
it is an RS-485 control module from TOA, supplied with Corporate AV's site survey, installation and support across India, so the RC-001T is specified for your project and not just shipped.
Product Highlights
Key Benefits
For up to 16 RS-485 remote control panels
Bi-directional RS-485 communication provides control and status feedback display for each remote function
Dual ports for up to 8 modules
24 V DC power adapter (optional)
AD-246 required for each port
Use Cases
Ideal Applications
Zone and volume control from wall panels
Digital mixer and matrix systems
Hotels, venues and commercial buildings
Technical Details
Technical Specifications
Specifications
Power Supply
6 V DC
Current Consumption
30 mA or less
Terminal
Removable terminal block (10 pins)
Power Input
24 V DC input x 2 (Applicable AC adapter: AD-246 (option), power supply to Remote Control Panels) Adaptable DC plug: 9.5 (L) x 5.5 (OD) x 2.1 (ID) mm (0.37 x 0.22" x 0.08")
Connection Cable
Shielded CPEV cable (paired data line and paired power line) or Category 5 twisted pair cable for LAN (CAT5-STP)
Maximum Cable Distance
800 m (874.89 yd) in total
Connectable Number of Remote Control Panels
Maximum 16 units (2 link connectors used)
Operating Humidity
35 % to 80 %RH (no condensation)
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Included Accessories
Module mounting screw x 2, Removable terminal plug (10 pins) x 1
Dimensions & finish
Finish
Panel: Aluminum, hair-line
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm (1.38" x 3.07" x 3.6")
Weight
80 g (0.18 lb)
