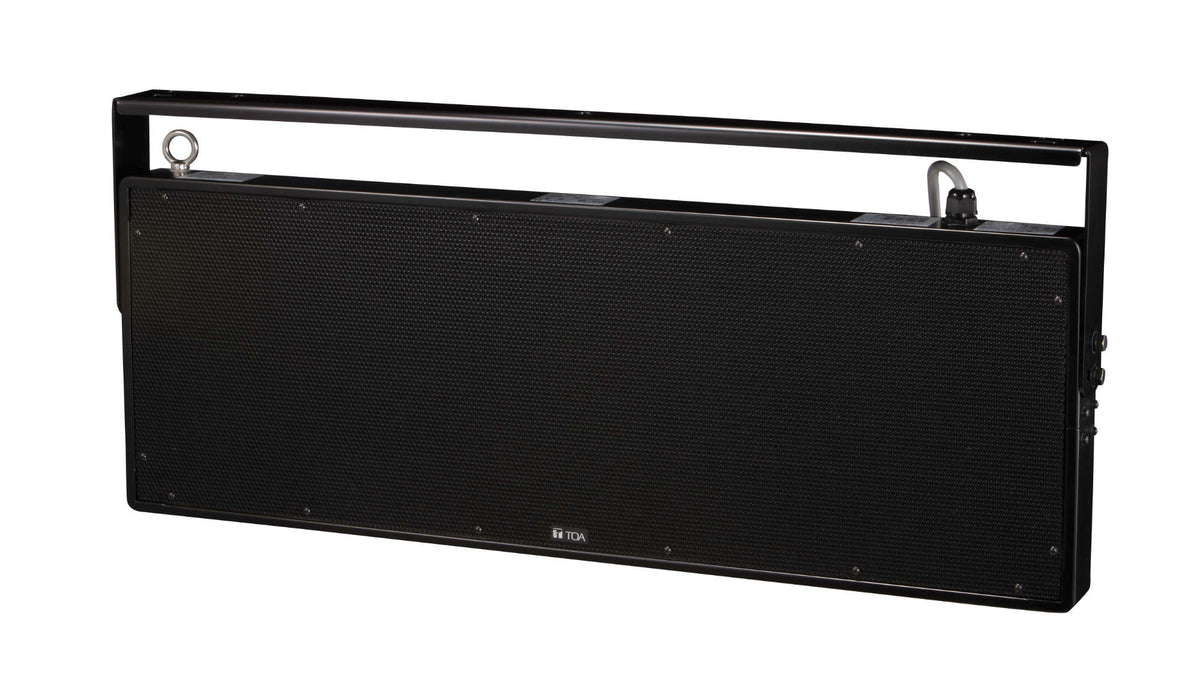

TOA PW-1430SB: Plane Wave Speaker
Model PW-1430SB
Request a Quote
Availability: Out of Stock
- Single-sided radiation
- 4 speaker units
- Narrow directivity
- Splash-proof construction
Product Overview
Overview
The TOA PW-1430SB is a plane wave speaker. The Plane Wave Speaker features a flat speaker system equipped with plane wave units, realizing a narrow directivity pattern by radiating plane wave sound. A single-sided radiation type radiates sound forward only.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA PW-1430SB with supply, installation and commissioning.
Key features
- Single-sided radiation
- 4 speaker units
- Narrow directivity
- Splash-proof construction
- Rust resistance
- Beam-tilting function
- Built-in high-pass filter
Typical applications
- Paging and background music
- Offices, schools, shops and factories
- Halls, lobbies and public spaces
Why choose the PW-1430SB
it is a plane wave speaker from TOA, supplied with Corporate AV's site survey, installation and support across India, so the PW-1430SB is specified for your project and not just shipped.
Product Highlights
Key Benefits
Single-sided radiation
4 speaker units
Narrow directivity
Splash-proof construction
Rust resistance
Use Cases
Ideal Applications
Paging and background music
Offices, schools, shops and factories
Halls, lobbies and public spaces
Technical Details
Technical Specifications
Specifications
Type of Radiation
Single-sided radiation
Rated Input
30 W
Rated Impedance
High impedance 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W); High impedance 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1 kΩ (5 W),; 2 kΩ (2.5 W)
Sensitivity
90 dB (1 W, 1 m equivalent measured at 4 m, 1 - 10 kHz); 87 dB (1 W measured at 1 m, 1 - 10 kHz); (Beam tilting: FLAT, High pass filter: OFF)
Frequency Response
400 Hz - 17.5 kHz (Beam tilting: FLAT, High pass filter: OFF)
Directivity Angle
Horizontal: 19° (2 kHz, 1/3 octave band), Vertical: 78° (2 kHz, 1/3 octave band)
Speaker Unit
Plane wave unit (152 x 214 mm (5.98 x 8.43")) x 4"
Setting Switch
Beam tilting (radiation direction) FLAT: 0° downward/DOWNWARD: 5° downward; High pass filter (450 Hz, -12 dB/oct): OFF/ON
Speaker Cable
Ø9 mm (Ø0.35")
Water Protection
IPx4
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Dimensions & finish
Finish
Enclosure, Punched net, and Mounting bracket: Stainless, black, semi-gloss, paint
Dimensions
831 (W) x 355 (H) x 60 (D) mm (32.72 x 13.98" x 2.36"); (including mounting bracket)
Weight
11.9 kg (26.23 lb) (including mounting bracket)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PW-1430SB From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA PW-1430SB?
The TOA PW-1430SB is a plane wave speaker. The Plane Wave Speaker features a flat speaker system equipped with plane wave units, realizing a narrow directivity pattern by radiating plane wave sound. A single-sided radiation type radiates sound forward only.
What are the main specifications of the TOA PW-1430SB?
TOA lists these figures for the PW-1430SB: Frequency Response: 400 Hz - 17.5 kHz (Beam tilting: FLAT, High pass filter: OFF); Weight: 11.9 kg (26.23 lb) (including mounting bracket). The full specification table is on this page.
What are the key features of the TOA PW-1430SB?
TOA highlights: single-sided radiation; 4 speaker units; narrow directivity; splash-proof construction.
Where is the TOA PW-1430SB used?
It suits: paging and background music; offices, schools, shops and factories; halls, lobbies and public spaces. Corporate AV can advise whether it fits your project.
Which TOA series is the PW-1430SB part of?
TOA lists the PW-1430SB in its Plane Wave Speakers range.
Can Corporate AV supply and install the TOA PW-1430SB in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA PW-1430SB?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
