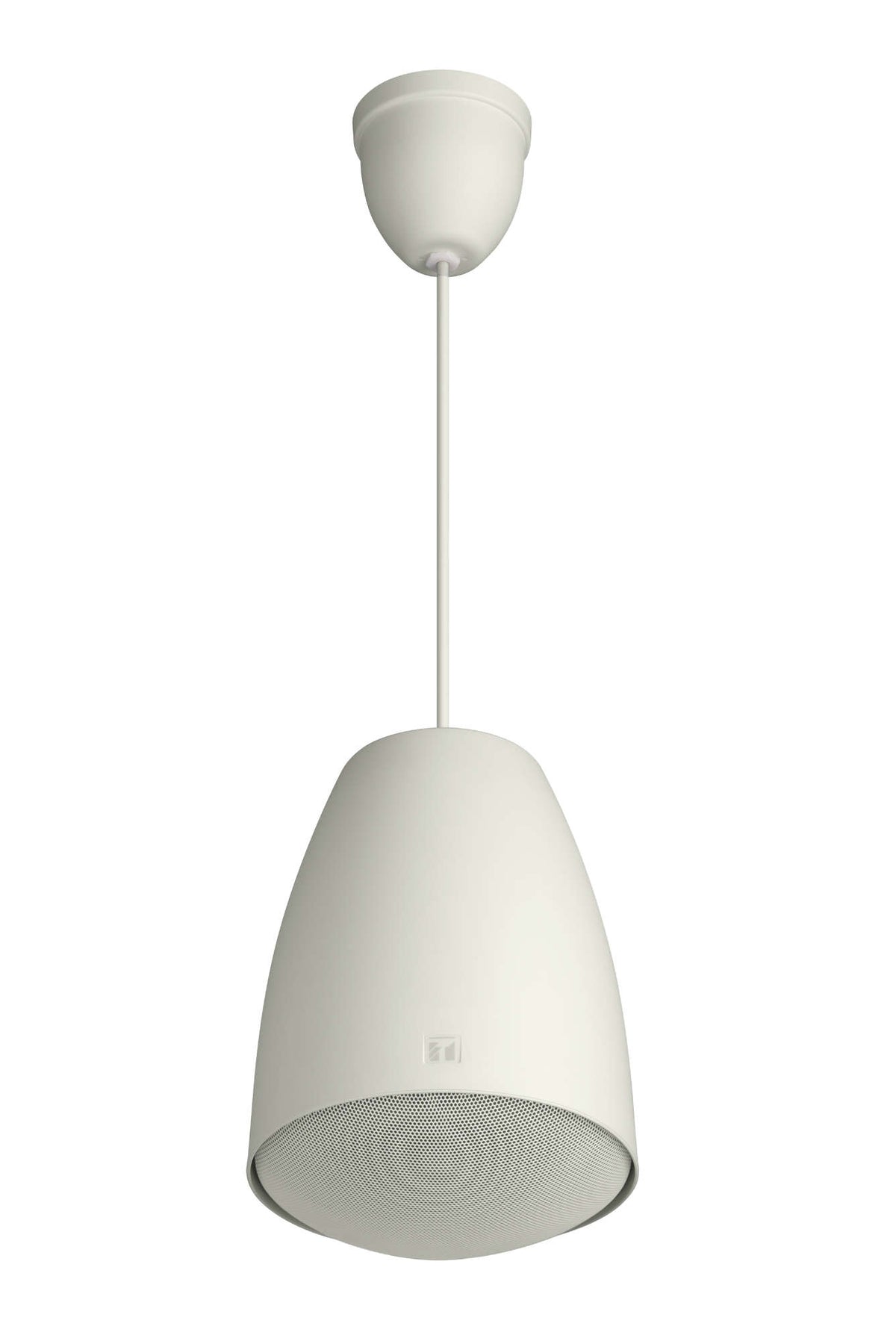

TOA PE-154EN: Pendant Speaker
Model PE-154EN
Request a Quote
Availability: Out of Stock
- Special design to blend with lighting equipment
- Rugged HIPS resin enclosure
- Excellent sound quality
- 5 m cable
Product Overview
Overview
The TOA PE-154EN is a voice alarm certification model. 2 way speaker system is suitable for announcement and music use in wide frequency range.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA PE-154EN with supply, installation and commissioning.
Key features
- Special design to blend with lighting equipment
- Rugged HIPS resin enclosure
- Excellent sound quality
- 5 m cable
- Certified according to EN 54-24, ISO 7240-24
Typical applications
- Offices, shops and public buildings
- Background music and paging
- Corridors, lobbies and meeting areas
Why choose the PE-154EN
it is a pendant speaker from TOA, supplied with Corporate AV's site survey, installation and support across India, so the PE-154EN is specified for your project and not just shipped.
Product Highlights
Key Benefits
Special design to blend with lighting equipment
Rugged HIPS resin enclosure
Excellent sound quality
5 m cable
Certified according to EN 54-24, ISO 7240-24
Use Cases
Ideal Applications
Offices, shops and public buildings
Background music and paging
Corridors, lobbies and meeting areas
Technical Details
Technical Specifications
Specifications
Rated Noise Power
15 W (100 V line), 7.5 W (70 V line)
Rated Impedance
100 V line: 670 Ω (15 W), 1 kΩ (10 W), 2 kΩ (5 W); 70 V line: 670 Ω (7.5 W), 1 kΩ (5 W), 2 kΩ (2.5 W)
Sensitivity
91 dB (1 W, 1 m) (500 Hz - 5 kHz, pink noise); 87 dB (1 W, 1 m) (100 Hz - 10 kHz, pink noise); 75 dB (1 W, 4 m) (100 Hz - 10 kHz, pink noise)
Max. SPL
99 dB (15 W, 1 m) (100 Hz - 10 kHz, pink noise); 87 dB (15 W, 4 m) (100 Hz - 10 kHz, pink noise)
Frequency Response
70 Hz - 20 kHz
Coverage Angle
Horizontal and Vertical: 360° (500 Hz), 170° (1 kHz), 90° (2 kHz), 70° (4 kHz)
Environmental Type
A (indoor applications)
Speaker Component
Low frequency: 12 cm (5") cone-type; High frequency: 2.5 cm (1") balanced dome tweeter
Speaker Mounting Method
Ceiling suspension
Speaker Cable
2-core cable 5 m (16.40 ft)
Cable Requirements
Outer diameter: Ø6.5-12.5 mm; Conductor: Solid wire or 7-core wire; No bridge connection: 0.8 - 10 mm² (AWG18-AWG7) for solid wire,; 0.8 - 8 mm² (AWG18-AWG8) for 7-core wire; Bridge connection: 0.8 - 2.5 mm² (AWG18-AWG13) for solid wire,; 0.8 - 1.5 mm² (AWG18-AWG15) for 7-core wire
Connection
Screw terminal (steatite), can be bridge-connected
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Included Accessories
Ceiling bracket x 1, Mounting hanger x 1, Ceiling cover x 1,; Ceiling bracket mounting screw (tapping screw 4 x 16) x 4
Dimensions & finish
Finish
Enclosure: HIPS resin, off-white (RAL 9010 or equivalent color); Grille: Surface-treated steel plate net, off-white(RAL 9010 or equivalent color), paint
Dimensions
Ø186 x 251 (H) mm (Ø7.32" x 9.88") (speaker only)
Weight
2.1 kg (4.63 lb) (speaker only)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The PE-154EN From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA PE-154EN?
The TOA PE-154EN is a voice alarm certification model. 2 way speaker system is suitable for announcement and music use in wide frequency range.
What are the main specifications of the TOA PE-154EN?
TOA lists these figures for the PE-154EN: Frequency Response: 70 Hz - 20 kHz; Weight: 2.1 kg (4.63 lb) (speaker only). The full specification table is on this page.
What are the key features of the TOA PE-154EN?
TOA highlights: special design to blend with lighting equipment; rugged HIPS resin enclosure; excellent sound quality; 5 m cable.
Where is the TOA PE-154EN used?
It suits: offices, shops and public buildings; background music and paging; corridors, lobbies and meeting areas. Corporate AV can advise whether it fits your project.
Which TOA series is the PE-154EN part of?
TOA lists the PE-154EN in its Pendant / Projection Speakers range.
Can Corporate AV supply and install the TOA PE-154EN in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA PE-154EN?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
