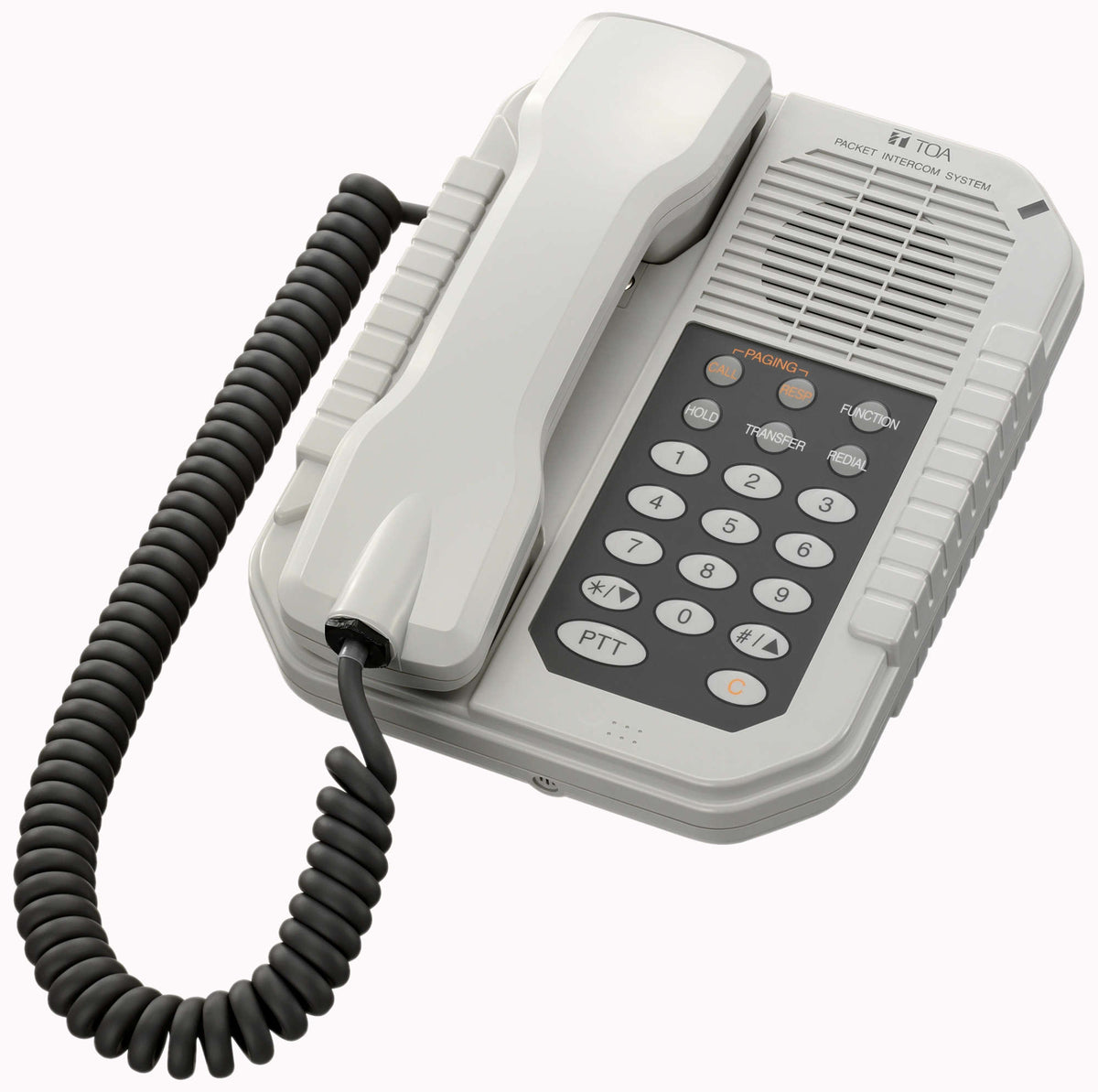

TOA N-8020MS: Industrial-Use Master Station
Model N-8020MS
Request a Quote
Availability: Out of Stock
- Industrial use Master Station
- Dustproof and waterproof construction IP54
- Wide ambient temperature range
- Connection of external speaker
Product Overview
Overview
The TOA N-8020MS is an industrial-use master station. This Master Station is designed to connect to the IP Intercom Exchange, and provides hands-free or handset conversation of high sound quality. This station can be mounted to the wall using an optional YC-280 wall mounting bracket.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA N-8020MS with supply, installation and commissioning.
Key features
- Industrial use Master Station
- Dustproof and waterproof construction IP54
- Wide ambient temperature range
- Connection of external speaker
- Status LED
Typical applications
- Offices, schools, hospitals and factories
- Building entrances and doorways
- Emergency and security communication
Why choose the N-8020MS
it is an industrial-use master station from TOA, supplied with Corporate AV's site survey, installation and support across India, so the N-8020MS is specified for your project and not just shipped.
Product Highlights
Key Benefits
Industrial use Master Station
Dustproof and waterproof construction IP54
Wide ambient temperature range
Connection of external speaker
Status LED
Use Cases
Ideal Applications
Offices, schools, hospitals and factories
Building entrances and doorways
Emergency and security communication
Technical Details
Technical Specifications
Specifications
Power Source
48 V DC (supplied from the IP intercom exchange (option)
Power Consumption
1.8 W (at rated), 2.4 W (max.)
Wiring Method
1 set of twisted pair cable
Transmission System
2 wire 160 kbps echo canceller transmission system
Signal Level
Under 0 dB*
Speech Method
Hands-free or handset conversation
Audio Frequency Range
300 Hz - 7 kHz
Transmission Range
Max. 1500 m (Φ0.65 mm, Loop resistance 170 Ω)
Hands-free
Speaker: 5.7 cm cone-type, 0.6 W, 8 Ω; Microphone: Omni-directional electret condenser microphone
Handset
Receive path: Dynamic type, Send path: Electret condenser microphone
Indicator
Status lamp
External Speaker Terminal
0.6 W, 8 Ω, screwless connector (2 pins)
Line Connecting Terminal
RJ11 modular jack
Installation Method
Desk/Surface mounted master station; (When mounting to the wall, use the optional YC-280.)
Operating Temperature
-10 °C to +50 °C (14 °F to 122 °F)
Operating Humidity
Under 90 % RH (no condensation)
Dust/Water Protection
IP54
Included Accessories
Rubber cap x 2
Optional Accessories

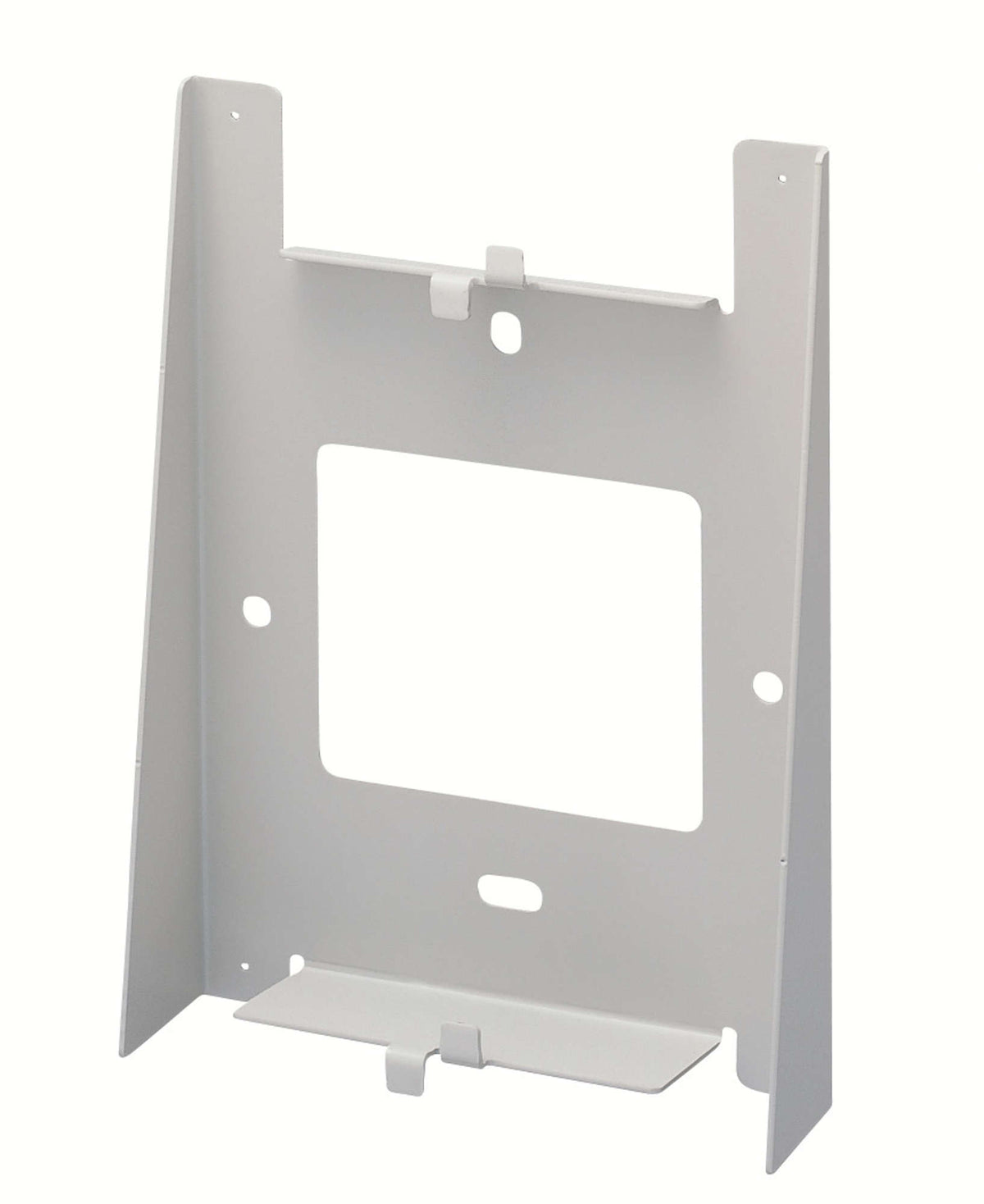

Wall mounting bracket: YC-280
Dimensions & finish
Finish
Body, Handset: ABS resin, gray
Dimensions
170 (W) x 220 (H) x 97.8 (D) mm (excluding a curl cord and projection sections)
Weight
1 kg
