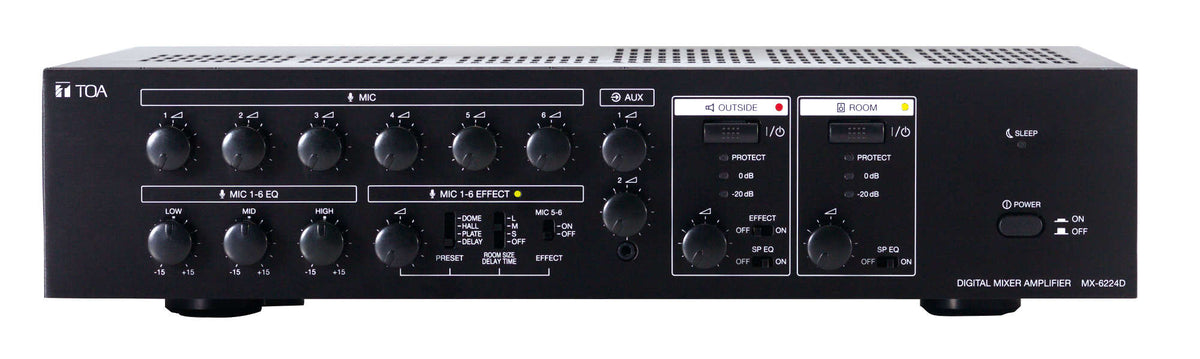

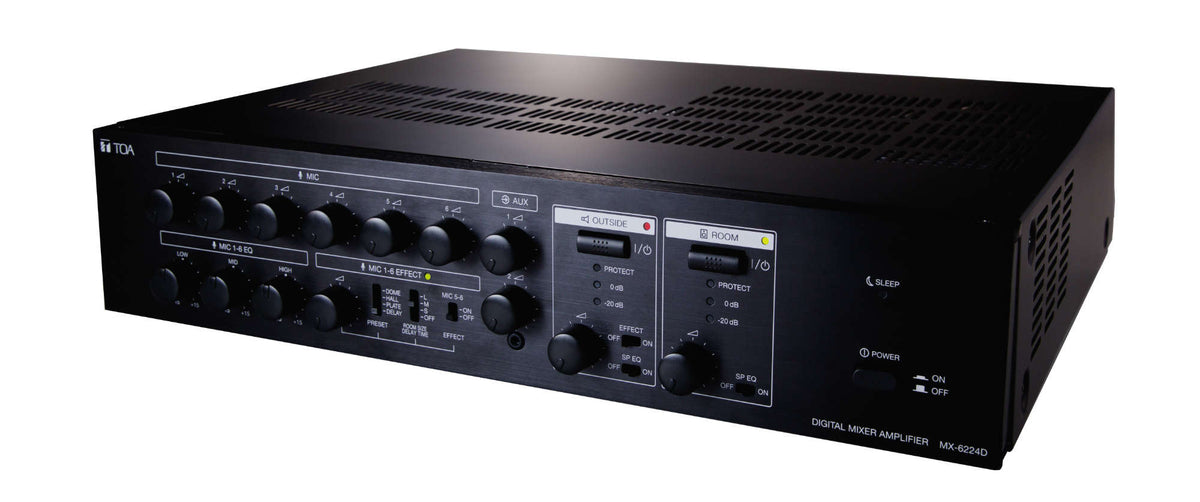

TOA MX-6224D: Digital Mixer Amplifier for Mosques
Model MX-6224D
Request a Quote
Availability: Out of Stock
- 2 x 240W Digital Mixer Amplifier
- Incorporating DSP function
- Class D amplifier
- Reliable sound quality
Product Overview
Overview
The TOA MX-6224D is a digital mixer amplifier for mosques. The MX-6224D, a digital mixer amplifier with 2 × 240 W output, is designed for a two-zone public address system suitable for medium-sized mosque applications.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA MX-6224D with supply, installation and commissioning.
Key features
- 2 x 240W Digital Mixer Amplifier
- Incorporating DSP function
- Class D amplifier
- Reliable sound quality
- Optimal digital signal processing
- Easily-operable advanced functions
Typical applications
- Paging and background music in offices, shops and factories
- Schools, houses of worship and public buildings
- Constant-voltage (100 V) speaker distribution
Why choose the MX-6224D
it is a digital mixer amplifier for mosques from TOA, supplied with Corporate AV's site survey, installation and support across India, so the MX-6224D is specified for your project and not just shipped.
Product Highlights
Key Benefits
2 x 240W Digital Mixer Amplifier
Incorporating DSP function
Class D amplifier
Reliable sound quality
Optimal digital signal processing
Use Cases
Ideal Applications
Paging and background music in offices, shops and factories
Schools, houses of worship and public buildings
Constant-voltage (100 V) speaker distribution
Technical Details
Technical Specifications
Specifications
Power Source
220 V - 240 V AC, 50/60 Hz
Rated Output
240 W x 2 channels (100 V, 42 Ω, rated output)
Power Consumption
100 W (according to IEC60065), 570 W (at rated output, both channels)
Amplification System
Class D, Output transformerless galvanic isolated output
Frequency Response
50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input)
Distortion
1 % or less (at 1 kHz, 1/3 rated output power)
Input

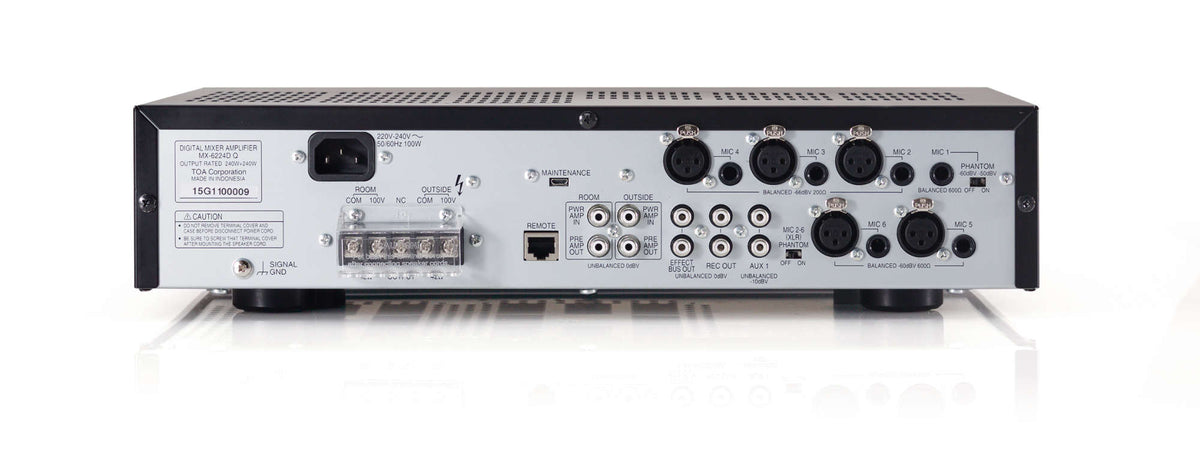

MIC 1: -50 dB (*1) (24 V phantom powered)/-60 dB (*1) (phantom power OFF) 600 Ω, electronically-balanced, Ø6.3 mm phone jack (3P:balance) MIC 2 - 4: -66 dB (*1), 200 Ω, electronically-balanced, XLR-3-31 type and Ø6.3 mm phone jack (3P:balance) (either one usable) MIC 5 - 6: -60 dB (*1), 600 Ω, electronically-balanced, XLR-3-31 type and Ø6.3 mm phone jack (3P:balance) (either one usable) AUX 1: -10 dB (*1), 10 kΩ mixed monaural, unbalanced, RCA pin jacks (1 pair) AUX 2: -20 dB (*1), 10 kΩ mixed monaural, unbalanced, Ø3.5 mm mini jack (3P:stereo) Power amplifier input: 0 dB (*1), 10 kΩ, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Output
Speaker output: 2 zones, 100 V (42 Ω), galvanic isolated balanced, M4 screw terminal Recording output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair) Effect bus output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 pair) Preamplifier output: 0 dB (*1), 600 Ω monaural, unbalanced, RCA pin jacks (1 each for ROOM and OUTSIDE outputs)
Signal to Noise Ratio
60 dB or more (All volume controls: min.)
Phantom Power
ON/OFF switchable for MIC 1 and XLR-3-31 type connectors of MIC 2 - 6
Control
6 Microphone volume controls, 2 AUX volume controls, 1 ROOM output switch, 1 ROOM volume control, 1 OUTSIDE output switch, 1 OUTSIDE volume control, 1 Effect control (0 % to 100 %) of Effect bus, 1 Effect preset type selection switch (DOME/HALL/PLATE/DELAY), 1 Effect Room size/Delay time selection switch (L/M/S/OFF), 1 Effect output selection switch (OFF/ON), 1 MIC 5-6 effect switch, 1 Low EQ control (±15 dB, 80 Hz) for MIC 1 - 6, 1 Mid EQ control (±15 dB, 2.5 kHz) for MIC 1 - 6, 1 High EQ control (±15 dB, 12 kHz) for MIC 1 - 6, 1 Speaker EQ (TC-631M, TC-651M) switch for OUTSIDE output, 1 Speaker EQ (BS-1030B, BS-1030W) switch for ROOM output, 1 Power switch, 1 Phantom switch for MIC 1, 1 Phantom switch for MIC 2 - 6 (XLR-3-31)
Indicator
SLEEP indicator Output Level meters (2 points, -20 dB and 0 dB) for ROOM and OUTSIDE Protection indicators for ROOM and OUTSIDE amplifiers Output indicators for ROOM and OUTSIDE EFFECT indicator for MIC 1 - 6
Ventilation
Natural air cooling
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity
35 % to 80 %RH (no condensation)
Included Accessories
Power supply cord x 1, Sticker for Arabic indication x 1
Optional Accessories

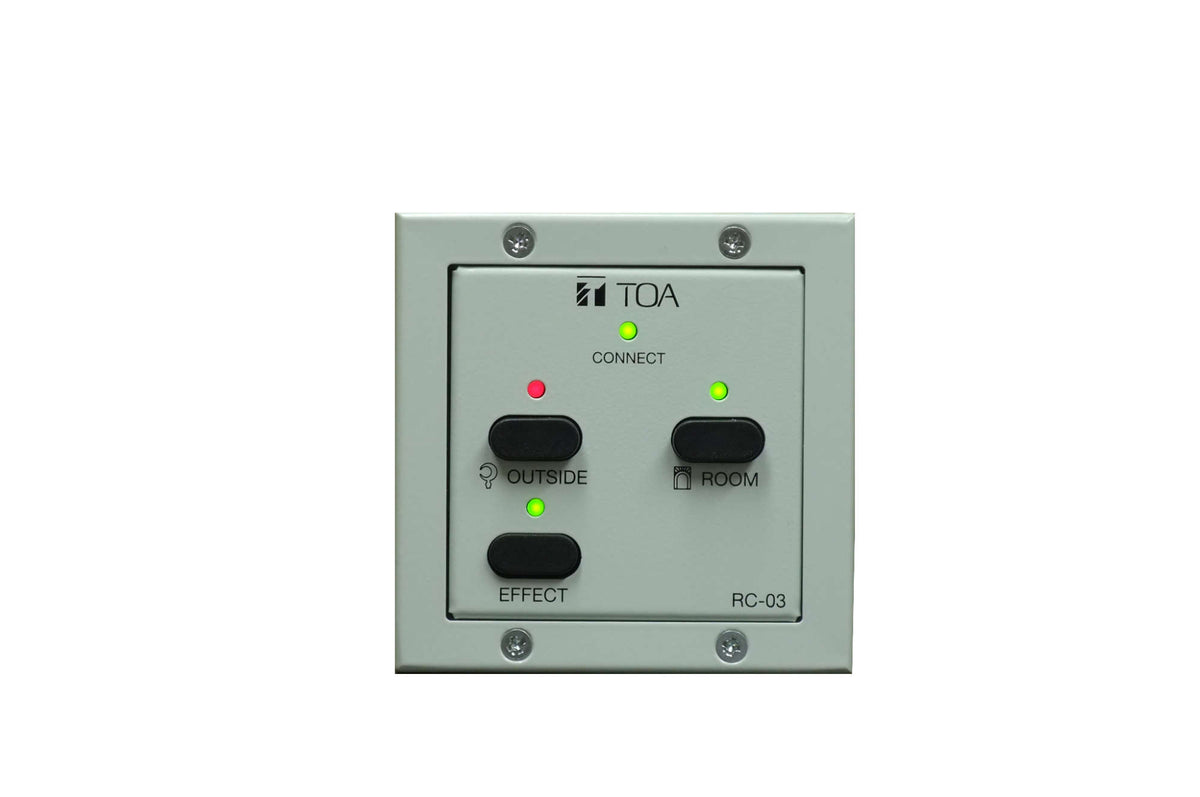

Remote controller: RC-03 Power amplifier:P-2240 Multichannel power amplifier: DA-250FH Dynamic microphone: DM-1300 Lavalier microphone: EM-410 Horn speaker: TC-631M, TC-651M Universal speaker: BS-1030B, BS-1030W Rack mounting bracket: MB-25B Perforated panel: PF-013B
Dimensions & finish
Finish
Front Panel: Aluminum, black, alumite Case: Steel plate, black, paint
Dimensions
420 (W) x 99.8 (H) x 360.6 (D) mm (16.54 x 3.93 x 14.2")
Weight
6.1 kg (13.45 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The MX-6224D From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA MX-6224D?
The TOA MX-6224D is a digital mixer amplifier for mosques. The MX-6224D, a digital mixer amplifier with 2 × 240 W output, is designed for a two-zone public address system suitable for medium-sized mosque applications.
What are the main specifications of the TOA MX-6224D?
TOA lists these figures for the MX-6224D: Rated Output: 240 W x 2 channels (100 V, 42 Ω, rated output); Power Source: 220 V - 240 V AC, 50/60 Hz; Frequency Response: 50 Hz - 20 kHz, ±3 dB (at 1/3 rated output, rated load, from power amplifier input); Distortion: 1 % or less (at 1 kHz, 1/3 rated output power). The full specification table is on this page.
What are the key features of the TOA MX-6224D?
TOA highlights: 2 x 240W Digital Mixer Amplifier; incorporating DSP function; class D amplifier; reliable sound quality.
Where is the TOA MX-6224D used?
It suits: paging and background music in offices, shops and factories; schools, houses of worship and public buildings; constant-voltage (100 V) speaker distribution. Corporate AV can advise whether it fits your project.
Which TOA series is the MX-6224D part of?
TOA lists the MX-6224D in its MX-6224D Digital Mixer Amplifier range.
Can Corporate AV supply and install the TOA MX-6224D in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA MX-6224D?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
