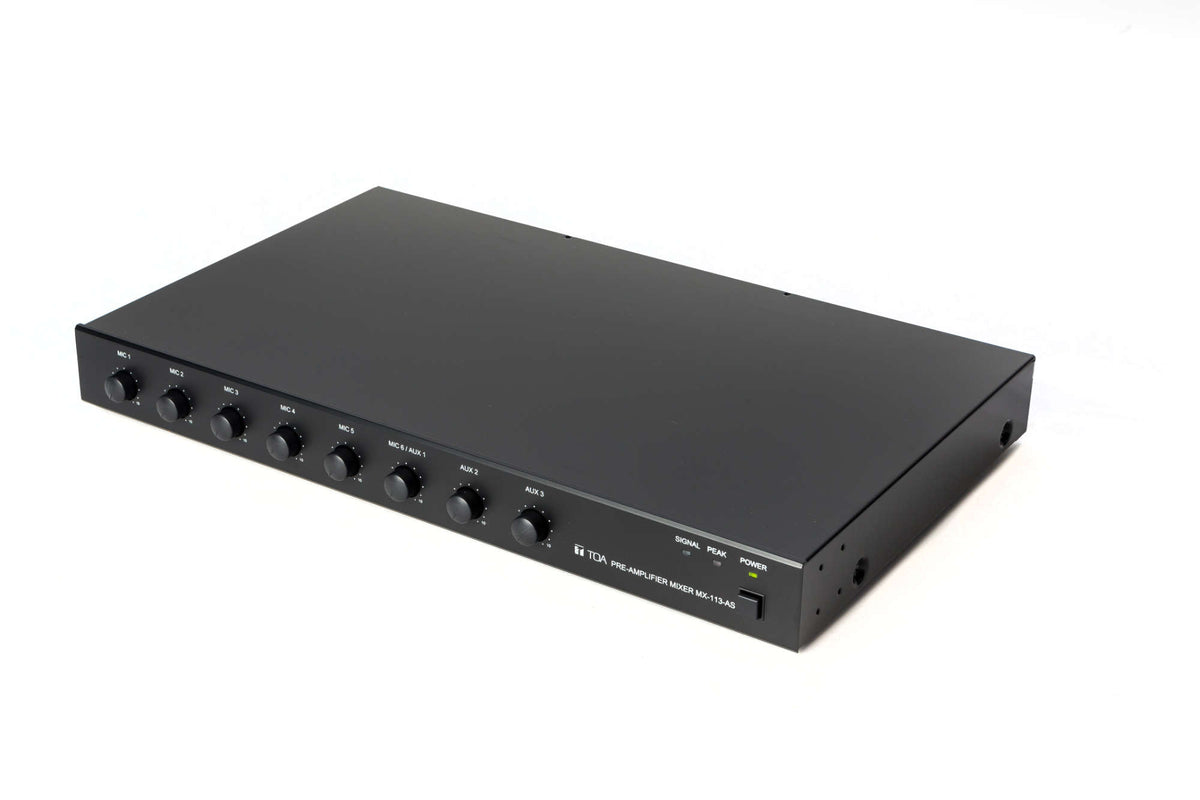

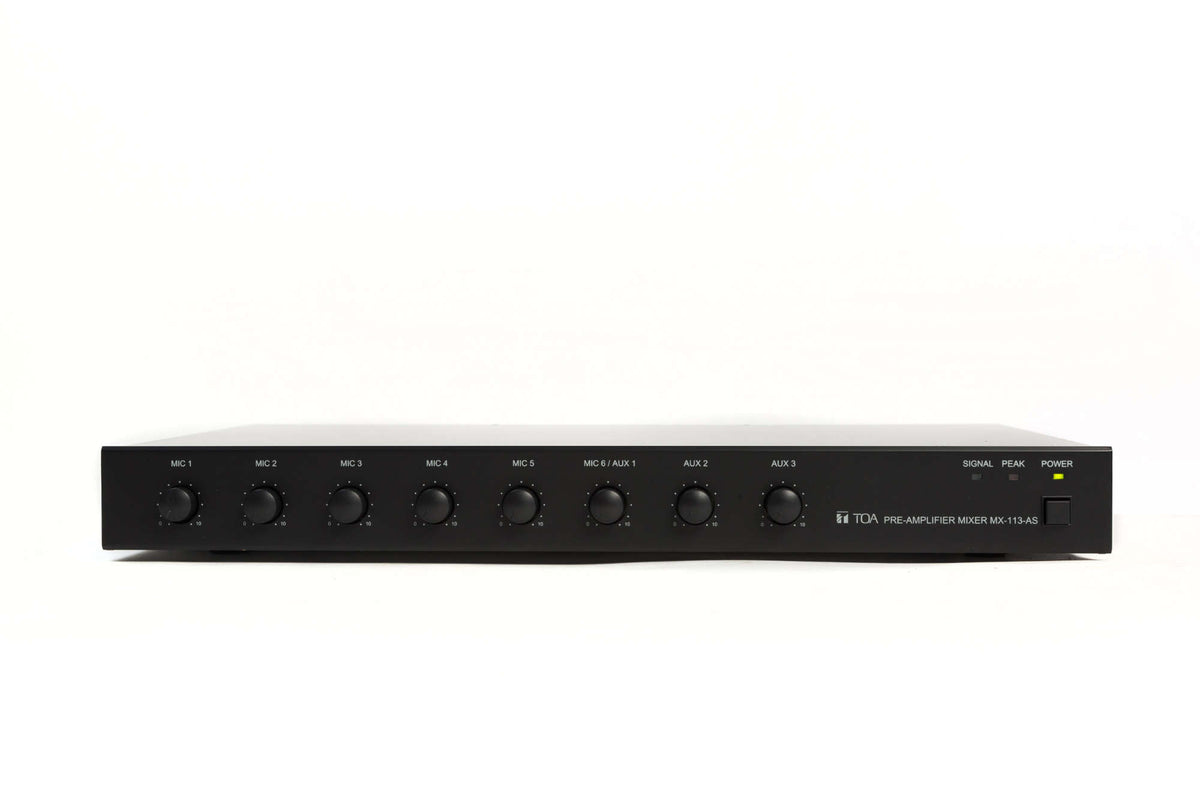

TOA MX-113-AS: Pre-Amplifier Mixer
Model MX-113-AS
Request a Quote
Availability: Out of Stock
- Slim & compact 1U size
- 6 microphone inputs, 4 AUX inputs and 2 monaural output
- Signal noise gate circuit for Mic 1-5 allowing a signal to pass through only when it is above a set threshold
- Option of desk mount or rack mount* (*with optional rack mount bracket)
Product Overview
Overview
The TOA MX-113-AS is a pre-amplifier mixer. The TOA MX-113 is the sound engineer to quality output. This desk mount pre-amplifier mixer is 1U size and comes with 6 microphones inputs, 4 AUX inputs and 2 monaural output to meet to all your audio needs.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA MX-113-AS with supply, installation and commissioning.
Key features
- Slim & compact 1U size
- 6 microphone inputs, 4 AUX inputs and 2 monaural output
- Signal noise gate circuit for Mic 1-5 allowing a signal to pass through only when it is above a set threshold
- Option of desk mount or rack mount* (*with optional rack mount bracket)
Typical applications
- Meeting and conference rooms
- Paging and background music systems
- Small venues and hospitality spaces
Why choose the MX-113-AS
it is a pre-amplifier mixer from TOA, supplied with Corporate AV's site survey, installation and support across India, so the MX-113-AS is specified for your project and not just shipped.
Product Highlights
Key Benefits
Slim & compact 1U size
6 microphone inputs, 4 AUX inputs and 2 monaural output
Signal noise gate circuit for Mic 1-5 allowing a signal to pass through only when it is above a set threshold
Option of desk mount or rack mount* (*with optional rack mount bracket)
Use Cases
Ideal Applications
Meeting and conference rooms
Paging and background music systems
Small venues and hospitality spaces
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240 V AC, 50/60 Hz
Power Consumption
4W
Frequency Response
30 Hz - 20 kHz
Total Harmonic Distortion
1 % or less (1 kHz, rated output)
Signal to Noise Ratio
60 dB
Input
MIC 1-5: 600 Ω, -62 dB*, unbalanced, phone jack (voice switch OFF); 600 Ω, -54 dB*, unbalanced, phone jack (voice switch ON) (optional IT-450 balance transformer) MIC 6: 600 Ω, -62 dB*, unbalanced, phone jack AUX 1: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack (Microphone 6 and AUX 1 are switch type) AUX 2, 3: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack AUX 4: 600 Ω, -12 dB*, unbalanced, phone jack (optional IT-450 balance transformer)
Output
Line output 1: 600 Ω, 0 dB*, balanced, phone jack Record out: 1 kΩ, 0 dB*, unbalanced, RCA jack
Remote Terminal
Withstand voltage: DC 30V, Current: 1A, M3 Screw terminal, 6.4mm
Included Accessories
Power Cable (2 pin)
Optional Accessories
Rack Mount Bracket: MB-15B, Balance Transformer: IT-450
Dimensions & finish
Finish
Front Panel: Aluminum, Black, Paint
Dimensions
420 (W) × 50 (H) × 271 (D) mm
Weight
3.2 kg
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The MX-113-AS From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA MX-113-AS?
The TOA MX-113-AS is a pre-amplifier mixer. The TOA MX-113 is the sound engineer to quality output. This desk mount pre-amplifier mixer is 1U size and comes with 6 microphones inputs, 4 AUX inputs and 2 monaural output to meet to all your audio needs.
What are the main specifications of the TOA MX-113-AS?
TOA lists these figures for the MX-113-AS: Power Source: 220 - 240 V AC, 50/60 Hz; Frequency Response: 30 Hz - 20 kHz; Total Harmonic Distortion: 1 % or less (1 kHz, rated output); Input: MIC 1-5: 600 Ω, -62 dB*, unbalanced, phone jack (voice switch OFF); 600 Ω, -54 dB*, unbalanced, phone jack (voice switch ON) (optional IT-450 balance transformer) MIC 6: 600 Ω, -62 dB*, unbalanced, phone jack AUX 1: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack (Microphone 6 and AUX 1 are switch type) AUX 2, 3: 10 kΩ, -12 dB*, unbalanced, phone jack/RCA jack AUX 4: 600 Ω, -12 dB*, unbalanced, phone jack (optional IT-450 balance transformer). The full specification table is on this page.
What are the key features of the TOA MX-113-AS?
TOA highlights: slim & compact 1U size; 6 microphone inputs, 4 AUX inputs and 2 monaural output; signal noise gate circuit for Mic 1-5 allowing a signal to pass through only when it is above a set threshold; option of desk mount or rack mount* (*with optional rack mount bracket).
Where is the TOA MX-113-AS used?
It suits: meeting and conference rooms; paging and background music systems; small venues and hospitality spaces. Corporate AV can advise whether it fits your project.
Which TOA series is the MX-113-AS part of?
TOA lists the MX-113-AS in its MX-113 Pre-Amplifier Mixer range.
Can Corporate AV supply and install the TOA MX-113-AS in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA MX-113-AS?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
