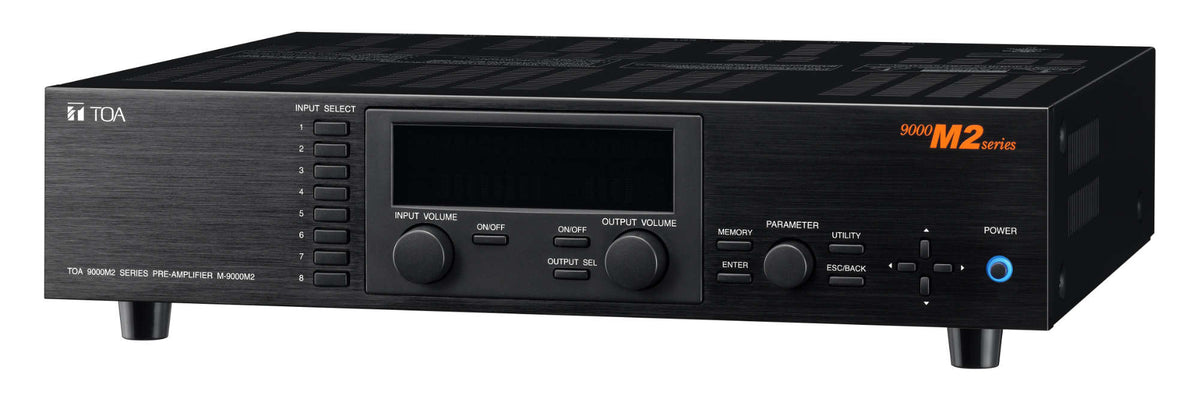

TOA M-9000M2: Digital Mixer
Model M-9000M2
Request a Quote
Availability: Out of Stock
- Aluminum front panel and steel case
- For rack-mounting, 2 units height
- Up to 16 panels can be connected to 1 M-9000M2 by using a RC-001T control module
- Panels can be cascaded
Product Overview
Overview

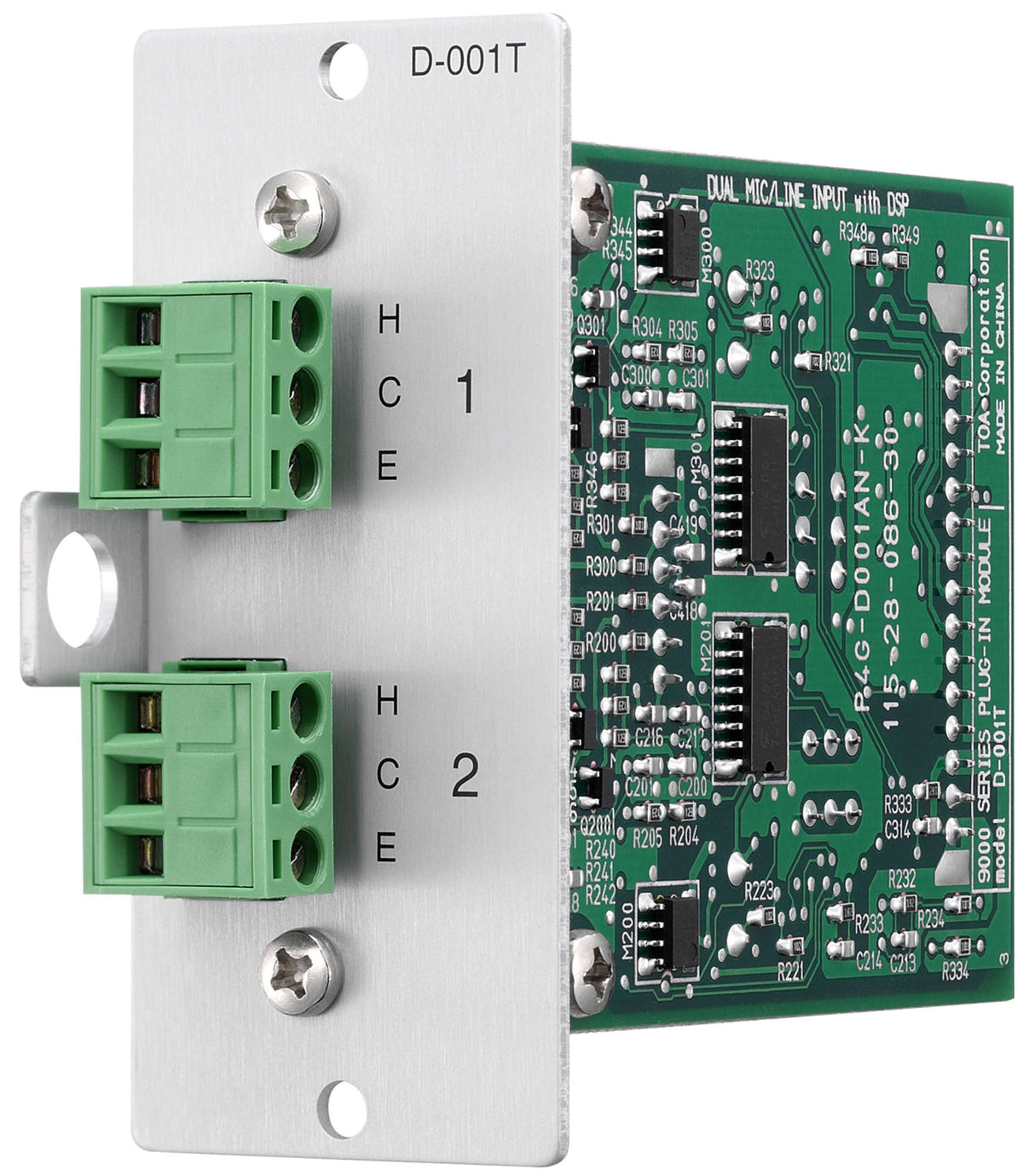

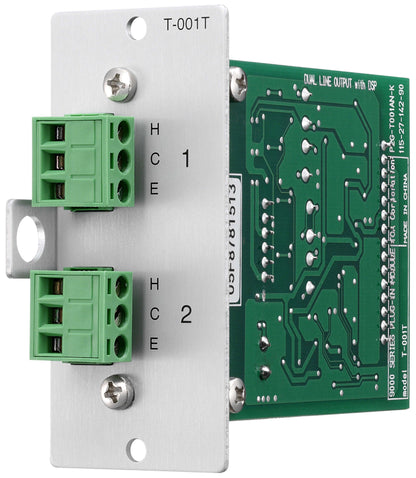

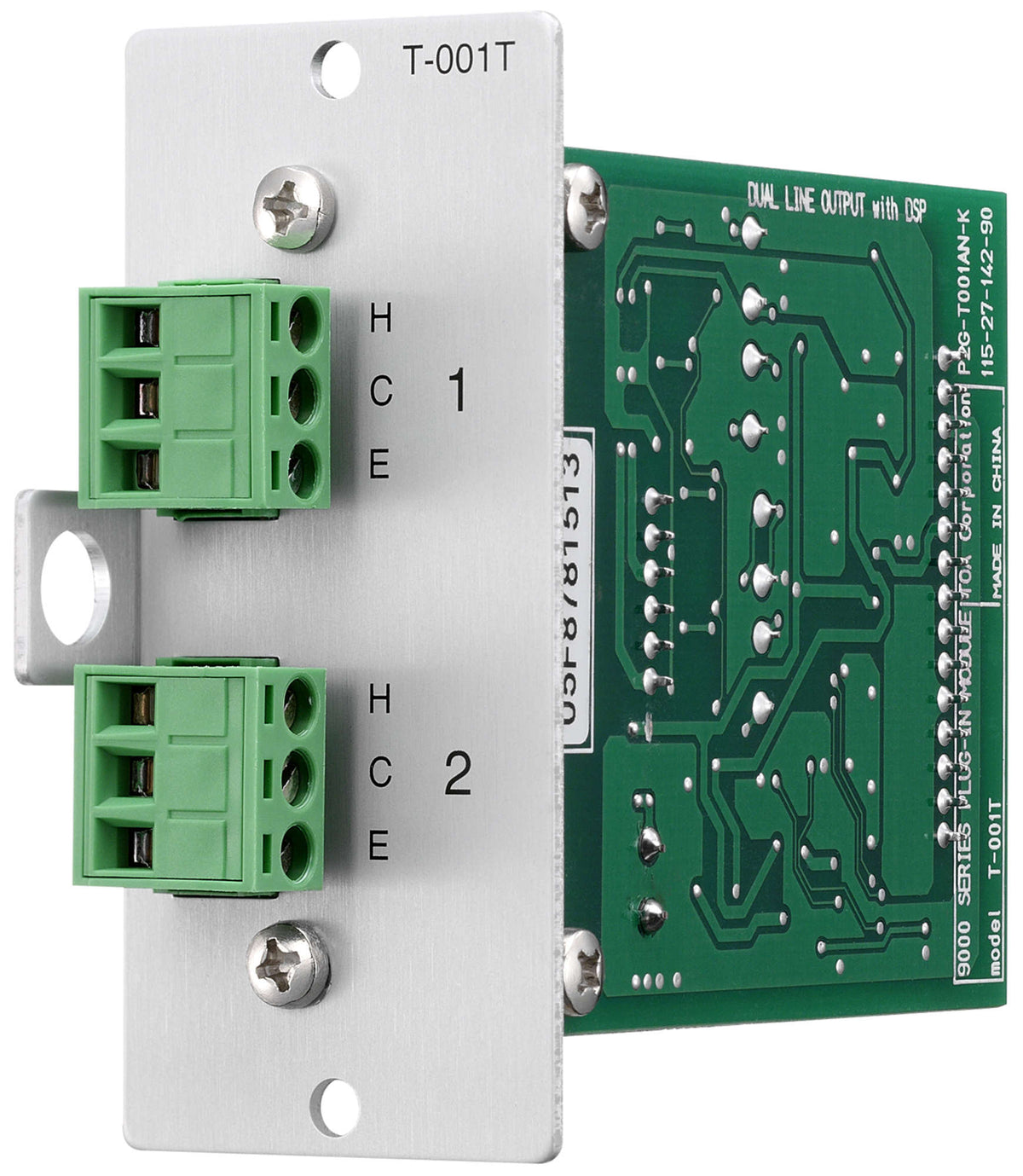

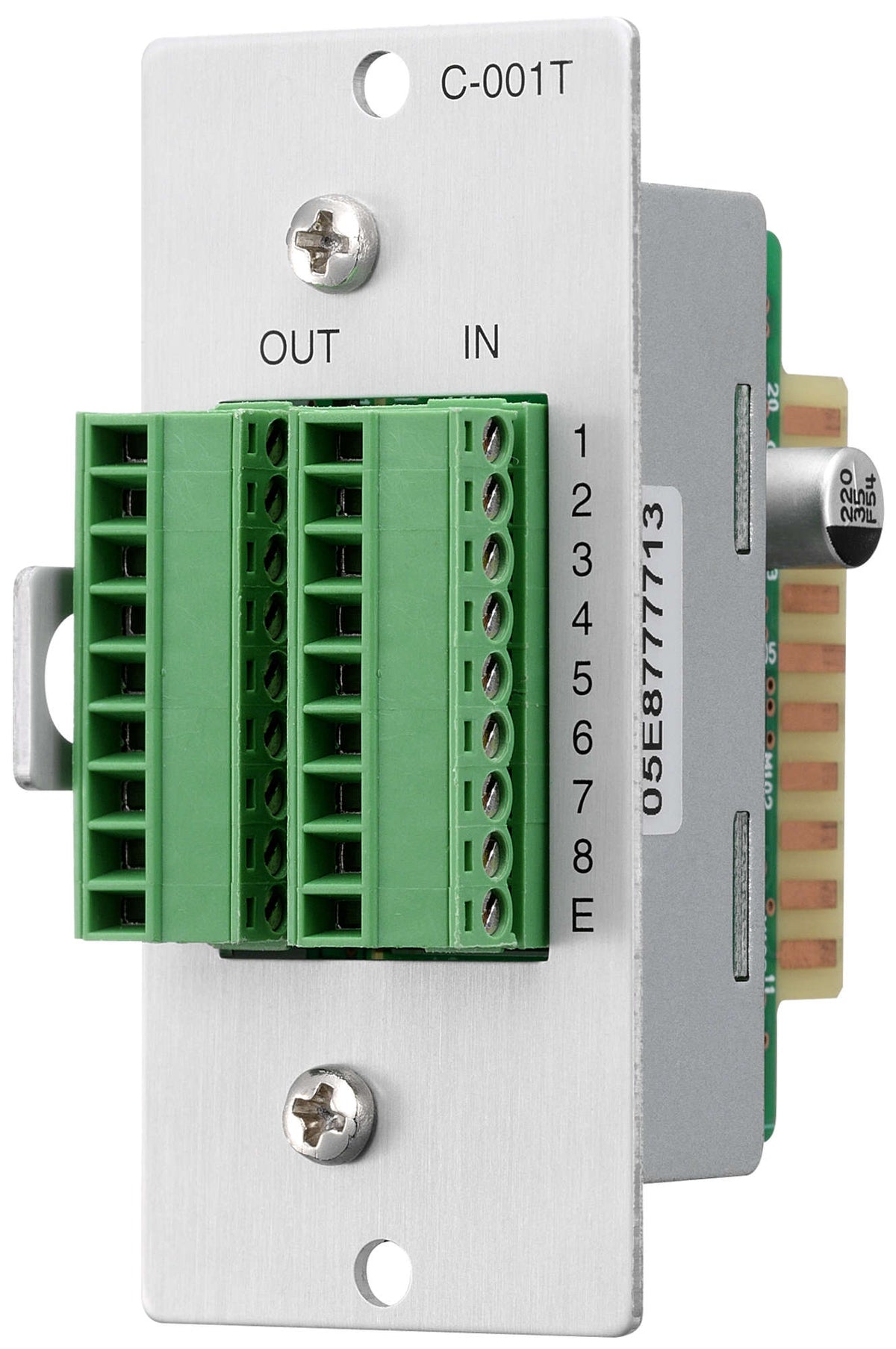

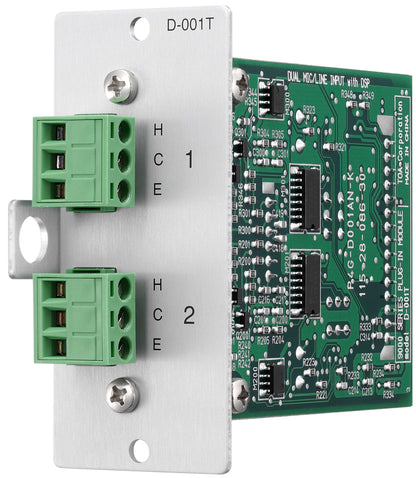

The TOA M-9000M2 is a digital mixer. The M-9000M2 Pre-Amplifier is designed to be used in conjunction with optional modules and can be configured for up to 8 inputs and 8 outputs. 9000 series modules as well as existing 900 series input modules can be used.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA M-9000M2 with supply, installation and commissioning.
Key features
- Aluminum front panel and steel case
- For rack-mounting, 2 units height
- Up to 16 panels can be connected to 1 M-9000M2 by using a RC-001T control module
- Panels can be cascaded
- Different modules, remote panels and a sensing microphone for individual adjustment to the ambient noise
- Easy to use software
Typical applications
- Auditoriums, halls and conference venues
- Installed multi-zone audio systems
- Houses of worship, hotels and public venues
Why choose the M-9000M2
it is a digital mixer from TOA, supplied with Corporate AV's site survey, installation and support across India, so the M-9000M2 is specified for your project and not just shipped.
Product Highlights
Key Benefits
Aluminum front panel and steel case
For rack-mounting, 2 units height
Up to 16 panels can be connected to 1 M-9000M2 by using a RC-001T control module
Panels can be cascaded
Different modules, remote panels and a sensing microphone for individual adjustment to the ambient noise
Use Cases
Ideal Applications
Auditoriums, halls and conference venues
Installed multi-zone audio systems
Houses of worship, hotels and public venues
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240 V AC, 50/60 Hz
Power Consumption
40 W
Audio Input
Max. 8 channels, modular construction (modules optional)
Audio Output
Preamplifier output 1, 2: 0 dB(*1), 600 Ω, balanced, removable terminal block (3 pins)
Module Slot
Analog input (slot 1 - 8): -10 dB(*1), 10 kΩ, unbalanced Digital input (slot 1 - 4): 24 bit/48 kHz MIX output (slot 1 - 8): -14 dB(*1), 330 Ω (CH 1 prefader output), unbalanced Digital output (slot 5 - 7): 24 bit/48 kHz Power supply (slot 1 - 8): +24 V, -24 V, +6 V DC
Digital Audio Signal Reference Level
-20 dBFS
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.008 % (at 22 kHz LPF, 1 kHz, +10 dB(*1) output)
Signal to Noise Ratio
At Input short, 20 Hz - 20 kHz, set to ALL FLAT or OFF setting Output volume min.: 90 dB Output volume max.: 61 dB (Input 1 volume: 0 dB, Other Inputs: OFF)
Crosstalk
64 dB or more (at 20 kHz)
Tone Control
Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
Speaker Equalizer
10 (setup software has 30 TOA speaker presets)
High-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Delay
0 - 40 ms (1 ms steps), maximum 40 ms (CH 1 + CH 2), mixer mode only
Scene/Event Memory
32
Auxiliary Function
Key lock function
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity
35 % to 80 %RH (no condensation)
Included Accessories
Power cord (2 m (6.56 ft) x 1, Rack mounting bracket x 2, Bracket mounting screw x 4, Blank panel x 7, Blank panel mounting screw x 14, Removable terminal plug (3 pins) x 2, Removable terminal plug (14 pins) x 1, CD x 1
Dimensions & finish
Finish
Panel: Aluminum, hair-line, black Case: Surface-treated steel plate, black, paint
Dimensions
420 (W) x 107.6 (H) x 353 (D) mm (16.54" x 4.24" x 13.9")
Weight
6 kg (13.23 lb)
