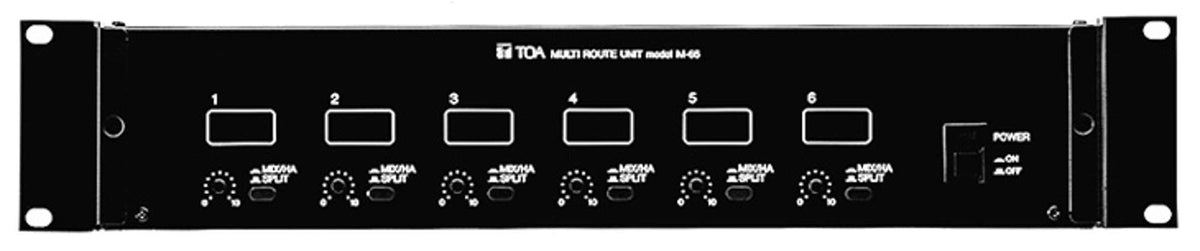

TOA M-66: Multi-Route Unit
Model M-66
Request a Quote
Availability: Out of Stock
- Can be operated as a 6-input-6-output microphonepreamplifier / line driver or splitter / combiner
- Front panel switch for assigning signal configurations
- Mic/Line level selector switch and 20 dB PAD on each input channel for a wide range of precise signal settings from microphone to line levels
- Cascading multiple units for increasing the number of inputs and outputs
Product Overview
Overview
The TOA M-66 is a multi-route unit that can be mounted (2-unit size) in an EIA Standard equipment rack. It has 6 inputs and 6 outputs and features microphone head amplifier, mixer, and distributor functions.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA M-66 with supply, installation and commissioning.
Key features
- Can be operated as a 6-input-6-output microphonepreamplifier / line driver or splitter / combiner
- Front panel switch for assigning signal configurations
- Mic/Line level selector switch and 20 dB PAD on each input channel for a wide range of precise signal settings from microphone to line levels
- Cascading multiple units for increasing the number of inputs and outputs
- Simultaneous use of multiple functions (i.e. different functions can be assigned to different channels)
Typical applications
- Meeting and conference rooms
- Paging and background music systems
- Small venues and hospitality spaces
Why choose the M-66
it is a multi-route unit from TOA, supplied with Corporate AV's site survey, installation and support across India, so the M-66 is specified for your project and not just shipped.
Product Highlights
Key Benefits
Can be operated as a 6-input-6-output microphonepreamplifier / line driver or splitter / combiner
Front panel switch for assigning signal configurations
Mic/Line level selector switch and 20 dB PAD on each input channel for a wide range of precise signal settings from microphone to line levels
Cascading multiple units for increasing the number of inputs and outputs
Simultaneous use of multiple functions (i.e. different functions can be assigned to different channels)
Use Cases
Ideal Applications
Meeting and conference rooms
Paging and background music systems
Small venues and hospitality spaces
Technical Details
Technical Specifications
Specifications
Power Source
230 VAC, 50/60 Hz
Power Consumption
12 W
Frequency Response
20 Hz - 20 kHz (+1, -3 dB)
Distortion
0.01 % or less (1 kHz, line level nominal input, output)
Noise
Output: -100 dB* or less (band pass filter, volume minimal)
Input
6 inputs, mic/line changeable, 2 kΩ, XLR-3-31 compatible (electrically balanced) -60 dB* (mic)/-10 dB* (line)
Output
6 outputs, +4 dB* (appropriate impedance not 600 Ω or less), XLR-3-32 compatible (electrically balanced)
Split Input
-10 dB*, 2 kΩ, XLR-3-31 compatible (electrically balanced)
Mix Input
+4 dB*, 10 kΩ, XLR-3-31 compatible (electrically balanced)
Mix Output
+4 dB* (appropriate impedance not 600 Ω or less), XLR-3-32 compatible (electrically balanced)
Other
Bridging output: XLR-3-32 compatible Input sensitivity selector switch: Input 1 to 6 (LINE, MIC) Pad switch: Input 1 to 6, split input (20 dB) Function selector switch: 1 to 6 (MIX/HA, SPLIT)
Operating Temperature
0 °C to +40 °C (32 °F to 104 °F)
Included Accessories
Power cord (2 m(6.56 ft) x 1, Rack mounting screw x 4
Dimensions & finish
Finish
Panel, case: Pre-coated steel plate, black, 30 % glossy Rack mounting screw: Aluminum, alumite, black Security cover: Acrylic, (smoke)gray
Dimensions
482.6 (W) x 88.4 (H) x 177.8 (D) mm (19" x 3.48" x 7")
Weight
3 kg (6.62 lbs)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The M-66 From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA M-66?
The TOA M-66 is a multi-route unit that can be mounted (2-unit size) in an EIA Standard equipment rack. It has 6 inputs and 6 outputs and features microphone head amplifier, mixer, and distributor functions.
What are the main specifications of the TOA M-66?
TOA lists these figures for the M-66: Power Source: 230 VAC, 50/60 Hz; Frequency Response: 20 Hz - 20 kHz (+1, -3 dB); Distortion: 0.01 % or less (1 kHz, line level nominal input, output); Input: 6 inputs, mic/line changeable, 2 kΩ, XLR-3-31 compatible (electrically balanced) -60 dB* (mic)/-10 dB* (line). The full specification table is on this page.
What are the key features of the TOA M-66?
TOA highlights: can be operated as a 6-input-6-output microphonepreamplifier / line driver or splitter / combiner; front panel switch for assigning signal configurations; mic/Line level selector switch and 20 dB PAD on each input channel for a wide range of precise signal settings from microphone to line levels; cascading multiple units for increasing the number of inputs and outputs.
Where is the TOA M-66 used?
It suits: meeting and conference rooms; paging and background music systems; small venues and hospitality spaces. Corporate AV can advise whether it fits your project.
Which TOA series is the M-66 part of?
TOA lists the M-66 in its M-66 range.
Can Corporate AV supply and install the TOA M-66 in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA M-66?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
