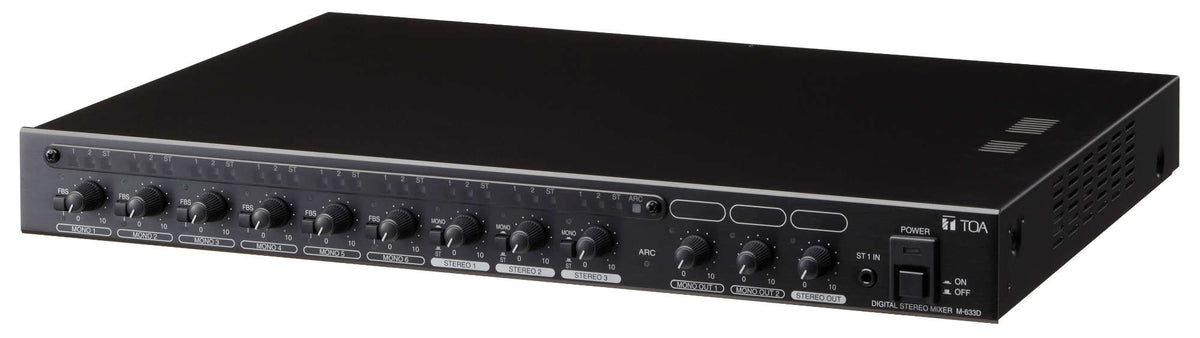

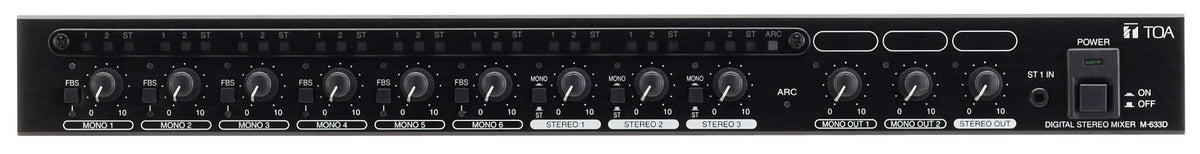

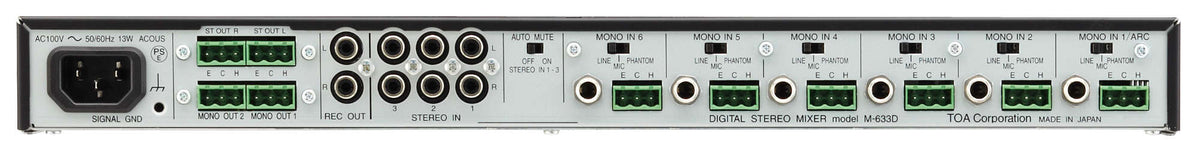

TOA M-633D: Digital Stereo Mixer
Model M-633D
Request a Quote
Availability: Out of Stock
- One-touch operation
- Automatic resonance control (ARC) with room mode frequency detection and inverse response curve for compensation
- Automatic clipguard (ACG)
- Automatic feedback suppressor (FBS)
Product Overview
Overview
The TOA M-633D is a stereo mixer equipped with 12 input channels (6 monaural inputs and 3 stereo inputs) and 6 output channels (2 monaural outputs, 1 stereo output, and 1 stereo recording output). It has 2 monaural channel and 1 stereo channel bus lines, allowing each input signal to be assigned to each bus line individually.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA M-633D with supply, installation and commissioning.
Key features
- One-touch operation
- Automatic resonance control (ARC) with room mode frequency detection and inverse response curve for compensation
- Automatic clipguard (ACG)
- Automatic feedback suppressor (FBS)
- Automatic mute function
- Clearly, highly articulate sound
- 1 unit height
Typical applications
- Auditoriums, halls and conference venues
- Installed multi-zone audio systems
- Houses of worship, hotels and public venues
Why choose the M-633D
it is a digital stereo mixer from TOA, supplied with Corporate AV's site survey, installation and support across India, so the M-633D is specified for your project and not just shipped.
Product Highlights
Key Benefits
One-touch operation
Automatic resonance control (ARC) with room mode frequency detection and inverse response curve for compensation
Automatic clipguard (ACG)
Automatic feedback suppressor (FBS)
Automatic mute function
Use Cases
Ideal Applications
Auditoriums, halls and conference venues
Installed multi-zone audio systems
Houses of worship, hotels and public venues
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240V AC, 50/60 Hz
Power Consumption
14 W
Frequency Response
20 Hz - 20 kHz
Sampling Frequency
48 kHz
Dynamic Range
90 dB or more (IHF–A weighted)
Distortion
0.03% or less, 1 kHz, –10 dB* input, 0 dB* output (20 Hz – 20 kHz, BPF)
Input
6 monaural input channels (MONO IN 1 – 6), selectable independently from 3 types of inputs below for each channel LINE: –10 dB*, 2.4 kΩ, electronically balancedl MIC: –46 dB*, 2.4 kΩ, electronically balancedl PHANTOM: –46 dB*, 2.4 kΩ, supplies phantom power of +24 V DC, 10 mA, l electronically balanced Removable terminal block (3P), phone jackl 3 stereo inputs (L, R) (STEREO IN 1 – 3): –10 dB*/10 kΩ, RCA jack (STEREO IN 1 – 3), Stereo mini jack (ST IN 1)l
Output
2 monaural output channels (MONO OUT 1, 2): 0 dB* (applicable load: over 1 kΩ), electronically balanced, removable terminal block (3P) 1 stereo output (L, R) channel (ST OUT L, R): 0 dB* (applicable load: over 1 kΩ), electronically balanced, removable terminal block (3P) 1 stereo reccording output (L, R) channel (REC OUT L, R): –10 dB* (applicable load: over 1 kΩ), RCA jack
Bus Line
Monaural channel x 2, Stereo channel x 1
A/D Converter
24 bits
D/A Converter
24 bits
Input Level Indicator
2-color LED indicator: Green (for appropriate level)/red (for peak level)
Output Level Indicator
2-color LED indicator: Green (for appropriate level)/red (for peak level)
Operating Temperature
0 °C to 40 °C (32 °F to 104 °F)
Operating Humidity
Under 90% RH (no condensation)
Included Accessories
Power cord (2 m (6.56 ft)) x 1, Removable terminal plug (3 pins) x 10, Rack mounting bracket x 2, Machine screw (M3 x 8) x 6, Rack mounting screw (5 x 12) x 4
Dimensions & finish
Finish
Panel: Aluminum, black, hair-line Case: Precoated steel sheet, black, 30% gloss
Dimensions
420 (W) x 44 (H) x 341.3 (D) mm (16.54" x 1.73" x 13.44")
Weight
4.0 kg (8.82 lb)
