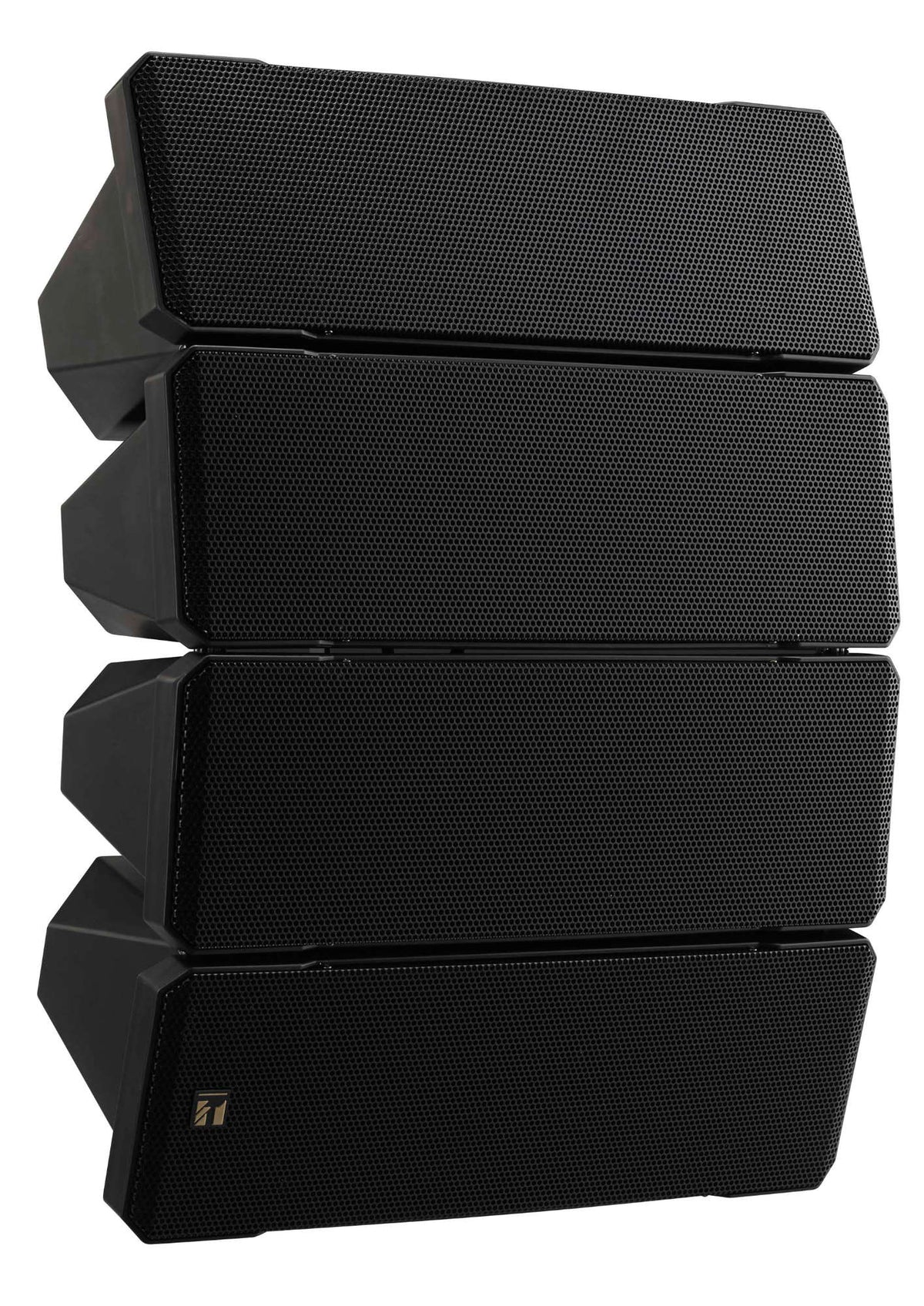

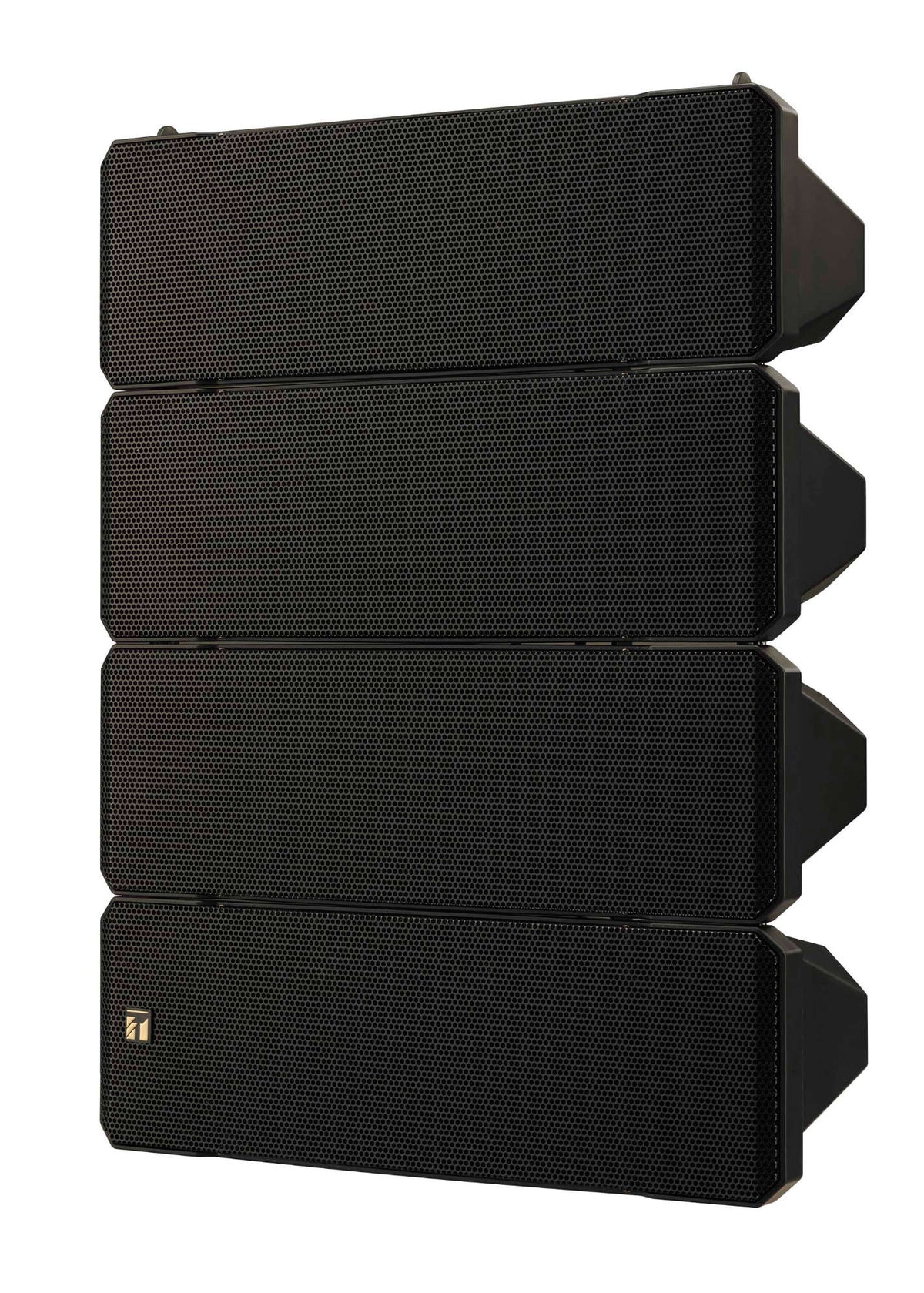

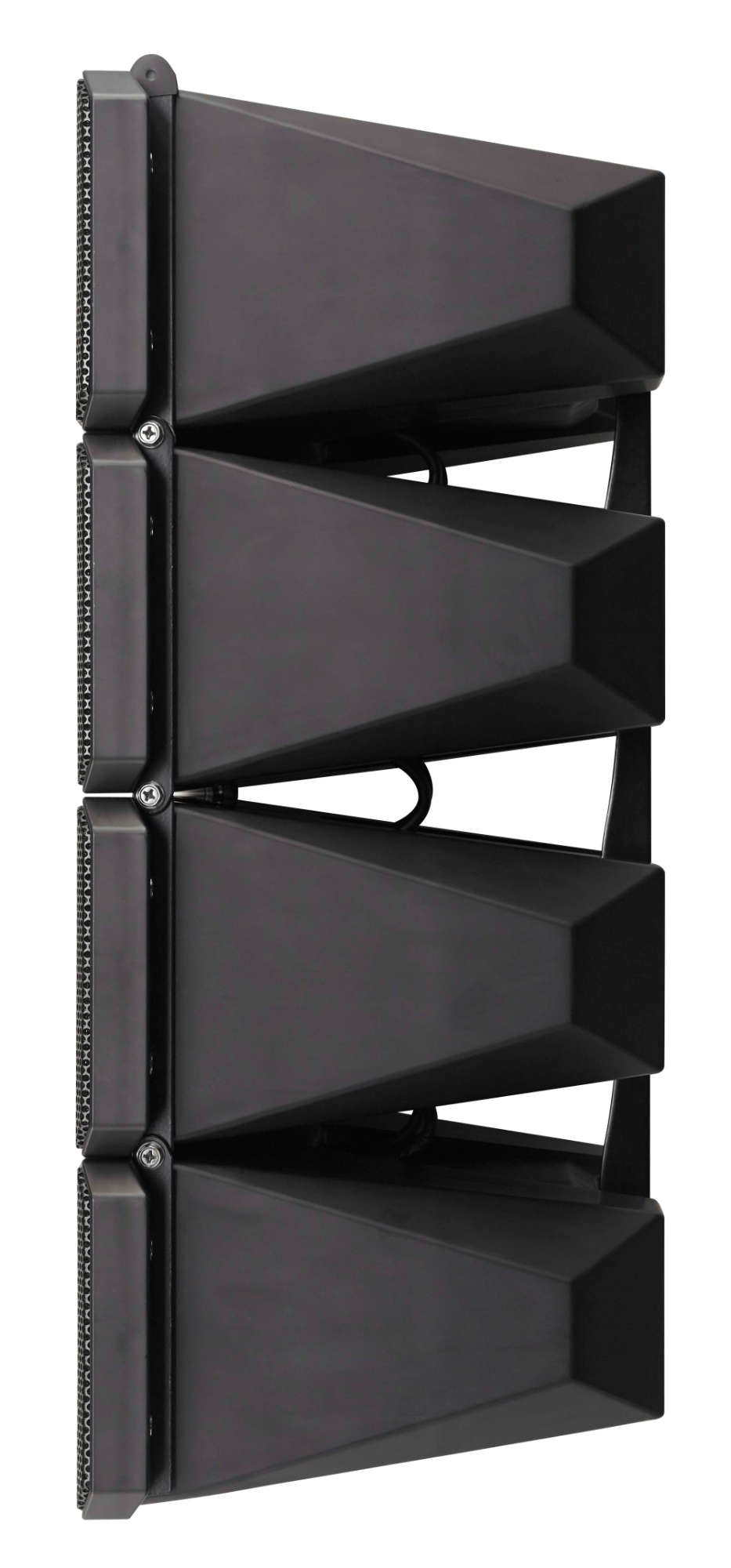

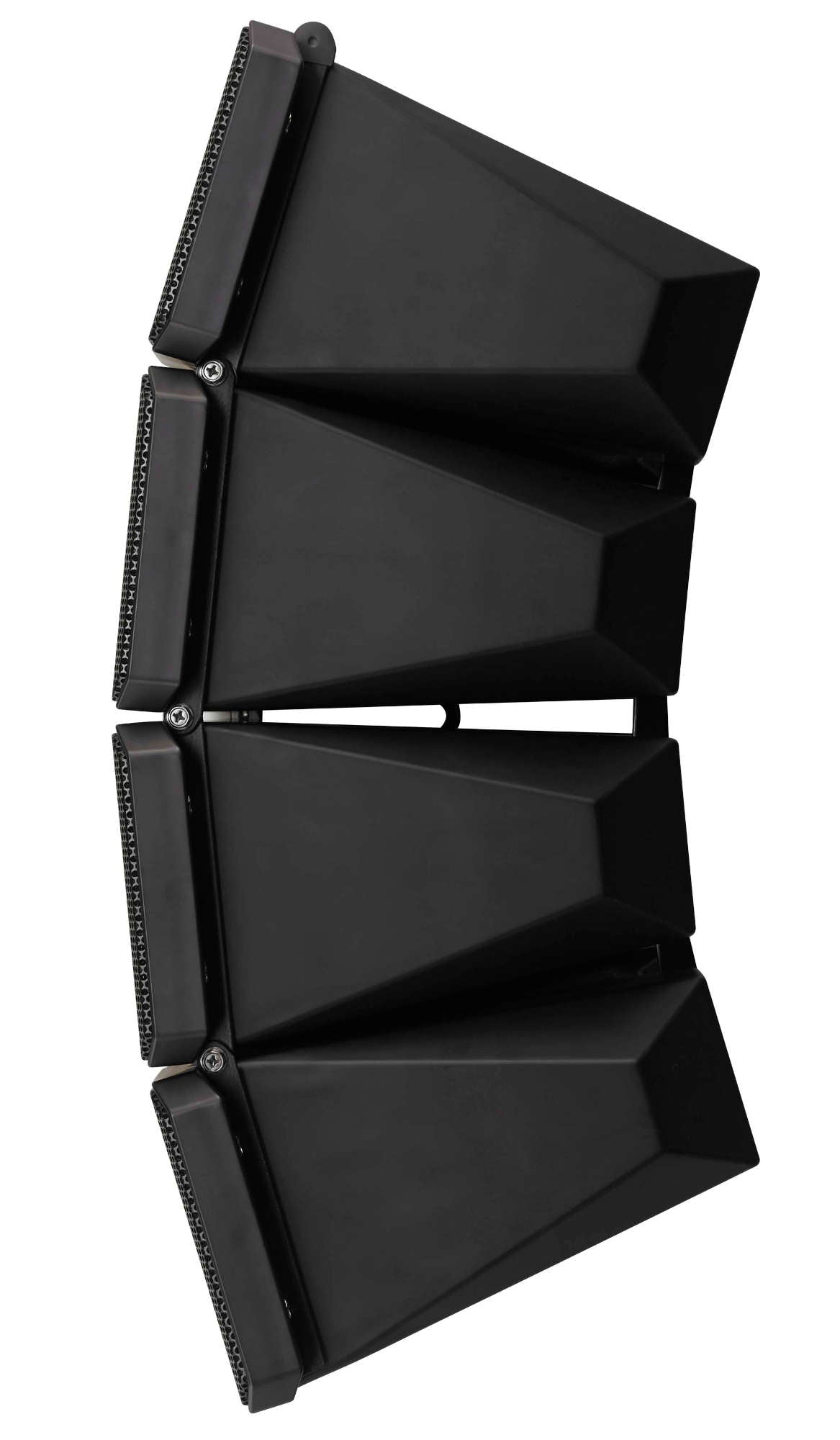

TOA HX-7B: Variable Array Speaker
Model HX-7B
Request a Quote
Availability: Out of Stock
- High power handling
- Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
- Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
- 0° mode facilitates the most effective line array set-up
Product Overview
Overview
The TOA HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA HX-7B with supply, installation and commissioning.
Key features
- High power handling
- Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
- Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
- 0° mode facilitates the most effective line array set-up
- Easily adjustable vertical dispersion angle
Typical applications
- Auditoriums, halls and large venues
- Houses of worship and conference centres
- Installed sound reinforcement
Why choose the HX-7B
it is a variable array speaker from TOA, supplied with Corporate AV's site survey, installation and support across India, so the HX-7B is specified for your project and not just shipped.
Product Highlights
Key Benefits
High power handling
Speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle
Built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds
0° mode facilitates the most effective line array set-up
Easily adjustable vertical dispersion angle
Use Cases
Ideal Applications
Auditoriums, halls and large venues
Houses of worship and conference centres
Installed sound reinforcement
Technical Details
Technical Specifications
Specifications
Enclosure
Bass-reflex type
Power Handling
Continuous pink noise: 250 W (IEC60268-5: 350 W); Continuous program: 750 W
Rated Impedance
8 Ω
Sensitivity
100 dB (1 W, 1 m）
Frequency Response
75 Hz – 20 kHz
Crossover Frequency
1.7 kHz
Directivity Angle
Horizontal: 100º; Vertical: Depending on directivity angle mode
Speaker Component
Low frequency: 13 cm (5.5") cone-type x 8; High frequency: Wave front control horn with compression driver x 4
Input Terminal
Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 9 mm (0.35")
Included Accessories
Hanging bracket L, R (L and R are symmetrical to each other.) x 1 each,; Hanging bracket mounting bolt x 4
Dimensions & finish
Finish
Enclosure: Polypropylene, black; Punched net: Surface-treated steel plate, black, paint; Hanging bracket: Steel plate, t3.0, black, paint
Dimensions
497 (W) x 664 (H) x 274 (D) mm (19.57" x 26.14" x 10.79")
Weight
30 kg (66.14 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The HX-7B From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA HX-7B?
The TOA HX-7B is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in vertical directivity. Its adopted wave front control technology is ideal for reproducing clear sound in spaces with long reverberation times or high background noise.
What are the main specifications of the TOA HX-7B?
TOA lists these figures for the HX-7B: Frequency Response: 75 Hz – 20 kHz; Input Terminal: Speakon NL4MPXX x 2 and M4 screw terminal, distance between barriers: 9 mm (0.35"); Weight: 30 kg (66.14 lb). The full specification table is on this page.
What are the key features of the TOA HX-7B?
TOA highlights: high power handling; speaker design consists of four integrated modules that can be adjusted individually to optimize the vertical dispersion angle; built-in isophasic wavefront control horn with compression driver ensures precise HF control and superior reproduction of HF sounds; 0° mode facilitates the most effective line array set-up.
Where is the TOA HX-7B used?
It suits: auditoriums, halls and large venues; houses of worship and conference centres; installed sound reinforcement. Corporate AV can advise whether it fits your project.
Which TOA series is the HX-7B part of?
TOA lists the HX-7B in its Variable Dispersion Array HX-7 range.
Can Corporate AV supply and install the TOA HX-7B in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA HX-7B?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
