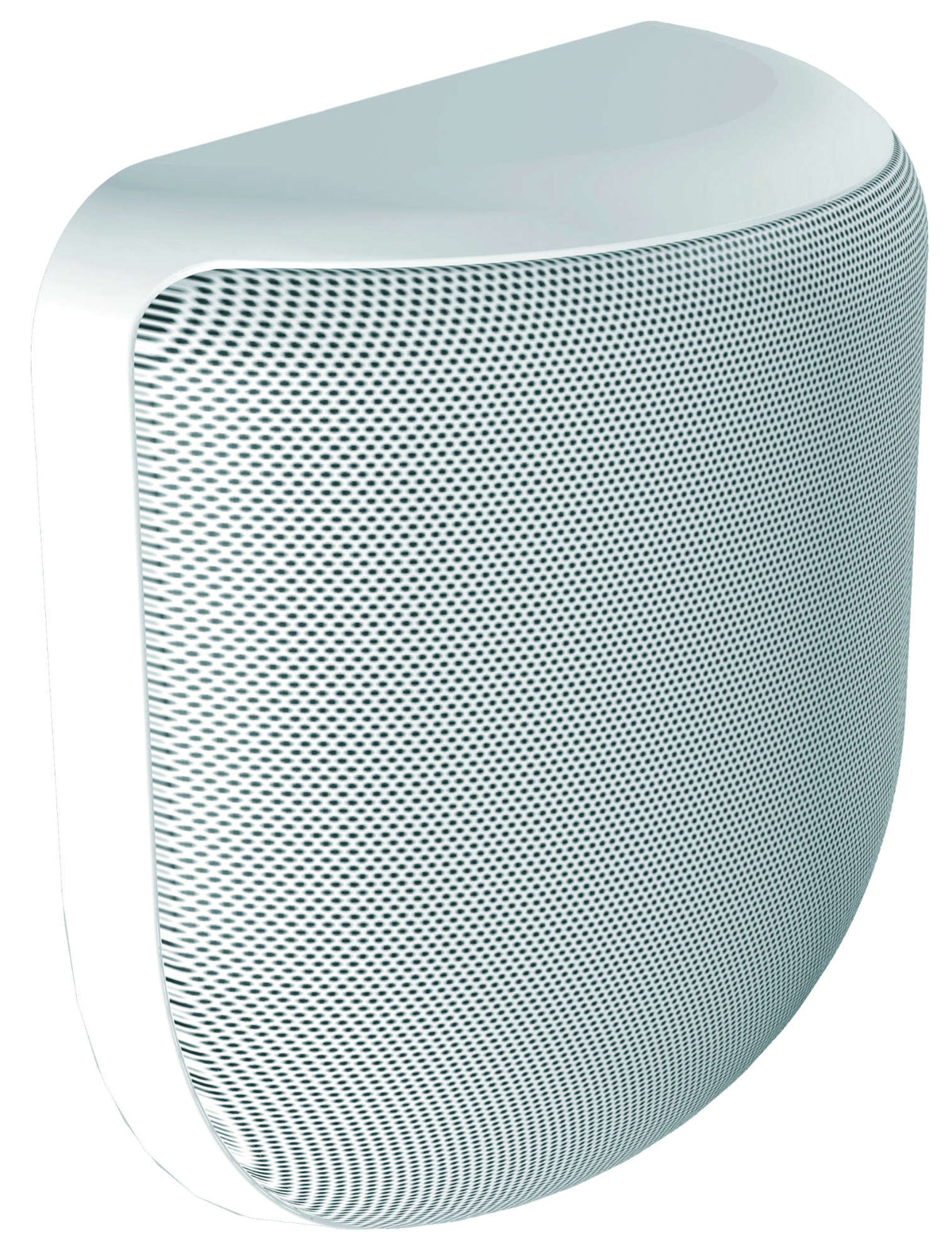

TOA H-3: Design Speaker
Model H-3
Request a Quote
Availability: Out of Stock
- 2-way design speaker
- Dome tweeters and neodymium magnet cone woofers
- Quality audio between the speakers as well as directly in front of each speaker unit
- 180° coverage pattern, eliminating dead audio spaces
Product Overview
Overview
The TOA H-3 is a wall-mountable 2-way speaker that provides horizontally-wide dispersion.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA H-3 with supply, installation and commissioning.
Key features
- 2-way design speaker
- Dome tweeters and neodymium magnet cone woofers
- Quality audio between the speakers as well as directly in front of each speaker unit
- 180° coverage pattern, eliminating dead audio spaces
- Either low impedance (8 Ω / 16 Ω) or high impedance (70 V / 100 V)
- Easy unobtrusive installation at above head-height
- Fire-resistant ABS according to UL94: V-0
Typical applications
- Paging and background music
- Offices, schools, shops and factories
- Halls, lobbies and public spaces
Why choose the H-3
it is a design speaker from TOA, supplied with Corporate AV's site survey, installation and support across India, so the H-3 is specified for your project and not just shipped.
Product Highlights
Key Benefits
2-way design speaker
Dome tweeters and neodymium magnet cone woofers
Quality audio between the speakers as well as directly in front of each speaker unit
180° coverage pattern, eliminating dead audio spaces
Either low impedance (8 Ω / 16 Ω) or high impedance (70 V / 100 V)
Use Cases
Ideal Applications
Paging and background music
Offices, schools, shops and factories
Halls, lobbies and public spaces
Technical Details
Technical Specifications
Specifications
Enclosure
Sealed type
Rated Input
30 W (16 Ω, high impedance)
Power Handling
150 W (Continuous program/8 Ω); 50 W (Continuous pink noise/8 Ω)
Rated Impedance
8 Ω, 16 Ω; 100 V line: 330 Ω (30 W), 670 Ω (15 W), 1.3 kΩ (7.5 W); 70 V line: 170 Ω (30 W), 330 Ω (15 W), 670 Ω (7.5 W), 1.3 kΩ (3.75 W)
Sensitivity
89 dB (1 W, 1 m) at installation in 1/2 free sound field; (Measured by installing the unit in the center of a wall.)
Frequency Response
100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field; (Measured by installing the unit in the center; of a wall.)
Crossover Frequency
4 kHz
Speaker Component
Low frequency: 10 cm cone-type x 2; High frequency: 2.5 cm dome-type (neodymium magnet)
Input Terminal
Detachable screw terminal, (+)/(-) 2 each (for bridging connection)
Cable Requirements
Solid cable, stranded cable: 0.2 - 2.5 mm² (AWG No.24 - 14)
Included Accessories
Front grille x 1, Base frame x 1, Electrical box mounting screw x 1 set
Recommended Electrical Box
2-gang type
Dimensions & finish
Finish
Enclosure: Fire-resistant ABS resin, black; Front frame: Fire-resistant ABS resin, off-white, paint; Punched net: Steel plate, off-white, paint; Base frame: Steel plate, plating
Dimensions
295 (W) x 318 (H) x 129 (D) mm
Weight
3.3 kg
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The H-3 From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA H-3?
The TOA H-3 is a wall-mountable 2-way speaker that provides horizontally-wide dispersion.
What are the main specifications of the TOA H-3?
TOA lists these figures for the H-3: Frequency Response: 100 Hz - 20 kHz (-10 dB) at installation in 1/2 free sound field; (Measured by installing the unit in the center; of a wall.); Input Terminal: Detachable screw terminal, (+)/(-) 2 each (for bridging connection); Weight: 3.3 kg. The full specification table is on this page.
What are the key features of the TOA H-3?
TOA highlights: 2-way design speaker; dome tweeters and neodymium magnet cone woofers; quality audio between the speakers as well as directly in front of each speaker unit; 180° coverage pattern, eliminating dead audio spaces.
Where is the TOA H-3 used?
It suits: paging and background music; offices, schools, shops and factories; halls, lobbies and public spaces. Corporate AV can advise whether it fits your project.
Which TOA series is the H-3 part of?
TOA lists the H-3 in its Interior Design Speaker H Series range.
Can Corporate AV supply and install the TOA H-3 in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA H-3?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
