TOA DA-500FH: Multi-channel Digital Power Amplifier
Model DA-500FH
Request a Quote
Availability: Out of Stock
- 100 V speaker outputs
- 4 x 500 W rated output
- Independent power supply for each channel
- Light weight and compact
Product Overview
Overview
The TOA DA-500FH is a 4-Channel Digital Power Amplifier designed for 100 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 500 W x 4 channels (20 Ω output) using a switching power supply.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA DA-500FH with supply, installation and commissioning.
Key features
- 100 V speaker outputs
- 4 x 500 W rated output
- Independent power supply for each channel
- Light weight and compact
- Rack mountable with 2 units
- Stack up to 5 units without open spaces between units
- Forced-air cooling system
- Low heat dissipation
Typical applications
- Multi-zone public address and background music
- Auditoriums, halls and public venues
- Constant-voltage and low-impedance speaker lines
Why choose the DA-500FH
it is a multi-channel digital power amplifier from TOA, supplied with Corporate AV's site survey, installation and support across India, so the DA-500FH is specified for your project and not just shipped.
Product Highlights
Key Benefits
100 V speaker outputs
4 x 500 W rated output
Independent power supply for each channel
Light weight and compact
Rack mountable with 2 units
Use Cases
Ideal Applications
Multi-zone public address and background music
Auditoriums, halls and public venues
Constant-voltage and low-impedance speaker lines
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240 V AC, 50/60 Hz
Amplification System
Class D
Power Consumption
460 W (based on EN standards) 2350 W (rated output 100 V line, 20 Ω x 4)

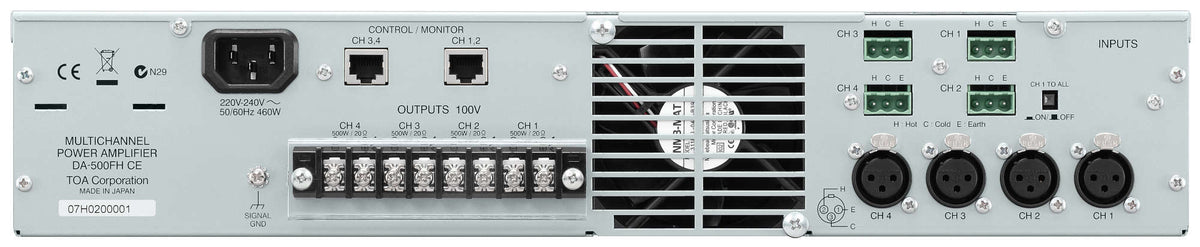

Input
4 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: CH 1 to All ch, OFF: Each ch)
Rated Output
4 channels: 500 W x 4 (100 V line, 20 Ω) M4 screw terminal, distance between barriers: 8.8 mm (0.35)
Frequency Response
50 Hz - 20 kHz (-3 dB, +1 dB)
Total Harmonic Distortion
0.1 % (1 kHz) 0.3 % (100 Hz - 20 kHz)
Signal to Noise Ratio
100 dB (A-weighted)
Crosstalk
70 dB (A-weighted)
Control/Monitor
Control input: Power ON/OFF status of the individual channels photocoupler input, drive voltage: 9 V DC (Min) - 14 V (Max), 12 V (Typ) Monitor output: Power ON/OFF status of the individual channels, Protection status of the individual channels, Fan operation status photocoupler open collector output, withstand voltage: 30 V DC, control current: 12 mA or less Connector: RJ-45 connector x 2 Connection cable: Shielded Category 5 twisted pair cable for LAN (CAT5-STP) Maximum cable distance: 600 m (656.17 yd)
Protection Circuit
Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (100 ℃ (212 ℉) or more), temperature rise at power supply heat sink (80 ℃ (176 ℉) or more)

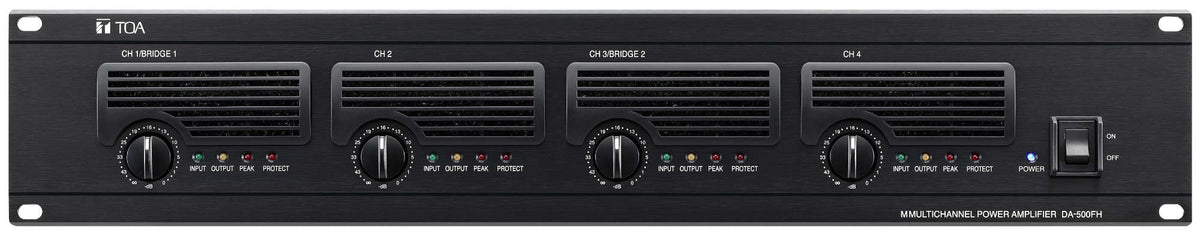

LED Indicator
Power (blue) x 1, Input (green) x 4, Output (yellow) x 4, Peak (red) x 4, Protect (red) x 4
Cooling
Forced air cooling
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Included Accessories
Power cord (2 m (6.56 ft) x 1, Removable terminal plug (3 pins) x 4, Rack mounting screw (with washer) x 4, Tamper-proof cap x 4
Optional Accessories

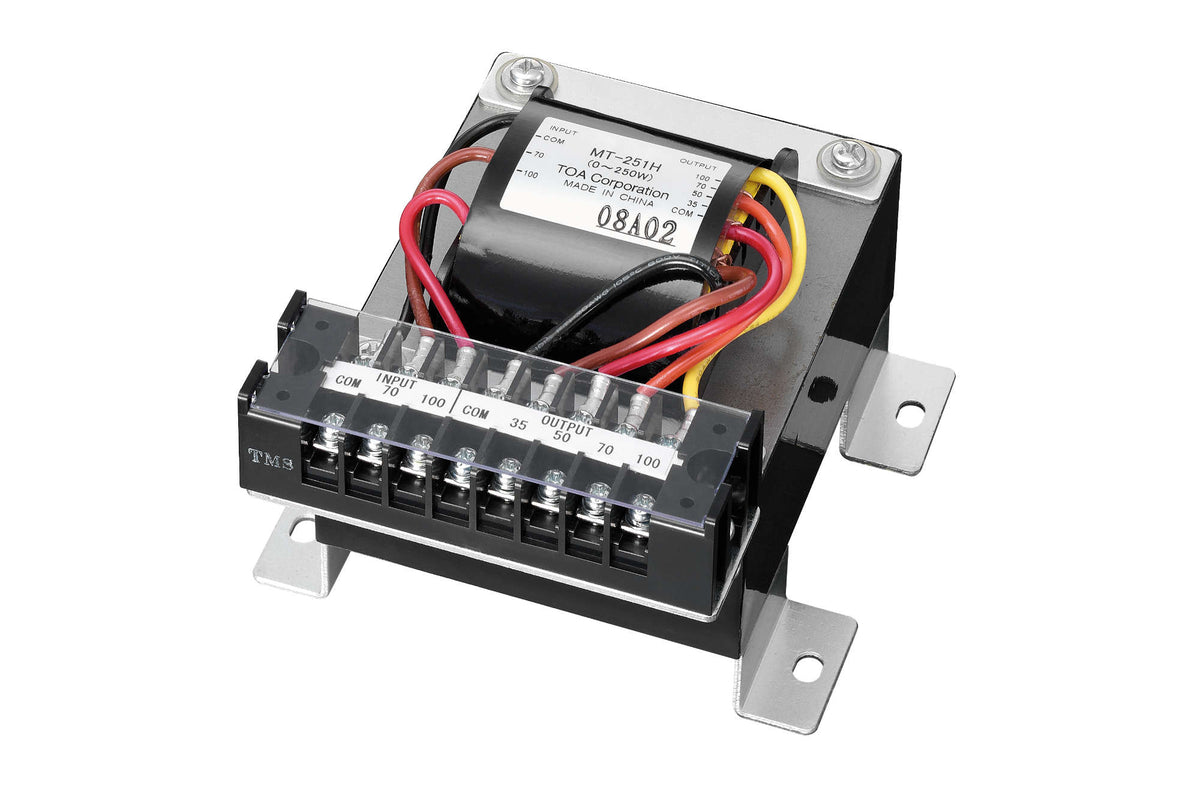

Matching transformer: MT-251H
Dimensions & finish
Finish
Panel: Aluminum, black, alumite Case: Plated steel sheet
Dimensions
482 (W) x 88.4 (H) x 404.2 (D) mm (18.98" x 3.48" x 15.91")
Weight
9 kg (19.84 lb)
