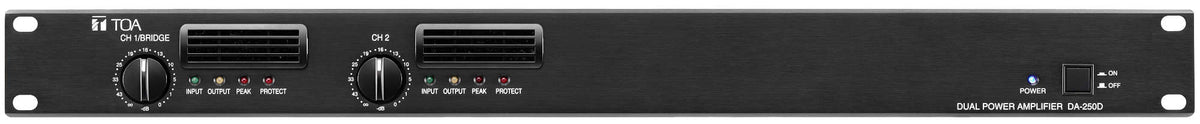

TOA DA-250DH: Digital Power Amplifier
Model DA-250DH
Request a Quote
Availability: Out of Stock
- 70 V speaker outputs
- 2x 250 W rated power
- Class D design 85 % efficient
- Independent power supply for each channel
Product Overview
Overview
The TOA DA-250DH is a 2-Channel Digital Power Amplifier designed for 70 V line high-impedance distribution and features lightweight, compact, high power output, and high efficiency. It delivers 250 W x 2 channels (40 Ω output) using a switching power supply.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA DA-250DH with supply, installation and commissioning.
Key features
- 70 V speaker outputs
- 2x 250 W rated power
- Class D design 85 % efficient
- Independent power supply for each channel
- Light weight and compact
- Stack up to 5 units without open spaces between units
- Selectable stereo or bridge operation (DA-250D)
- Forced-air cooling system
Typical applications
- Multi-zone public address and background music
- Auditoriums, halls and public venues
- Constant-voltage and low-impedance speaker lines
Why choose the DA-250DH
it is a digital power amplifier from TOA, supplied with Corporate AV's site survey, installation and support across India, so the DA-250DH is specified for your project and not just shipped.
Product Highlights
Key Benefits
70 V speaker outputs
2x 250 W rated power
Class D design 85 % efficient
Independent power supply for each channel
Light weight and compact
Use Cases
Ideal Applications
Multi-zone public address and background music
Auditoriums, halls and public venues
Constant-voltage and low-impedance speaker lines
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240 V AC, 50/60 Hz
Amplification System
Class D
Power Consumption
150 W (based on EN standards) 580 W (rated output 100 V line, 40 Ω x 2)
Input
2 circuits, +4 dB* (1.23 V) (input level control in maximum position), 10 kΩ, electronically-balanced, removable terminal block (3 pins), XLR-3-31 type connector CH 1 mode ON/OFF switch (ON: PARALLEL, OFF: STEREO)
Rated Output
2 channels: 250 W x 2 (100 V line, 40 Ω) M4 screw terminal, distance between barriers: 8.8 mm (0.35)
Frequency Response
50 Hz - 20 kHz (-3 dB, +1 dB)
Total Harmonic Distortion
0.1 % (1 kHz) 0.3 % (100 Hz - 20 kHz)
Signal to Noise Ratio
100 dB (A-weighted)
Crosstalk
70 dB (A-weighted)
Protection Circuit
Protection against excessive current flow due to overload, short circuit, unusual DC voltage output, temperature rise at power amp. heat sink (100 ℃ (212 ℉) or more), temperature rise inside the unit (80 ℃ (176 ℉) or more)
LED Indicator
Power (blue) x 1, Input (green) x 2, Output (yellow) x 2, Peak (red) x 2, Protect (red) x 2
Cooling
Forced air cooling
Operating Temperature
-10 °C to +40 °C (14 °F to 104 °F)
Operating Humidity
90 %RH or less (no condensation)
Included Accessories
Power cord (2 m (6.56 ft) x 1, Removable terminal plug (3 pins) x 2, Tamper-proof cap x 2, Rack mounting screw (with plain washer) x 4
Optional Accessories

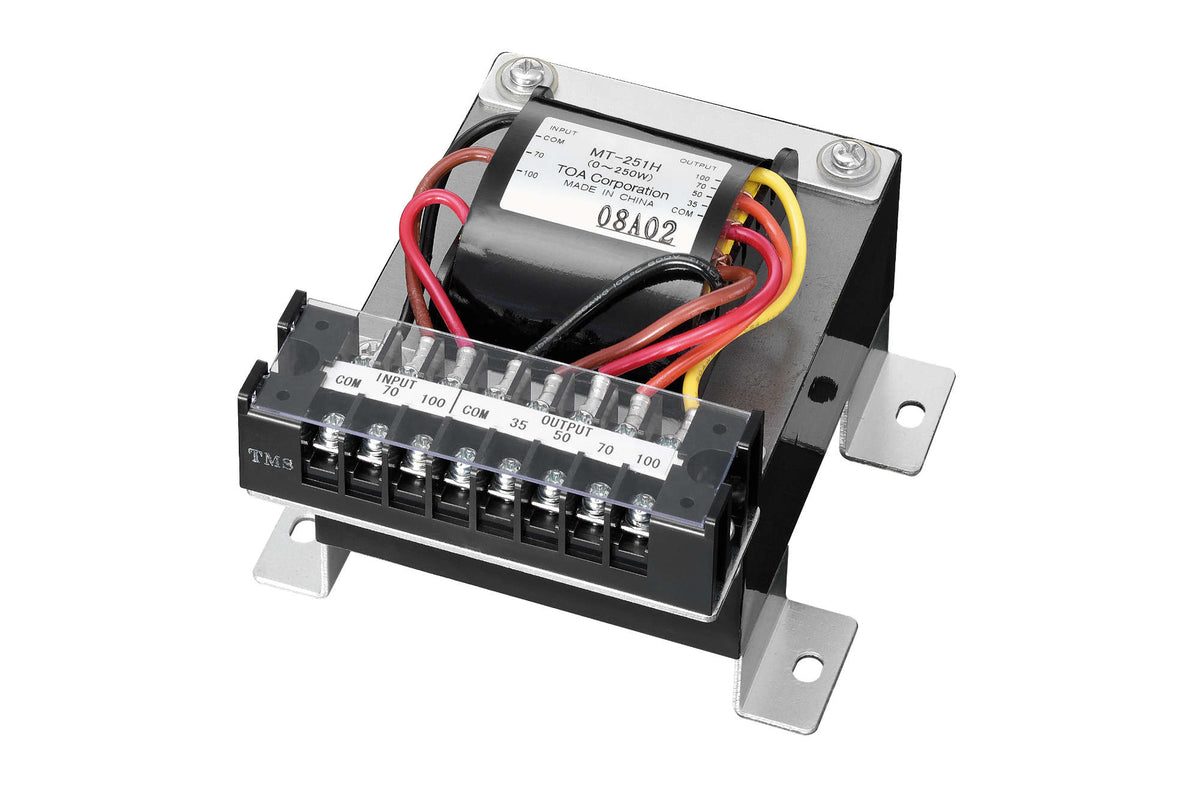

Matching transformer: MT-251H
Dimensions & finish
Finish
Panel: Aluminum, black, alumite Case: Plated steel sheet
Dimensions
482 (W) x 44 (H) x 401.8 (D) mm (18.98 x 1.73" x 15.82")
Weight
5.3 kg (11.68 lb)
