TOA D-922E: Mic/Line Input Module (20 Bits Monaural Type)
Model D-922E
Request a Quote
Availability: Out of Stock
- A/D Converter: 20 bit
- Sampling Frequency: 48 kHz
- Frequency Response: 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
- Dynamic Range: 85 dB (IHF-A weighted) or more (+4 dB* input)
Product Overview
Overview

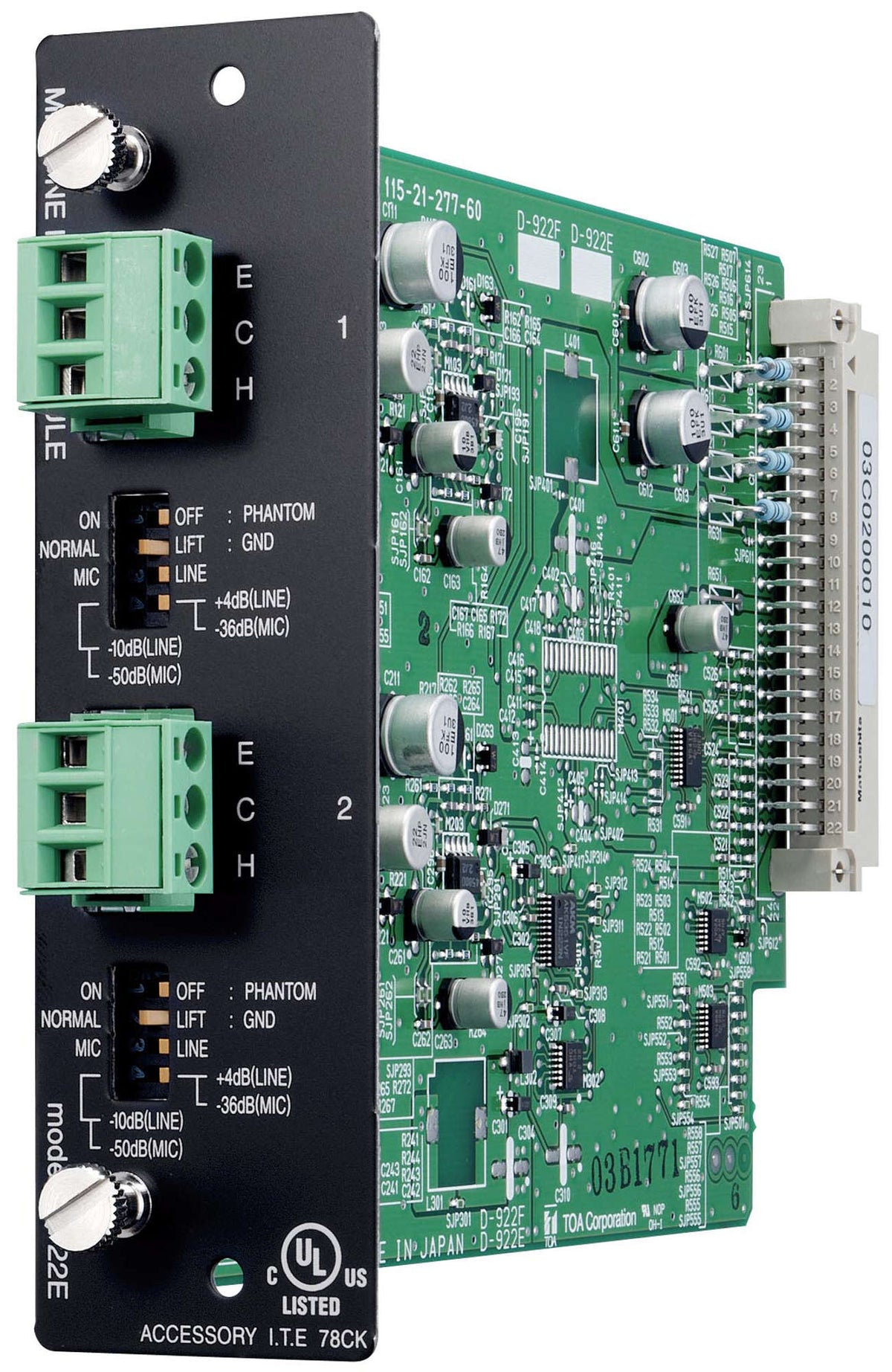

The TOA D-922E is a 2-channel microphone/line input module designed for use with the D-901 Digital Mixer, etc. It is equipped with removable terminal block type connectors.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA D-922E with supply, installation and commissioning.
Key features
- 2-channel microphone/line input module
- Equipped with removable terminal block type connectors
Typical applications
- Expanding digital mixer and matrix systems
- Installed multi-room audio systems
- Auditoriums and venues
Why choose the D-922E
it is a mic/line input module (20 bits monaural type) from TOA, supplied with Corporate AV's site survey, installation and support across India, so the D-922E is specified for your project and not just shipped.
Product Highlights
Key Benefits
A/D Converter: 20 bit
Sampling Frequency: 48 kHz
Frequency Response: 20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range: 85 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion: 0.2 % or less (+4 dB* input)
Use Cases
Ideal Applications
Expanding digital mixer and matrix systems
Installed multi-room audio systems
Auditoriums and venues
Technical Details
Technical Specifications
Specifications
Input
2 channels, -50/-36/-10/+4 dB* (Selectable with the DIP switch.), 4.7 kΩ, electronically-balanced, removable terminal block (3 pins) Phantom power supply (can be set with the DIP switch) 15 V: D-901 (option), DP-K1 (option), D-2008SP (option) 12 V: SX-2100AI (option) Ground lift switch (can be set with the DIP switch)
A/D Converter
20 bit
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range
85 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion
0.2 % or less (+4 dB* input)
Included Accessories
Removable terminal plug (3 pins, preinstalled on the unit) x 2
Dimensions & finish
Finish
Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions
35 (W) x 119.5 (H) x 178.4 (D) mm
Weight
125 g
