TOA D-2012C: Remote Console Unit
Model D-2012C
Request a Quote
Availability: Out of Stock
- The digital mixing processor D-2008SP can be connected via network
- 12 motorized faders and 8 rotary encoders
- Access to up to 80 channels
- Simplified mixing operation that suit nonprofessional users
Product Overview
Overview

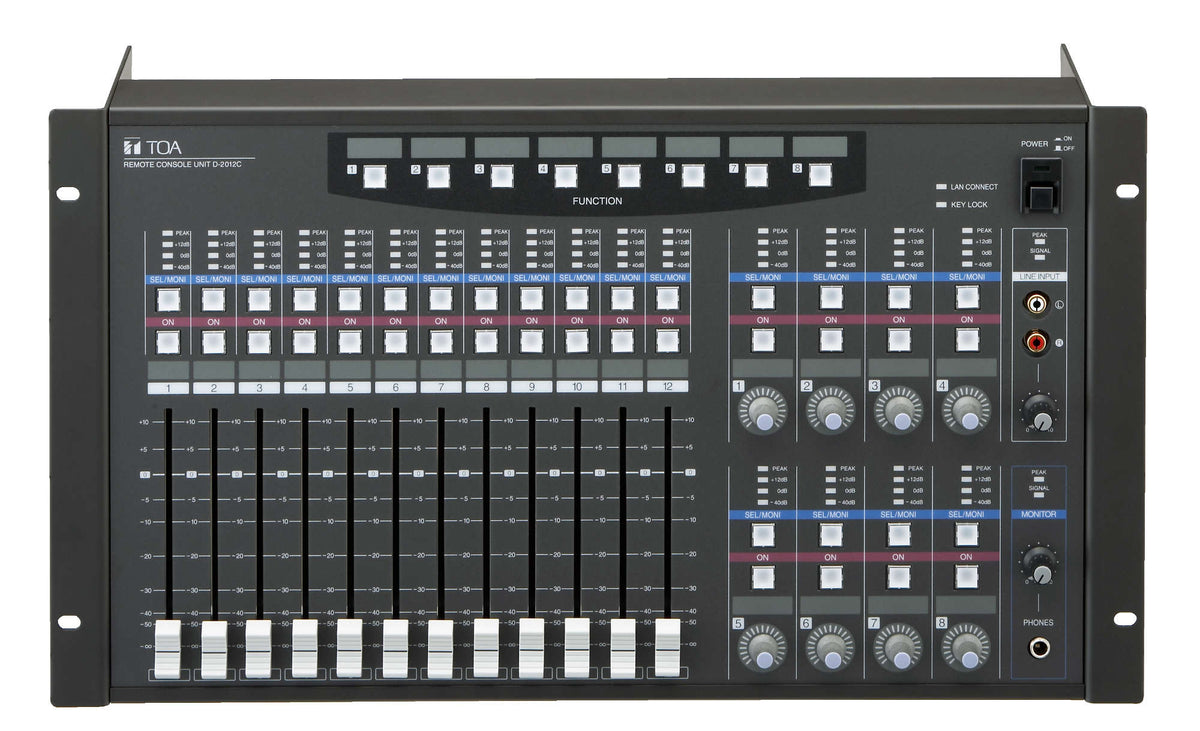

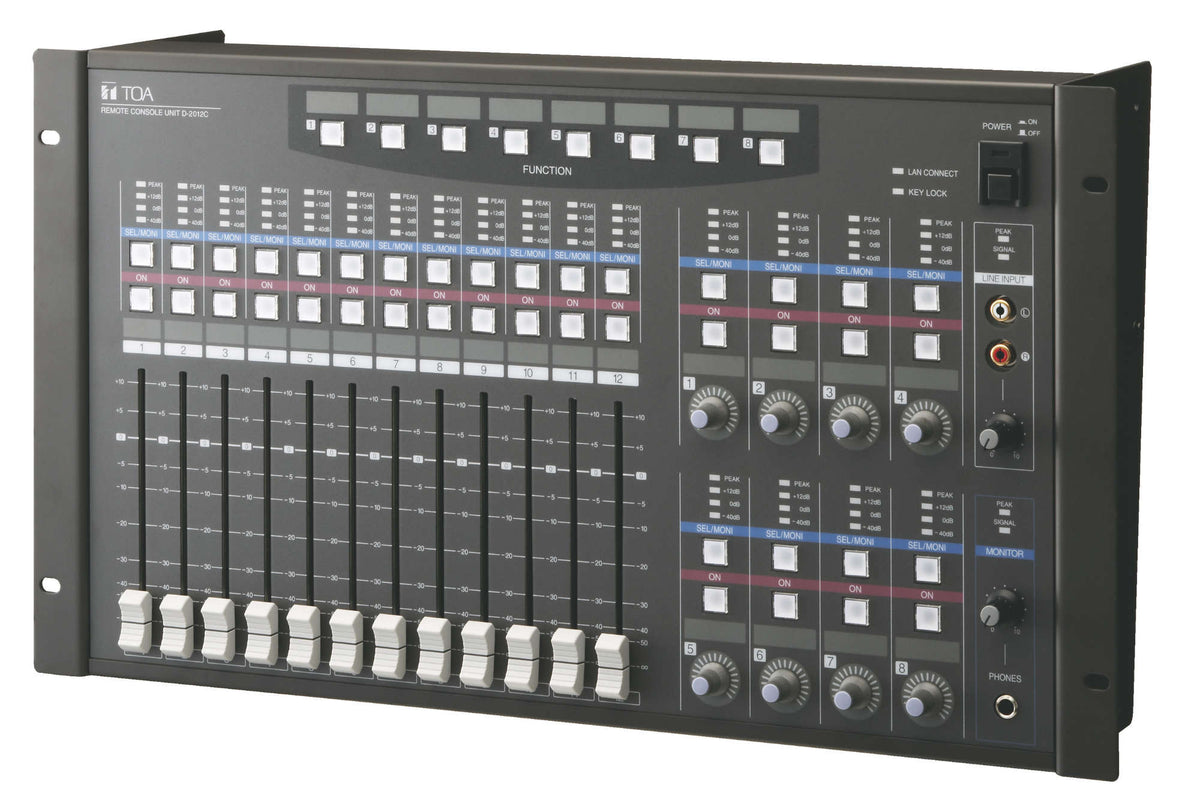

The TOA D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA D-2012C with supply, installation and commissioning.
Key features
- The digital mixing processor D-2008SP can be connected via network
- 12 motorized faders and 8 rotary encoders
- Access to up to 80 channels
- Simplified mixing operation that suit nonprofessional users
- Monitoring of input and output channel signal levels
- Recalling preset memory settings
Typical applications
- Zone and volume control from wall panels
- Digital mixer and matrix systems
- Hotels, venues and commercial buildings
Why choose the D-2012C
it is a remote console unit from TOA, supplied with Corporate AV's site survey, installation and support across India, so the D-2012C is specified for your project and not just shipped.
Product Highlights
Key Benefits
The digital mixing processor D-2008SP can be connected via network
12 motorized faders and 8 rotary encoders
Access to up to 80 channels
Simplified mixing operation that suit nonprofessional users
Monitoring of input and output channel signal levels
Use Cases
Ideal Applications
Zone and volume control from wall panels
Digital mixer and matrix systems
Hotels, venues and commercial buildings
Technical Details
Technical Specifications
Specifications
Power Source
220 - 240 V AC, 50/60 Hz
Power Consumption
18 W
Volume Adjustment
100 mm (3.94") motorized fader x 12, rotary encoder x 8
Line Input
1 channel (stereo), +10 to -20 dB*, 10 kΩ, unbalanced, RCA Pin-jack
Headphone Output
Stereo, 100 mW + 100 mW (at 32 Ω load), standard stereo phone jack
Monitor Bus
1 stereo input, 1 stereo output Connector: RJ45 connector Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable Maximum cable distance: 100 m or 109.36 yd (between D-2012C and D-2008SP)
LAN
Network I/F: 1 channel, 10BASE-T- or 100BASE-TX (Automatic-Negotication), RJ45 connector, Connected via a switching hub Network Protocol: TCP/IP Connection cable: Shielded twisted pair (STP) Cat 5 or higher LAN cable Maximum cable distance: 100 m or 109.36 yd (between D-2012C and a switching hub)
Control
RS-232C: D-sub connector (9 pins) for maintenance use
Operating Temperature
5 °C to 40 °C (41 ºF to 104 ºF)
Included Accessories
Power cord (2m (6.5 ft) x 1, Rack mounting screw x 4, Fader knob (yellow) x 3, Fader knob (red) x 3, Cord clamp (fitting screw) x 1
Optional Accessories

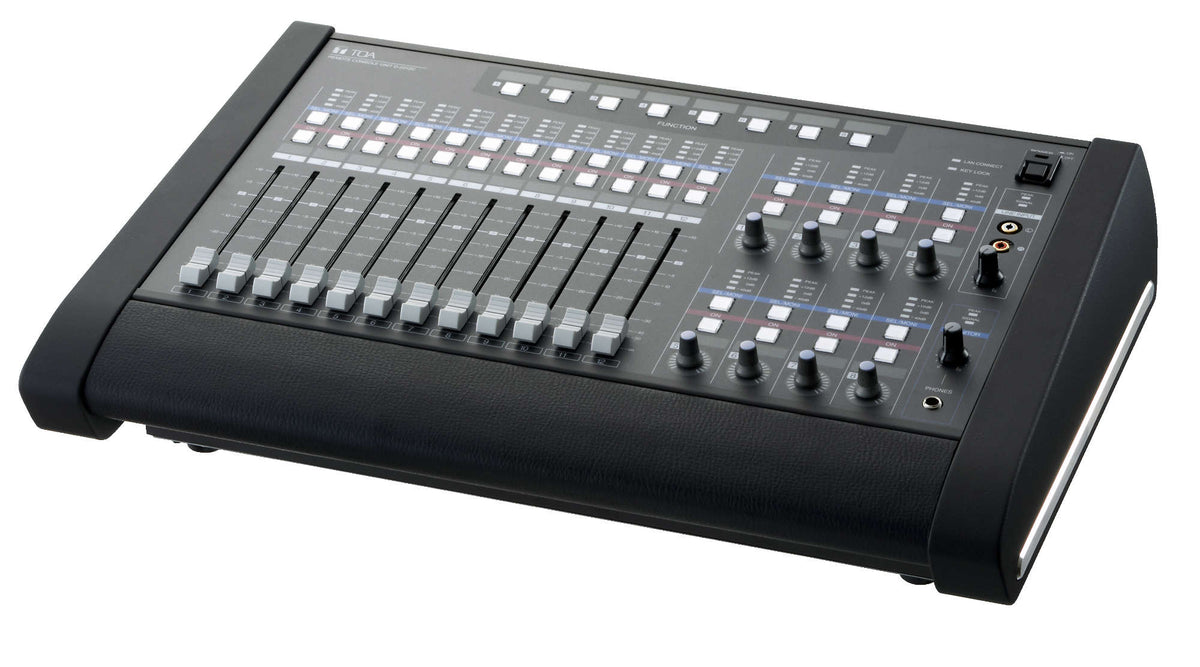

Console case: D-2012AS
Dimensions & finish
Finish
Panel: Surface-treated steel sheet, laminated with polycarbonate sheet, gray, mat Rack mounting bracket: Surface-treated steel sheet, gray, mat
Dimensions
482 (W) x 266 (H) x 138 (D) mm (18.98" x 10.47" x 5.43")
Weight
6.6 kg (14.55 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The D-2012C From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA D-2012C?
The TOA D-2012C is a 6U rack mountable Remote Console Unit designed for exclusive use with the D-2008SP Digital Mixing Processor Unit. Assigned to any desired channels inside the D-2008SP by the dedicated software, the D-2012C's 12 motorized faders and 8 rotary encoders can remotely adjust their volumes.
What are the main specifications of the TOA D-2012C?
TOA lists these figures for the D-2012C: Power Source: 220 - 240 V AC, 50/60 Hz; Weight: 6.6 kg (14.55 lb). The full specification table is on this page.
What are the key features of the TOA D-2012C?
TOA highlights: the digital mixing processor D-2008SP can be connected via network; 12 motorized faders and 8 rotary encoders; access to up to 80 channels; simplified mixing operation that suit nonprofessional users.
Where is the TOA D-2012C used?
It suits: zone and volume control from wall panels; digital mixer and matrix systems; hotels, venues and commercial buildings. Corporate AV can advise whether it fits your project.
Which TOA series is the D-2012C part of?
TOA lists the D-2012C in its D-2000 Digital Mixing System range.
Can Corporate AV supply and install the TOA D-2012C in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA D-2012C?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
