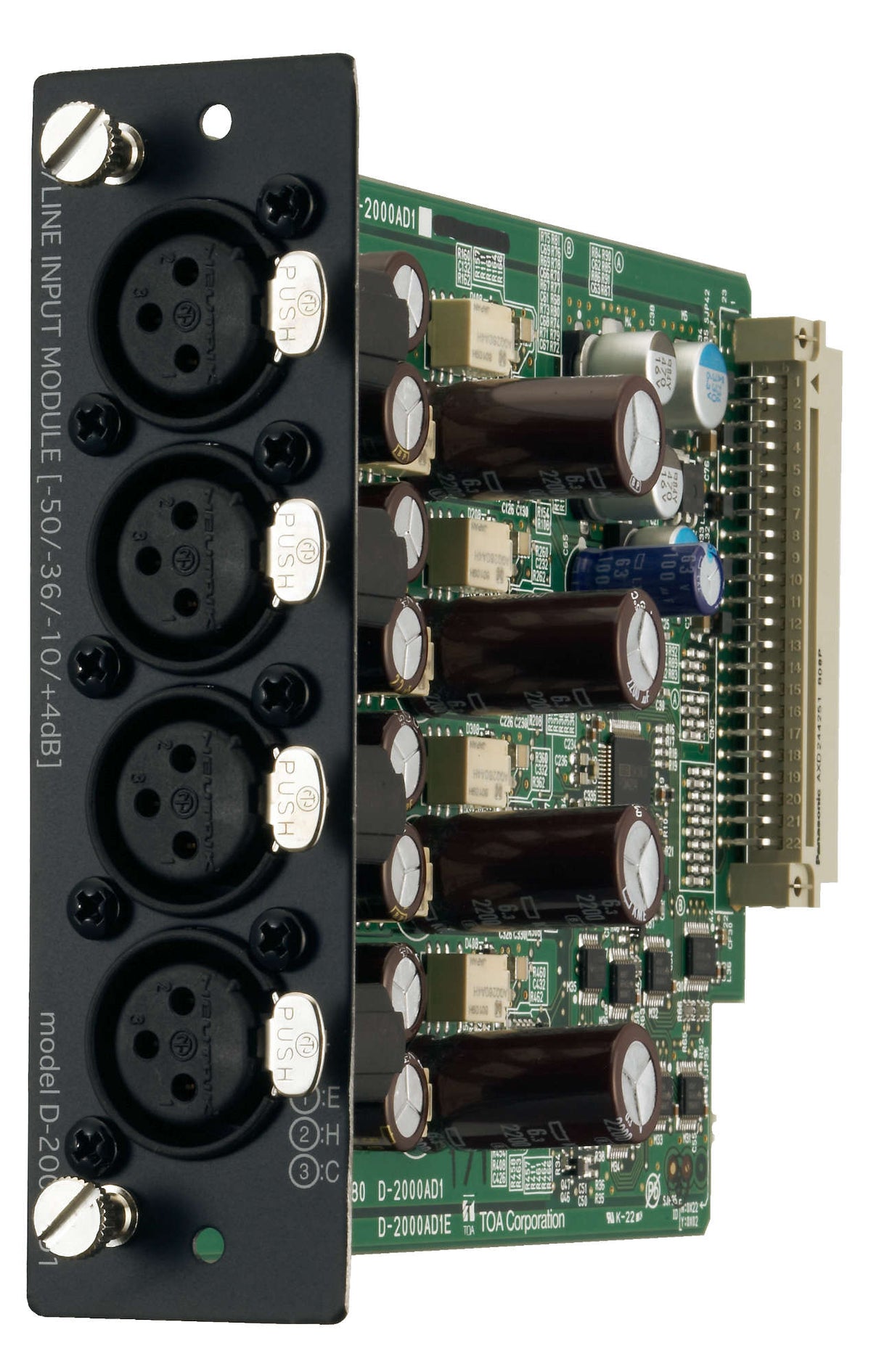

TOA D-2000AD1: Mic/Line Input Module (Monaural Type)
Model D-2000AD1
Request a Quote
Availability: Out of Stock
- 4-channel, XLR connectors
- A/D converter: 24 bit
- Phantom power supply (48 V)
- Distortion: 0.008 % or less
Product Overview
Overview
The TOA D-2000AD1 is a 4-channel Microphone/Line Input Module designed for use with the D-2008SP Digital Mixing Processor Unit. It employs XLR type connectors.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA D-2000AD1 with supply, installation and commissioning.
Key features
- 4-channel, XLR connectors
- A/D converter: 24 bit
- Phantom power supply (48 V)
- Distortion: 0.008 % or less
Typical applications
- Expanding digital mixer and matrix systems
- Installed multi-room audio systems
- Auditoriums and venues
Why choose the D-2000AD1
it is a mic/line input module (monaural type) from TOA, supplied with Corporate AV's site survey, installation and support across India, so the D-2000AD1 is specified for your project and not just shipped.
Product Highlights
Key Benefits
4-channel, XLR connectors
A/D converter: 24 bit
Phantom power supply (48 V)
Distortion: 0.008 % or less
Use Cases
Ideal Applications
Expanding digital mixer and matrix systems
Installed multi-room audio systems
Auditoriums and venues
Technical Details
Technical Specifications
Specifications
Input
4 channels, Mic/Line selectable Mic: -50/-36 dB*, 2.6 kΩ, electronically-balanced Line: -10 dB*, 2.6 kΩ/+4 dB*, 7 kΩ, electronically-balanced Connector: XLR-3-31 equivalent Phantom power supply (48 V DC, can be used when set for the Mic) Ground lift switch
A/D Converter
24 bit
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, ±1 dB (+4 dB* input)
Dynamic Range
104 dB (IHF-A weighted) or more (+4 dB* input)
Total Harmonic Distortion
0.008 % or less (+4 dB* input)
Dimensions & finish
Finish
Panel: Pre-coated steel plate, black, 30 % gloss
Dimensions
35 (W) x 119.5 (H) x 178.4 (D) mm (1.38" x 4.7" x 7.02")
Weight
200 g (0.44 lb)
Why CorporateAV?
Sourced right. Installed right.
Genuine Manufacturer Stock
Every unit sourced through authorized distribution, backed by manufacturer warranty.
Expert AV Integration
Paired correctly with compatible systems and your room's existing AV infrastructure.
Pan-India Delivery & Support
On-site installation and ongoing technical support wherever your project is based.
More Details
Additional Information
Why Buy The D-2000AD1 From Corporate AV?
- Genuine TOA stock with manufacturer warranty support
- Custom pricing for bulk and multi-room / multi-site rollouts
- Local after-sales support — a real team you can call or WhatsApp, not a call centre
- Expert guidance on product selection and deployment planning
- Professional installation across Bangalore, Hyderabad, Mumbai, Delhi NCR, and the wider India region
Distribution
Corporate AV supplies and installs TOA products across Bangalore, Hyderabad, Mumbai, Delhi NCR, Chennai, Pune, Kolkata, Ahmedabad, and the wider India region.
Frequently Asked Questions
What is the TOA D-2000AD1?
The TOA D-2000AD1 is a 4-channel Microphone/Line Input Module designed for use with the D-2008SP Digital Mixing Processor Unit. It employs XLR type connectors.
What are the main specifications of the TOA D-2000AD1?
TOA lists these figures for the D-2000AD1: Frequency Response: 20 Hz - 20 kHz, ±1 dB (+4 dB* input); Total Harmonic Distortion: 0.008 % or less (+4 dB* input); Input: 4 channels, Mic/Line selectable Mic: -50/-36 dB*, 2.6 kΩ, electronically-balanced Line: -10 dB*, 2.6 kΩ/+4 dB*, 7 kΩ, electronically-balanced Connector: XLR-3-31 equivalent Phantom power supply (48 V DC, can be used when set for the Mic) Ground lift switch; Weight: 200 g (0.44 lb). The full specification table is on this page.
What are the key features of the TOA D-2000AD1?
TOA highlights: 4-channel, XLR connectors; a/D converter: 24 bit; phantom power supply (48 V); distortion: 0.008 % or less.
Where is the TOA D-2000AD1 used?
It suits: expanding digital mixer and matrix systems; installed multi-room audio systems; auditoriums and venues. Corporate AV can advise whether it fits your project.
Which TOA series is the D-2000AD1 part of?
TOA lists the D-2000AD1 in its D-2000 Digital Mixing System range.
Can Corporate AV supply and install the TOA D-2000AD1 in India?
Yes. Corporate AV supplies, installs and supports TOA audio systems across India, with a site survey, commissioning and after-sales support.
How do I get a quote for the TOA D-2000AD1?
Use the Request a Quote button on this page or contact Corporate AV with your project details and quantity, and a consultant will respond with a quotation for supply and installation.
