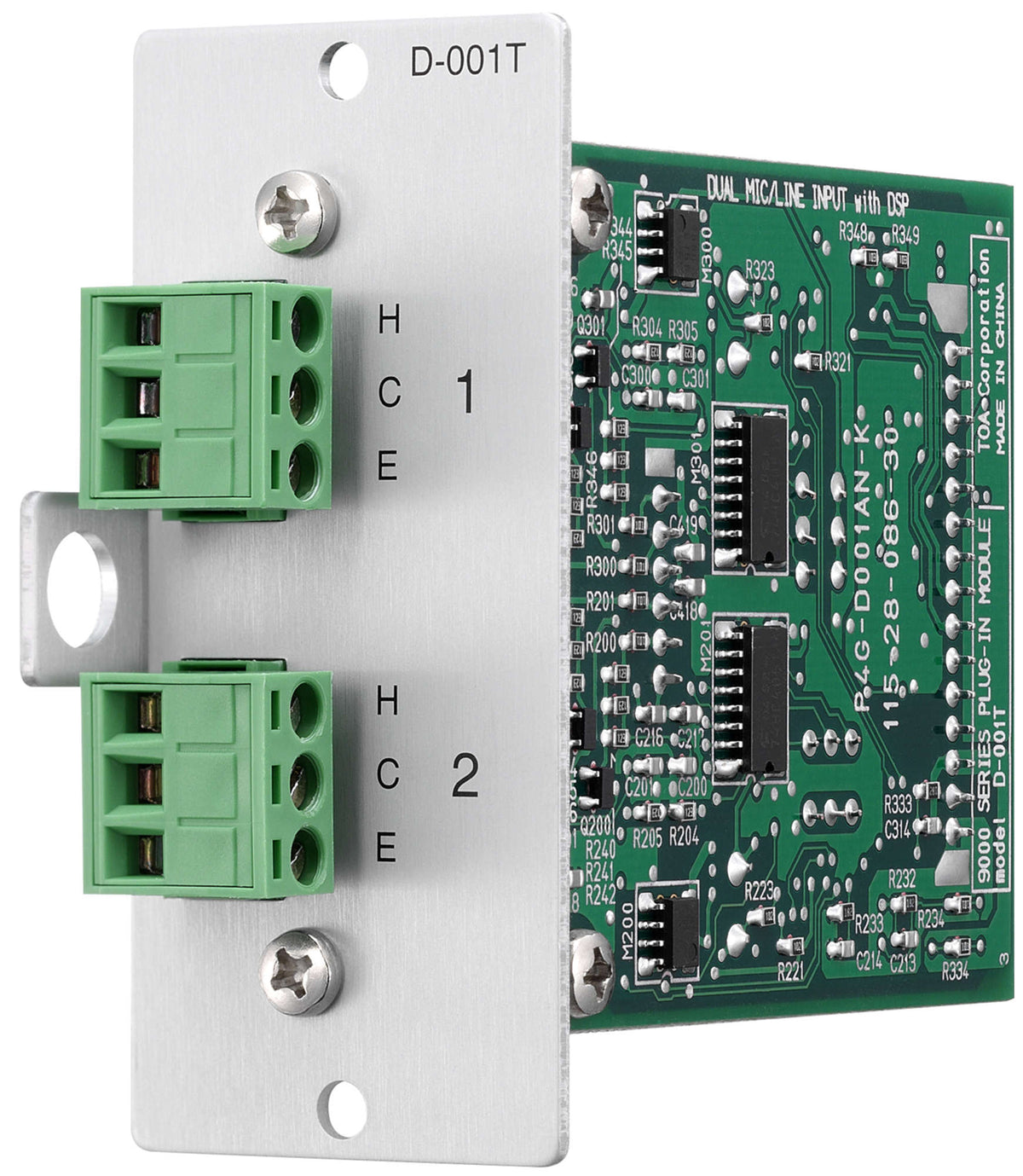

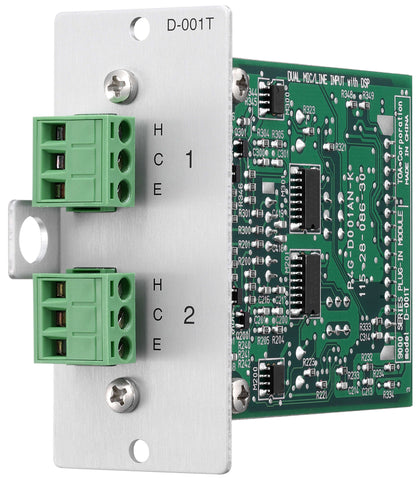

TOA D-001T: Dual Mic / Line Input Module with DSP
Model D-001T
Request a Quote
Availability: Out of Stock
- 2 balanced mic / line Inputs
- Digital signal processing: - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor
- Adjustable sensitivity (-60 to -10 dBV, 9-steps)
- Phantom power (24 V DC)
Product Overview
Overview

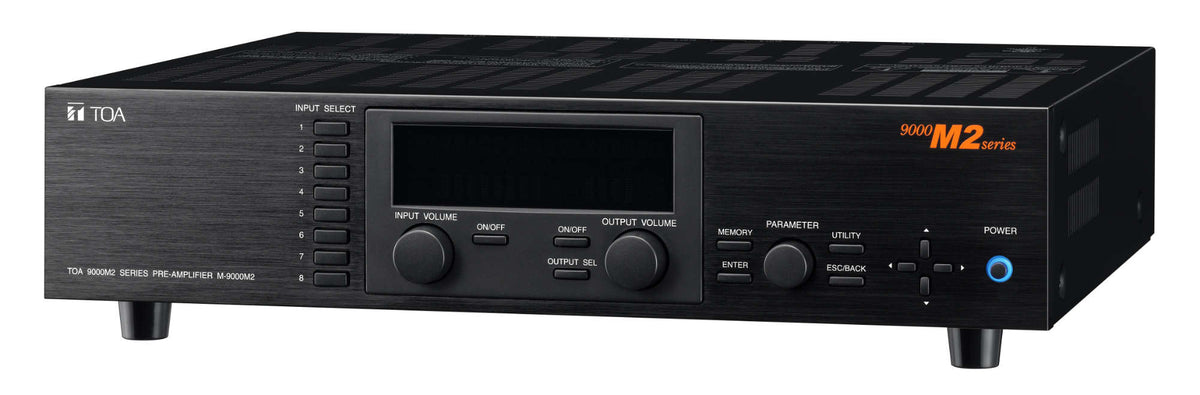

The TOA D-001T is a plug-in module designed for use with the 9000 Series amplifiers and can provide two independent balanced inputs. The D-001T can handle signals ranging from microphone level to line level by controlling their input sensitivity in 9 increments from -60 dB to -10 dB. Phantom power (+24 V) can be supplied for condenser microphone use.
Corporate AV supplies, installs and supports TOA audio systems across India. Request a quote for the TOA D-001T with supply, installation and commissioning.
Key features
- 2 balanced mic / line Inputs
- Digital signal processing: - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor
- Adjustable sensitivity (-60 to -10 dBV, 9-steps)
- Phantom power (24 V DC)
- Removable terminal block
- Max. 4 input modules per chassis
- Required for VOX-function and input measure
Typical applications
- Expanding digital mixer and matrix systems
- Installed multi-room audio systems
- Auditoriums and venues
Why choose the D-001T
it is a dual mic / line input module with DSP from TOA, supplied with Corporate AV's site survey, installation and support across India, so the D-001T is specified for your project and not just shipped.
Product Highlights
Key Benefits
2 balanced mic / line Inputs
Digital signal processing: - 10-band parametric EQ - Bass / treble, loudness - High pass / low pass filters, compressor
Adjustable sensitivity (-60 to -10 dBV, 9-steps)
Phantom power (24 V DC)
Removable terminal block
Use Cases
Ideal Applications
Expanding digital mixer and matrix systems
Installed multi-room audio systems
Auditoriums and venues
Technical Details
Technical Specifications
Specifications
Power Supply
+24 V DC, -24 V DC, +6 V DC
Current Consumption
20 mA (at +24 V DC), 20 mA (at -24 V DC), 60 mA (at +6 V DC)
Input
2 channels, 3 kΩ (when the phantom power is ON)/10 kΩ (when the phantom power is OFF), electronically-balanced, removable terminal block (3 pins)
Input Sensitivity
-60, -54, -48, -42, -36, -30, -24, -18, -10 dB* (selectable)
A/D Converter
24 bit ADC
Sampling Frequency
48 kHz
Frequency Response
20 Hz - 20 kHz, +1, -3 dB
Total Harmonic Distortion
0.008 % (at 1 kHz, 20 Hz - 20 kHz BPF, Input sensitivity: -10 dB)
Input Equivalent Noise
Under -112 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -60 dB)
Signal to Noise Ratio
Over 73 dB (at 20 Hz - 20 kHz BPF, Input short, Input sensitivity: -10 dB)
Crosstalk
Over 75 dB (at 20 kHz, Input sensitivity: -10 dB)
CMRR
Over 62 dB (at 1 kHz, Input sensitivity: -60 dB)
Tone Control
Bass: ±12 dB (at 100 Hz) Treble: ±12 dB (at 10 kHz)
Parametric Equalizer
10 bands, Frequency: 20 Hz - 20 kHz, 31 points, Variable range: ±12 dB, Q: 0.3 - 5
High-Pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Low-pass Filter
-12 dB/oct, Variable frequency range: 20 Hz - 20 kHz, 31 points
Compressor
Depth: 1 - 5
Phantom Power
+24 V DC
Operating Temperature
-10 °C to +40 °C (14 ℉ to 104 ℉)
Included Accessories
Removable terminal plug (3 pins) x 2, Module mounting screw x 2
Dimensions & finish
Finish
Panel: Aluminum, hair-line
Dimensions
35 (W) x 78 (H) x 91.5 (D) mm
Weight
82 g
